Page 481 of 574

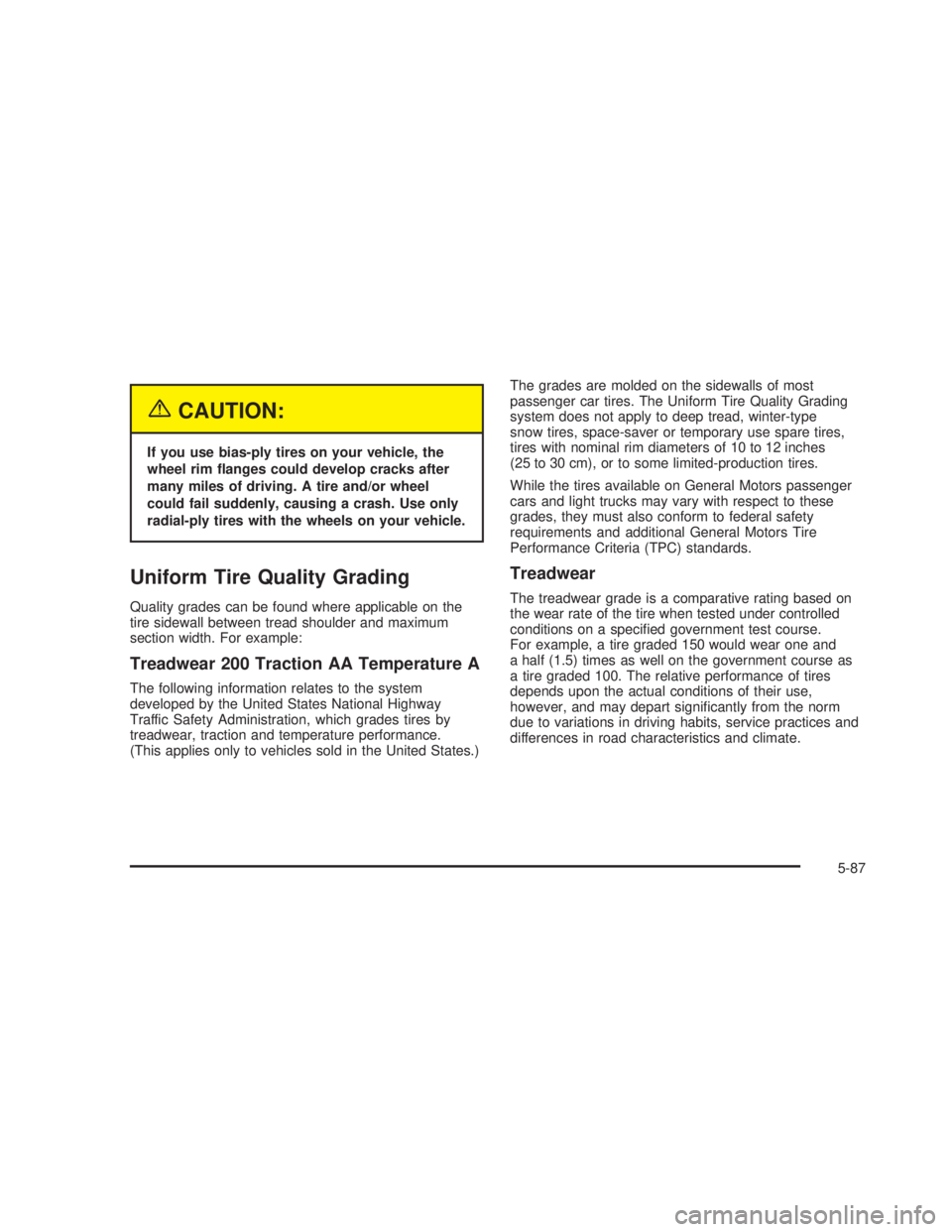

GMC SIERRA 2005  Owners Manual {CAUTION:
If you use bias-ply tires on your vehicle, the
wheel rim �anges could develop cracks after
many miles of driving. A tire and/or wheel
could fail suddenly, causing a crash. Use only
radial-pl

Page 482 of 574

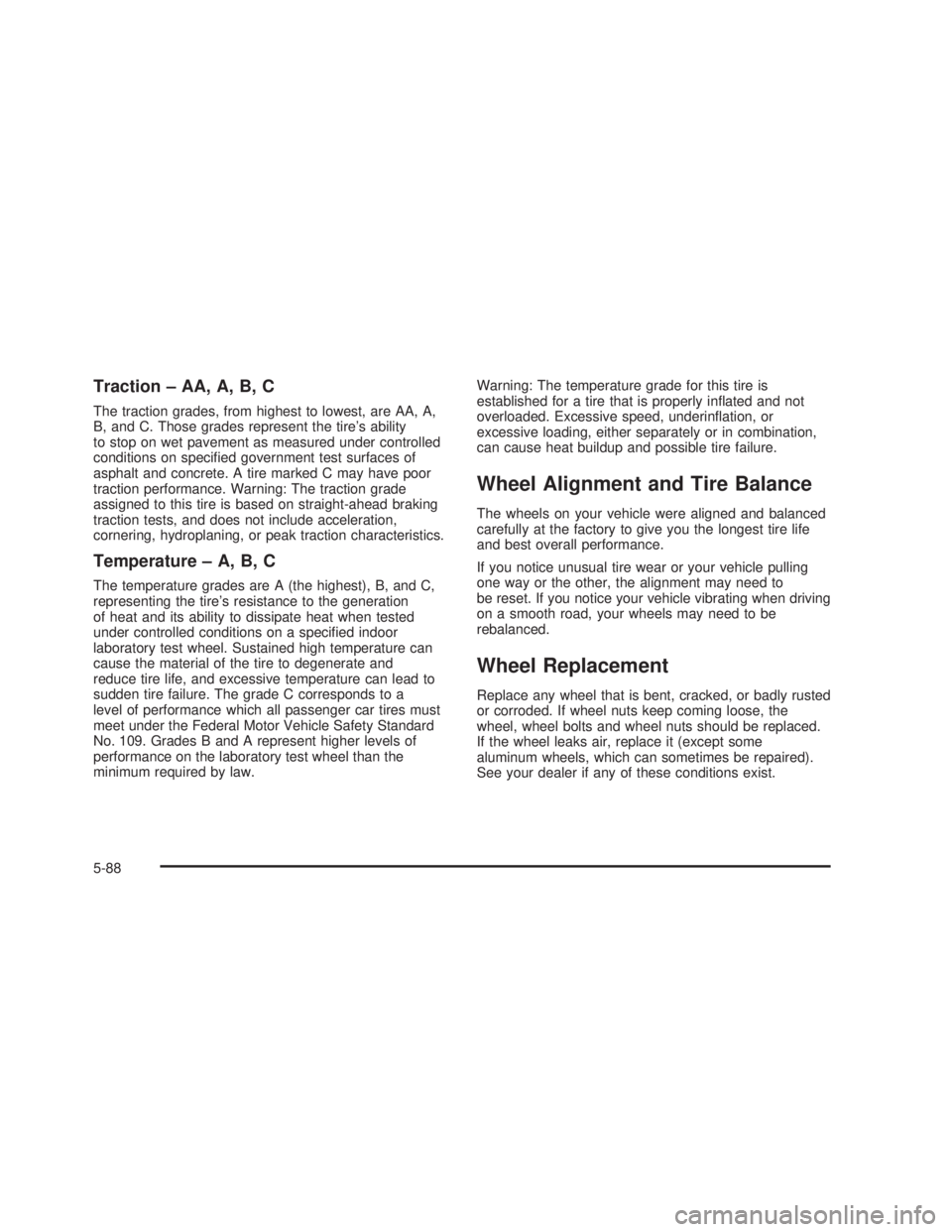

GMC SIERRA 2005  Owners Manual Traction – AA, A, B, C
The traction grades, from highest to lowest, are AA, A,
B, and C. Those grades represent the tire’s ability
to stop on wet pavement as measured under controlled
conditions o

Page 483 of 574

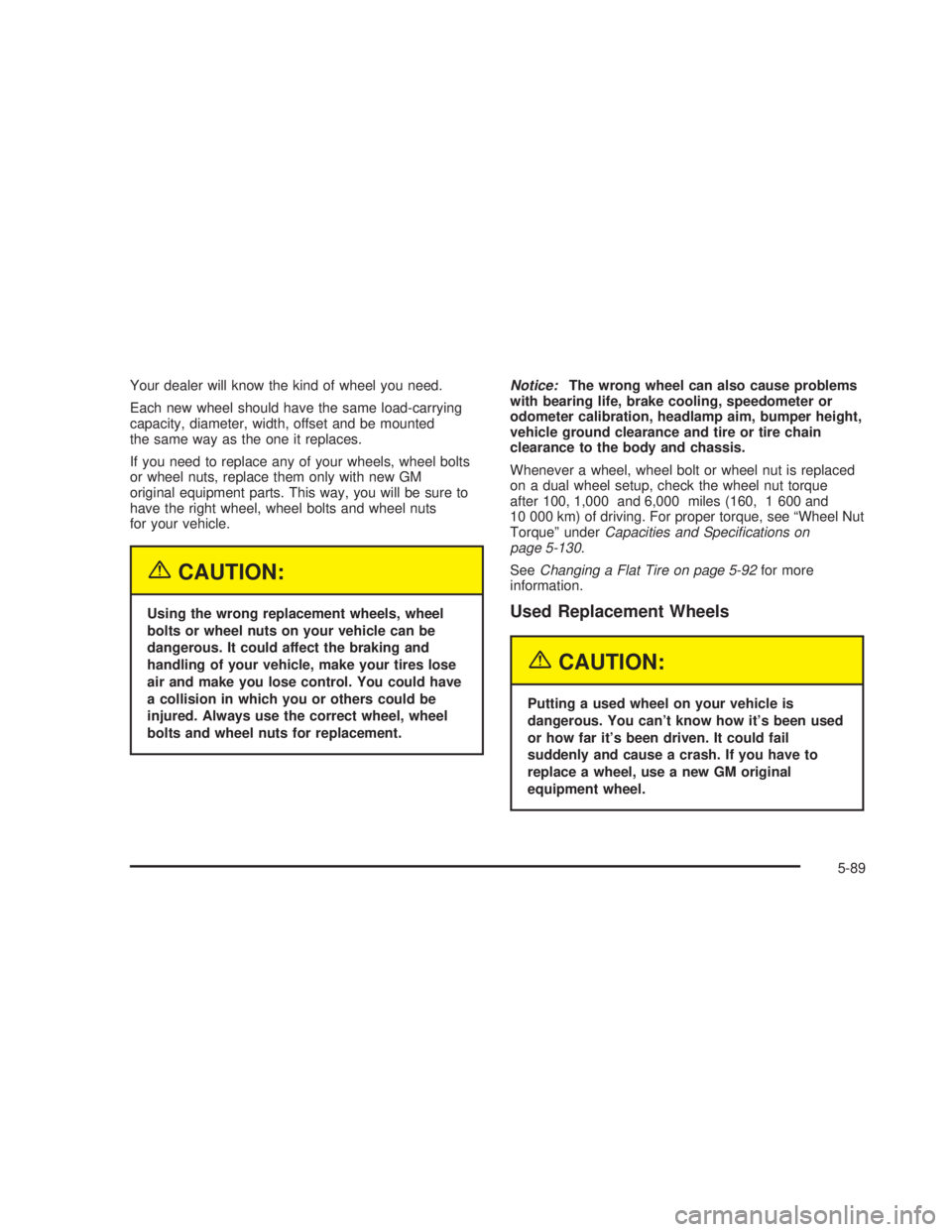

GMC SIERRA 2005  Owners Manual Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to

Page 484 of 574

GMC SIERRA 2005  Owners Manual Tire Chains
{CAUTION:
If your vehicle has dual wheels or P265/75R16,
LT265/75R16, P265/70R17 or P275/55R20 size
tires, don’t use tire chains. They can damage
your vehicle because there’s not enoug

Page 485 of 574

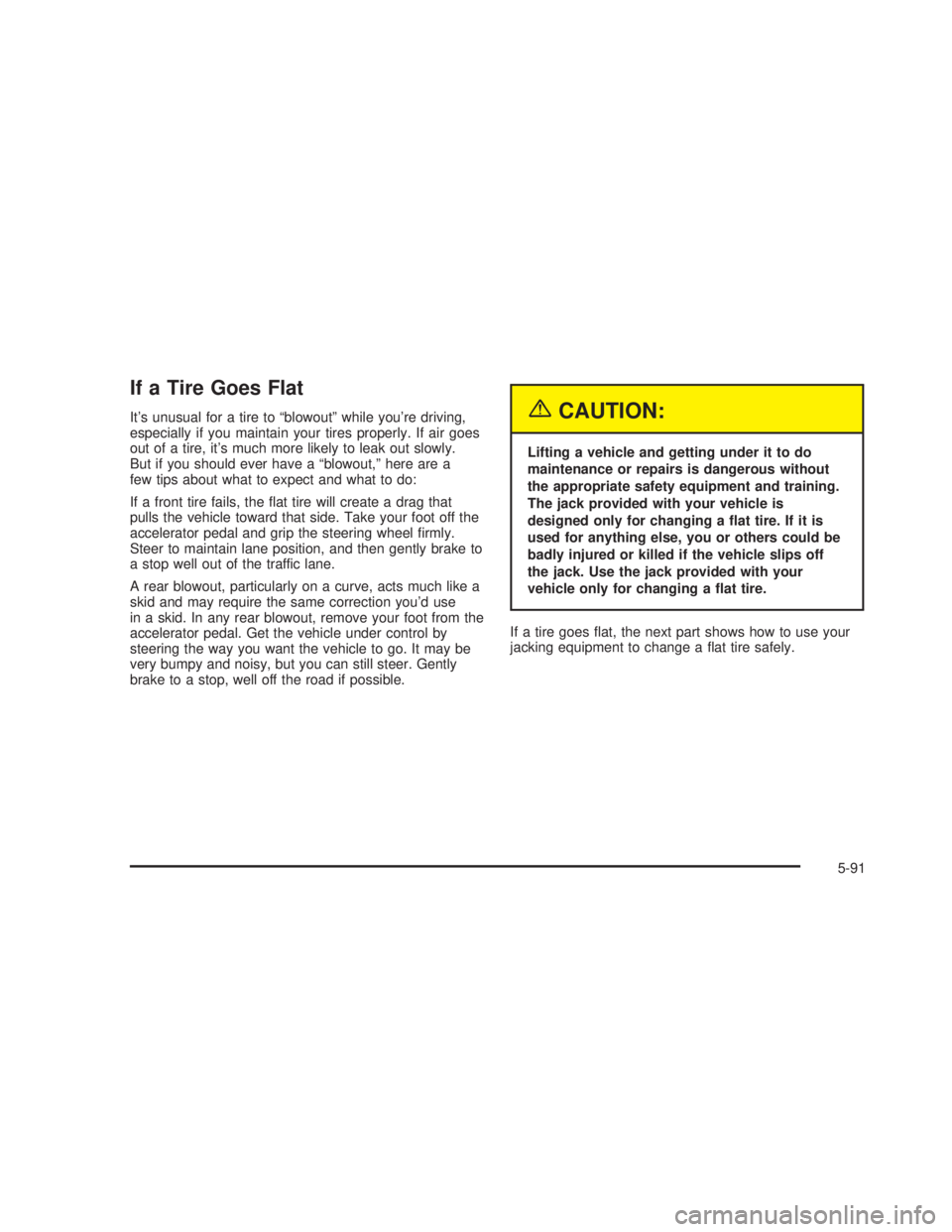

GMC SIERRA 2005  Owners Manual If a Tire Goes Flat
It’s unusual for a tire to “blowout” while you’re driving,
especially if you maintain your tires properly. If air goes
out of a tire, it’s much more likely to leak out sl

Page 486 of 574

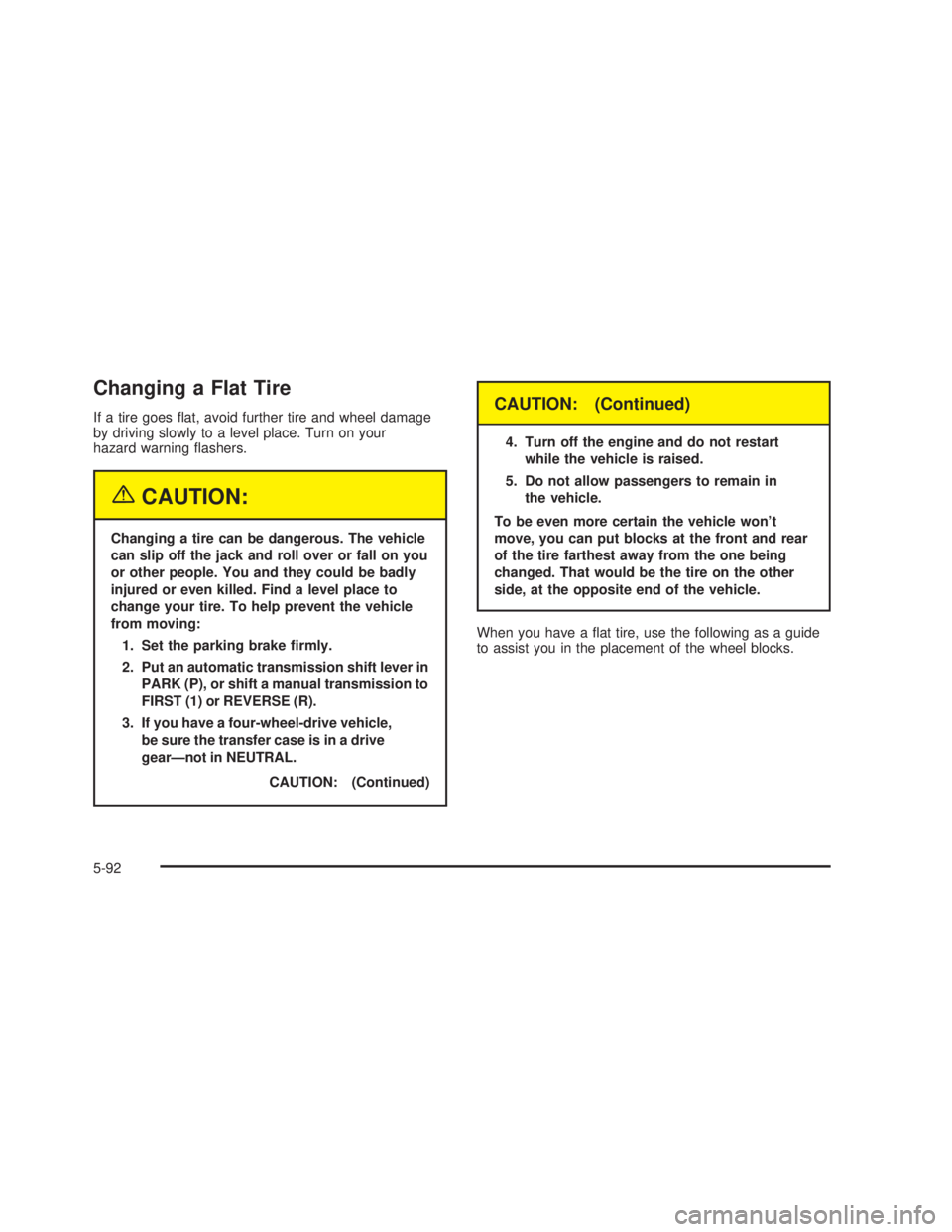

GMC SIERRA 2005  Owners Manual Changing a Flat Tire
If a tire goes �at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your
hazard warning �ashers.
{CAUTION:
Changing a tire can be dangerous. The ve

Page 487 of 574

GMC SIERRA 2005  Owners Manual The following information will tell you next how to use
the jack and change a tire.
Removing the Spare Tire and Tools
Regular Cab and Crew Cab (Except 1500 Crew Cab)
5-93

Page 488 of 574

GMC SIERRA 2005  Owners Manual For regular cab models, the equipment you’ll need is
behind the passenger’s seat. For extended and
crew cab models, the equipment is on the shelf behind
the passenger’s side second row seat.
1.

Page 489 of 574

GMC SIERRA 2005  Owners Manual 3. Remove the wheel blocks and the wheel block
retainer by turning the wing nut counterclockwise.
4. Remove the wing nut used to retain the storage
bag and tools by turning it counterclockwise.
You’

Page 490 of 574

GMC SIERRA 2005  Owners Manual 3. Insert the hoist end
(open end) (F) of the
extension through
the hole (G) in the
rear bumper.
Be sure the hoist end of the extension connects to the
hoist shaft (E). The ribbed square end of the ex
