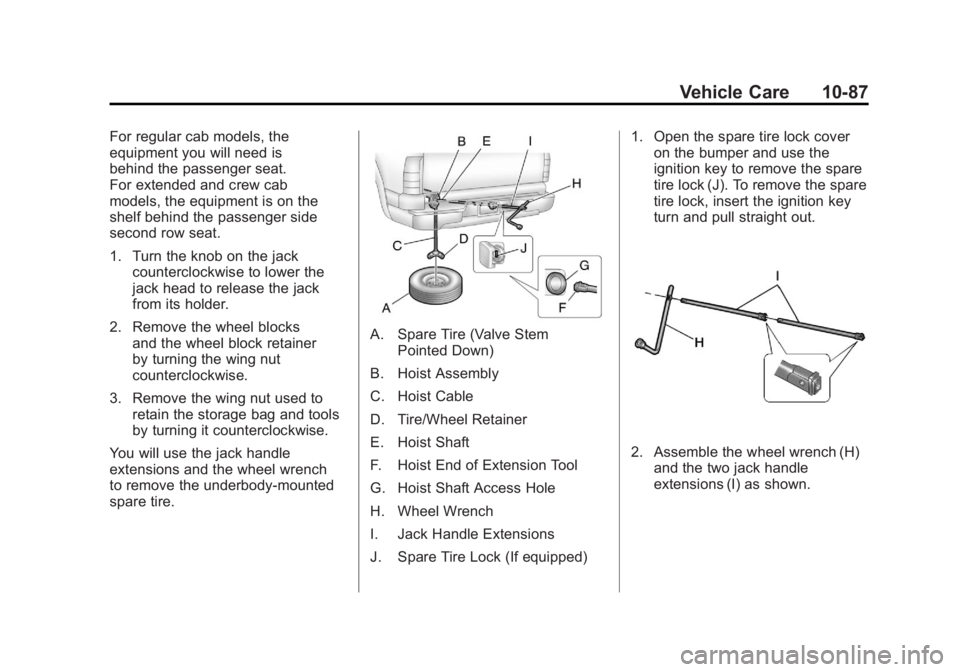

Page 511 of 594

GMC SIERRA 2011  Owners Manual Black plate (87,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-87
For regular cab models, the
equipment you will need is
behind the passenger seat.
For extended and crew cab
models, the equipment is

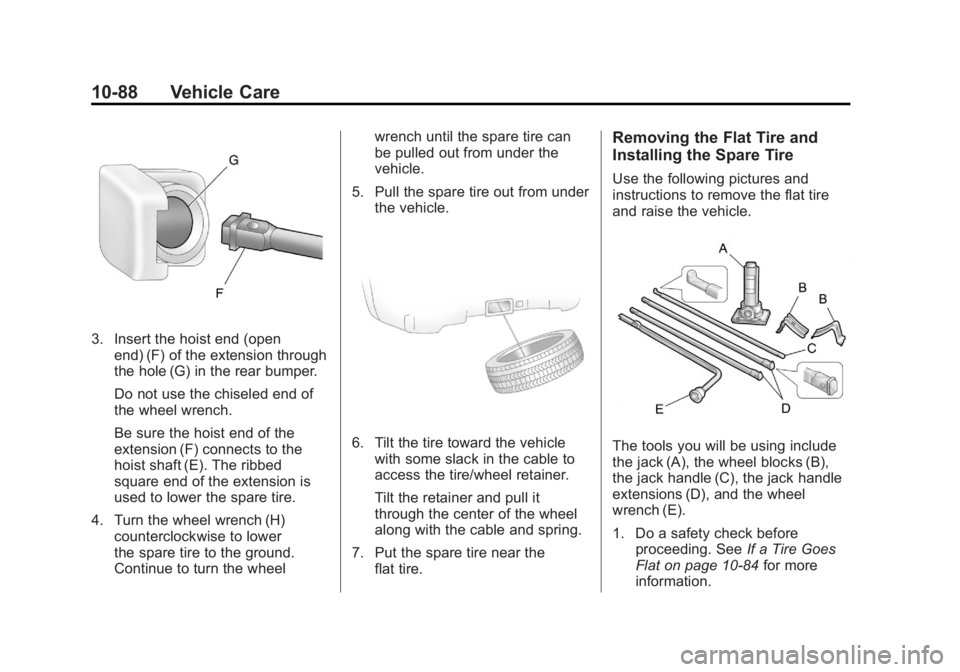

Page 512 of 594

GMC SIERRA 2011  Owners Manual Black plate (88,1)GMC Sierra Owner Manual - 2011
10-88 Vehicle Care
3. Insert the hoist end (openend) (F) of the extension through
the hole (G) in the rear bumper.
Do not use the chiseled end of
the w

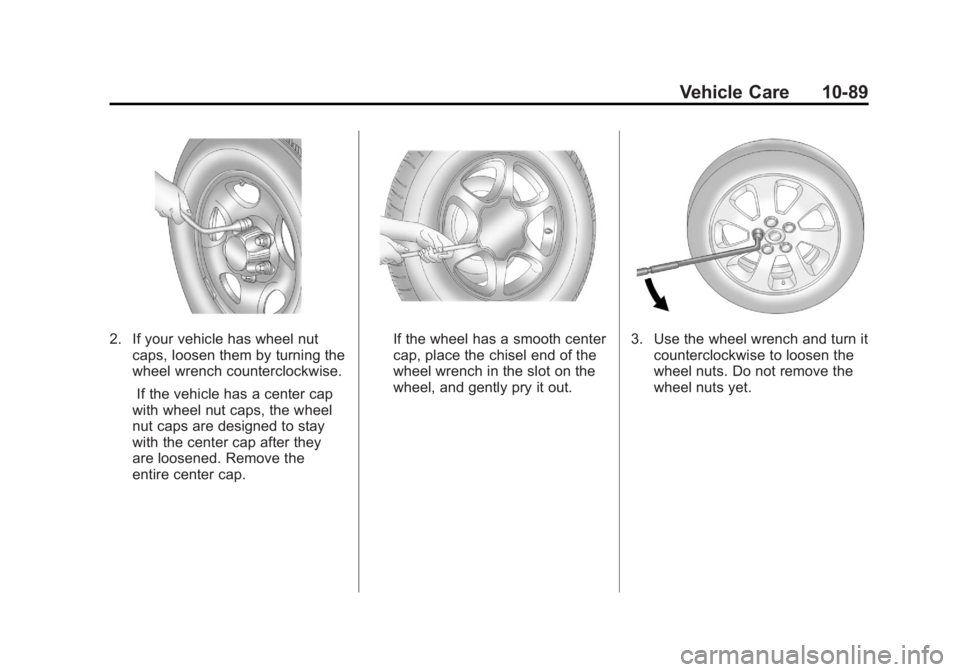

Page 513 of 594

GMC SIERRA 2011  Owners Manual Black plate (89,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-89
2. If your vehicle has wheel nutcaps, loosen them by turning the
wheel wrench counterclockwise.
If the vehicle has a center cap
with

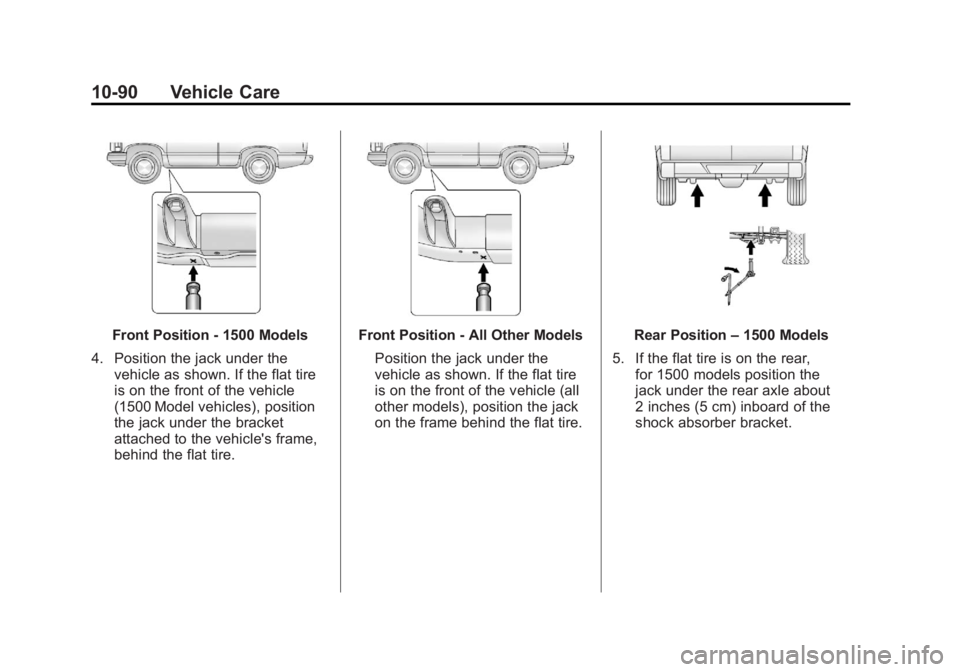

Page 514 of 594

GMC SIERRA 2011  Owners Manual Black plate (90,1)GMC Sierra Owner Manual - 2011
10-90 Vehicle Care
Front Position - 1500 Models
4. Position the jack under the vehicle as shown. If the flat tire
is on the front of the vehicle
(1500

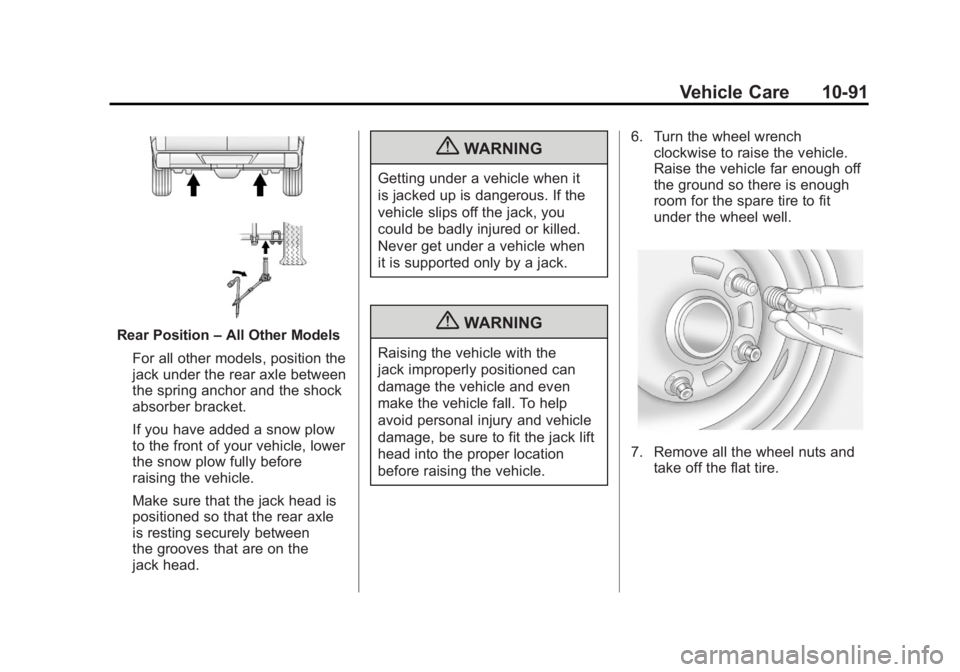

Page 515 of 594

GMC SIERRA 2011  Owners Manual Black plate (91,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-91
Rear Position–All Other Models
For all other models, position the
jack under the rear axle between
the spring anchor and the shock

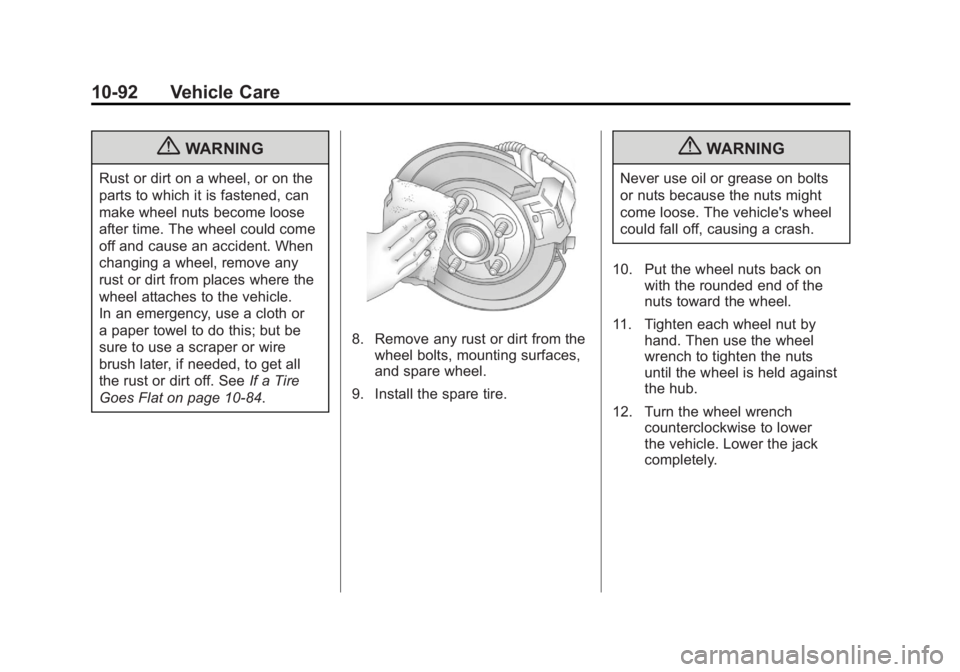

Page 516 of 594

GMC SIERRA 2011  Owners Manual Black plate (92,1)GMC Sierra Owner Manual - 2011
10-92 Vehicle Care
{WARNING
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel co

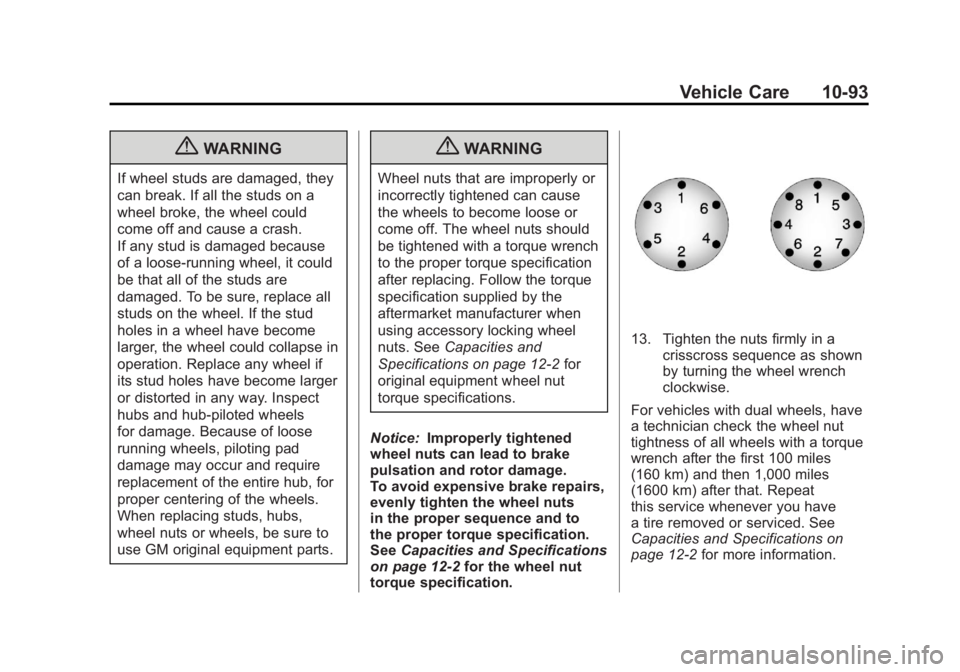

Page 517 of 594

GMC SIERRA 2011  Owners Manual Black plate (93,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-93
{WARNING
If wheel studs are damaged, they
can break. If all the studs on a
wheel broke, the wheel could
come off and cause a crash.

Page 518 of 594

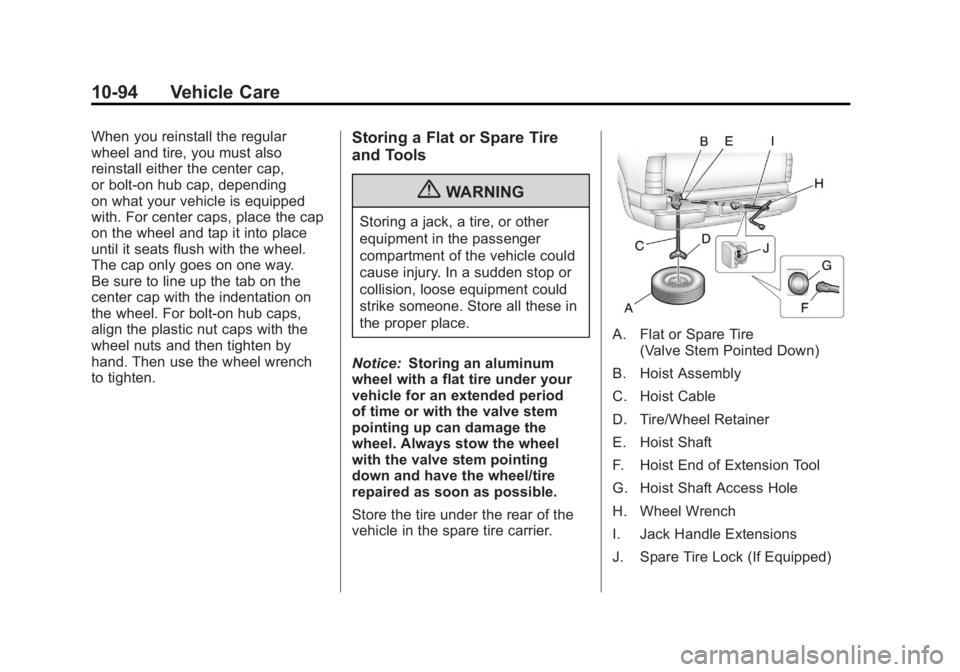

GMC SIERRA 2011  Owners Manual Black plate (94,1)GMC Sierra Owner Manual - 2011
10-94 Vehicle Care
When you reinstall the regular
wheel and tire, you must also
reinstall either the center cap,
or bolt-on hub cap, depending
on what

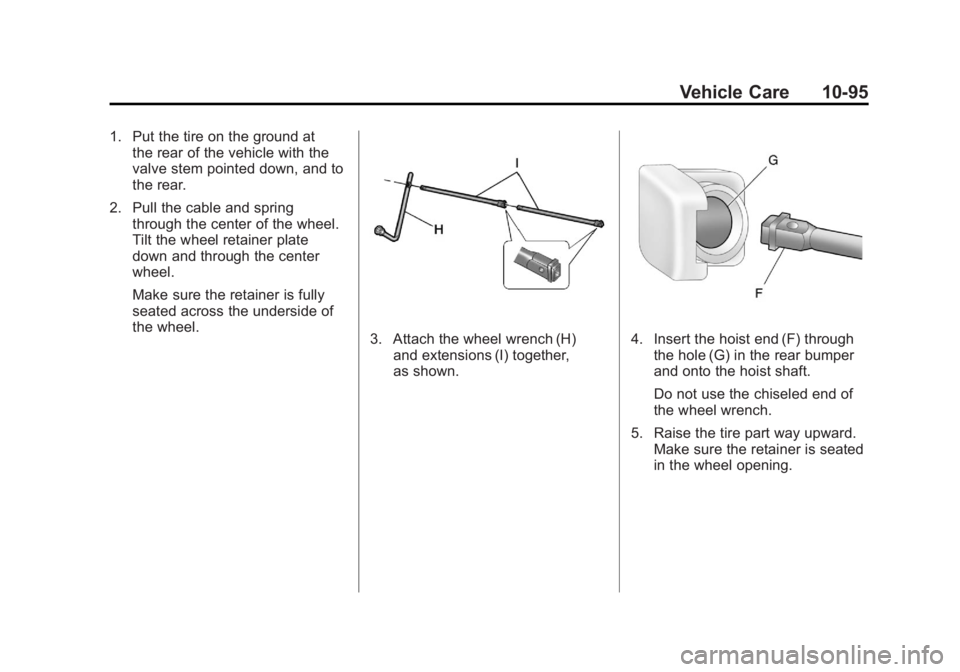

Page 519 of 594

GMC SIERRA 2011  Owners Manual Black plate (95,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-95
1. Put the tire on the ground atthe rear of the vehicle with the
valve stem pointed down, and to
the rear.
2. Pull the cable and spr

Page 520 of 594

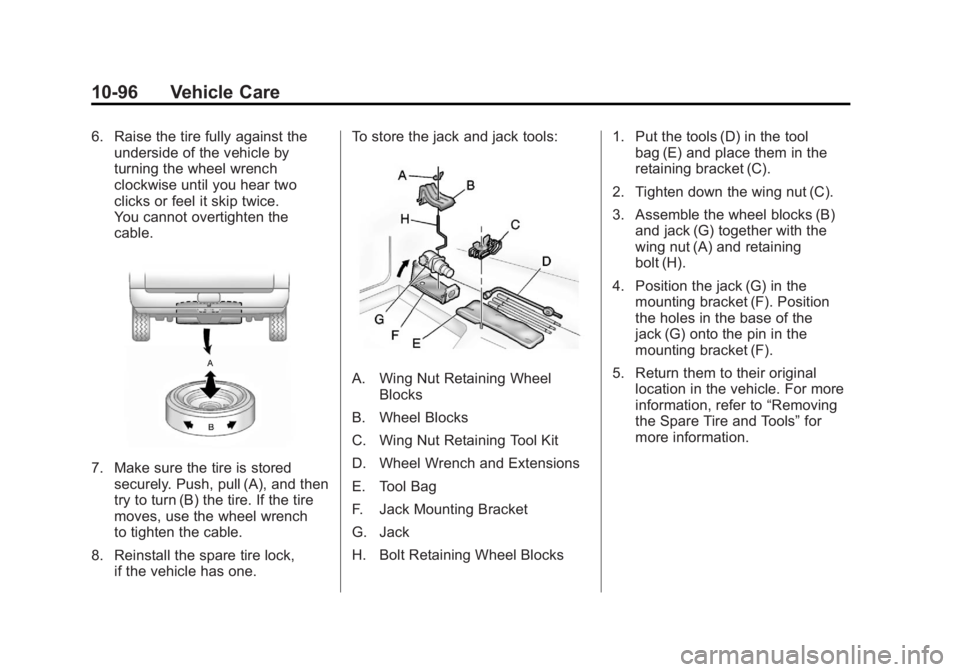

GMC SIERRA 2011  Owners Manual Black plate (96,1)GMC Sierra Owner Manual - 2011
10-96 Vehicle Care
6. Raise the tire fully against theunderside of the vehicle by
turning the wheel wrench
clockwise until you hear two
clicks or feel
