GMC YUKON 1999 Repair Manual

yellowblue
1-55
Accident statistics show that children are safer if they
are restrained in the rear seat. But they need to use the
safety belts properly.

Children who aren't buckled up can be thrown out in
a crash.

Children who aren't buckled up can strike other
people who are.
CAUTION:
Never do this.

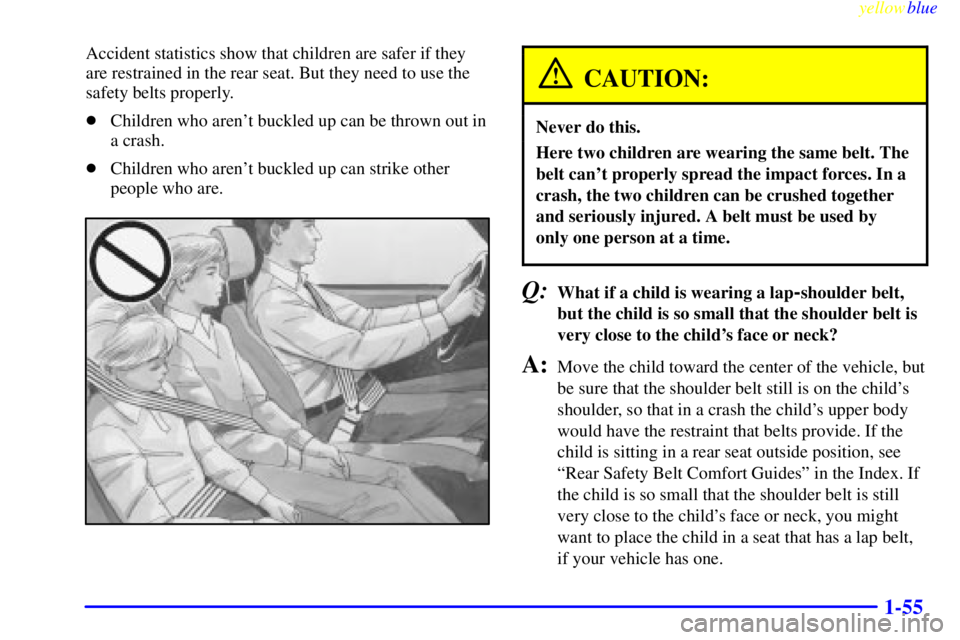

Here two children are wearing the same belt. The
belt can't properly spread the impact forces. In a
crash, the two children can be crushed together
and seriously injured. A belt must be used by
only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide. If the
child is sitting in a rear seat outside position, see
ªRear Safety Belt Comfort Guidesº in the Index. If
the child is so small that the shoulder belt is still
very close to the child's face or neck, you might
want to place the child in a seat that has a lap belt,
if your vehicle has one.

yellowblue
1-56
CAUTION:
Never do this.

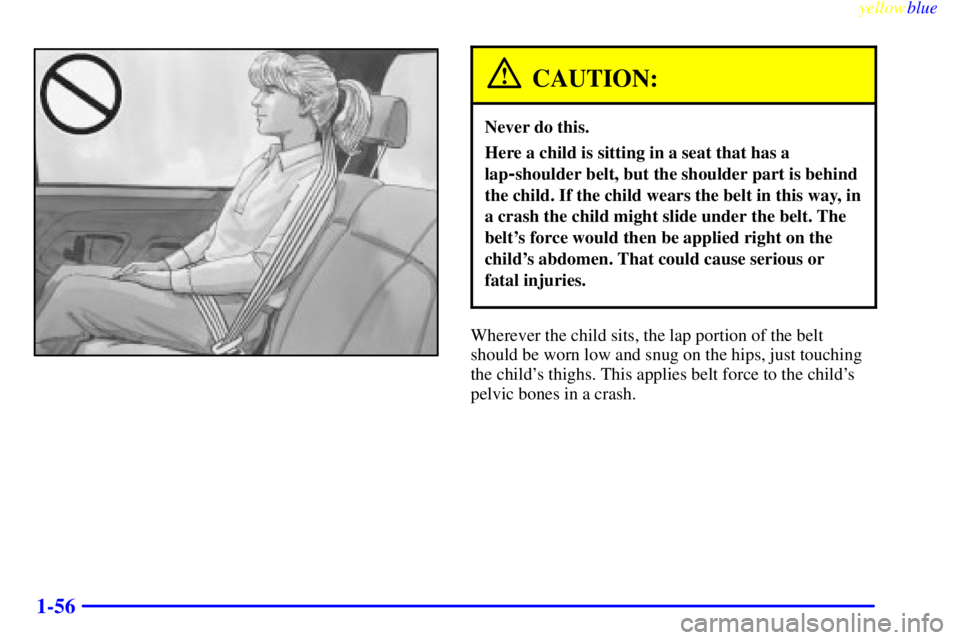

Here a child is sitting in a seat that has a
lap
-shoulder belt, but the shoulder part is behind
the child. If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt's force would then be applied right on the
child's abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child's thighs. This applies belt force to the child's
pelvic bones in a crash.

yellowblue
1-57
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system earlier in
this section.

yellowblue
1-58
-NOTES

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-3 Door Locks
2
-6 Keyless Entry System
2
-11 Rear Doors
2
-13 Theft
2
-13 Theft-Deterrent System
2
-16 Feature Customization
2
-20 Passlock

2-20 New Vehicle ªBreak-Inº
2
-21 Ignition Positions
2
-22 Starting Your Engine
2
-24 Engine Coolant Heater (If Equipped)
2
-25 Automatic Transmission Operation
2
-28 Four-Wheel Drive
2
-32 Parking Brake
2
-33 Shifting Into Park (P)
2
-35 Shifting Out of Park (P)
2
-36 Parking Over Things That Burn
2
-36 Engine Exhaust2
-37 Running Your Engine While You're Parked
2
-38 Locking Rear Axle
2
-38 Windows
2
-39 Horn
2
-39 Tilt Wheel
2
-40 Multifunction Lever
2
-46 Exterior Lamps
2
-49 Interior Lamps
2
-51 Mirrors
2
-55 Storage Compartments
2
-61 Ashtrays and Cigarette Lighter
2
-63 Sun Visors
2
-63 Universal Transmitter
2
-67 Cellular Telephone (If Equipped)
2
-67 OnStar
System (If Equipped)
2
-68 Instrument Panel
2
-70 Instrument Panel Cluster
2
-72 Warning Lights, Gages and Indicators

yellowblue
2-2
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

yellowblue
2-3
Your vehicle has one
double
-sided key for the
ignition and all door locks.
If you ever lose your key, your dealer will be able to
assist you with obtaining a new one.
Your vehicle also has a key
that locks and unlocks the
center floor console only.
Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
Side Doors
To open the door from the outside, pull the handle up
and pull the door open.
To open the door from the inside, pull the lever toward
you and push the door open.

yellowblue
2-4 Front Door Locks
There are several ways to lock and unlock your vehicle.
You can use the keyless entry system.
You can also use your key, but your vehicle has a
theft
-deterrent system. If it is armed, unlocking and
opening the door this way might set off the alarm. See
ªTheft
-Deterrent Systemº in the Index.
From the inside, to lock the
door, slide the lever down.
To unlock the door, slide the
lever up.
Power Door Locks
Press the side of the power
door lock switch marked
LOCK on either front door
to lock all the doors at once.
Press the ribbed side of the switch to unlock all the
doors at once. The power door locks will operate at any
time without the ignition being on.
The manual switch on each rear door works only
that door's lock. It won't lock (or unlock) all of the
doors
-- that's a safety feature.
Operating the power locks may affect the theft
-deterrent
system. See ªTheft
-Deterrent Systemº in the Index.

yellowblue
2-5
On the passenger side of the
rear panel door or tailgate,
there is a power lock switch
which can be used to lock or
unlock all of the doors.
On vehicles with panel doors, if the power lock switch is
pressed with the panel doors open, all of the doors will
lock three seconds after the panel doors are closed. If the
panel doors are closed, the vehicle doors will lock when
a power door lock switch is pressed. The theft
-deterrent
system will not re
-arm after the panel doors are closed
unless the power lock switch is pressed first.
Child Security Locks
With this feature, you can
lock the rear side doors so
they can't be opened from
the inside by passengers.
Move the button up to engage the security feature.
Move the button down to return the door locks to
normal operation.
See ªFeature Customizationº in the Index for further
information on turning this feature on and off.

yellowblue
2-6 Lockout Prevention
To protect you from locking your key in the vehicle, this
feature stops the power door locks from locking when
the keys are in the ignition and a door is open.
If the power lock switch is pressed when a door is
open and the key is in the ignition, none of the doors
will lock.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door. For information on how to set the door
locks, see ªTheft
-Deterrent Systemº and ªFeature
Customizationº in the Index.
Keyless Entry System
You can lock and unlock your doors, tailgate or panel
doors from about 3 feet (1 m) up to 30 feet (9 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
