GMC YUKON 1999 Owner's Manual

yellowblue
2-37

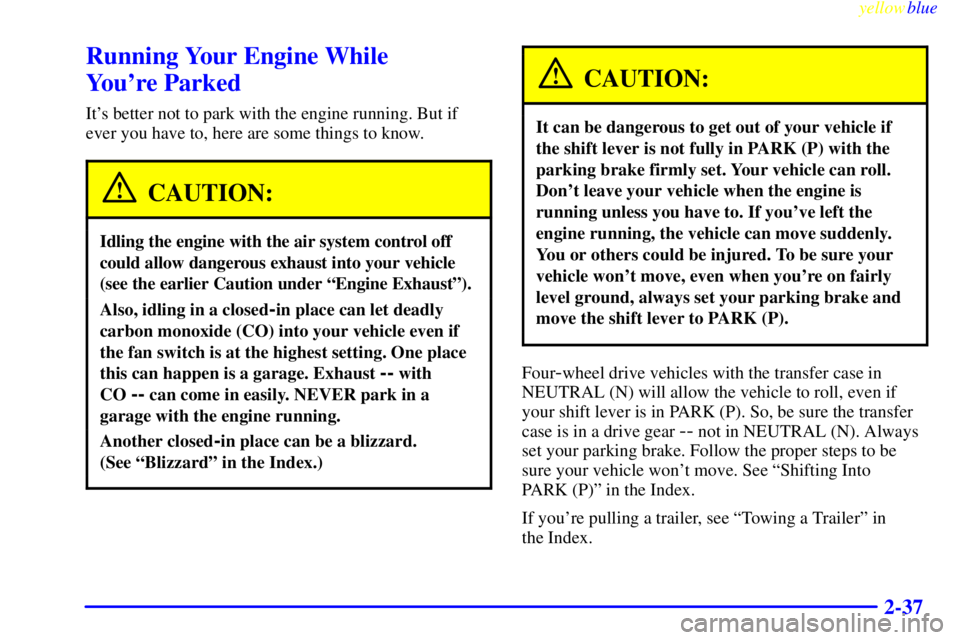

Running Your Engine While
You're Parked
It's better not to park with the engine running. But if
ever you have to, here are some things to know.
CAUTION:
Idling the engine with the air system control off
could allow dangerous exhaust into your vehicle
(see the earlier Caution under ªEngine Exhaustº).
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the fan switch is at the highest setting. One place
this can happen is a garage. Exhaust
-- with
CO
-- can come in easily. NEVER park in a
garage with the engine running.
Another closed-in place can be a blizzard.
(See ªBlizzardº in the Index.)
CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you've left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
Four-wheel drive vehicles with the transfer case in
NEUTRAL (N) will allow the vehicle to roll, even if
your shift lever is in PARK (P). So, be sure the transfer
case is in a drive gear
-- not in NEUTRAL (N). Always
set your parking brake. Follow the proper steps to be
sure your vehicle won't move. See ªShifting Into
PARK (P)º in the Index.
If you're pulling a trailer, see ªTowing a Trailerº in
the Index.

yellowblue
2-38
Locking Rear Axle
Your locking rear axle can give you additional traction
on snow, mud, ice, sand or gravel. It works like a
standard axle most of the time, but when one of the rear
wheels has no traction and the other does, this feature
will allow the wheel with traction to move the vehicle.
Windows
Power Windows
The power window controls are located on each of the
side doors.The driver's door has a switch for the passenger
windows as well. Your power windows will work when
the ignition has been turned to ACCESSORY or RUN or
when Retained Accessory Power (RAP) is present. See
ªRetained Accessory Powerº in the Index.
Push the rear of the switch with the power window
symbol on it to lower the window.
Push the front of the switch with the power window
symbol on it to raise the window.
The driver's window switch has an express
-down
feature that allows the window to be lowered without
holding the switch. Press and hold the side of the
window switch marked AUTO for one second to
activate the express
-down mode. The express-down
mode can be canceled at any time by pressing the
opposite side of the switch. To open the window
partway, lightly tap the switch until the window is at the
desired position.
The power window switch has a lockout feature. This
feature prevents the passenger's windows from
operating except from the driver's position, when the
front driver's side switch is in LOCK. When the switch
is moved to NORM, the rear power windows will
operate again.

yellowblue
2-39 Electric Tailgate Glass Release
Before operating your electric tailgate glass release, see
ªRear Doorsº in the the Index.
Your vehicle has the theft
-deterrent system. If it is armed, use
the transmitter, not the key to open the tailgate or the alarm
will sound. The hatch switch will not work while the system
is armed. See ªTheft
-Deterrent Systemº in the Index.
The electric hatch release
button lets you release the
tailgate glass. To release
the glass, press the top of
the button.
Then, lift the window up to open.
The shift lever must be in PARK (P) or NEUTRAL (N)
for the release to work.
There is also a power door lock switch at the rear of the
vehicle which will allow you to lock or unlock all of the
doors. See ªPower Doors Locksº in the Index.
Horn
Push on the air bag module in the center of the steering
wheel to sound the horn.
Tilt Wheel
A tilt steering wheel allows
you to adjust the steering
wheel before you drive.
You can also raise it to the highest level to give your
legs more room when you enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel to a comfortable level,
then release the lever to lock the wheel in place.

yellowblue
2-40
Multifunction Lever
The lever on the left side of the steering column
includes your:

Turn Signal and Lane Change Indicator

Headlamp High/Low Beam Changer

Windshield Wipers

Windshield Washer

Cruise Control
Turn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
If you move the lever all the way up or down and the arrow
flashes at twice the normal rate, a signal bulb may be burned
out and other drivers may not see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and a blown
fuse (see ªFusesº in the Index).

yellowblue
2-41 Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high or high
to low, pull the turn signal lever all the way toward you.
Then release it.
When the high beams are
on, this light on the
instrument panel also
will be on.
Windshield Wipers
You operate the windshield
wipers by turning the
control with the wiper
symbol on it.
For a single wiping cycle, turn the control to MIST.
Hold it there until the wipers start, then let go. Thewipers will stop after one cycle. If you want more
cycles, hold the control on MIST longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the control to choose the delay time. The
closer to LOW, the shorter the delay.
For steady wiping at low speed, turn the control to the
LOW position. For high
-speed wiping, turn the control
further, to HIGH. To stop the wipers, turn the control
to OFF.
Damaged wiper blades may prevent you from seeing
well enough to drive safely. To avoid damage, be sure to
clear ice and snow from the wiper blades before using
them. If they are frozen to the windshield, carefully
loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers. The
windshield wiper motor is protected from overload by a
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. Although the circuit is protected from electrical
overload, overload due to heavy snow, etc. may cause
wiper linkage damage. Always clear ice and heavy
snow from the windshield before using your
windshield wipers.

yellowblue
2-42 Windshield Washer
At the top of the lever,
there's a paddle with the
word PUSH on it. To spray
washer fluid on the
windshield, push the paddle.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Washer fluid will spray as long as you push the paddle.
When you let go of the paddle, the wipers will continue
to wipe for a few seconds and then either stop or return
to the preset speed.
The use of hood
-mounted air deflectors may adversely
affect windshield wiper and washer performance.
Rear Window Wiper and Washer
The rear window
wiper/washer switch is on
your instrument panel, to
the right of the gage cluster.
To turn the wiper on, slide the switch all the way up.
For delay wiping, slide the switch even with DELAY in
the center position of the rear wiper control. The wiper
will cycle every nine seconds.

yellowblue
2-43
To wash the window, push in on the switch. Window
washer fluid will continue to spray until the switch is
released. The wiper will continue with three more wipes
and then return to the setting that was chosen before the
lever was pushed.
The rear window washer uses the same fluid bottle as
the front windshield washer. If the fluid level is low in
the washer fluid bottle, you may not be able to wash
your rear window. If you can wash your windshield, but
not your rear window, check the fluid level.
Cruise Control
With cruise control, you can
maintain a speed of about
25 mph (40 km/h) or more
without keeping your foot
on the accelerator.This can really help on long trips. Cruise control does
not work at speeds below 25 mph (40 km/h).
When you apply your brakes, cruise control shuts off.
CAUTION:

Cruise control can be dangerous where you
can't drive safely at a steady speed. So,
don't use your cruise control on winding
roads or in heavy traffic.

Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don't
use cruise control on slippery roads.

yellowblue
2-44
Setting Cruise Control
CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when you don't want to. You
could be startled and even lose control. Keep the
cruise control switch off until you want to use it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Push in the SET button at the end of the lever and
release it.
4. Take your foot off the accelerator pedal.
Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don't need to reset it.Once you're going about 25 mph (40 km/h) or more,
you can move the cruise control switch from ON to R/A
(Resume/Accelerate) for about half a second.
You'll go right back up to your chosen speed and
stay there.
Remember, if you hold the switch at R/A longer than
half a second, the vehicle will keep going faster until
you release the switch or apply the brake. So unless you
want to go faster, don't hold the switch at R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:

Use the accelerator pedal to get to the higher speed.
Push the SET button at the end of the lever, then
release the button and the accelerator pedal. You'll
now cruise at the higher speed.

Move the cruise control switch from ON to R/A.
Hold it there until you get up to the speed you want,
and then release the switch. To increase your speed
in very small amounts, move the switch to R/A for
less than half a second. Each time you do this, your
vehicle will go about 1 mph (1.6 km/h) faster.

yellowblue
2-45
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:

Push in the SET button at the end of the lever until
you reach the lower speed you want, then release it.

To slow down in very small amounts, push the
button for less than half a second. Each time you do
this, you'll go 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up steep hills, you may have to step on theaccelerator pedal to maintain your speed. If the
steepness of the hill causes the vehicle speed to drop
more than 15 mph (24 km/h) below the set speed, your
cruise control will automatically disengage. When going
downhill, you may have to brake or shift to a lower gear
to keep your speed down. Of course, applying the brake
takes you out of cruise control. Many drivers find this to
be too much trouble and don't use cruise control on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:

Step lightly on the brake pedal or

Move the cruise control switch to OFF.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.

yellowblue
2-46
Exterior Lamps
Your parking/headlamp knob is on the driver's side of
your instrument panel.
Turn the knob clockwise, to the parking lamp symbol, to
turn on the following:

Parking Lamps

Sidemarker Lamps
Taillamps

License Plate Lamps

Instrument Panel Lights
Turn the knob clockwise again, to the master lighting
symbol, to turn on all the lamps listed as well as
the headlamps.
Turn the knob counterclockwise, to OFF, to turn off
your lamps. For additional information on headlamp
operation, see ªHeadlamp Delayº in the Index.
Turn the thumbwheel next to the knob up to adjust
instrument panel lights. Turn the thumbwheel up to the
first notch to return the radio display and gearshift
indicator LED display to full intensity when the
headlamps or parking lamps are on. To turn on the dome
lamps (with the vehicle doors closed) turn the
thumbwheel up to the second notch position.
You can switch your headlamps from high to low beam
by pulling on the turn signal/high
-beam lever.
A circuit breaker protects your headlamps. If you have
an electrical overload, your headlamps will flicker on
and off. Have your headlamp wiring checked right away
if this happens.
