2-17
5. Turn the ignition to ACCESSORY.
You should hear two chimes to verify that the system
is in programming mode. You will also be able to set
Keyless Entry Verification, Arming Method, Arming
Verification, Driver's Door Delay, Shock Sensor
Enable and Lockout Prevention.
Lockout Prevention
Your vehicle comes with this feature set in Mode 2. This
means that your power door locks will not lock when
the keys are in the ignition and a door is open. To
change the factory setting, do the following:
1. Press the LOCK switch on the door.
2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
3. Press the LOCK switch on the door until you hear
the number of chimes that correspond to the mode
selection you want.
Mode 1: Both Off (Doors will lock/unlock when you
press the power door lock switch).
Mode 2: Lockout Prevention Enabled
Keyless Entry Verification
Your vehicle comes with this feature set in Mode 5. This
means that when you use the keyless entry transmitter to
lock/unlock your vehicle, your headlamps and parking
lamps will flash briefly upon the first press on LOCK.
Your horn will sound briefly and your headlamps and
parking lamps will flash briefly upon the second press
on LOCK. Your headlamps and parking lamps will flash
briefly upon any press on UNLOCK. To change the
factory setting, do the following:
1. Press the UNLOCK button on the keyless
entry transmitter.
2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
3. Press the UNLOCK button on the keyless entry
transmitter until you hear the number of chimes that
correspond to the mode selection you want.
Mode 1: All Off (The headlamps will not flash and the
horn will not sound to provide you feedback that a
lock/unlock command has been received by the keyless
entry transmitter.)

yellowblue
2-18
Mode 2: Horn and Lamps/Lamps (Your horn will sound
briefly and your headlamps and parking lamps will flash
when you press LOCK on the keyless entry transmitter.
Only your headlamps and parking lamps will flash when
you press UNLOCK.)
Mode 3: Horn and Lamps (Your horn will sound briefly
and your headlamps and parking lamps will flash every
time you push LOCK or UNLOCK.)
Mode 4: Lamps (Your headlamps and parking lamps
will flash every time you press LOCK or UNLOCK.)
Mode 5: Lamps/Horn and Lamps/Lamps (Your
headlamps and parking lamps will flash upon the first
press on LOCK, your headlamps and parking lamps will
flash and your horn will sound upon the second press on
LOCK and your headlamps and parking lamps will flash
upon any press on UNLOCK.)
Theft-Deterrent Arming Method
Your vehicle comes with this feature set in Mode 3. This
means that both your keyless entry transmitter and the
power door lock switch will actively arm the system. To
change the factory setting, do the following:
1. Press the UNLOCK switch on the door.2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
3. Press the UNLOCK switch on the door until you
hear the number of chimes that correspond to the
mode selection you want.
Mode 1: Alarm System Off (The system will not arm.)
Mode 2: Keyless Entry Transmitter Lock (When you
lock your doors using the keyless entry transmitter, the
system will arm.)
Mode 3: Keyless Entry Transmitter/Power Door Lock
Switch (If you use either the keyless entry transmitter or
the power door lock switch to lock the doors, the system
will arm.)
Mode 4: Passive arming and Keyless Entry
Transmitter/Power Door Lock Switch Arming (The
system will arm itself after all doors are closed, plus
arming per mode 3.)

yellowblue
2-19 Theft-Deterrent Arming Verification
Your vehicle comes with the theft-deterrent arming
verification set in Mode 3. This means that if you arm
the system using the keyless entry transmitter, your
headlamps and parking lamps will flash and your horn
will chirp twice to verify that the system is armed. If it
only chirps once, the tailgate or the panel doors are open
or unlatched. In addition, if the system did not arm, the
horn will chirp once and the theft
-deterrent indicator on
the center floor console will not flash. If you arm the
system using either the power door lock switch or by
passive arming, only the headlamps and parking lamps
will flash for verification. To change the factory setting,
do the following:
1. Press the LOCK switch on the keyless
entry transmitter.
2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
3. Press the LOCK switch on the keyless entry
transmitter until you hear the number of chimes that
corresponds to the mode selection you want.
Mode 1: All Off (No horn chirps or headlamps and
parking lamps will flash.)Mode 2: Horn and Lamps (Your headlamps and parking
lamps will flash and your horn will chirp twice to verify
the system is armed using any arming method.)
Headlamps and parking lamps only will flash
when disarming.
Mode 3: Horn and Lamps/Lamps (If you use the keyless
entry transmitter to arm the system, your headlamps and
parking lamps will flash and your horn will chirp twice
to verify that the system is armed. If you use either the
power door lock switch or passive arming, only your
headlamps and parking lamps will flash for
verification.) The headlamps and parking lamps will
flash only when disarming.
Mode 4: Lamps (When your vehicle arms, only your
headlamps and parking lamps will flash for
verification.) The headlamps and parking lamps will
flash only when disarming.
Driver's Door Alarm Delay
If you open the driver's door using your key, the alarm
will not sound for eight seconds.
Leaving Programming Mode
When programming is done, turn the ignition to OFF
and replace the RADIO fuse (Fuse 17).

yellowblue
2-20
Passlock
Your vehicle is equipped with the Passlock
theft
-deterrent system.
Passlock is a passive theft
-deterrent system. Passlock
enables fuel if the ignition lock cylinder is turned with a
valid key. If a correct key is not used or the ignition lock
cylinder is tampered with, fuel is disabled.
During normal operation, the SECURITY light will go
off approximately five seconds after the key is turned to
the RUN ignition position.
If the engine stalls and the SECURITY light flashes,
wait until the light stops flashing before trying to restart
the engine. Remember to release the key from START
as soon as the engine starts.
If the engine is running and the SECURITY light comes
on, you will be able to restart the engine if you turn the
engine off. However, your Passlock system is not working
properly and must be serviced by your dealer. Your vehicle
is not protected by Passlock at this time. You may also
want to check the fuse (see ªFuses and Circuit Breakersº
in the Index). See your dealer for service.
In an emergency, call the GMC Roadside Assistance
Center at 1
-800-GMC-8782 (1-800-462-8782) in the
United States, or 1
-800-268-6800 in Canada.
New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate
ªbreak
-in.º But it will perform better in the long
run if you follow these guidelines:

Keep your speed at 55 mph (88 km/h) or
less for the first 500 miles (805 km).

Don't drive at any one speed
-- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in. See
ªTowing a Trailerº in the Index for
more information.

yellowblue
2-21
Ignition Positions
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be injured or even killed. They could
operate power windows or other controls or even
make the vehicle move. Don't leave the keys in
the vehicle with children.
Use your key to start your vehicle. The key lets you turn
the ignition switch to five different positions.ACCESSORY (A): This position lets you use things
like the radio and the windshield wipers when the
engine is off. Push in the key and turn it toward you.
Your steering wheel will remain locked, just as it was
before you inserted the key.

yellowblue
2-22
LOCK (B): This position locks your ignition, steering
wheel and transmission. It's a theft
-deterrent feature.
You will only be able to remove your key when the
ignition is turned to LOCK.
OFF (C): This position lets you turn off the engine but
still turn the steering wheel. It doesn't lock the steering
wheel like LOCK. Use OFF if you must have your
vehicle in motion while the engine is off (for example, if
your vehicle is being pushed).
RUN (D): This is the position for driving.
START (E): This position starts your engine.
NOTICE:
If your key seems stuck in LOCK and you can't
turn it, be sure you are using the correct key; if
so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. But turn the key only with your hand.
Using a tool to force it could break the key or the
ignition switch. If none of this works, then your
vehicle needs service.
Retained Accessory Power
Your vehicle is equipped with a Retained Accessory
Power (RAP) feature which will allow certain features
of your vehicle to continue to work up to 20 minutes
after the ignition key is turned to OFF.
Your radio, power windows and console accessories
will work when the ignition key is turned to RUN or
ACCESSORY. Once the key is turned from RUN to
OFF, these features will continue to work for up to
20 minutes or until a door is opened.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won't start in any other position
-- that's a
safety feature. To restart when you're already moving,
use NEUTRAL (N) only.
NOTICE:
Don't try to shift to PARK (P) if your vehicle is
moving. If you do, you could damage the
transmission. Shift to PARK (P) only when your
vehicle is stopped.

yellowblue
2-23 How to Start the Engine
1. Without pushing the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to be
drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid
draining your battery or damaging your starter.
2. If it doesn't start right away, hold your key in
START. If it doesn't start in 10 seconds, push the
accelerator pedal all the way down for five more
seconds, unless it starts sooner.
3. If your engine still won't start (or starts but then
stops), wait 15 seconds and start over.
When the engine starts, let go of the key and the
accelerator pedal.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you don't,
your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part of this manual that tells how to do it
without damaging your vehicle. See ªTowing
Your Vehicleº in the Index.

yellowblue
2-24

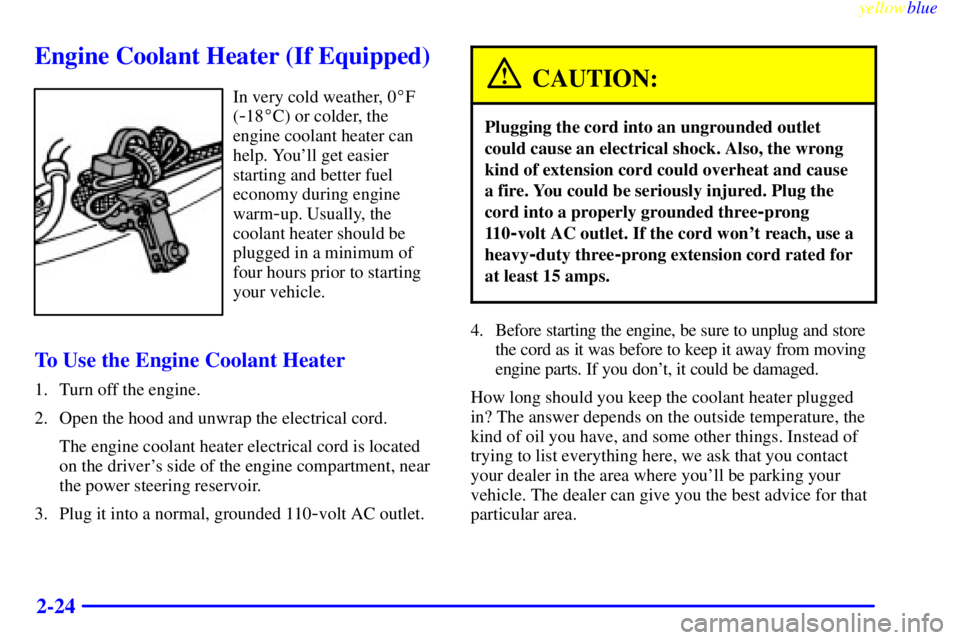

Engine Coolant Heater (If Equipped)
In very cold weather, 0
F
(
-18
C) or colder, the
engine coolant heater can
help. You'll get easier
starting and better fuel
economy during engine
warm
-up. Usually, the
coolant heater should be
plugged in a minimum of
four hours prior to starting
your vehicle.
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The engine coolant heater electrical cord is located
on the driver's side of the engine compartment, near
the power steering reservoir.
3. Plug it into a normal, grounded 110
-volt AC outlet.
CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the wrong
kind of extension cord could overheat and cause
a fire. You could be seriously injured. Plug the
cord into a properly grounded three
-prong
11 0
-volt AC outlet. If the cord won't reach, use a
heavy
-duty three-prong extension cord rated for
at least 15 amps.
4. Before starting the engine, be sure to unplug and store
the cord as it was before to keep it away from moving
engine parts. If you don't, it could be damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact
your dealer in the area where you'll be parking your
vehicle. The dealer can give you the best advice for that
particular area.

yellowblue
2-25
Automatic Transmission Operation
There are several different positions for your shift lever.
Your vehicle features an electronic shift position
indicator within the instrument cluster. This display
must be powered anytime the shift lever is capable of
being moved out of PARK (P). This means that if your
key is in OFF, rather than LOCK, there will be a small
current drain on your battery which could discharge
your battery over a period of time. If you need to leave
your key in the ignition in OFF for an extended period
for any reason, it is recommended that you disconnect
the battery cable from the battery to prevent discharging
your battery.PARK (P): This locks your rear wheels. It's the best
position to use when you start your engine because your
vehicle can't move easily.
CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
See ªShifting Into PARK (P)º in the Index. If
you're pulling a trailer, see ªTowing a Trailerº in
the Index.

yellowblue
2-26
REVERSE (R): Use this gear to back up.
NOTICE:
Shifting to REVERSE (R) while your vehicle is
moving forward could damage your
transmission. Shift to REVERSE (R) only after
your vehicle is stopped.
To rock your vehicle back and forth to get out of snow,
ice or sand without damaging your transmission, see
ªStuck: In Sand, Mud, Ice or Snowº in the Index.
NEUTRAL (N): In this position, your engine doesn't
connect with the wheels. To restart when you're
already moving, use NEUTRAL (N) only. Also, use
NEUTRAL (N) when your vehicle is being towed.
CAUTION:
Shifting out of PARK (P) or NEUTRAL (N) while
your engine is ªracingº (running at high speed) is
dangerous. Unless your foot is firmly on the
brake pedal, your vehicle could move very
rapidly. You could lose control and hit people or
objects. Don't shift out of PARK (P) or
NEUTRAL (N) while your engine is racing.
NOTICE:
Damage to your transmission caused by shifting
out of PARK (P) or NEUTRAL (N) with the
engine racing isn't covered by your warranty.
