Heavy-Duty Trailer Wiring Harness
Package
Your vehicle is equipped with the seven-wire
trailer towing harness. This harness with a
seven-pin universal trailer connector is attached to
a bracket on the hitch platform.
The seven-wire harness contains the following
trailer circuits:
Yellow: Left Stop/Turn Signal
Dark Green: Right Stop/Turn Signal
Brown: Taillamps
White: Ground
Light Green: Back-up Lamps
Red: Battery Feed*
Dark Blue: Trailer Brake*
*The fuses for these two circuits are installed in
the underhood electrical center, but the wires
are not connected. They should be connected by
your dealer or a qualied service center.
If you are charging a remote (non-vehicle) battery,
press the tow/haul mode button located at the
end of the shift lever. This will boost the vehicle
system voltage and properly charge the battery. If
the trailer is too light for tow/haul mode, you
can turn on the headlamps as a second way to
boost the vehicle system and charge the battery.
421

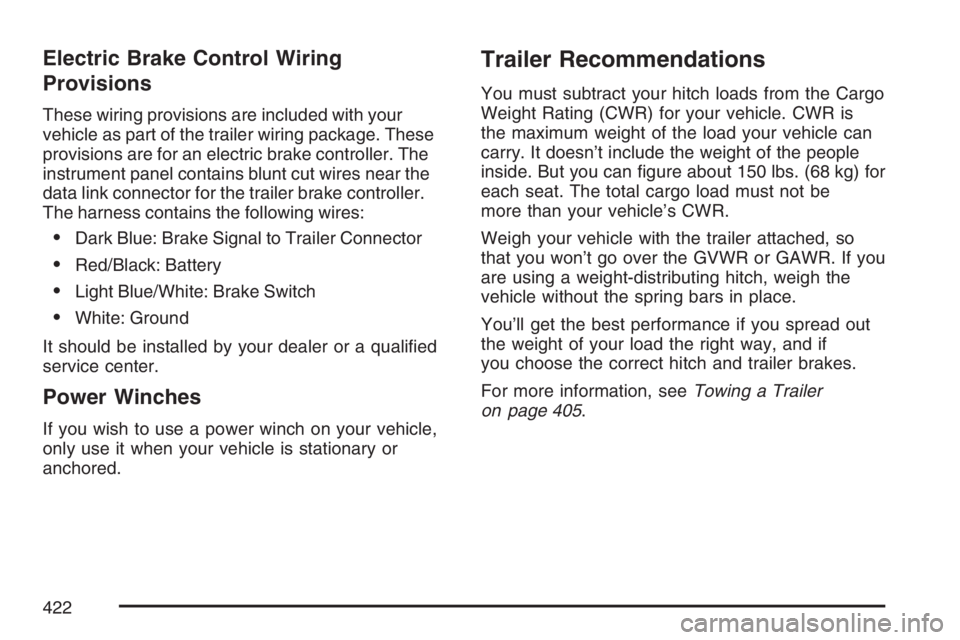

Electric Brake Control Wiring
Provisions
These wiring provisions are included with your
vehicle as part of the trailer wiring package. These
provisions are for an electric brake controller. The
instrument panel contains blunt cut wires near the
data link connector for the trailer brake controller.
The harness contains the following wires:
Dark Blue: Brake Signal to Trailer Connector
Red/Black: Battery
Light Blue/White: Brake Switch
White: Ground
It should be installed by your dealer or a qualied
service center.
Power Winches
If you wish to use a power winch on your vehicle,
only use it when your vehicle is stationary or
anchored.
Trailer Recommendations
You must subtract your hitch loads from the Cargo
Weight Rating (CWR) for your vehicle. CWR is
the maximum weight of the load your vehicle can
carry. It doesn’t include the weight of the people
inside. But you can gure about 150 lbs. (68 kg) for
each seat. The total cargo load must not be
more than your vehicle’s CWR.
Weigh your vehicle with the trailer attached, so
that you won’t go over the GVWR or GAWR. If you
are using a weight-distributing hitch, weigh the
vehicle without the spring bars in place.
You’ll get the best performance if you spread out
the weight of your load the right way, and if
you choose the correct hitch and trailer brakes.
For more information, seeTowing a Trailer
on page 405.
422

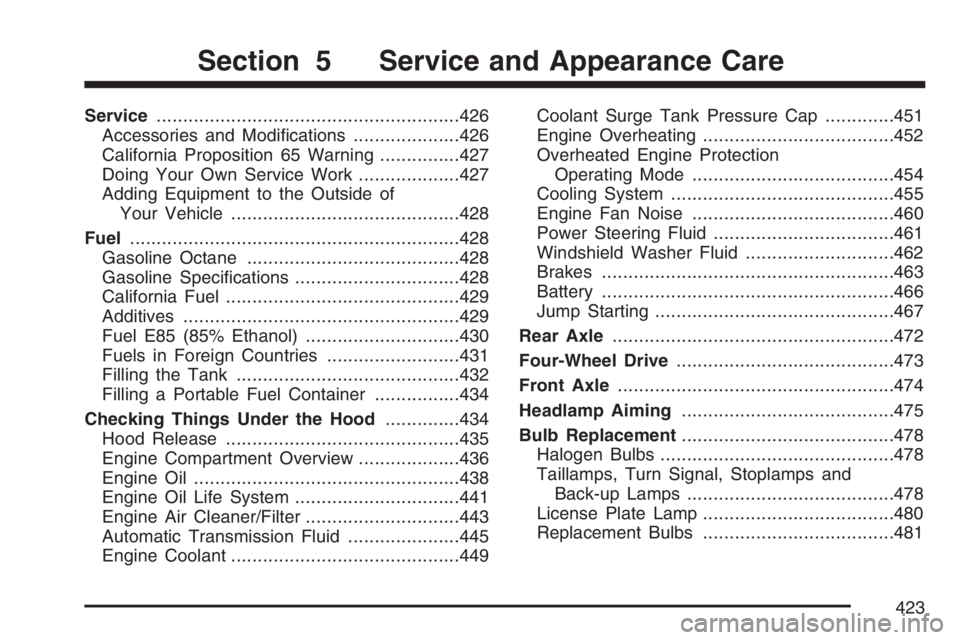

Service.........................................................426
Accessories and Modications....................426
California Proposition 65 Warning...............427
Doing Your Own Service Work...................427
Adding Equipment to the Outside of
Your Vehicle...........................................428
Fuel..............................................................428
Gasoline Octane........................................428
Gasoline Specications...............................428
California Fuel............................................429
Additives....................................................429
Fuel E85 (85% Ethanol).............................430
Fuels in Foreign Countries.........................431
Filling the Tank..........................................432
Filling a Portable Fuel Container................434
Checking Things Under the Hood..............434
Hood Release............................................435
Engine Compartment Overview...................436
Engine Oil..................................................438
Engine Oil Life System...............................441
Engine Air Cleaner/Filter.............................443
Automatic Transmission Fluid.....................445
Engine Coolant...........................................449Coolant Surge Tank Pressure Cap.............451
Engine Overheating....................................452
Overheated Engine Protection
Operating Mode......................................454
Cooling System..........................................455
Engine Fan Noise......................................460
Power Steering Fluid..................................461
Windshield Washer Fluid............................462
Brakes.......................................................463
Battery.......................................................466
Jump Starting.............................................467
Rear Axle.....................................................472
Four-Wheel Drive.........................................473
Front Axle....................................................474
Headlamp Aiming........................................475
Bulb Replacement........................................478
Halogen Bulbs............................................478
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.......................................478
License Plate Lamp....................................480
Replacement Bulbs....................................481
Section 5 Service and Appearance Care
423

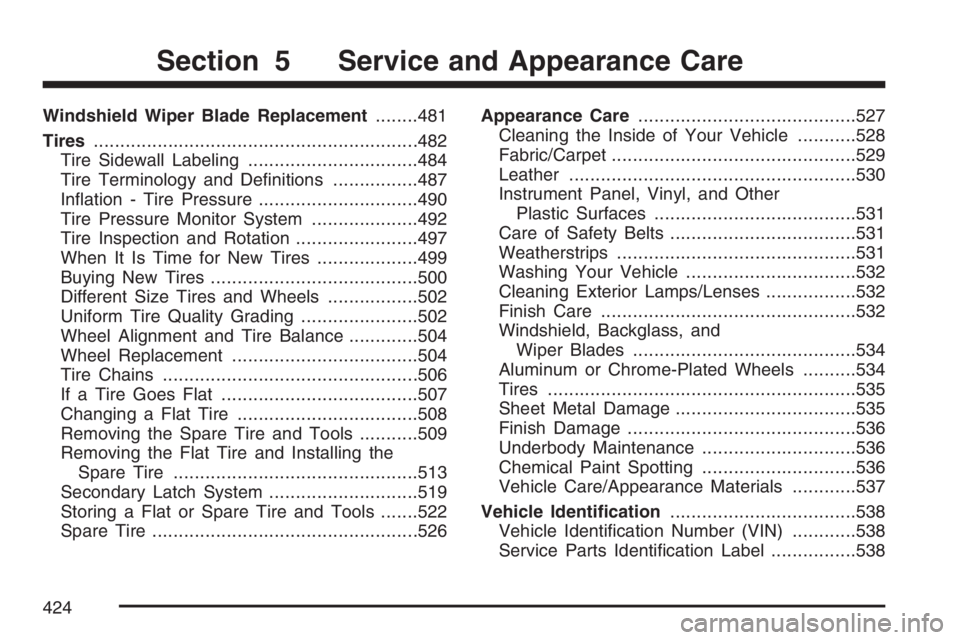

Windshield Wiper Blade Replacement........481
Tires.............................................................482
Tire Sidewall Labeling................................484
Tire Terminology and Denitions................487
Ination - Tire Pressure..............................490
Tire Pressure Monitor System....................492
Tire Inspection and Rotation.......................497
When It Is Time for New Tires...................499
Buying New Tires.......................................500
Different Size Tires and Wheels.................502
Uniform Tire Quality Grading......................502
Wheel Alignment and Tire Balance.............504
Wheel Replacement...................................504
Tire Chains................................................506
If a Tire Goes Flat.....................................507
Changing a Flat Tire..................................508
Removing the Spare Tire and Tools...........509
Removing the Flat Tire and Installing the
Spare Tire..............................................513
Secondary Latch System............................519
Storing a Flat or Spare Tire and Tools.......522
Spare Tire..................................................526Appearance Care.........................................527
Cleaning the Inside of Your Vehicle...........528
Fabric/Carpet..............................................529
Leather......................................................530
Instrument Panel, Vinyl, and Other
Plastic Surfaces......................................531
Care of Safety Belts...................................531
Weatherstrips.............................................531
Washing Your Vehicle................................532
Cleaning Exterior Lamps/Lenses.................532
Finish Care................................................532
Windshield, Backglass, and
Wiper Blades..........................................534
Aluminum or Chrome-Plated Wheels..........534
Tires..........................................................535
Sheet Metal Damage..................................535
Finish Damage...........................................536
Underbody Maintenance.............................536
Chemical Paint Spotting.............................536
Vehicle Care/Appearance Materials............537
Vehicle Identication...................................538
Vehicle Identication Number (VIN)............538
Service Parts Identication Label................538
Section 5 Service and Appearance Care
424

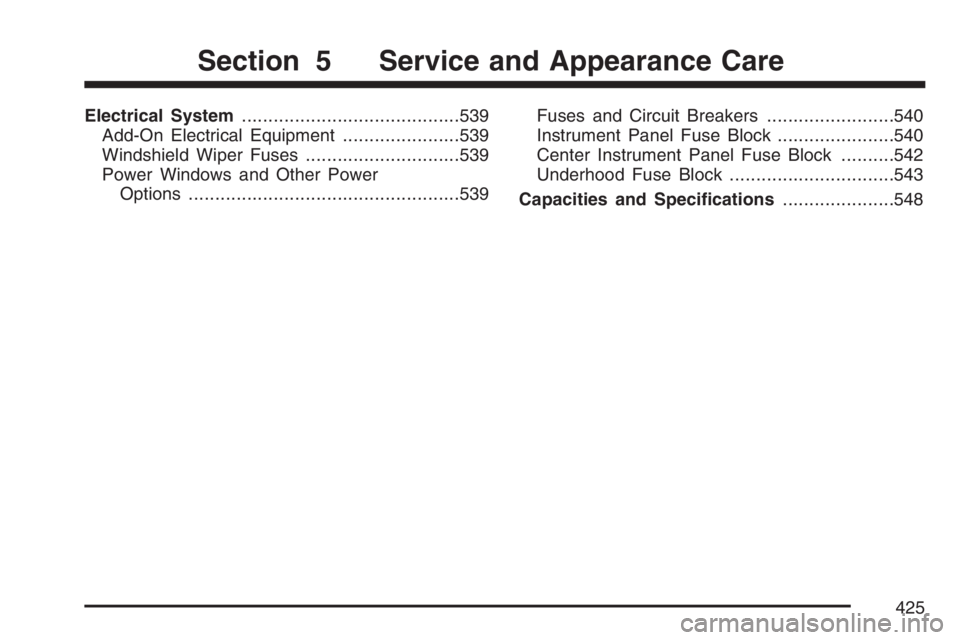

Electrical System.........................................539
Add-On Electrical Equipment......................539
Windshield Wiper Fuses.............................539
Power Windows and Other Power
Options...................................................539Fuses and Circuit Breakers........................540
Instrument Panel Fuse Block......................540
Center Instrument Panel Fuse Block..........542
Underhood Fuse Block...............................543
Capacities and Specications.....................548
Section 5 Service and Appearance Care
425

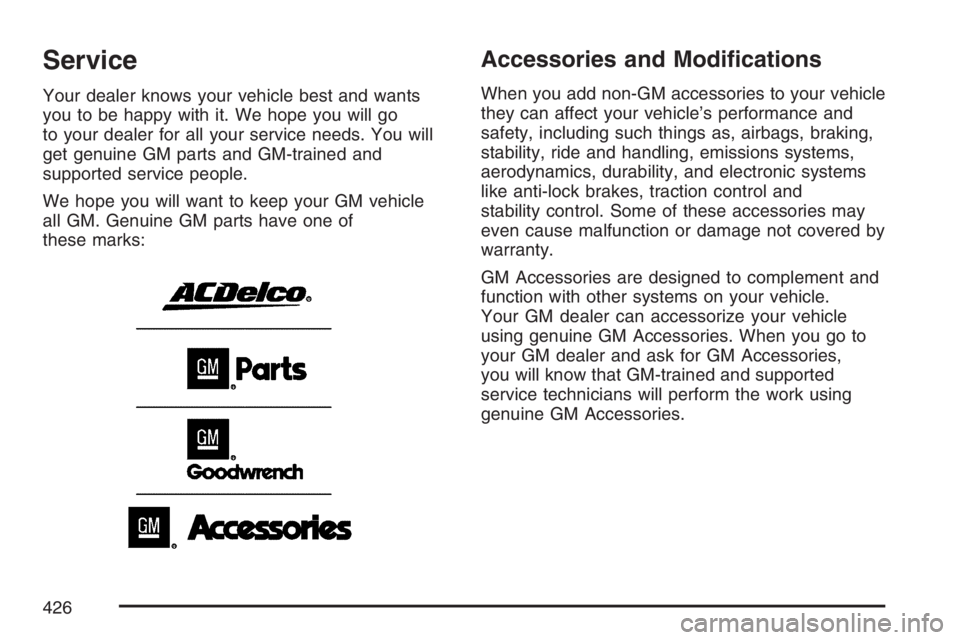

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go
to your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.
We hope you will want to keep your GM vehicle
all GM. Genuine GM parts have one of
these marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and
stability control. Some of these accessories may
even cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle.
Your GM dealer can accessorize your vehicle
using genuine GM Accessories. When you go to
your GM dealer and ask for GM Accessories,
you will know that GM-trained and supported
service technicians will perform the work using
genuine GM Accessories.
426

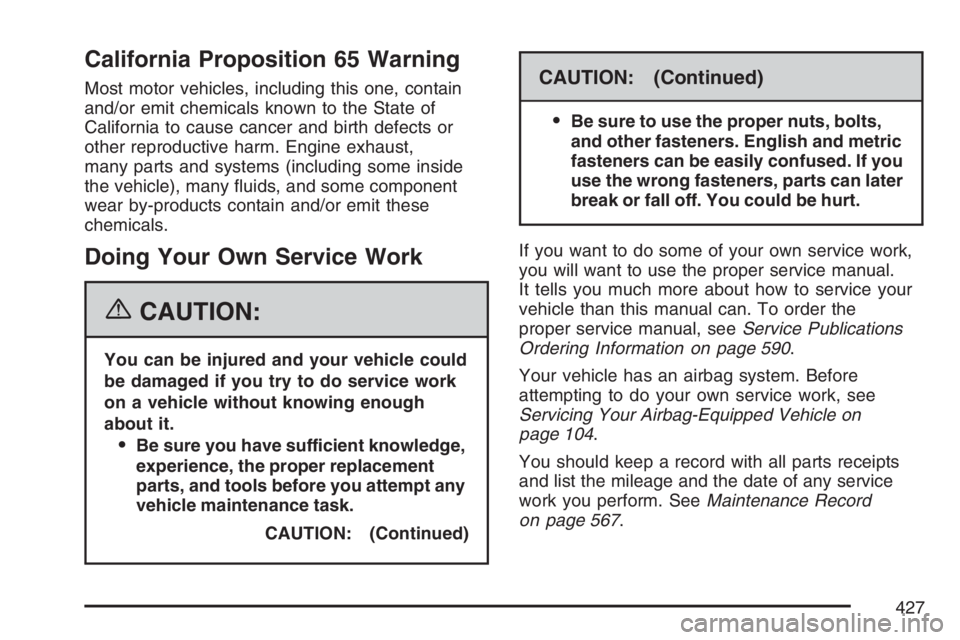

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm. Engine exhaust,
many parts and systems (including some inside
the vehicle), many uids, and some component
wear by-products contain and/or emit these
chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
CAUTION: (Continued)
CAUTION: (Continued)

Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 590.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 104.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 567.
427

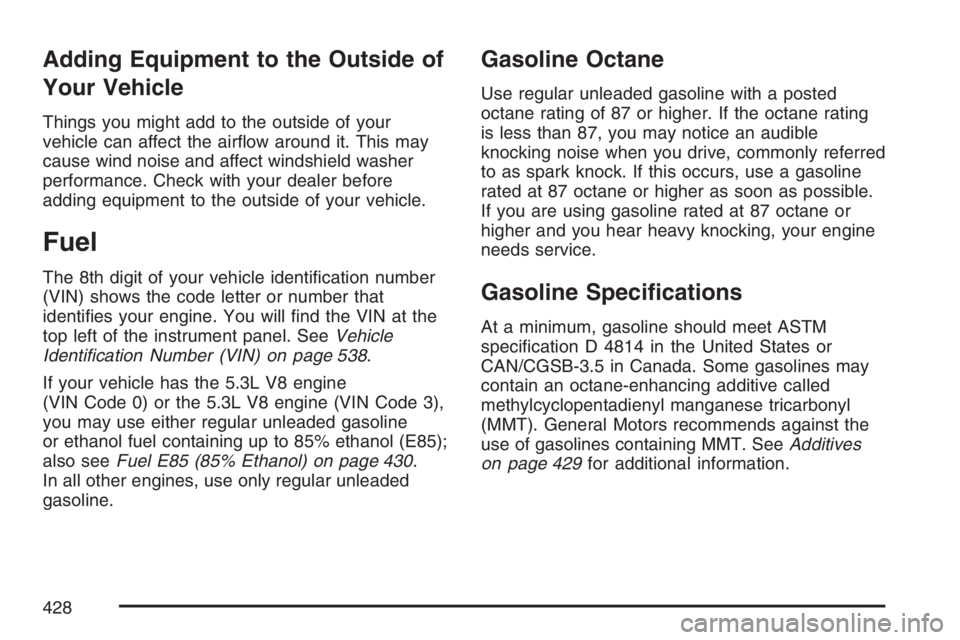

Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
The 8th digit of your vehicle identication number
(VIN) shows the code letter or number that
identies your engine. You will nd the VIN at the
top left of the instrument panel. SeeVehicle
Identication Number (VIN) on page 538.
If your vehicle has the 5.3L V8 engine
(VIN Code 0) or the 5.3L V8 engine (VIN Code 3),
you may use either regular unleaded gasoline
or ethanol fuel containing up to 85% ethanol (E85);
also seeFuel E85 (85% Ethanol) on page 430.
In all other engines, use only regular unleaded
gasoline.
Gasoline Octane
Use regular unleaded gasoline with a posted
octane rating of 87 or higher. If the octane rating
is less than 87, you may notice an audible
knocking noise when you drive, commonly referred
to as spark knock. If this occurs, use a gasoline
rated at 87 octane or higher as soon as possible.
If you are using gasoline rated at 87 octane or
higher and you hear heavy knocking, your engine
needs service.
Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines may
contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT). General Motors recommends against the
use of gasolines containing MMT. SeeAdditives
on page 429for additional information.
428

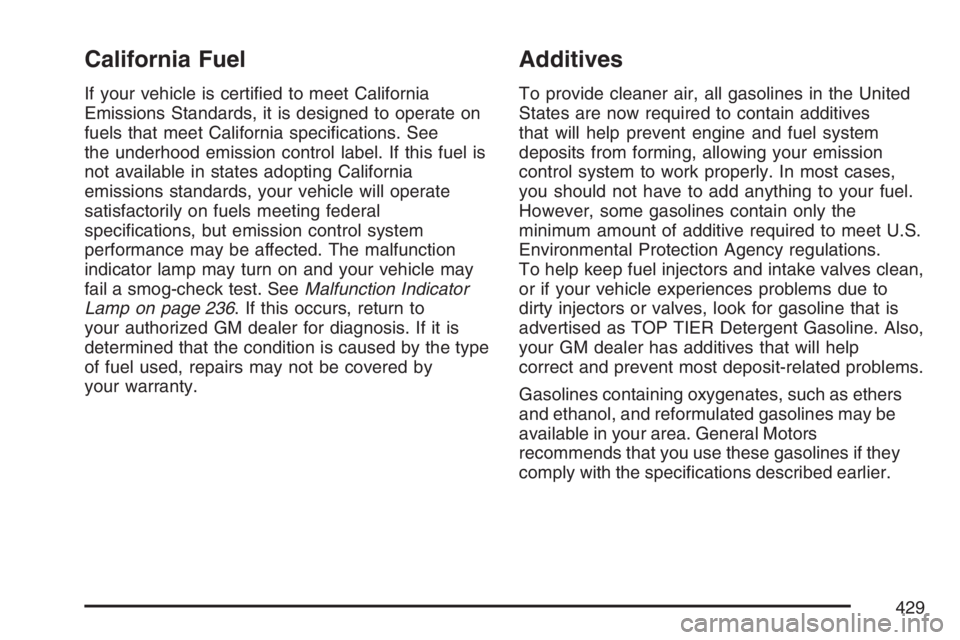

California Fuel
If your vehicle is certied to meet California
Emissions Standards, it is designed to operate on
fuels that meet California specications. See
the underhood emission control label. If this fuel is
not available in states adopting California
emissions standards, your vehicle will operate
satisfactorily on fuels meeting federal
specications, but emission control system
performance may be affected. The malfunction
indicator lamp may turn on and your vehicle may
fail a smog-check test. SeeMalfunction Indicator
Lamp on page 236. If this occurs, return to
your authorized GM dealer for diagnosis. If it is
determined that the condition is caused by the type
of fuel used, repairs may not be covered by
your warranty.
Additives
To provide cleaner air, all gasolines in the United
States are now required to contain additives
that will help prevent engine and fuel system
deposits from forming, allowing your emission
control system to work properly. In most cases,
you should not have to add anything to your fuel.
However, some gasolines contain only the
minimum amount of additive required to meet U.S.
Environmental Protection Agency regulations.
To help keep fuel injectors and intake valves clean,
or if your vehicle experiences problems due to
dirty injectors or valves, look for gasoline that is
advertised as TOP TIER Detergent Gasoline. Also,
your GM dealer has additives that will help
correct and prevent most deposit-related problems.
Gasolines containing oxygenates, such as ethers
and ethanol, and reformulated gasolines may be
available in your area. General Motors
recommends that you use these gasolines if they
comply with the specications described earlier.
429

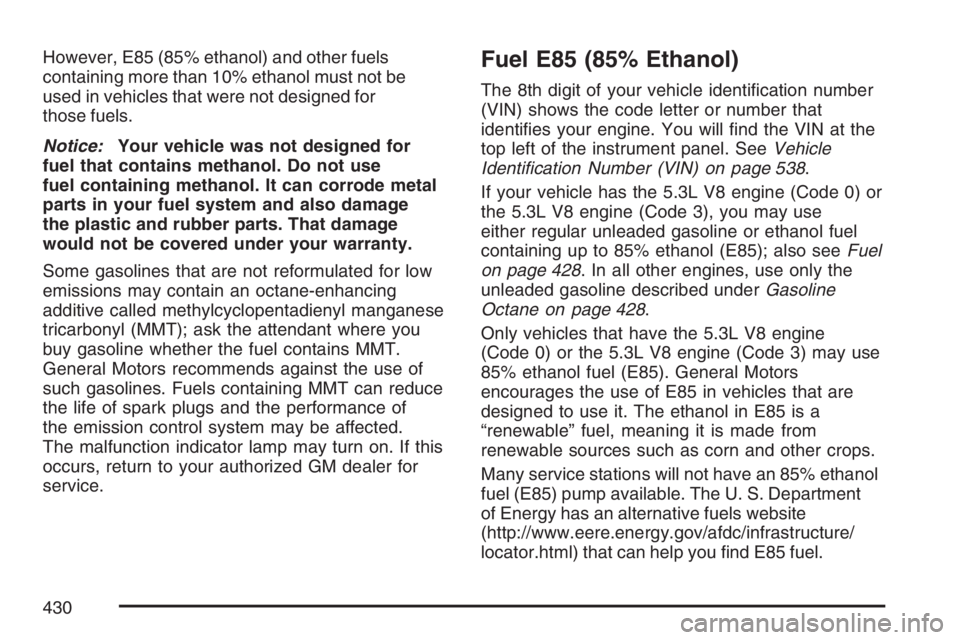

However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not be
used in vehicles that were not designed for
those fuels.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in your fuel system and also damage
the plastic and rubber parts. That damage
would not be covered under your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant where you
buy gasoline whether the fuel contains MMT.
General Motors recommends against the use of
such gasolines. Fuels containing MMT can reduce
the life of spark plugs and the performance of
the emission control system may be affected.
The malfunction indicator lamp may turn on. If this
occurs, return to your authorized GM dealer for
service.Fuel E85 (85% Ethanol)
The 8th digit of your vehicle identication number
(VIN) shows the code letter or number that
identies your engine. You will nd the VIN at the
top left of the instrument panel. SeeVehicle
Identication Number (VIN) on page 538.
If your vehicle has the 5.3L V8 engine (Code 0) or
the 5.3L V8 engine (Code 3), you may use
either regular unleaded gasoline or ethanol fuel
containing up to 85% ethanol (E85); also seeFuel
on page 428. In all other engines, use only the
unleaded gasoline described underGasoline
Octane on page 428.
Only vehicles that have the 5.3L V8 engine
(Code 0) or the 5.3L V8 engine (Code 3) may use
85% ethanol fuel (E85). General Motors
encourages the use of E85 in vehicles that are
designed to use it. The ethanol in E85 is a
“renewable” fuel, meaning it is made from
renewable sources such as corn and other crops.
Many service stations will not have an 85% ethanol
fuel (E85) pump available. The U. S. Department
of Energy has an alternative fuels website
(http://www.eere.energy.gov/afdc/infrastructure/
locator.html) that can help you nd E85 fuel.
430
