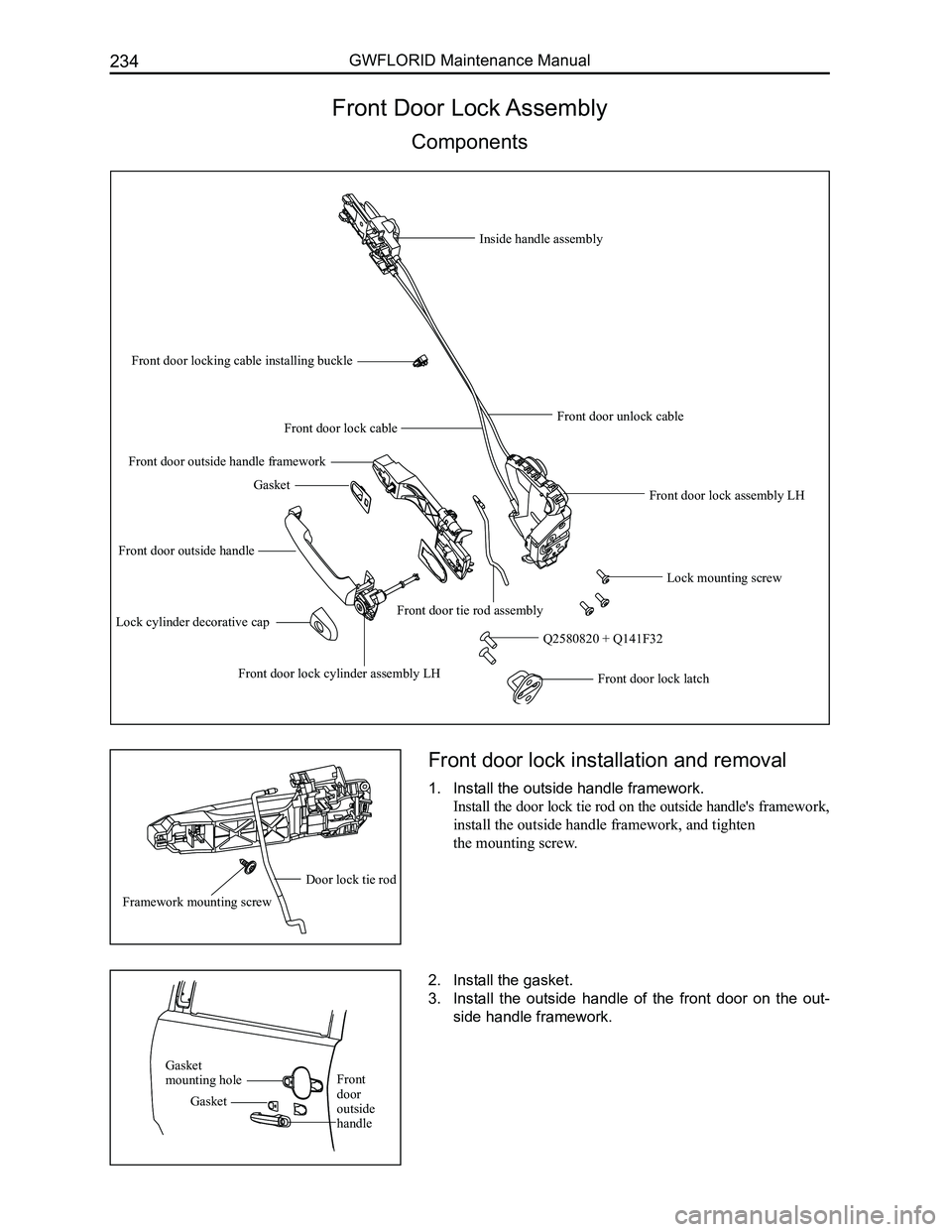

Front Door Lock Assembly
Components
Front door lock installation and removal
1. Install the outside handle framework.
Install the door lock tie rod on the outside handle's framework,
install the outside handle framework, and tighten
the mounting screw.
2. Install the gasket.
3. Install the outside handle of the front door on the out-
side handle framework.
Inside handle assembly
Front door lock assembly LH
Lock mounting screw
Gasket
Front door locking cable installing buckle
Front door unlock cableFront door lock cable
Front door lock latchFront door lock cylinder assembly LH
Lock cylinder decorative cap
Front door outside handle
Gasket
Front door outside handle framework
Front door tie rod assembly
Q2580820 + Q141F32
Framework mounting screw
Door lock tie rod
Front door outside handle
Gasket mounting hole

Downloaded from www.Manualslib.com manuals search engine 235Vehicle Body

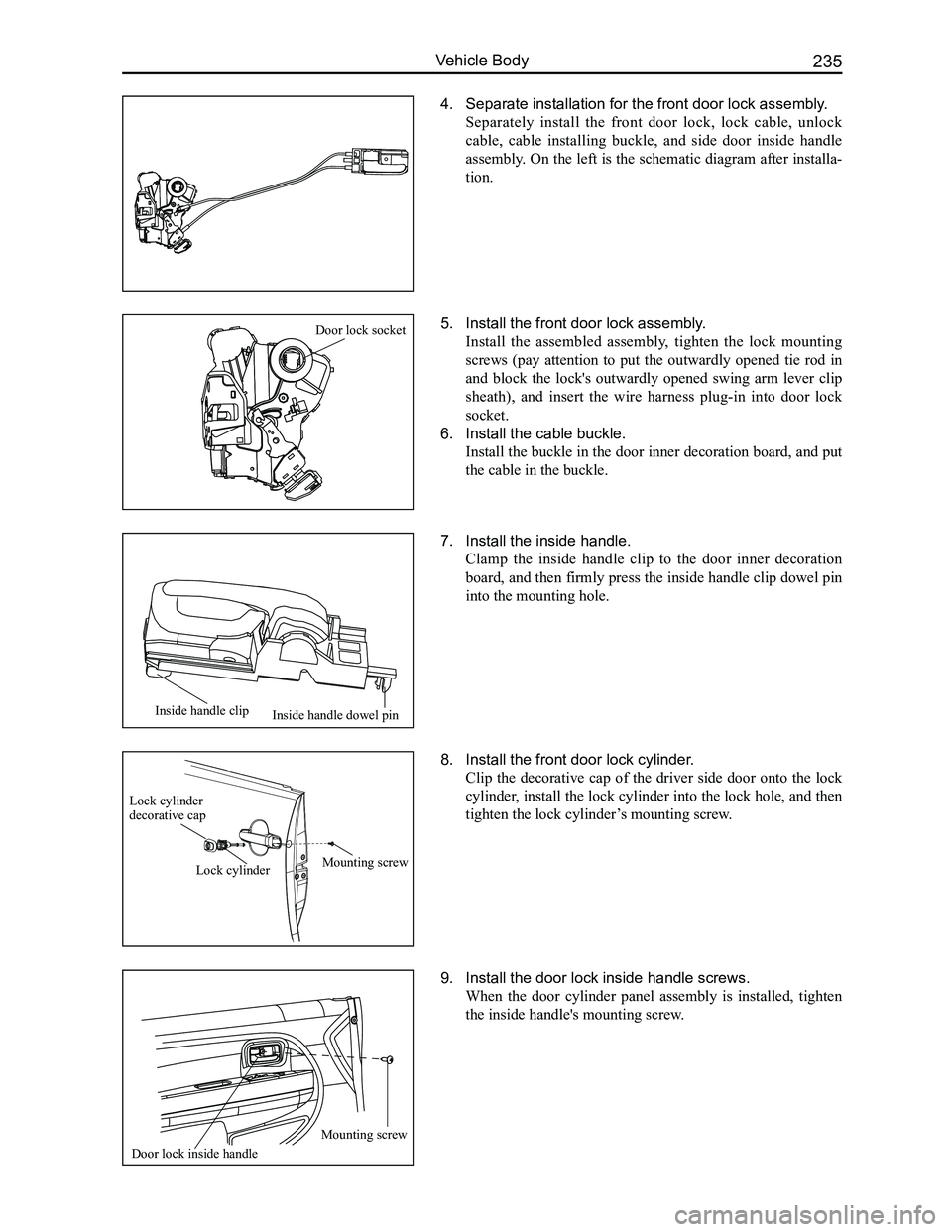

4. Separate installation for the front door lock assembly.
Separately install the front door lock, lock cable, unlock
cable, cable installing buckle, and side door inside handle
assembly. On the left is the schematic diagram after installa-
tion.
7. Install the inside handle.
Clamp the inside handle clip to the door inner decoration
board, and then firmly press the inside handle clip dowel pin
into the mounting hole.
8. Install the front door lock cylinder.
Clip the decorative cap of the driver side door onto the lock
cylinder, install the lock cylinder into the lock hole, and then
tighten the lock cylinder’s mounting screw.
5. Install the front door lock assembly.
Install the assembled assembly, tighten the lock mounting
screws (pay attention to put the outwardly opened tie rod in
and block the lock's outwardly opened swing arm lever clip
sheath), and insert the wire harness plug-in into door lock
socket.
6. Install the cable buckle.
Install the buckle in the door inner decoration board, and put
the cable in the buckle.
9. Install the door lock inside handle screws.
When the door cylinder panel assembly is installed, tighten
the inside handle's mounting screw.
Door lock socket
Inside handle dowel pinInside handle clip
Lock cylinder decorative cap
Lock cylinderMounting screw
Mounting screw
Door lock inside handle

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual236

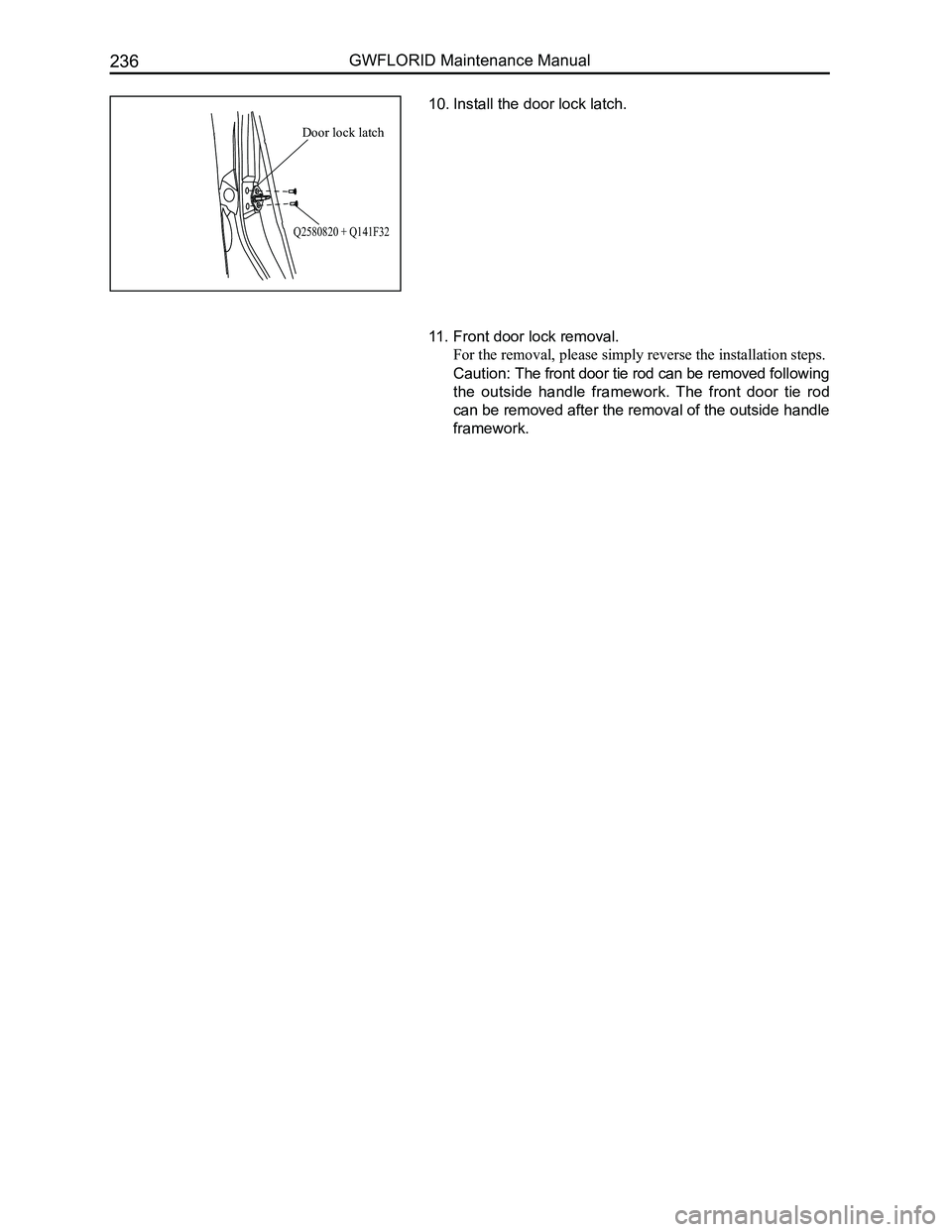

10. Install the door lock latch.
11. Front door lock removal.
For the removal, please simply reverse the installation steps.
Caution: The front door tie rod can be removed following
the outside handle framework. The front door tie rod
can be removed after the removal of the outside handle
framework.
Door lock latch
Q2580820 + Q141F32

Downloaded from www.Manualslib.com manuals search engine 237Vehicle Body
Rear door lock installation and removal
1. Install the outside handle framework, and tighten the
framework mounting screw.
Rear Door Lock Assembly
Components
2. Install the gasket.
P u t t h e g a s k e t o n t o t h e m o u n t i n g h o l e ( s i m i l a r t o t h e
installation for the front door).
3. Install the rear door outside handle on the outside han-
dle framework.
4. Separate installation for the rear door lock assembly.
Separately install the rear door lock, lock cable, unlock
cable, cable installing buckle, and rear door inside handle as-
sembly (similar to the installation for the front door).
Rear door outside handle
Rear door lock latch
Rear door lock cable installing buckle
Rear door lock assembly LH
Lock mounting screw
Rear door inside handle assembly LH
Rear door handle decorative cap
Rear door outside handle framework LH
Rear door outside handle gasket
Rear door outside handle gasket 2
Q2580816
Framework mounting screw
Gasket
Rear door outside handle

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual238

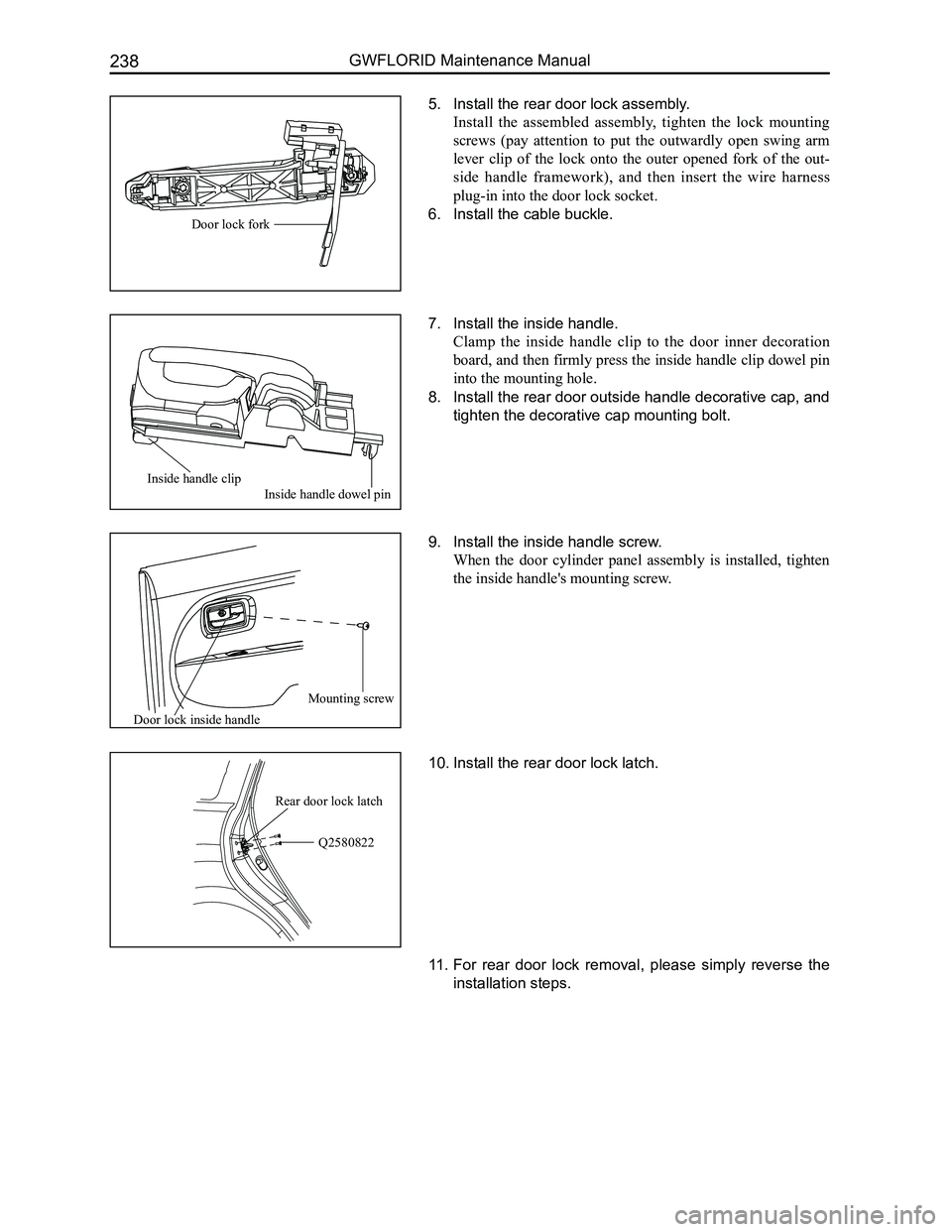

5. Install the rear door lock assembly.
Install the assembled assembly, tighten the lock mounting
screws (pay attention to put the outwardly open swing arm
lever clip of the lock onto the outer opened fork of the out-
side handle framework), and then insert the wire harness
plug-in into the door lock socket.
6. Install the cable buckle.
7. Install the inside handle.
Clamp the inside handle clip to the door inner decoration
board, and then firmly press the inside handle clip dowel pin
into the mounting hole.
8. Install the rear door outside handle decorative cap, and
tighten the decorative cap mounting bolt.
9. Install the inside handle screw.
When the door cylinder panel assembly is installed, tighten
the inside handle's mounting screw.
10. Install the rear door lock latch.
11. For rear door lock removal, please simply reverse the
installation steps.
Door lock fork
Inside handle dowel pin
Inside handle clip
Mounting screw
Door lock inside handle
Rear door lock latch
Q2580822

Downloaded from www.Manualslib.com manuals search engine 239Vehicle Body
Trunk door lock installation and removal
1. Install the trunk door outside handle.
Install the trunk door outside handle assembly, tighten the
mounting screw, and install the wire harness plug-in.
Trunk Door Lock Assembly
Components
2. Install the trunk door main lock assembly.
Install the trunk door main lock assembly, and tighten the
mounting screw.
3. Install the trunk lock latch.
4. For trunk lock removal, please simply reverse the
installation steps.
Trunk door lock assembly
Q1460620 (Q402) F3
Trunk door lock latch
Q2580820 + Q141F32
Q1840616F3
Trunk door outside handle assemblyConnect the central door lock controller
Connect the door lamp indicator
Q1460620 (Q402) F3
Connect the door lamp indicator
Connect the central door lock controller
Q1840616F3

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual240

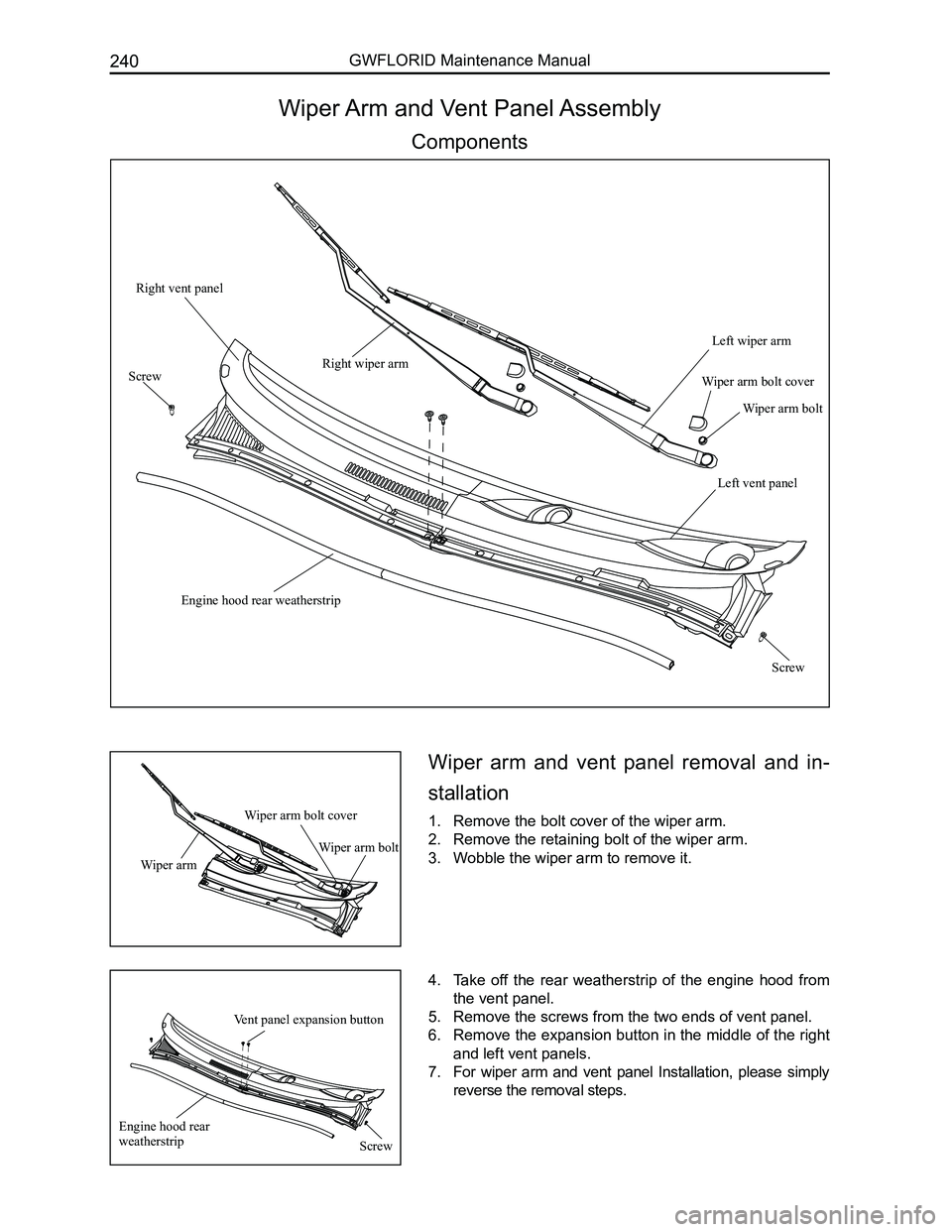

Wiper arm and vent panel removal and in-
stallation
1. Remove the bolt cover of the wiper arm.
2. Remove the retaining bolt of the wiper arm.
3. Wobble the wiper arm to remove it.
Wiper Arm and Vent Panel Assembly
Components
4. Take off the rear weatherstrip of the engine hood from
the vent panel.
5. Remove the screws from the two ends of vent panel.
6. Remove the expansion button in the middle of the right
and left vent panels.
7. For wiper arm and vent panel Installation, please simply
reverse the removal steps.
Right wiper arm
Left wiper arm
Wiper arm bolt cover
Wiper arm bolt
Left vent panel
Right vent panel
Engine hood rear weatherstrip
Screw
Screw
Wiper arm bolt cover
Wiper arm bolt
Wiper arm
Engine hood rear
weatherstrip
Vent panel expansion button
Screw

Downloaded from www.Manualslib.com manuals search engine 241Vehicle Body

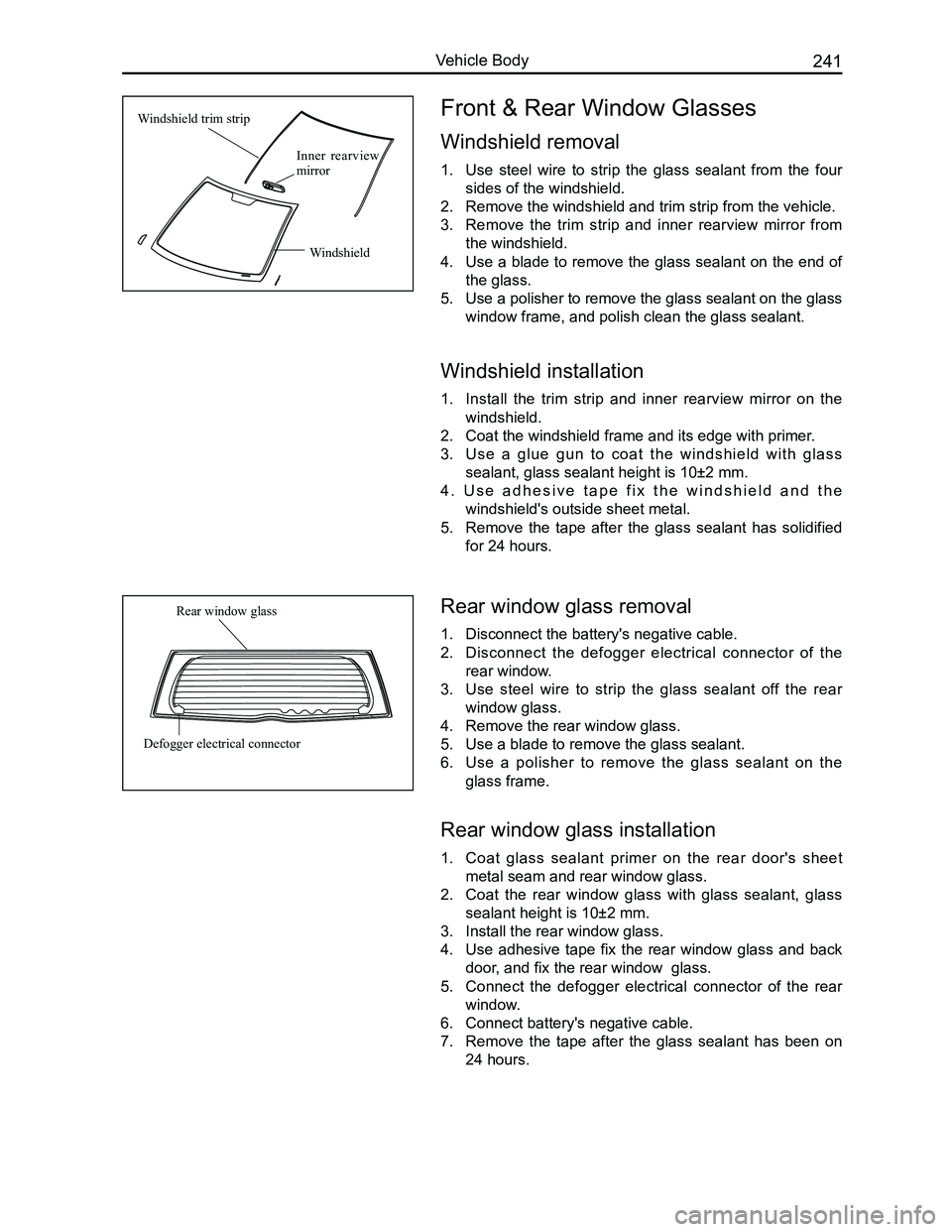

Front & Rear Window Glasses
Windshield removal
1. Use steel wire to strip the glass sealant from the four
sides of the windshield.
2. Remove the windshield and trim strip from the vehicle.
3. Remove the trim strip and inner rearview mirror from
the windshield.
4. Use a blade to remove the glass sealant on the end of
the glass.
5. Use a polisher to remove the glass sealant on the glass
window frame, and polish clean the glass sealant.
Rear window glass removal
1. Disconnect the battery's negative cable.
2. Disconnect the defogger electrical connector of the
rear window.
3. Use steel wire to strip the glass sealant off the rear
window glass.
4. Remove the rear window glass.
5. Use a blade to remove the glass sealant.
6. Use a polisher to remove the glass sealant on the
glass frame.
Rear window glass installation
1. Coat glass sealant primer on the rear door's sheet
metal seam and rear window glass.
2. Coat the rear window glass with glass sealant, glass
sealant height is 10±2 mm.
3. Install the rear window glass.
4. Use adhesive tape fix the rear window glass and back
door, and fix the rear window glass.
5. Connect the defogger electrical connector of the rear
window.
6. Connect battery's negative cable.
7. Remove the tape after the glass sealant has been on
24 hours.
Windshield installation
1. Install the trim strip and inner rearview mirror on the
windshield.
2. Coat the windshield frame and its edge with primer.
3. Use a glue gun to coat the windshield with glass
sealant, glass sealant height is 10±2 mm.
4 . U s e a d h e s i v e t a p e f i x t h e w i n d s h i e l d a n d t h e
windshield's outside sheet metal.
5. Remove the tape after the glass sealant has solidified
for 24 hours.
Windshield
Windshield trim strip
Inner rearview mirror
Defogger electrical connector
Rear window glass

Downloaded from www.Manualslib.com manuals search engine GWFLORID Maintenance Manual242
Dashboard
Components
Dashboard removal
1. Remove the auxiliary facia console.
(a) Take down the front ash tray assembly
(b) Take down the auxiliary facia console decorative carpet.
(c) Remove one screw.
(d) Remove the parking brake lever panel.
(e) Remove the shift lever cap.
(f) Remove the auxiliary facia console assembly.
2. Remove the left & right trim strip assembly of the dash-
board.
Front ash tray assembly
Dashboard top assembly
Combination switch cover assembly
Dashboard lower framework assemblyGlove box assembly
Fuse box
Dashboard left trim strip
Dashboard center console left trim strip
Ash tray assembly
Coin box bottom
Coin box coverFront ash tray assembly
Dashboard center console right trim strip assembly
Small glove box assembly
Shift handle cover assembly
Auxiliary facia console
Dashboard center console assembly
Air-conditioner center right air outlet tray assembly
Combination meter hood assembly
Side air outlet decorative cap
Air-conditioner air outlet wind-ball assembly
Air-conditioner air outlet tray assembly
Air-conditioner left air outlet tray assembly
Dashboard right trim strip
Parking brake lever panel
Auxiliary facia console decorative carpet
Screw
Buckle
Auxiliary facia console
Dashboard right trim strip assembly

Downloaded from www.Manualslib.com manuals search engine 243Vehicle Body

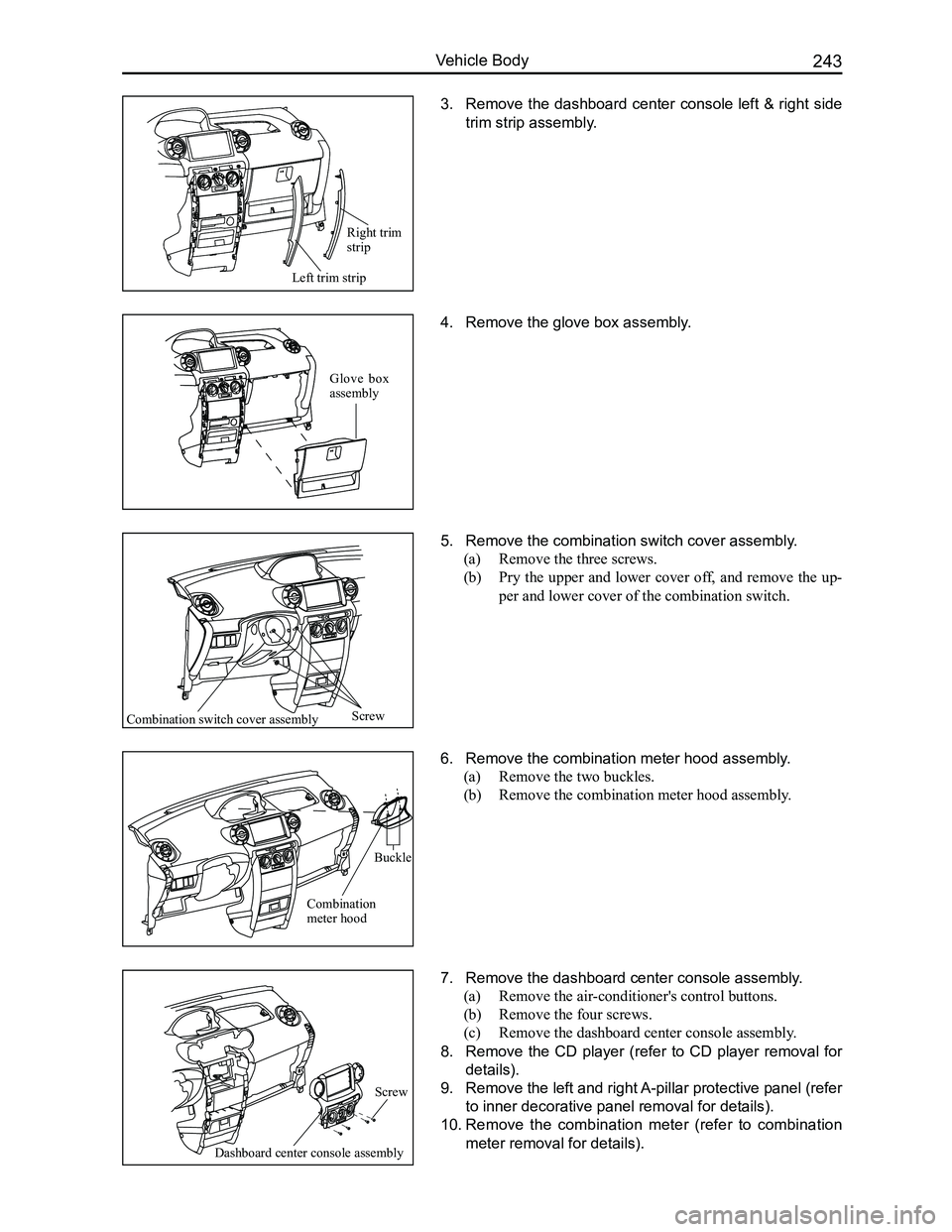

3. Remove the dashboard center console left & right side
trim strip assembly.
4. Remove the glove box assembly.
5. Remove the combination switch cover assembly.
(a) Remove the three screws.
(b) Pry the upper and lower cover off, and remove the up-
per and lower cover of the combination switch.
6. Remove the combination meter hood assembly.
(a) Remove the two buckles.
(b) Remove the combination meter hood assembly.
7. Remove the dashboard center console assembly.
(a) Remove the air-conditioner's control buttons.
(b) Remove the four screws.
(c) Remove the dashboard center console assembly.
8. Remove the CD player (refer to CD player removal for
details).
9. Remove the left and right A-pillar protective panel (refer
to inner decorative panel removal for details).
10. Remove the combination meter (refer to combination
meter removal for details).
Left trim strip
Screw
Buckle
Glove box assembly
Right trim strip
Combination switch cover assembly
Combination meter hood
Dashboard center console assembly
Screw
