GREAT WALL SO COOL 2006 Service Manual

BE-73
SY SJ
1 grounding wire
2 wire harness at right front door
3 warm air motor
4 connected to wire harness at right front door
5 control case of central control lock
6 electric aerial
7 heat-sensitive resistance
8 speed-adjusting resistance
9 connected to housing wire harness
10 connected to housing wire harness
11 A/C switch
12 air-volume switch
13 ashtray luminous lamp
14 grounding wire
15 ECU
16 CD device
17 CD device
18 cigarette lighter
19 cigarette lighter grounding wire
20 cigarette lighter luminous lamp
21 combined switch
22 fog lamp switch
23 dual flasher switch
24 rear defroster switch
25 rear brush switch
26 rear washer switch27 combination instrument
28 combination instrument
29 stop lamp switch
30 roof wire harness
31 connected to housing wire harness
32 connected to housing wire harness
33 connected to housing wire harness
34 connected to wire harness at left front door
35 connected to wire harness at left front door
36 connected to wire harness at left front door
37 protective box
38 rear defrost relay
39 connected to wire harness of rear air-conditioner
40 grounding wire
41 parking brake switch
42 connected to chassis wire harness
43 wire harness at right rear door
44 right front door lamp switch
45 right rear loudspeaker
46 rear washer motor
47 connected to wire harness at tail door
48 left front door lamp switch
49 wire harness at left rear door
50 left rear loudspeaker
51 standby power seat
1
2
3
4
5
6
7
8
9
101112
13
14
15
1617
181920
21 22232425262728
29
30
31
32
3334
35
36
37
38
39
4041 4243 444546
47
48495051
Cab wire harness (continued)
Body Electric System
Wire Harness Distribution

BE-74
SF
8
1 connected to cab wire harness
2 left rear door lamp switch
3 door lamp at left rear door
4 electric rocker and lock-out device at left rear door
5 left rear sound box
6 controller for brush, door and window at rear door
7 connected to wire harness at tail door
8 left rear combination lamp
9 highly-mounted stop lamp
10 rear ceiling lamp11 rear brusher motor
12 right rear combination lamp
13 right rear sound box
14 front ceiling lamp
15 lamp for reading
16 electric rocker and lock-out device at right rear door
17 right rear door lamp
18 right rear door lamp switch
19 connected to cab wire harness
20 connected to protective box I
123
45
67 9
10
11
12
13 14
15
16 17
18
19
20
Cab Wire harness (continued)
Body Electric System
Wire Harness Distribution

BE-75
Wire harness at four door
Dr
12
P 45
678
9
10
11
1213
14151617
18 19
202122
23
24
25 OS 2728
2930
31
32
1 connected to cab wire harness
2 left external electric rear vision mirror
3 electric rocker
4 rear vision mirror switch
5 power switch
6 romote control lock switch
7 rocker switch
8 rocker switch
9 rocker switch
10 rocker switch
11 lock-out device at left front door
12 left front door lamp
13 left rear door lamp
14 connected to wire harness a left rear door
15 left rear door lamp switch
16 left rear door switch
17 electric rocker18 lock-out device at left rear door
19 right rear door lamp
20 connected to wire harness at right rear door
21 right rear door lamp switch
22 right rear door switch
23 electric rocker
24 lock-out device at right rear door
25 right front door lamp switch
26 connected to cab wire harness
27 connected to cab wire harness
28 right external electric rear vision mirror
29 electric rocker
30 rocker switch
31 lock-out device at right front door
32 right front door lamp
Wire harness at leftfront door
Wire harness at left rear door
Wire harness at right front door
Wire harness at right rear door
Body Electric System
Wire Harness Distribution

BE-76
1 connected to cab wire harness
2 connected to cab wire harness
3 connected to cab wire harness
4 left front loudspeaker
5 left door lamp
6 electric rocker
7 rocker switch
8 rocker switch
9 rocker switch
10 rocker switch
11 left front lock-out device
12 connected to cab wire harness
13 left rear loudspeaker
14 electric rocker
15 left rear lock-out device
16 rocker switch
17 left rear door lamp switch
18 highly-mounted stop lamp19 right rear door lamp switch
20 ceiling lamp
21 connected to cab wire harness
22 lamp for reading
23 car door display
24 temperature display
25 rocker switch
26 right rear lock-out device
27 electric rocker
28 right rear loudspeaker
29 connected to cab wire harness
30 rocker switch
31 right front lock-out device
32 electric rocker
33 right front loudspeaker
34 right door lamp
35 connected to cab wire harness
36 connected to cab wire harness
wire harness at left
rear door
wire harness at left
front doorroof wire harness wire harness at
right rear door
wire harness at right front door
1
2
34
510
6 789
111213
14151617 18
19
20
21 22
23
2425
26
27 28
29
30
31 32 33
34 35 36
SL SK
Wire harness at four doors and body roof
Body Electric System
Wire Harness Distribution

BE-77
SY
Wire harness at right rear door is distributed in the same way as that at left front rear door.
1 connected to cab wire harness
2 connected to cab wire harness
3 connected to cab wire harness
4 left external electric rear vision mirror
5 left front loudspeaker
6 left door lamp
7 electric rocker
8 left front lock-out device
9 rear vision mirror switch
10 rocker switch
11 rocker switch
12 rocker switch
13 rocker switch
14 inhibitor switch
15 connected to cab wire harness
16 electric rocker17 left rear lock-out device
18 rocker switch
19 highly-mounted stop lamp
20 rear ceiling lamp
21 front ceiling lamp
22 lamp for reading
23 car door display
24 temperature display
25 connected to cab wire harness
26 connected to cab wire harness
27 right external electric rear vision mirror
28 right front loudspeaker
29 right door lamp
30 electric rocker
31 right front lock-out device
32 rocker switch wire harness at left front doorwire harness at left rear door
1
2
34
5
6
78V NM
11
12
13
1415
16
171819 20
21
23
22 2526
27
28
29
3031
roof wire harness wire harness at right front door
Wire harness at four doors and body roof (continued)
24 32
Body Electric System
Wire Harness Distribution

BE-78
wire harness at left front door
Wire harness at right rear door is distributed in the same way as that at left rear door.
1 connected to cab wire harness
2 connected to cab wire harness
3 connected to cab wire harness
4 left external electric rear vision mirror
5 left front loudspeaker
6 left door lamp
7 electric rocker
8 left front lock-out device
9 rear vision mirror switch
10 rocker switch
11 connect to cab wire harness
12 electric rocker
13 left rear lock-out device
14 rocker switch
15 highly-mounted stop lamp16 bass speaker(top SY)
17 ceiling lamp
18 grounding wire(top SY)
19 lamp for reading
20 car door display
21 temperature display
22 connected to cab wire harness
23 connected to cab wire harness
24 right external electric rear vision mirror
25 right front loudspeaker
26 right door lamp
27 electric rocker
28 right front lock-out device
29 rocker switch
1
2
34
5
6
789 10
11
12
13141516 17
18 19
20
21 22
23
24
25
2627wire harness at right front door
roof wire harness
wire harness at left rear door
Top style SY SJ
Wire harness at four doors and body roof (continued)
2829
Body Electric System
Wire Harness Distribution

BE-79
SF
1 connected to protective box I
2 connected to protective box I
3 rear vision mirror
4 front door-lamp switch
5 rocker switch
6 rocker at front door Wire harness distribution at front left door, front right door, rear left door and rear right door are same with each other.
1 2345
6
7 891011
wire harness at front doorwire harness at rear door
Wire harness of four doors(continued)
Body Electric System
Wire Harness Distribution
7 lock-out device at front door
8 wire harness at central part
9 wire harness at central part
10 rocker at rear door
11 rocker switch

BE-80
Wire harness at tail door and of rear air-conditioner
SY SJ
wire harness of rear
air-conditionerwire harness
of rear brush
1
2
3456
7
8V 10 1112 13
NQ
Only the vehicle with SY model has the wire harness of rear air-conditioner shown in above-mentioned wire harness.
1 rear A/C switch
2 connected to cab wire harness
3 rear air-conditioning relay
4 grounding wire
5 temperature control switch
6 electromagnetic valve
7 temperature controller8 speed-adjusting resistance
9 license lamp
10 license lamp
11 rear brusher motor
12 defroster
13 defroster
14 connected to cab wire harness
Body Electric System
Wire Harness Distribution

BE-81
SF
1 connected to left rear wire harness
2 connected to left rear wire harness
3 lock switch at left tail door
4 electro-heating gate at tail door
5 electro-heating gate at tail door
6 left license lamp7 electric rocker at tail door
8 right license lamp
9 lower limit switch at tail door
10 alarming switch at tail door
11 lock barrel at tail door
12 lock switch at right tail door 12
3
4
5
67
89
10
1112
Wire harness at tail door (continued)
Body Electric System
Wire Harness Distribution

BE-82
Chassis Wire Harness
Dr
12
3456 7 8
910
11
12

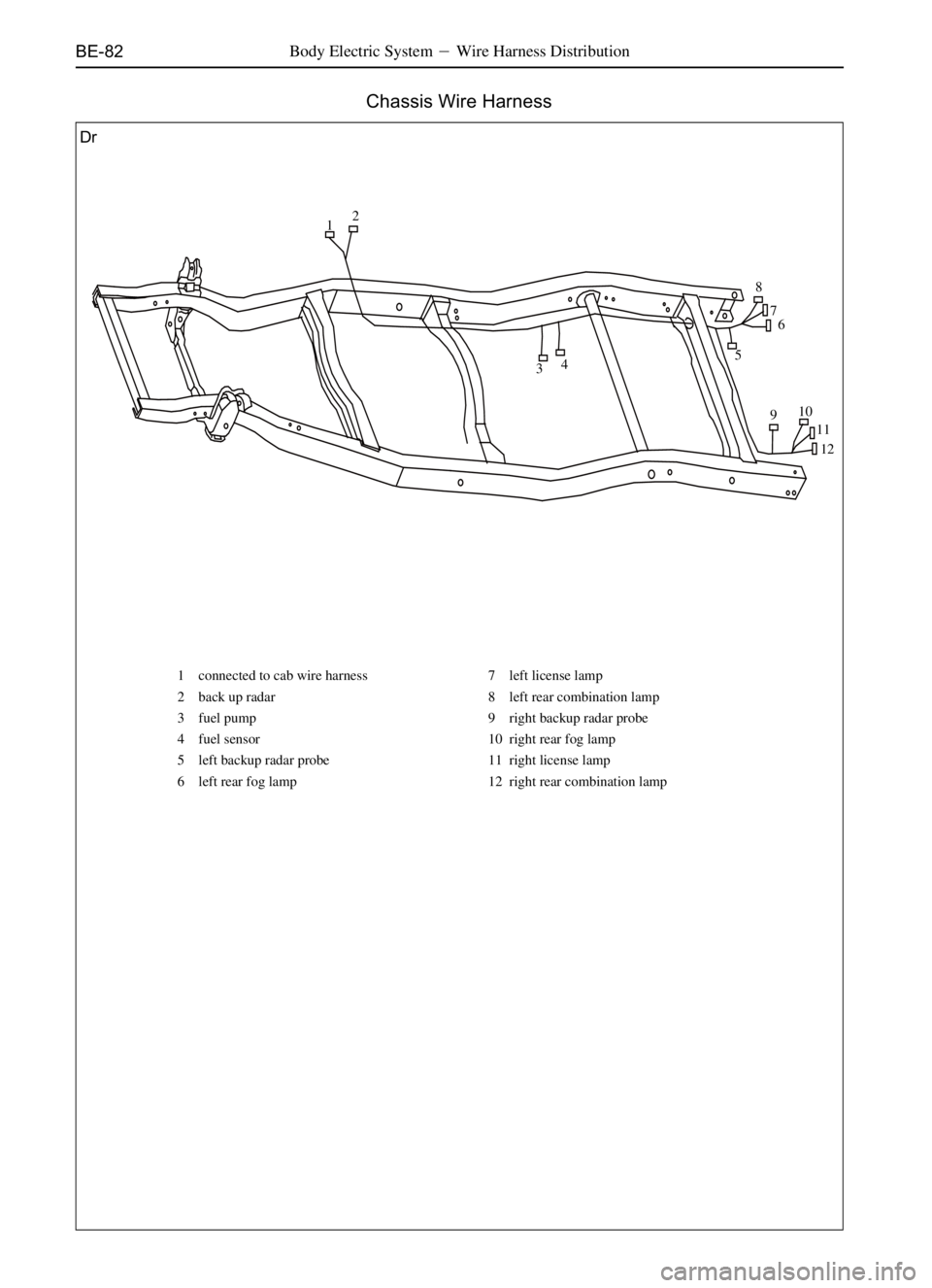

1 connected to cab wire harness
2 back up radar
3 fuel pump
4 fuel sensor
5 left backup radar probe
6 left rear fog lamp7 left license lamp
8 left rear combination lamp
9 right backup radar probe
10 right rear fog lamp
11 right license lamp
12 right rear combination lamp
Body Electric System
