HONDA ACCORD 2002 CL7 / 7.G Owners Manual

Be sure
there is adequate ventilation
whenever you operate the engine.
Let the
engine and exhaust system cool
bef ore touching any parts.
Do
not run the engine unless in-
structed to do so. Read the instructions before you
begin, and make sure you have the
tools and skills required.
Bef ore you begin any maintenance,
make sure your car is parked on
level ground and that the parking
brake is set. Also, be sure the engine
is of f . This will help to eliminate
several potential hazards:
You should wear eye protection and
protective clothing when working
near the battery or when using
compressed air.
To reduce the possibility of f ire or
explosion, be caref ul when working
around gasoline or batteries. Use a
commercially available degreaser or
parts cleaner, not gasoline, to clean
parts. Keep cigarettes, sparks, and
flames away from the battery and all
f uel-related parts.
Maintenance Saf ety
Maint enance
Important Saf ety Precautions
Carbon monoxide poisoning
f rom engine exhaust.
Burns f rom hot parts.
Injury f rom moving parts.
237

The services and time or distance
intervals shown in the maintenance
schedule assume you will use your
vehicle as normal transportation f or
passengers and their possessions.
You should also f ollow these
recommendations:
The Maintenance Schedule specif ies
how of ten you should have your car
serviced and what things need
attention. It is essential that you have
your car serviced as scheduled to
retain its high level of saf ety,
dependability, and emissions control
perf ormance.
Avoidexceedingyourcar’sload
limit.Thisputsexcessstresson
the engine, brakes, and many
other parts of your car. The load
limit is shown on the label on the
driver’s doorjamb.
Operate your car on reasonable
roads within the legal speed limit.
Drive your car regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
theproperoctanerating(seepage). Service your car according to the
time and mileage periods on one of
the Maintenance Schedules on the
f ollowing pages. Select the schedule
f or ‘‘Severe Conditions’’ if most of
your driving is done under one or
more of the conditions listed on that
page. Otherwise, f ollow the schedule
f or ‘‘Normal Conditions.’’
194
Maintenance Schedule
Maint enance
Which Schedule to Follow:
238

CONT INUED
Maint enance
Required Maintenance Record (f or Normal and Severe Schedules)
245
3,750 mi
7,500 mi
11,250 mi
15,000 mi
18,750 mi
22,500 mi
26,250 mi
30,000 mi33,750 mi
37,500 mi
41,250 mi
45,000 mi
48,750 mi
52,500 mi
56,250 mi
60,000 mi
You or the servicing dealer can record all completed maintenance here, whether you follow the sc
hedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
mi/km Date
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
Signature or dealer stamp
Signature or dealer stamp mi/km
Date
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
6,000 km
12,000 km
18,000 km
24,000 km
(or 1 year)
30,000 km
36,000 km
42,000 km
48,000 km
(or 2 years) 54,000 km
60,000 km
66,000 km
72,000 km
(or 3 years)
78,000 km
84,000 km
90,000 km
96,000 km
(or 4 years)240
242

µµµ µ
µ
µ
µ
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the page given.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Windshield washer f luid Check
the level in the reservoir monthly.
If weather conditions cause you to
use the washers f requently, check
the reservoir each time you stop
f or f uel. See page .Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See
page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page . 198
200
262
263 267 283
290
Owner Maintenance Checks
Maint enance247

Maint enance

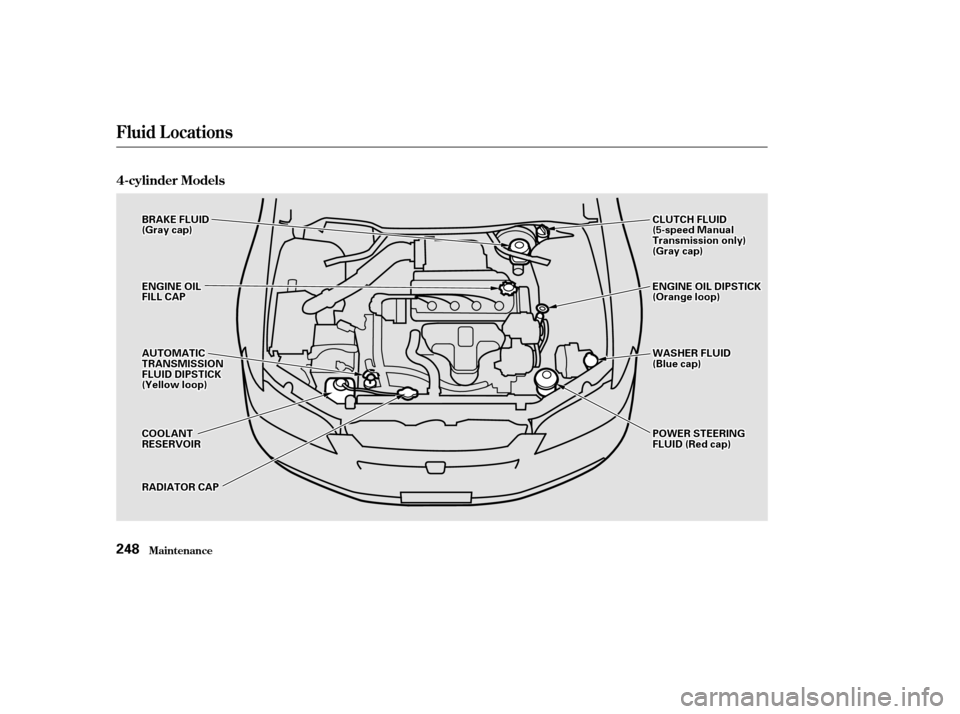

Fluid Locations
4-cylinder Models
248
BBRRAAKKEEFFLLUUIIDD((GGrraayyccaapp))
EENNGGIINNEEOOIILLFFIILLLLCCAAPP
CCOOOOLLAANNTTRREESSEERRVVOOIIRR
AAUUTTOOMMAATTIICCTTRRAANNSSMMIISSSSIIOONNFFLLUUIIDDDDIIPPSSTTIICCKK((YYeelllloowwlloooopp))
PPOOWWEERRSSTTEEEERRIINNGGFFLLUUIIDD((RReeddccaapp))
EENNGGIINNEEOOIILLDDIIPPSSTTIICCKK((OOrraannggeelloooopp))
CCLLUUTTCCHHFFLLUUIIDD((55--ssppeeeeddMMaannuuaallTTrraannssmmiissssiioonnoonnllyy))((GGrraayyccaapp))
WWAASSHHEERRFFLLUUIIDD((BBlluueeccaapp))
RRAADDIIAATTOORRCCAAPP

To add oil, unscrew and remove the
engine oil f ill cap on top of the valve
cover. Pour in the oil, and install the
engine oil f ill cap. Tighten it securely.
Wait a f ew minutes and recheck the
oil level. Do not f ill above the upper
mark; you could damage the engine.Oil is major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or
as long as you own it.
A dding Oil
Recommended Oil
Maint enance
Engine Oil
250
EENNGGIINNEEOOIILLFFIILLLLCCAAPP
44--ccyylliinnddeerrmmooddeellss
EENNGGIINNEEOOIILLFFIILLLLCCAAPP
66--ccyylliinnddeerrmmooddeellss

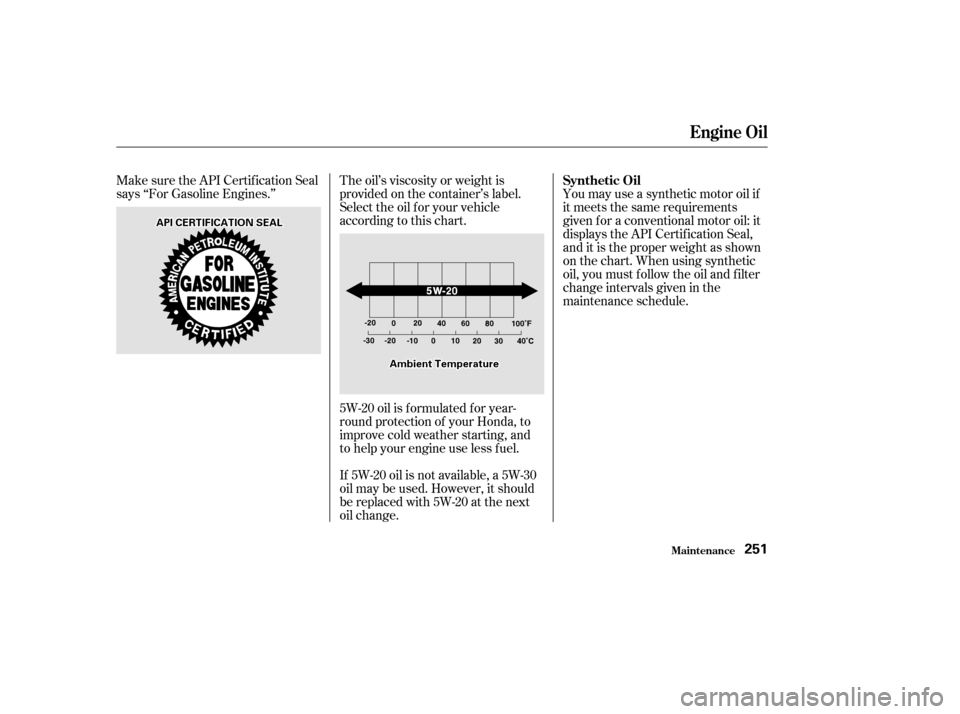

Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’The oil’s viscosity or weight is
provided on the container’s label.
Select the oil f or your vehicle
according to this chart.You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight as shown
on the chart. When using synthetic
oil, you must f ollow the oil and f ilter
change intervals given in the
maintenance schedule.
If 5W-20 oil is not available, a 5W-30
oil may be used. However, it should
be replaced with 5W-20 at the next
oil change.
5W-20 oil is f ormulated f or year-
round protection of your Honda, to
improve cold weather starting, and
to help your engine use less f uel.
Engine Oil
Maint enance
Synthetic Oil
251
AAPPIICCEERRTTIIFFIICCAATTIIOONNSSEEAALL
AAmmbbiieennttTTeemmppeerraattuurree

Run the engine until it reaches
normal operating temperature,
then shut it off.
Changing the oil and f ilter requires
special tools and access f rom
underneath the car. The car should
be raised on a service station-type
hydraulic lif t f or this service. Unless
you have the knowledge and proper
equipment, you should have this
maintenance done by a skilled
mechanic.
Always change the oil and f ilter
accordingtothetimeanddistance
(miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and f ilter collect contami-
nants that can damage your engine if
they are not removed regularly.
Your Honda does not need any oil
additives. Purchasing additives f or
the engine or transmission will not
increase your car’s perf ormance or
longevity. It only increases the cost
of operating your car. 1.
Maint enance
Engine Oil
Changing the Oil and Filter
A dditives
252

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
This coolant should always be a
mixtureof 50percentantifreezeand
50 percent water. Never add straight
antif reeze or plain water.Always use Honda All Season
Antif reeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antif reeze and 50 percent water. It
does not require any additional
mixing. If it is not available, you may
use another major-brand non-silicate
coolant as a temporary replacement.
Make sure it is a high-quality coolant
recommended f or aluminum engines.
However, continued use of any non-
Honda coolant can result incorrosion, causing the cooling
system to malf unction or f ail. Have
the cooling system f lushed and
ref illed with Honda antif reeze/
coolant as soon as possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
CONT INUED
A dding Engine Coolant
Maint enance
Cooling Syst em
255
66--ccyylliinnddeerrmmooddeellss44--ccyylliinnddeerrmmooddeellssRREESSEERRVVEETTAANNKKRREESSEERRVVEETTAANNKKRemoving the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

CONT INUED

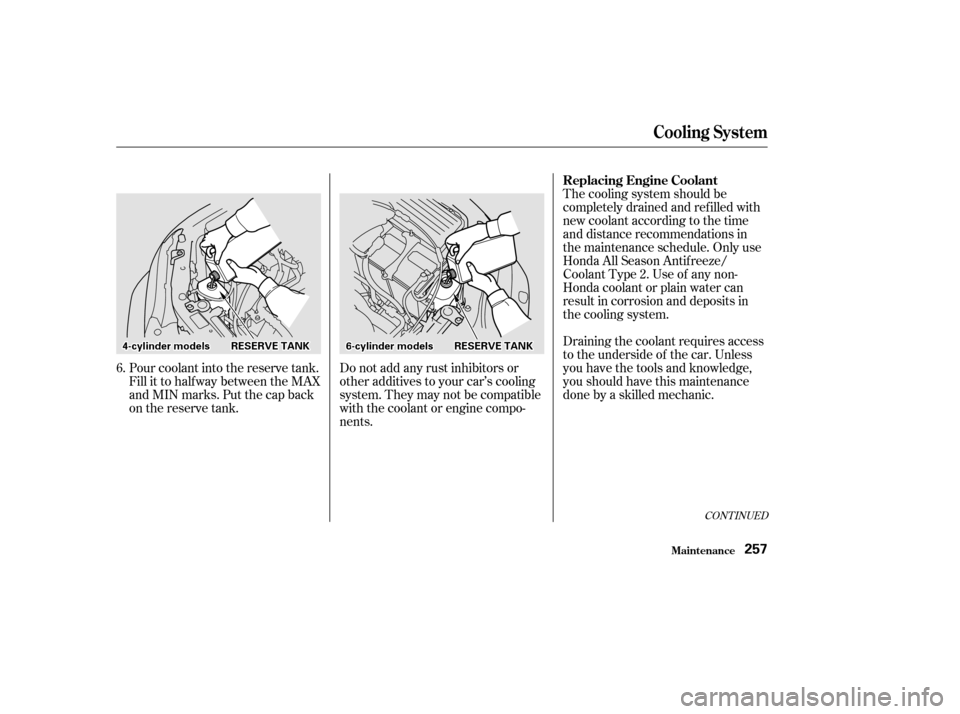

Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents. Thecoolingsystemshouldbe
completely drained and ref illed with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
Honda All Season Antif reeze/
Coolant Type 2. Use of any non-
Honda coolant or plain water can
result in corrosion and deposits in
the cooling system.
Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic.
6. Replacing Engine Coolant
Cooling Syst em
Maint enance257
44--ccyylliinnddeerrmmooddeellssRREESSEERRVVEETTAANNKK66--ccyylliinnddeerrmmooddeellssRREESSEERRVVEETTAANNKK
