Run the air conditioning at least once
a week during the cold weather
months. Run it f or at least ten
minutes while you are driving at a
steady speed with the engine at
normal operating temperature. This
circulates the lubricating oil con-
tained in the ref rigerant.If the air conditioning does not get as
cold as before, have your dealer
check the system. Recharge the
system with Ref rigerant HFC-134a
(R-134a). (See Specif ications on page
.)
Periodically check the engine’s
radiator and air conditioning
condenser f or leaves, insects, and
dirt stuck to the f ront surf ace. These
block the air f low and reduce cooling
ef f iciency. Use a light spray f rom a
hose or a sof t brush to remove them.
Your car’s air conditioning is a sealed
system. Any major maintenance,
such as recharging, should be done
by a qualif ied mechanic. You can do
a couple of things to make sure the
air conditioning works ef f iciently.
342
Optional f or U.S. DX and Value Package
models
A ir Condit ioning Syst em
Maint enance281
AAIIRRCCOONNDDIITTIIOONNIINNGGCCOONNDDEENNSSEERR
Whenever you have the air conditioning
system serviced, make sure the service
f acility uses a ref rigerant recycling
system. This system captures the
ref rigerant f or reuse. Releasing
ref rigerant into the atmosphere can
damage the environment.
The condenser and radiator f ins bend
easily. Only use a low-pressure spray
or sof t-bristle brush to clean them.

µµ
µµ µµ

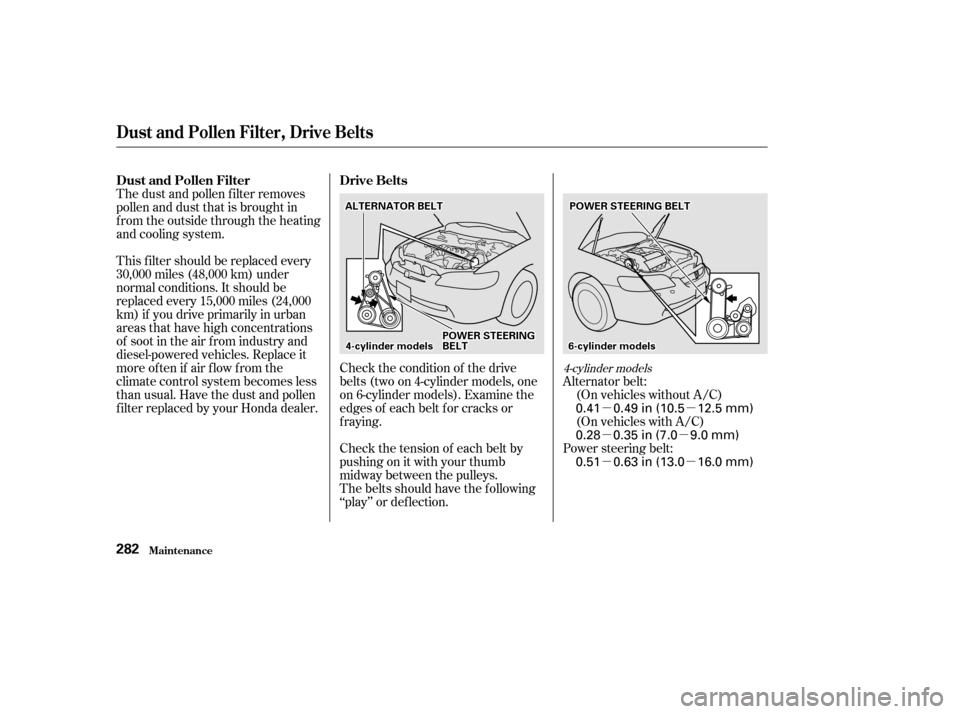

Check the condition of the drive
belts (two on 4-cylinder models, one
on 6-cylinder models). Examine the
edges of each belt for cracks or
f raying. (On vehicles with A/C)
(On vehicles without A/C)
Alternator belt:
Power steering belt:
The belts should have the f ollowing
‘‘play’’ or def lection.
Check the tension of each belt by
pushingonitwithyourthumb
midway between the pulleys.
The dust and pollen f ilter removes
pollen and dust that is brought in
f rom the outside through the heating
andcoolingsystem.
This f ilter should be replaced every
30,000 miles (48,000 km) under
normal conditions. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air f rom industry and
diesel-powered vehicles. Replace it
more of ten if air f low f rom the
climate control system becomes less
than usual. Have the dust and pollen
f ilter replaced by your Honda dealer.
4-cylinder models
Drive Belts
Dust and Pollen Filter
Maint enance
Dust and Pollen Filter, Drive Belts
282
44--ccyylliinnddeerrmmooddeellss66--ccyylliinnddeerrmmooddeellss
AALLTTEERRNNAATTOORRBBEELLTT
PPOOWWEERRSSTTEEEERRIINNGGBBEELLTT
PPOOWWEERRSSTTEEEERRIINNGGBBEELLTT
0.28 0.35 in (7.0 9.0 mm)
0.41 0.49 in (10.5 12.5 mm)
0.51 0.63 in (13.0 16.0 mm)

µµ
µµ
The timing belt and balancer belt
should normally be replaced at the
intervals shown in the maintenance
schedule.
In very high temperatures
(over 110°F, 43°C).
In very low temperatures
(under 20°F, 29°C).
Power steering belt:
If you see signs of wear or looseness,
have your dealer adjust or replace
the belts.
To saf ely operate your car, your tires
mustbethepropertypeandsize,in
good condition with adequate tread,
and correctly inf lated. The f ollowing
pages give more detailed inf ormation
on how and when to check air
pressure, how to inspect your tires
for damage and wear, and what to do
when your tires need to be replaced.
Replace these belts at 60,000 miles
(U.S.) or 100,000 km (Canada) if you
regularly drive your car in one or
more of these conditions:
6-cylinder modelsTires
Timing Belt
Drive Belts, T iming Belt, T ires
Maint enance283
0.51 0.65 in (13.0 16.5 mm)
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.

We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf /cm ) per month.
Remember to check the spare tire at
thesametimeyoucheckallthe
other tires.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier f or you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e and riding
comf ort. Underinf lated tires wear
unevenly, adversely af f ect handling
and f uel economy, and are more
likely to f ail f rom being overheated.
Overinf lated tires can make your car
ride more harshly, are more prone to
damage f rom road hazards, and wear
unevenly.
If you check the pressure when the
tires are hot (the car has been driven
several miles), you will see readings
4 to 6 psi (30 to 40 kPa, 0.3 to 0.4
kgf /cm ) higher than the cold
reading. This is normal. Do not let
air out to match the specified cold
pressure. The tire will be
underinf lated.
Check the pressure in the tires when
they are cold. This means the car
has been parked f or at least three
hours. If you have to drive the car
bef ore checking the tire pressure,
the tires can still be considered
‘‘cold’’ if you drive less than 1 mile
(1.6 km).
Inf lation
Tires
Maint enance284

Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.
Youshouldlookfor:Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherof theseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord.
Excessive tread wear. In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
The tires were properly balanced by
the factory. They may need to be
rebalanced at some time bef ore they
are worn out. Have your dealer
check the tires if you f eel a consis-
tent vibration while driving. A tire
should always be rebalanced if it is
removed f rom the wheel f or repair.
Your car’s tires have wear indicators
molded into the tread. When the
tread wears down to that point, you
will see a 1/2 inch (12.7 mm) wide
band running across the tread. This
shows there is less than 1/16 inch
(1.6 mm) of tread lef t on the tire. A
tire that is this worn gives very little
traction on wet roads. You should
replace the tire if you can see the
tread wear indicator in three or more
places around the tire.
Inspection
Maintenance
Tires
Maint enance286
IINNDDIICCAATTOORRLLOOCCAATTIIOONNMMAARRKKSS
TTRREEAADDWWEEAARRIINNDDIICCAATTOORRSS

When shopping f or replacement
tires, you may find that some tires
are ‘‘directional.’’ This means they
are designed to rotate only in one
direction. If you use directional tires,they should be rotated only front-to-
back.
To help increase tire lif e and
distribute wear more evenly, you
should have the tires rotated every
7,500 miles (12,000 km). Move the
tires to the positions shown in the
chart each time they are rotated.
Make sure the installer balances the
wheels when you have new tires
installed. This increases riding
comf ort and tire lif e. Your car’s
original tires were dynamic or ‘‘spin’’
balanced at the f actory. For best
results, have the installer perf orm a
dynamic balance.
The tires that came with your car
were selected to match the perform-
ance capabilities of the car while
providing the best combination of
handling, ride comf ort, and long lif e.
Youshouldreplacethemwithradial
tires of the same size, load range,
speed rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall). Mixing radial and
bias-ply tires on your car can reduce
its braking ability, traction, and
steering accuracy.
(U.S.LXwithABS,SE,EX,EXV-6)
CONT INUED
Tire Rotation
Replacing T ires and Wheels
Tires
Maint enance287
FFrroonnttFFrroonntt
((FFoorrNNoonn--ddiirreeccttiioonnaallTTiirreessaannddWWhheeeellss))((FFoorrDDiirreeccttiioonnaallTTiirreessaannddWWhheeeellss))Improper wheel weights can damage
your car’s aluminum wheels. Use only
Genuine Honda wheel weights f or
balancing.

It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, then replace the two
f ront tires or the two rear tires as a
pair. Replacing just one tire can
seriously af f ect your car’s handling.
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the car. Tire size and
construction can af f ect wheel speed
and may cause the system to workinconsistently.
If you ever need to replace a wheel,
make sure the wheel’s specif ications
match those of the original wheel
that came on your car. Replacement
wheels are available at your Honda
dealer.
Wheel:
Tire:
See page f or inf ormation about
DOT Tire Quality Grading.
345
U.S. : DX and Value Package
U.S.:LX,EX,andSE
Canada : LX 4-cylinder, SE 4-cylinder,
and EX-L
U.S. : LX V-6, EX V-6
Canada : EX V-6, SE V-6 U.S. : DX and Value Package
U.S.:LX,EXandSE
Canada : LX 4-cylinder, SE 4-cylinder,
and EX-L
U.S. : LX V-6, EX V-6
Canada : EX V-6, SE V-6
Tires
Maint enance
Wheels and T ires
288
14x51/2JJ
15x6JJ
15x61/2JJ P195/65R15 89H
P195/70R14 90S
P205/65R15 92V
Installing improper tires on your
car can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.

´When installing chains, f ollow the
manufacturer’s instructions and
mount them as tightly as you can.
Drive slowly with chains installed. If
you hear the chains contacting the
body or chassis, stop and investigate.
Make sure the chains are installed
tightly, and that they are not
contacting the brake lines or
suspension. Remove the chains as
soon as you begin driving on cleared
roads.
Tires that are marked ‘‘M S’’ or
‘‘All Season’’ on the sidewall have an
all-weather tread design. They
should be suitable f or most winter
driving conditions. Tires without
these markings are designed f or
optimum traction in dry conditions.
They may not provide adequate
perf ormance in winter driving.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If metal chains are used, they must
be SAE class ‘‘S’’. Cable-type traction
devices can also be used.
Use only SAE class ‘‘S’’ cable-type
traction devices.
Mount snow chains on your vehicle
when warranted by driving condi-
tions or required by local laws. Make
sure the chains are the correct size
f or your tires. Install them only on
the front tires.
If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tiresonallfourwheelstobalance
your car’s handling in all weather
conditions. Keep in mind the traction
provided by snow tires on dry roads
may not be as high as your car’s original equipment tires. You should
drive cautiously even when the roads
are clear. Check with the tire dealer
f or maximum speed recommenda-
tions.
4-cylinder models
6-cylinder models
Winter Driving
Snow T ires T ire Chains
Tires
Maint enance289
Chains of the wrong size or that are
improperly installed can damage your
car’s brake lines, suspension, body, and
wheels. Stop driving if you hear the
chains hitting any part of the car.

Check the operation of your car’s
exterior lights at least once a month.
A burned out bulb can create an
unsaf e condition by reducing your
car’s visibility and the ability to
signal your intentions to other
drivers.
Lights
Maint enance290

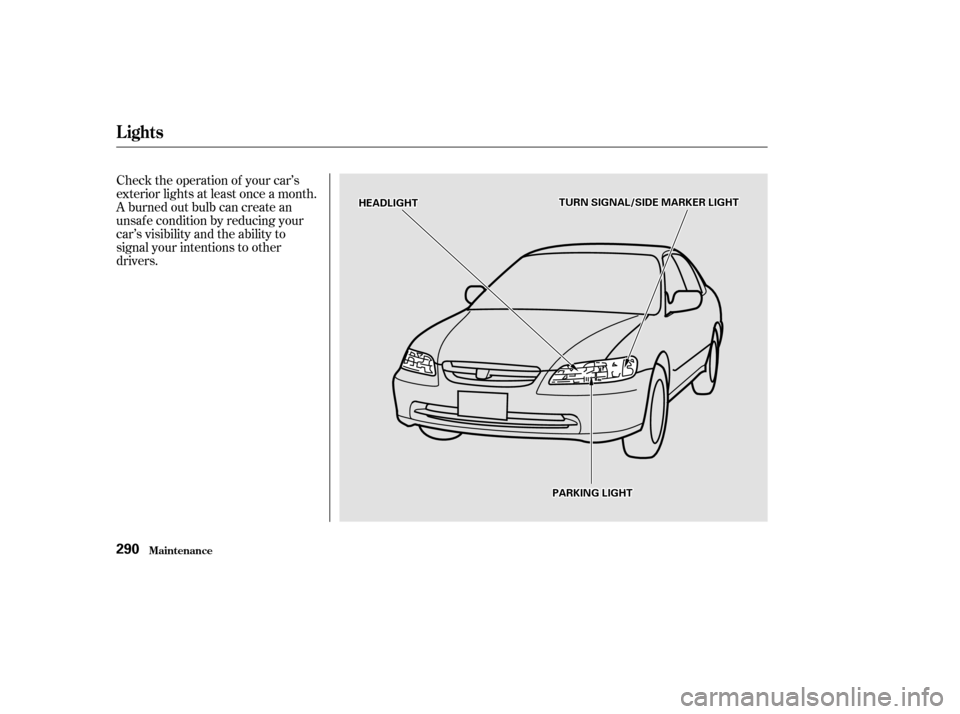

HHEEAADDLLIIGGHHTTTTUURRNNSSIIGGNNAALL//SSIIDDEEMMAARRKKEERRLLIIGGHHTT
PPAARRKKIINNGGLLIIGGHHTT

Open the hood.Turn on the headlights to test the
new bulb.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
If you need to change a bulb on
thepassenger’sside(onthe
driver’s side on 6-cylinder models),
remove the radiator reserve tank.
Remove the electrical connector
f rom the bulb by squeezing the
connector to unlock the tab, then
slide the connector of f the bulb. Reinstall the radiator reserve tank.
Theheadlightswereproperlyaimed
when your car was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment of the headlights should
be perf ormed by a Honda technician
or other qualif ied mechanic.
Your car has two bulbs on each side,
four in total. Make sure you are
replacing the bulb that is burned out.
Your car uses halogen headlight
bulbs. When replacing a bulb, handle
it by its plastic case and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
1. 2.3. 4. 7.
6.
5.
(Passenger’s side on 4-cylinder
models, driver’s side on 6-cylinder
models)
Lights
Maint enance
Headlight A iming
Replacing a Headlight Bulb
292
BBUULLBB
TTAABB
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
