Page 81 of 223
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures114
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALLAAIIRRCCOONNDDIITTIIOONNIINNGGBBUUTTTTOONN
Page 82 of 223
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Sunlight Sensor/T emperature
Sensor
118
TTEEMMPPEERRAATTUURREESSEENNSSOORRSSUUNNLLIIGGHHTTSSEENNSSOORR
Page 83 of 223
Î
Î
Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your f avorite
stations.
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
For U.S. DX model
Audio System
Comf ort and Convenience Feat ures
A M/FM/Cassette Stereo A udio
System
119
Page 84 of 223
µµ
Û
Ý
You can use any of f our methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the upper part ( ) to tune
to a higher f requency, or the lower
part ( ) to tune to a lower
f requency. The f requency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired f requency. To change the
f requency in small increments, press
and release the TUNE bar quickly. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, push
the SEEK switch up or down, then
release it. Depending on which way
you push the switch, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal.
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob.
Adjust the volume by turning the
PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Audio System
Comf ort and Convenience Feat ures
Operating the Radio
TUNESEEK
120
Page 85 of 223
µµ
These two
controls adjust the strength of the
sound coming f rom each speaker.
The Balance control adjusts the side-
to-side strength, while the Fader
control adjusts the f ront-to-back
strength.

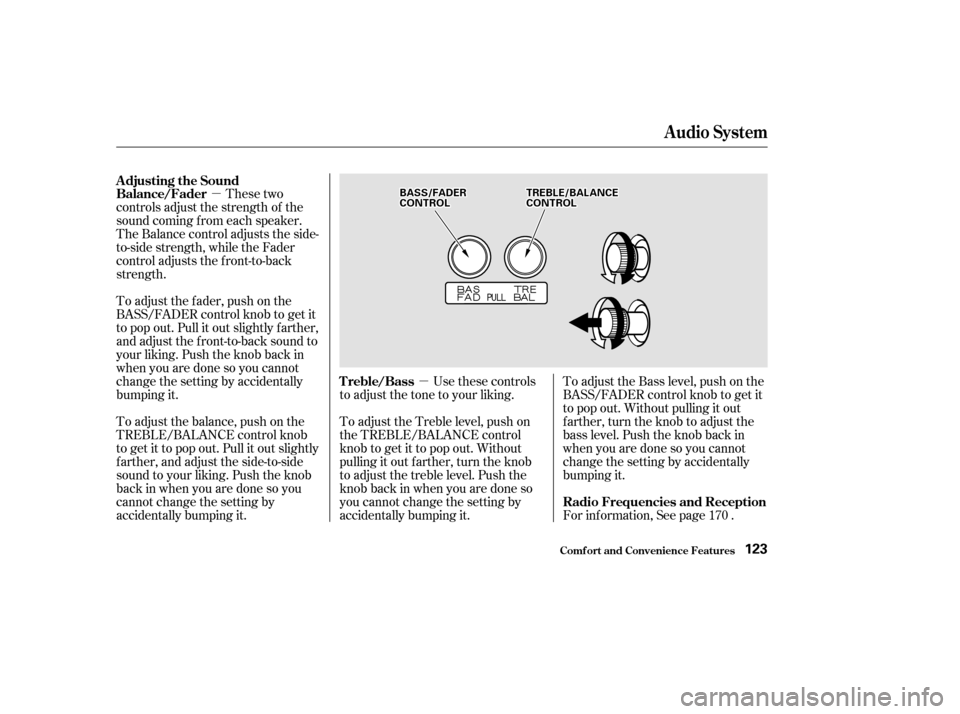

To adjust the fader, push on the
BASS/FADER control knob to get it
to pop out. Pull it out slightly f arther,
and adjust the f ront-to-back sound to
your liking. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
To adjust the balance, push on the
TREBLE/BALANCE control knob
to get it to pop out. Pull it out slightly
f arther, and adjust the side-to-side
sound to your liking. Push the knob
back in when you are done so you
cannot change the setting by
accidentally bumping it. Use these controls
to adjust the tone to your liking.
To adjust the Treble level, push on
the TREBLE/BALANCE control
knob to get it to pop out. Without
pulling it out f arther, turn the knob
to adjust the treble level. Push the
knob back in when you are done so
you cannot change the setting by
accidentally bumping it. To adjust the Bass level, push on the
BASS/FADER control knob to get it
to pop out. Without pulling it out
f arther, turn the knob to adjust the
bass level. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
For inf ormation, See page .
170
Adjusting the Sound
Balance/Fader
Treble/BassRadio Frequencies and Reception
Audio System
Comf ort and Convenience Feat ures123
TTRREEBBLLEE//BBAALLAANNCCEECCOONNTTRROOLLBBAASSSS//FFAADDEERRCCOONNTTRROOLL
Page 86 of 223
Ûµ µ

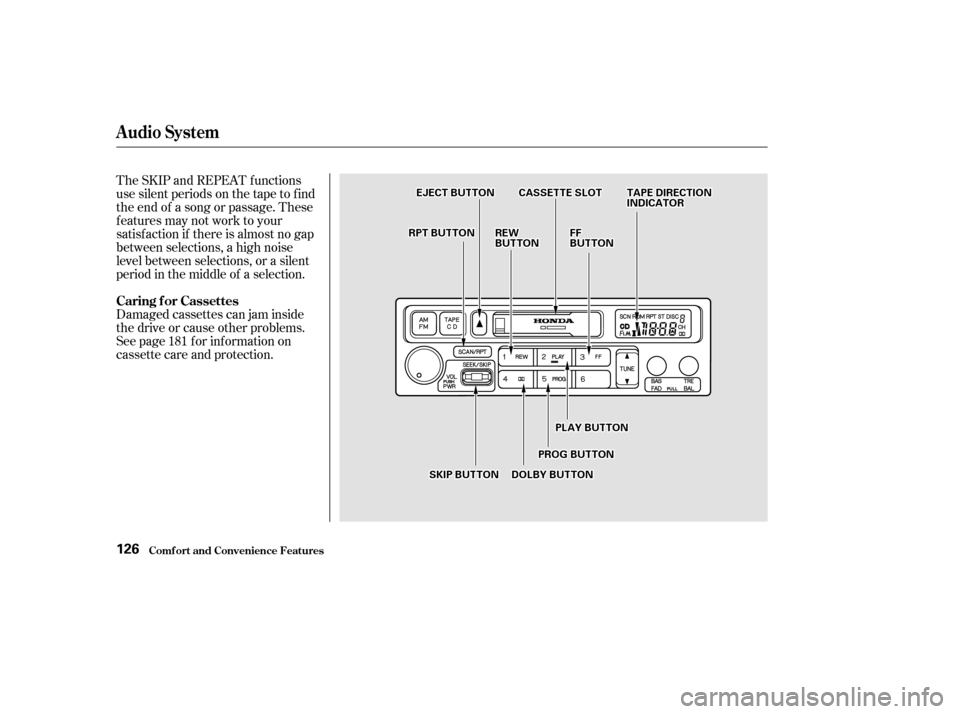

Turn the audio system ON. Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button. When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To
fast forward the tape, push the FF
button. You will see FF displayed.
Press the PLAY button to take the
system out of rewind or f ast f orward.
If the system reaches the end of the
tape while in f ast f orward or rewind,
it automatically stops that function,
reverses direction, and begins to play. The Skip Function allows
youtofindthebeginningof asong
or passage. To f ind the beginning of
the song or passage currently
playing, push the SKIP switch down.
You will see REW f lashing in the
display as the tape rewinds. To f ind
the beginning of the next song, push
the SKIP switch up. You will see FF
flashing in the display as the tape
fast forwards. When the system
f inds the beginning of a song or
passage, it goes back to PLAY mode.
Dolby noise reduction turns on when
you insert a cassette. If the tape was
not recorded with Dolby noise reduc-
tion, turn it of f by pressing the button.
Operating the Cassette Player
T ape Search Functions
FF/REWSK IP
Audio System
Comf ort and Convenience Feat ures124
Page 87 of 223
Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.
The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
181
Audio System
Comf ort and Convenience Feat ures
Caring f or Cassettes
126
TTAAPPEEDDIIRREECCTTIIOONNIINNDDIICCAATTOORR
SSKKIIPPBBUUTTTTOONN
EEJJEECCTTBBUUTTTTOONNCCAASSSSEETTTTEESSLLOOTT
RREEWWBBUUTTTTOONNRRPPTTBBUUTTTTOONNFFFFBBUUTTTTOONN
PPLLAAYYBBUUTTTTOONN
PPRROOGGBBUUTTTTOONN
DDOOLLBBYYBBUUTTTTOONN
Page 88 of 223
CONT INUED
A Compact Disc changer is available
f rom your dealer. It holds up to six
discs, providing several hours of
continuous entertainment. You
operate the CD changer with the
same controls used f or the radio and
cassette player.
Your dealer also has an accessory in-
dash single CD player available that
is operated by the radio controls. To
operate this unit, use the instructions
(except f or those relating to multiple
discs) in this section.
Using the instructions that came
with the changer, load the desired
CDs in the magazine, and load the
magazine in the changer. Play only
standard round discs. Odd-shaped
CDs may jam in the drive or cause
other problems.
Operating the Optional CD
Changer
Audio System
Comf ort and Convenience Feat ures127
RRAANNDDOOMMIINNDDIICCAATTOORRTTAAPPEE//CCDDBBUUTTTTOONN
AAMM//FFMMBBUUTTTTOONNRREEPPEEAATTIINNDDIICCAATTOORR
RRPPTTBBUUTTTTOONN
SSKKIIPPSSWWIITTCCHH
PPWWRR//VVOOLLKKNNOOBB
PPRREESSEETTBBUUTTTTOONNSS
Page 89 of 223
If the system is in Repeat mode, you
must turn it of f by pressing RPT
bef ore you can select Random Play.
Then press the button again until
you see RDM displayed.
To take the system out of CD mode,
press the AM/FM button or insert a
cassette in the player. If a tape is
already in the cassette player, press
the TAPE button. When you return
to CD mode, play will continue at the
same disc and track.
For inf ormation on how to handle
and protect compact discs, see page.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same disc and track
when you turn it back on.
175
Audio System
Comf ort and Convenience Feat ures
Protecting Compact Discs
129
PPRREESSEETTBBUUTTTTOONNSS
RRAANNDDOOMMIINNDDIICCAATTOORR
RREEPPEEAATTIINNDDIICCAATTOORR
SSKKIIPPSSWWIITTCCHH
RRPPTTBBUUTTTTOONN
TTAAPPEE//CCDDBBUUTTTTOONN
AAMM//FFMMBBUUTTTTOONN
PPWWRR//VVOOLLKKNNOOBB
Page 90 of 223
If you see an error indication in the
display while operating the CD
changer, f ind the cause in the chart
to the right. If you cannot clear the
error indication, take the car to your
Honda dealer.Indication Cause Solution
Disc-changer
malf unction.
CD magazine ejection
impossible.
Disc is in changer
mechanism.
High temperature.
Misconnection or
disconnection of CD
changer.
No CD magazine in the
CD changer.
No CD in magazine.If the code disappears within a f ew seconds,
unit is OK.
Press the magazine eject button and pull out
the magazine, check for error indication. Insert
the magazine again. If the code does not
disappear or the magazine cannot be pulled out,
consult your Honda dealer.
Press the magazine eject button. If the maga-
zine does not eject, consult your Honda dealer.
Press the magazine eject button, and insert an
empty magazine.
Will disappear when the temperature returns to
normal.
See your Honda dealer.
Insert CD magazine.
Insert CD in magazine.
CD Changer Error Indications
Audio System
Comf ort and Convenience Feat ures130
