Page 91 of 281
To use the sun visor, pull it down.
You can also use the sun visor at the
side window. Remove the support
rod f rom the clip and swing the sun
visor toward the side window.Touseavanitymirroronthebackof
the sun visor, pull up the cover.
The vanity mirror lights come on
when you pull up the cover.
Except U.S. VP and
Canadian DX-G
Sun Visor Vanity Mirror
Sun Visor, Vanit y Mirror
96
— — y y
( y y
Page 92 of 281
The ceiling lights have a three or
two-position switch; ON (f or three-
position), Door Activated, and OFF.
In the Door Activated (center or left)
position, the lights come on when
you:
After all doors are closed tightly, the
light dims slightly, then f ades out in
about 30 seconds.Open any door.
Unlock the doors with the key or
remote transmitter.
The courtesy light between the
spotlights comes on when you turn
the parking lights on. To adjust its
brightness, turn the Select/Reset
knob on the instrument panel.
The f ront ceiling light also contains
two spotlights. Push the spotlight
lenses to turn them on and off. Push on the spotlight lenses to turn
the light on and of f .
The courtesy light in each door
comes on when you open that door.
The light around the ignition switch
only comes on when you open the
driver’s door. Af ter you close the
door, the ignition switch light f ades
out in about 30 seconds.
In the U.S. VP and the Canadian DX-
G, the f ront doors do not have
courtesy lights.
U.S. LX, SE and LX-V6
Canadian SE and SE-V6
U.S. EX, EX-L and EX-V6 Canadian EX-L and EX-V6Ceiling L ight
Individual Interior L ights
Interior Lights
Inst rument s and Cont rols
97
DOOR ACTIVATEDON
OFF DOOR ACTIVATED
COURTESY LIGHT
— — y y
( y
y
Page 93 of 281

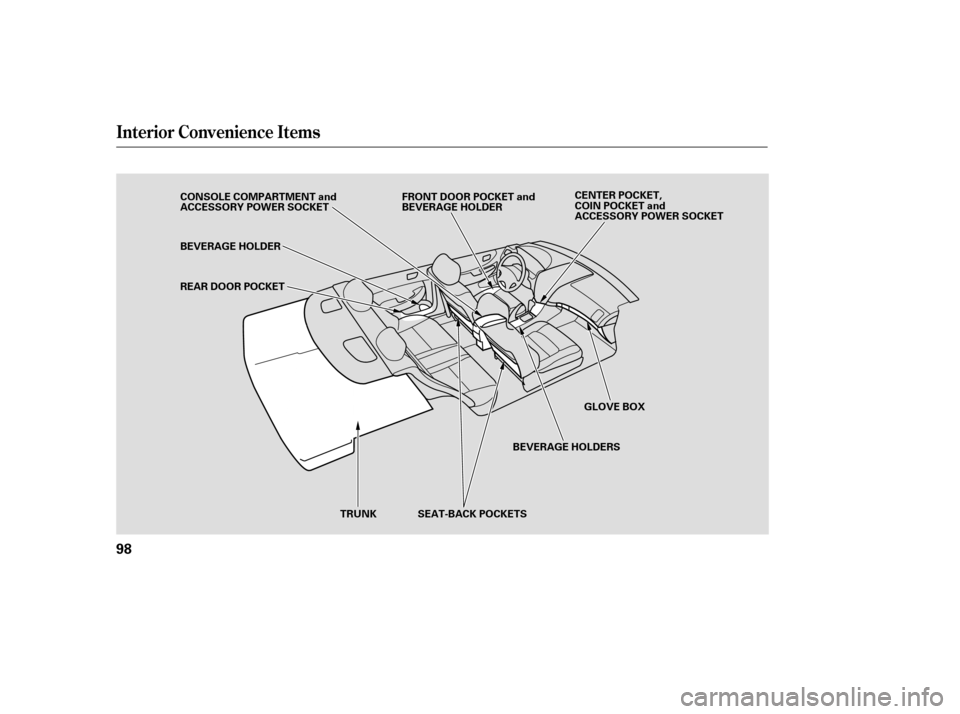

Interior Convenience Items
98
REAR DOOR POCKET
BEVERAGE HOLDER
BEVERAGE HOLDERSGLOVE BOX
TRUNK SEAT-BACK POCKETS CENTER POCKET,
COIN POCKET and
ACCESSORY POWER SOCKET
CONSOLE COMPARTMENT and
ACCESSORY POWER SOCKET
FRONT DOOR POCKET and
BEVERAGE HOLDER
— — y y
( y
y
Page 94 of 281
Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
f rom the door pocket beverage
holders when you close the doors.
Useonlyresealablecontainersinthe
door pockets.
Spilled liquids can damage the
upholstery, carpeting, and electrical

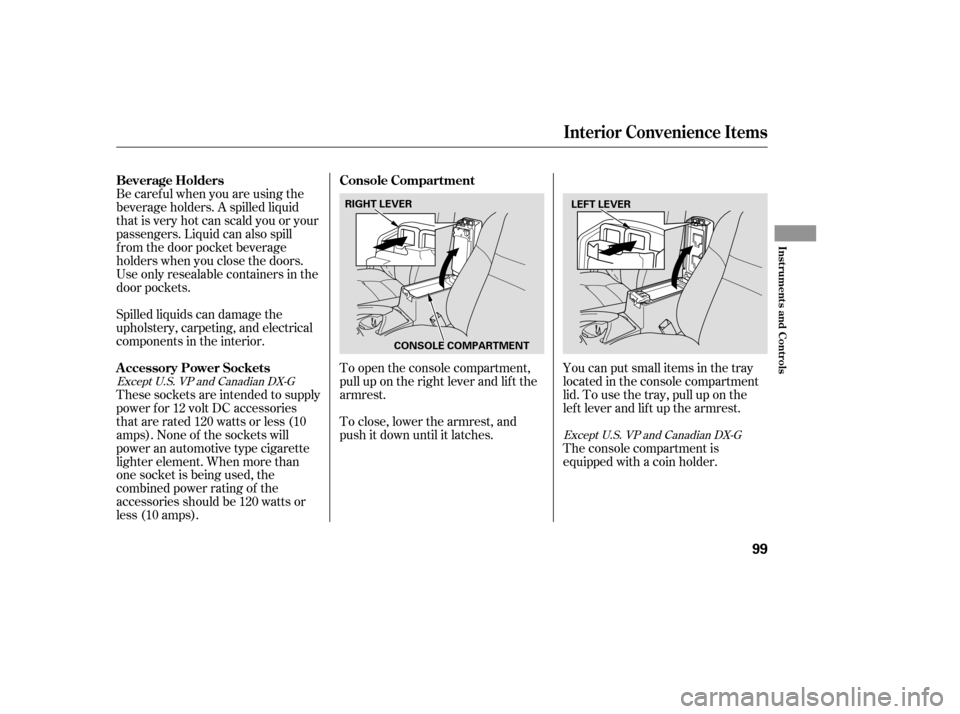

components in the interior.To open the console compartment,
pull up on the right lever and lif t the
armrest.
To close, lower the armrest, and
push it down until it latches.You can put small items in the tray
located in the console compartment
lid. To use the tray, pull up on the
lef t lever and lif t up the armrest.
These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps). None of the sockets will
power an automotive type cigarette
lighter element. When more than
one socket is being used, the
combined power rating of the
accessories should be 120 watts or
less (10 amps). The console compartment is
equipped with a coin holder.
Except U.S. VP and Canadian DX-G
Except U.S. VP and Canadian DX-G
Beverage Holders
A ccessory Power SocketsConsole Compartment
Interior Convenience Items
Inst rument s and Cont rols
99
CONSOLE COMPARTMENT
RIGHT LEVER
LEFT LEVER
— — y y
( y
y
Page 95 of 281
Open the glove box by pulling the
handle to the lef t. Close it with a f irm
push. Lock or unlock the glove box
with the master key.
The glove box light comes on when
the parking lights are on.
To open the sunglasses holder, push
on the f ront edge. Make sure the
holder is closed while you are driving.Except U.S. VP and Canadian DX-G
Sunglasses Holder Glove Box
Interior Convenience Items
100
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
— — y y
( y
y
Page 96 of 281
Vents, Heating, and A/C
102
TEMPERATURE
CONTROL DIAL
MAX A/C BUTTON REAR WINDOW
DEFOGGER BUTTON
TEMPERATURE
CONTROL DIAL
(DRIVER’S SIDE)
FAN CONTROL
BUTTONS
TEMPERATURE
CONTROL DIAL
(PASSENGER’S SIDE)
MODE
BUTTON
RECIRCULATION BUTTON AIR
CONDITIONING
BUTTON
AUTO BUTTON
OFF BUTTONDUAL BUTTON WINDSHIELD DEFROST BUTTON
FAN SPEED
INDICATOR
AIR
CONDITIONING
BUTTON MODE BUTTONS
RECIRCULATION BUTTON
REAR WINDOW
DEFOGGER
BUTTON
WINDSHIELD
DEFROST BUTTON
FAN CONTROL DIAL
TEMPERATURE DISPLAY
U.S. VP, LX, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
U.S. EX-L and EX-V6 without Navigation System
Canadian EX-L and EX-V6 without Navigation System
— — y
y
( y
y
Page 97 of 281
Vents, Heating, and A/C
Features
103
AUTO BUTTONMODE ICONS
A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
U.S. EX-L and EX-V6 with Navigation System
Canadian EX-L and EX-V6 with Navigation System
— — y y
( y
y
Page 98 of 281
ÛÝ
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
Navi section in your Quick Start
Guide f or an overview of this system,
and the Navigation System manual
f or complete details.
Turn this dial to increase or decrease
the fan speed and airflow.
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display. You can manually select the f an
speed by pressing the A/C button
next to the display and then,
pressing the f an control icons.
Turning this dial clockwise increases
the temperature of the airflow.
The driver and passenger can select
independent temperature settings by
selecting the DUAL button.
Push the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.Press the DUAL button. The
indicator in the button will come on.
The driver and passenger can each
select the temperature control
buttons ( or ) to the
desired setting.
When the indicator in the DUAL
button is off, both sides adjust to the
driver’s side temperature.
Only on models equipped with
Navigation System EX-L and EX-V6 without Navigation
System
Except EX-L and EX-V6 with NavigationSystem
EX-L and EX-V6
EX-L and EX-V6 without NavigationSystem EX-L and EX-V6 with Navigation System
EX-L and EX-V6
EX-L and EX-V6 with Navigation System
U.S. VP, LX, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
Vents, Heating, and A/C
Voice Control System
Fan Control T emperature Control
104
— — y y
( y
y
Page 99 of 281
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Press the A/C button to turn the
airconditioningonoroff.The
indicatorinthebuttonisonwhen
the air conditioning is on.
Press the A/C button to turn the air
conditioning on and of f . The display
shows ‘‘A/C ON’’ when the air
conditioning is on. The display
shows ‘‘A/C OFF’’ when the air
conditioning is of f .
The display shows ‘‘ON’’ and ‘‘OFF’’
after you press the A/C button. The
display shows ‘‘A/C ON’’ af ter you
touch ‘‘ON’’ to turn the air
conditioning on. The display shows
‘‘A/C OFF’’ af ter you touch ‘‘OFF’’ to
turn the air conditioning off. When the A/C is of f , the airf low
temperature does not f all below the
outside air temperature. When you
set the airf low temperature lower
than the outside air temperature,
make sure the A/C is on.
72
EX-L and EX-V6
Except EX-L and EX-V6
EX-L and EX-V6 without NavigationSystem
EX-L and EX-V6 with NavigationSystemAir Conditioning (A/C) Button
Rear Window Def ogger Button
Recirculation Button
Vents, Heating, and A/C
Features
105
— — y y
( y
y
Page 100 of 281
Use the mode control buttons or
icons to select the vents the air f lows
f rom. Some air f lows f rom the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents.
Air f lows f rom the def roster
vents at the base of the windshield. When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C. In these modes, the A/C stays
on with the indicator off.
When you select , the system
automatically switches to f resh air
mode.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display. The system automatically
turns on the A/C, selects ,
and switches to recirculation mode.
Each indicator above the button is on
when the MAX A/C is turned on.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
1. 2. 3.4.
EX-L and EX-V6 without Navigation
System
EX-L and EX-V6 with NavigationSystem U.S. VP, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
Mode Control MAX A/C Button
Ventilation
Vents, Heating, and A/C
106
— — y y
( y
y
