Control L ocations
56
MIRROR CONTROLSACCESSORY POWER SOCKETSAUDIO SYSTEM
CLIMATE CONTROL
SYSTEM HEATING/COOLING
CONTROLS
HAZARD WARNING
BUTTON
CRUISE CONTROLS
MOONROOF SWITCH
TRUNK RELEASE LEVER PARKING BRAKE LEVER
HOOD RELEASE
HANDLE
INDICATORS
GAUGES
FUEL FILL DOOR RELEASE LEVER
POWER DOOR LOCK
MASTER SWITCH
SHIFT LEVER
(P.58)
(P.64)
(P.94)
(P.90)
(P.77)
(P.82)
(P.156) (P.145)
(P.71)
(P.114)
(P.102)
(P.109)
(P.170, 173)
(P.99)
(P.95)
(P.157)
— — y y
( y y
Page 52 of 281

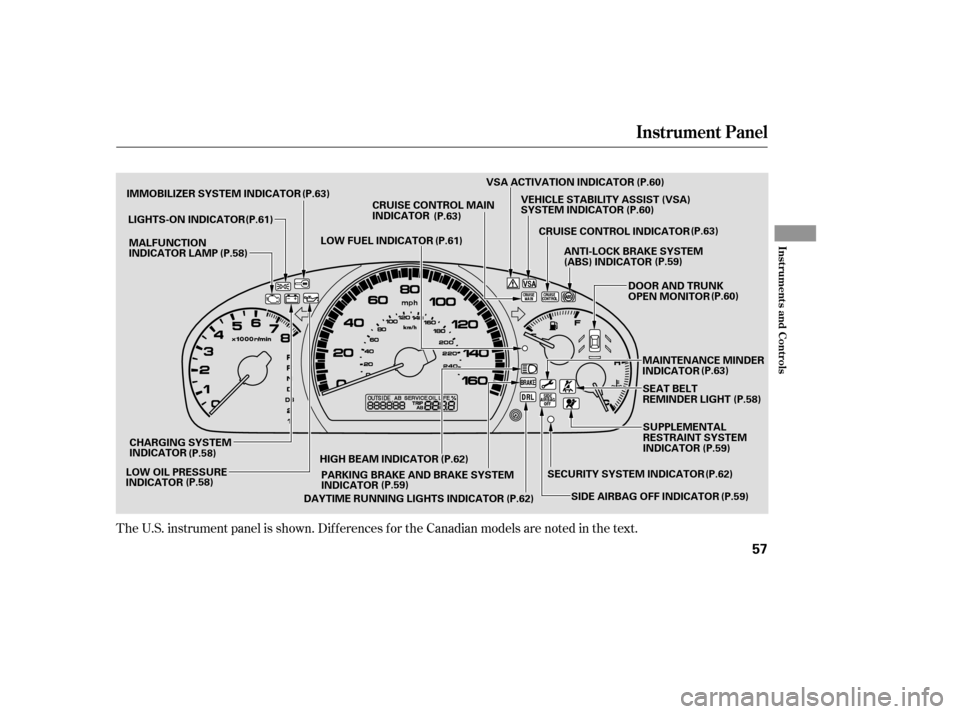

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in thetext.
Instrument Panel
Inst rument s and Cont rols
57
CRUISE CONTROL INDICATOR
LOW FUEL INDICATOR
MALFUNCTION
INDICATOR LAMP
LOW OIL PRESSURE
INDICATOR SECURITY SYSTEM INDICATOR
IMMOBILIZER SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
DOOR AND TRUNK
OPEN MONITOR
CRUISE CONTROL MAIN
INDICATOR
HIGH BEAM INDICATOR
(P.58) (P.58) (P.61)
(P.61)
(P.58)
(P.62) (P.60)
(P.63)
(P.59)
(P.63)
(P.62) VSA ACTIVATION INDICATOR
(P.63)
(P.58)
CHARGING SYSTEM
INDICATOR VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR MAINTENANCE MINDER
INDICATOR
SEAT BELT
REMINDER LIGHT
DAYTIME RUNNING LIGHTS INDICATOR SIDE AIRBAG OFF INDICATOR (P.59)
LIGHTS-ON INDICATOR
(P.60)
(P.59)
(P.60)
(P.63)
(P.59) (P.62)
— — y y
( y y
Page 53 of 281
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
See page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you and your
f ront passenger have not f astened
your seat belts.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on. If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
20 250
251 251
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Seat Belt Reminder
Indicator
Instrument Panel Indicators
58
— — y y
( y
y
Page 54 of 281
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more inf ormation, see
page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the f ront passenger’s
weight sensors. For more
inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you try to drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it remains lit af ter you f ully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . 30
31
180
1. 2.
253 Anti-lock Brake System
(A BS) Indicator
Supplemental Restraint
System Indicator
Parking Brake and Brake System
Indicator
Side A irbag Of f
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
Canada
U.S.
Canada
U.S.
— — y y
( y y
Page 55 of 281
The appropriate indicator comes on
in this monitor if the trunk or either
door is not closed tightly.
All the indicators in the monitor
come on f or a f ew seconds when you
turn the ignition switch to ON (II).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). For more
inf ormation, see page .
This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
ON (II), there is a problem with the
VSA system. Take your vehicle to a
dealer to have it checked. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page f or more inf ormation
on the VSA system.
2. 3.
1.
182
182
182 Door and T runk Open Monitor
Vehicle Stability Assist
(VSA ) System Indicator VSA A ctivation Indicator
Instrument Panel Indicators
60
— — y
y
( y y
Page 56 of 281
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink,
or if they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
WhenyouturnontheHazard
Warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash.This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.
When the indicator comes on, there
are about 2.72 U.S. gal (10.3
)of
f uel remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
221 222
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator Low Fuel Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
LOW FUEL INDICATOR
— — y
y
( y y
Page 57 of 281
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when the
security system is set. See page f or more inf ormation on the
security system. When the daytime running lights
(DRL) are on, this indicator comes
on with reduced brightness.
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
144 70
U.S. EX, EX-L, LX-V6 and EX-V6
Canadian SE, EX-L, SE-V6 and EX-V6
Security System Indicator ‘‘Daytime Running Lights’’ IndicatorHigh Beam Indicator
Instrument Panel Indicators
62
SECURITY SYSTEM INDICATOR
— — y
y
( y y
Page 58 of 281
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
145
145 193
75
207Only on models equipped with Cruise Control System
Only on models equipped with CruiseControl System
Canadian models only
Immobilizer System
Indicator
Cruise Control Main
Indicator Maintenance Minder
Indicator
Cruise Control Indicator
Washer Level Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
— — y
y
( y y
Page 59 of 281
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer and the outside
temperature display use the same
display. To switch the display
between the odometer and the
outside temperature, press the
Select/Reset knob. When you turn
the ignition switch to ON (II), what
you last selected is displayed. This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
EX-L and EX-V6
Odometer
Odometer/Outside T emperature
Display Outside Temperature Display
Gauges
64
TACHOMETER
SPEEDOMETER
FUEL GAUGE
TEMPERATURE
GAUGE
TRIP METER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
SELECT/RESET KNOB
U.S. model shown
— — y y
( y y
Page 60 of 281
¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upperhalfofthegauge.Ifitreaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
ON (II), what you last selected is
displayed.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
248
Trip Meter Temperature Gauge
Gauges
Inst rument s and Cont rols
65
— — y y
( y y
