HONDA ACCORD 2006 CL7 / 7.G Owners Manual
Manufacturer: HONDA, Model Year: 2006, Model line: ACCORD, Model: HONDA ACCORD 2006 CL7 / 7.GPages: 281, PDF Size: 8.24 MB
Page 111 of 281
µ
µ
µ Pick the preset number (1 6)
you want for that station. Press
the left or right side of the bar or
iconandholdituntilyouheara
beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Each preset bar or icon
can store one f requency on AM, and
two f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
baroricon.
Push the AUDIO DISPLAY button
to view the preset icons.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about f ive seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it for five seconds. When it
plays a station you want to listen to,
press the SCAN button again. 1. 2.3. 4.
For Vehicles with Navigation System
Playing the Radio
Preset
SCAN
Features
117
— — y y
( y
y
Page 112 of 281
µµ
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset bars
or icons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset bars or
icons as described previously.
press the A.
SEL button or Auto Select icon. This
restores the presets you originally
set.
Press the A. SEL button or touch the
Auto Select icon. A. SEL will f lash in
the display, and the system will go
into scan mode f or several seconds.
It stores the f requencies of six AM,
and twelve FM stations in the preset
bars (1 6) or icons. You will see a
‘‘0’’ displayed af ter pressing a preset
bar or icon if Auto Select cannot f ind
a strong station for every preset bar
or icon. If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
To turn of f Auto Select,
Playing the Radio
AUTO SELECT
118
— — y y
( y
y
Page 113 of 281
µ
µ Eachmodeisshowninthedisplayas
it changes. Turn the VOLUME knob
or touch the icon to adjust the
setting to your liking. When the level
reaches the center, you will see ‘‘C’’
in the display.
The system will automatically return
the display to the selected audio
mode about f ive seconds af ter you
stop adjusting a mode. On vehicles
with navigation system, touch the
RETURN icon to go back to the
audio screen.
Press the SOUND button or icon, or
press the TUNE knob repeatedly to
display the Bass (BAS), Treble
(TRE), Balance (BAL), and Fader
(FAD) settings. On vehicles with
navigation system, touch the
SOUND icon or press the TUNE
knob.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
Use the TRE/BAS
modes to adjust the tone to your
liking.
If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display. Touch the arrows next to the BAS or
TRE icons. The adjustment shows
you the current setting.
Touch the lef t or right bars on the
sound grid. Balance is equalized
when the vertical lines are centered
on the grid.
Touchthefrontorrearbarsonthe
sound grid. The f ader is equalized
when the horizontal lines are
centered on the grid.
For Vehicles without Navigation System
For Vehicles with Navigation System
For Vehicles with Navigation SystemAdjusting the Sound
Balance/Fader
Treble/Bass
Playing the Radio
Features
119
— — y y
( y
y
Page 114 of 281
The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Radio Frequencies Radio Reception
Playing the Radio
120
— — y y
( y
y
Page 115 of 281
Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f or
compliance could void the user’sauthority to operate the equipment.
Playing the Radio
Features
121
— — y y
( y
y
Page 116 of 281

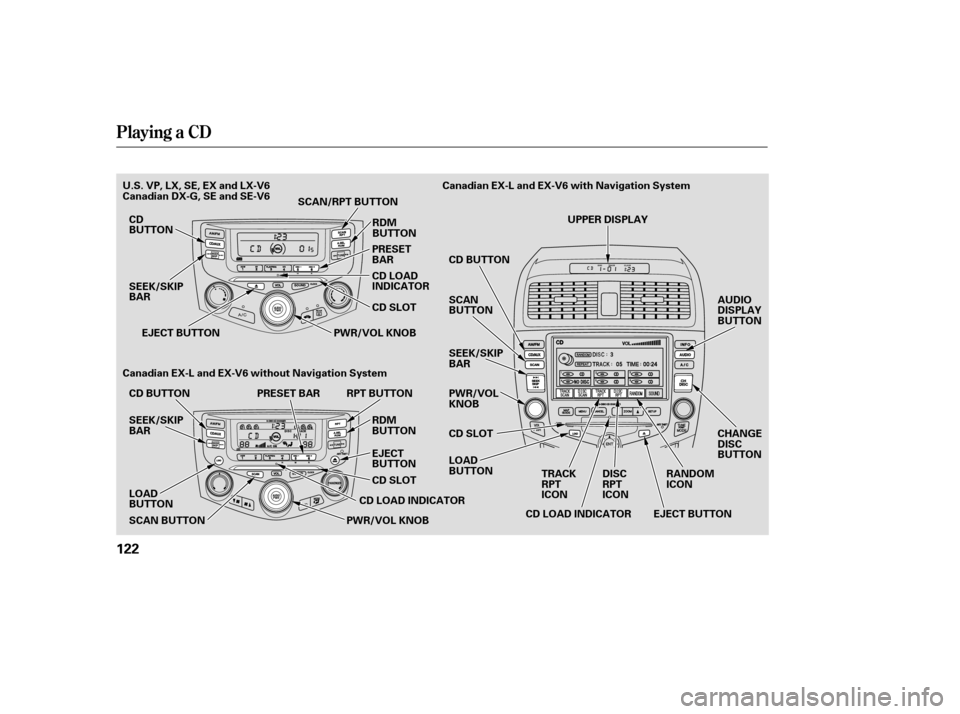

Playing a CD
122
PWR/VOL KNOBPWR/VOL KNOB
EJECT BUTTON
CD SLOT
CD BUTTON RPT BUTTON EJECT
BUTTON
CD SLOT
PWR/VOL KNOB
SEEK/SKIP
BAR
SEEK/SKIP
BAR
TRACK
RPTICON RANDOMICON
DISC
RPTICON
CD LOAD INDICATOR
CD LOAD
INDICATOR
RDM
BUTTON
CD
BUTTON
SEEK/SKIP
BAR SCAN/RPT BUTTON
RDM
BUTTON
CD LOAD INDICATOR
LOAD
BUTTON
SCAN BUTTON CD BUTTON
SCAN
BUTTON
LOAD
BUTTON
CD SLOT
EJECT BUTTONCHANGE
DISC
BUTTON
AUDIO
DISPLAY
BUTTON
UPPER DISPLAY
PRESET
BAR
PRESET BAR
U.S. VP, LX, SE, EX and LX-V6
Canadian DX-G, SE and SE-V6
Canadian EX-L and EX-V6 with Navigation System
Canadian EX-L and EX-V6 without Navigation System
— — y
y
( y
y
Page 117 of 281

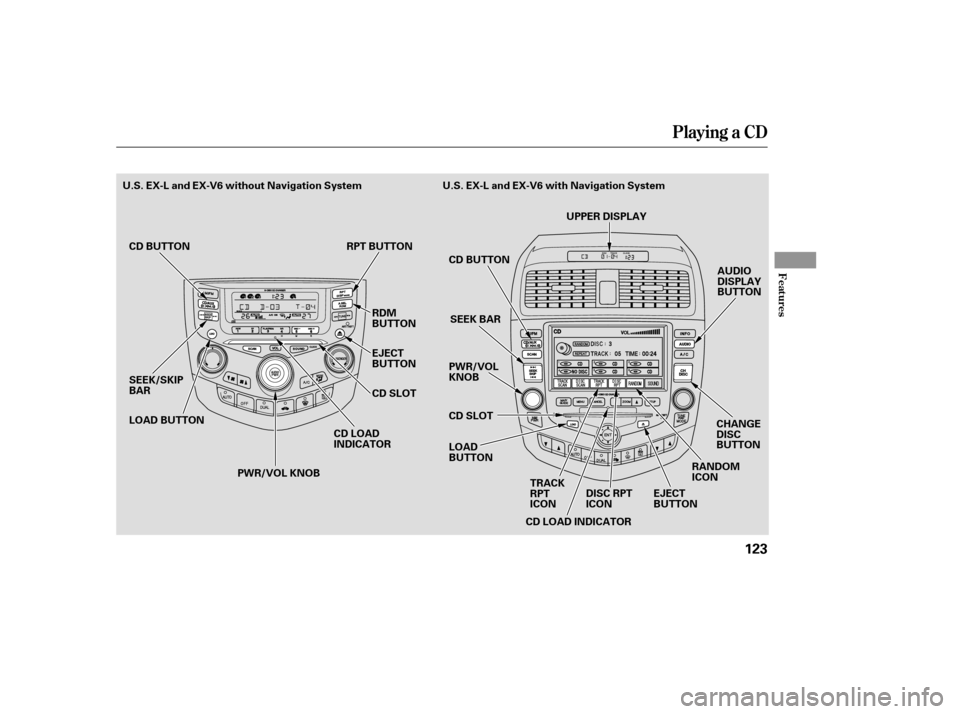

Playing a CD
Features
123
AUDIO
DISPLAY
BUTTON
SEEK/SKIP
BAR CD LOAD
INDICATORCD BUTTON
SEEK BAR
PWR/VOLKNOB
LOAD
BUTTON
CD SLOT
CD LOAD INDICATOR RANDOMICON
EJECT
BUTTON
LOAD BUTTON RPT BUTTON
RDM
BUTTON
EJECT
BUTTON
CD SLOT
PWR/VOL KNOB
CD BUTTON
UPPER DISPLAY
CHANGE
DISC
BUTTON
TRACK
RPTICON DISC RPTICON
U.S. EX-L and EX-V6 without Navigation System U.S. EX-L and EX-V6 with Navigation Syste
m
— — y
y
( y
y
Page 118 of 281
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or ON(II) position.
You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a CD
until you change modes.To listen to satellite radio when a CD
is playing, press the CD/AUX XM
button.
To play the tape when a CD is
playing, insert a tape in the player
(optional). If a tape is in the player,
press the AUX button. Press the CD
button again to switch back to the
CD player. The cassette player is
optional on all U.S. models.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
Insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way to play it. When the system
reaches the end of the disc, it will
return to the beginning and play the
disc again.
For Vehicles without in-dash CD
changer For Vehicles with Satellite RadioTo Play a CD
Playing a CD, CD Changer
124
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
— — y
y
( y
y
Page 119 of 281
µµ´
Û
Ý
Press the LOAD button until you
hear a beep and see ‘‘LOAd’’ in the
display.
The disc number f or an empty
position is highlighted and the red
light starts blinking.
When the CD load indicator turns
green and ‘‘LOAD’’ appears in the
screen again, insert the next CD in
the slot.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, the
system begins playing the last CD
loaded. You can also load a CD into an empty
position while a CD is playing. Select
the empty position (the disc number
indicator is not highlighted) and
press the appropriate preset bar or
touch a disc icon. The current CD
stops playing and starts the loading
sequence. The CD just loaded will
play.
You operate the CD changer with
the same controls used f or the radio.
The numbers of the disc and track
playingareshowninthedisplay.On
vehicles with navigation system,
these numbers also appear in the
upper display.
To select a dif f erent disc, press the
appropriate side of a preset bar
(1 6) or use the Preset 5 (DISC )
to select the previous disc or Preset
6 (DISC ) to select the next disc in
sequence. On vehicles with
navigation system, touch the
appropriate disc icon or press the
or side of the CH/DISC bar. If
youselectanemptypositioninthe
CD changer, the system will try to
load the CD in the next available slot.
Insert the disc into the CD slot
when the green CD load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display as the CD
load indicator turns red and blinks
as the CD is loaded.
1. 2.3. 4. 5.
For Vehicles with in-dash CD Changer
For Vehicles with in-dash CD Changer
Playing a CD, CD Changer
Features
125
— — y
y
( y
y
Page 120 of 281
µ
µµ
µµ
µ
µFor Vehicles without Navigation System EX-L and EX-V6 with Navigation SystemPress to play the
tracks in random order. You will see
RDM in the display. Press the RDM
button again to return to normal play.
The SCAN f unction
samples all the tracks on the
selected disc in the order they are
recorded. To activate it, press and
release the SCAN button. You will
see SCAN in the display, and you will
get a 10 second sampling of each
track on the selected CD. Press the
SCAN button again to get out of scan
mode. To use the controls, press the
AUDIO DISPLAY button, the control
icons will appear on the screen.
Press the icon or
SCAN button, to get a 10 second
sampling of each track on the
current CD. Press the icon or button
again to turn it off.
Touch to get a 10
second sampling of the f irst song of
each disc in the CD changer. Touch
the icon again to turn it off.
Touch to
continuously play the same song on
the CD. Press the icon again to stop
the function.
Push the to
play the next track on the disc. Push
the oncetoreplaythetrackin
play; press it twice to replay the
previous track. To move rapidly
within a track, press and hold the or button.
Press to continuously
replay a track. You will see RPT in
the display. Press the RPT button
again to turn it off. RANDOM
SCAN TRACK SCAN
DISC SCAN
TRACK RPT
SEEK /SK IP
REPEAT
Playing a CD, CD Changer
126
— — y
y
( y
y
