The instrument panel has many
indicators to give you important
inf ormation about your vehicle.The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
See page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you and your
f ront passenger have not f astened
your seat belts.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on. If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
20 253
253 254
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Seat Belt Reminder
Indicator
Instrument Panel Indicators
58
——
y
y
(yy

This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more inf ormation, see
page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the f ront passenger’s
weight sensors. For more
inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it remains lit af ter you f ully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . 30
31
1. 2.
180
255 Anti-lock Brake System
(A BS) Indicator
Supplemental Restraint
System Indicator
Parking Brake and Brake System
Indicator
Side Airbag Of f
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
Canada
U.S.
Canada
U.S.
——
y
y
(yy

The appropriate indicator comes on
in this monitor if the trunk or either
door is not closed tightly.
All the indicators in the monitor
come on f or a f ew seconds when you
turn the ignition switch to the ON
(II) position.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
f or more inf ormation on the
VSA system. It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
It flashes when VSA is active (see
page ).
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
This indicator has three f unctions:
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
2. 3.
1.
182 182
182
On V6 mo dels
On V6 mo dels
Door and T runk Open Monitor
Vehicle Stability Assist
(VSA ) System Indicator VSA A ctivation Indicator
Instrument Panel Indicators
60
——
y
y
(yy

The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink,
or if they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.
When the indicator comes on, there
are about 2.72 U.S. gal (10.3
)of
f uel remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
221 222
Turn Signal and
Hazard Warning
Indicators
Lights On Indicator Low Fuel Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
61
LOW FUEL INDICATOR
——
y

y
(yy

This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when the
security system is set. See page f or more inf ormation on the
security system. When the daytime running lights
(DRL) are on, this indicator comes
on with reduced brightness.
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
144 69
U.S. EX, EX-L, and V6 mo dels
Canadian SE, EX-L, and V6 mo dels
Security System Indicator ‘‘Daytime Running Lights’’ IndicatorHigh Beam Indicator
Instrument Panel Indicators
62
SECURITY SYSTEM INDICATOR
——
y

y
(yy

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service. 75
145 193 145
210
Canadian models only
Immobilizer System
Indicator
Cruise Control Main
Indicator Maintenance Minder
Indicator
Washer Level Indicator
Cruise Control Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
——
y
y
(yy

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer and the outside
temperature display use the same
display. To switch the display
between the odometer and the
outside temperature, press the
selec t/ reset kno b.When you turn
the ignition switch to ON (II), what
you last selected is displayed. This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
selec t/ resetknob until the
temperature is displayed.
EX-L and EX-V6
Odometer
Odometer/Outside T emperature
Display Outside Temperature Display
Gauges
64
TACHOMETER
SPEEDOMETER
FUEL GAUGE
TEMPERATURE
GAUGE
TRIP METER
ODOMETER/OUTSIDE
TEMPERATURE INDICATOR
SELECT/RESET KNOB
U.S. model shown INFORMATION
DISPLAY
——
y
y
(yy

¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
selec t/ reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances. This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise into the
upperhalfofthegauge.Ifitreaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then
press the selec t/ reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, re
lease the selec t/
r eset kno b. Yo
u should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
To reset a trip meter, display it, and
then press and
ho ld the selec t/ reset
knob until the number resets to ‘‘0.0’’.
160
Trip Meter Temperature Gauge
Gauges
Inst rument s and Cont rols
65
——
y

y
(yy

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more information.
If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message will
appear in the inf ormation display. As
soon as it is saf ely possible, turn the
engine of f and check that the f uel
cap is installed. If it is, loosen the cap
and tighten it to at least 1 click.
Although you can use t
he selec t/
r eset kno b to c yc le the fuel c ap
warning o ff o f the display, it will be
displayed ag ain eac h time the eng ine
is started. It will take several days o f
no rmal driving fo r the vehic le to turn
the warning o ff.
If the vehic le o n bo ard diag no stic
system c o ntinues to detec t a
pro blem, the malfunc tio n indic ato r
l amp ( M IL) will illuminate. If the
M IL do es no t g
o of f , have your
dealer inspect the vehicle. For more
inf ormation, see page . 193
254
Fuel Gauge Check Fuel Cap Indicator Maintenance Minder Display
Gauges
66
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——
y
y
(y
y

Î
ÎOnly on vehicles equipped with navigation system. Ref er to the navigati on system manual.
:

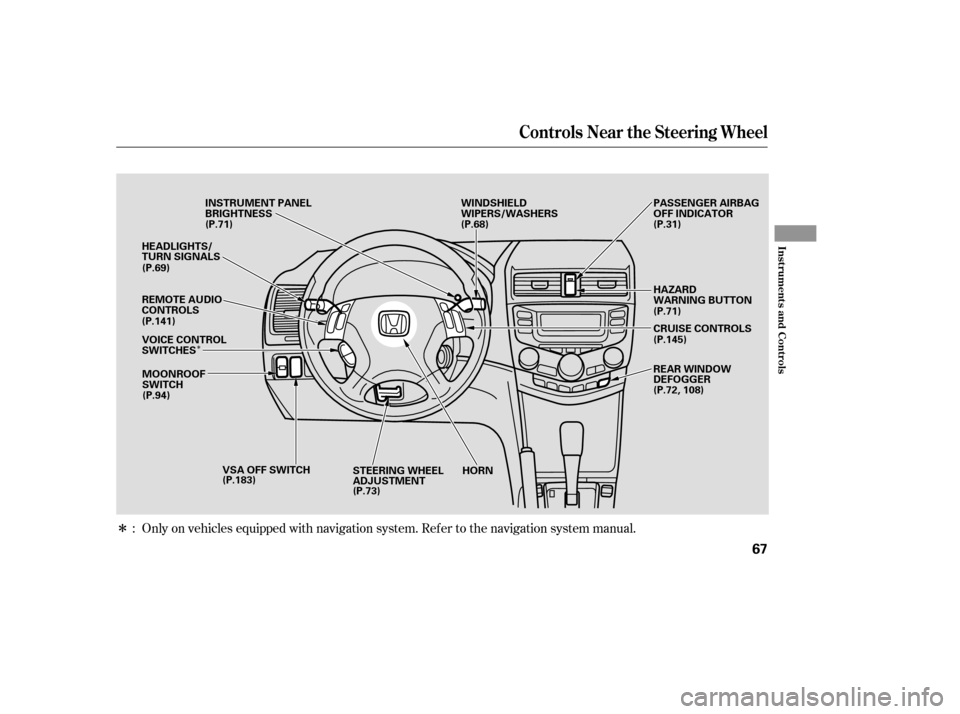

Controls Near the Steering Wheel
Inst rument s and Cont rols
67
WINDSHIELD
WIPERS/WASHERS
INSTRUMENT PANEL
BRIGHTNESS
MOONROOF
SWITCH
HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
HORN
STEERING WHEEL
ADJUSTMENT CRUISE CONTROLS
REAR WINDOW
DEFOGGER
PASSENGER AIRBAG
OFF INDICATOR
(P.31)
HAZARD
WARNING BUTTON
(P.71)
(P.69)
(P.141)
VOICE CONTROL
SWITCHES
(P.94)
(P.73)(P.68)
(P.71)
(P.145)
(P.72, 108)
VSA OFF SWITCH
(P.183)
——
y
y
(yy
