Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract.
Push and pull the child seat
f orward and f rom side-to-side to
verif y that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
4.
5.
Inst alling a Child Seat
Driver and Passenger Saf ety
47
——
y
y
(yy

A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.Tighten the strap according to the
seat maker’s instructions.
Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
Af ter properly securing the child
seat (see page ), lif t the head
restraint, then route the tether
strap through the head restraint
legs.
Af ter properly securing the child
seat (see page ), route the
tether strap over the seat-back.
Followsteps2and3fromthe
previous column.
1. 2. 3. 1. 2.
46
46

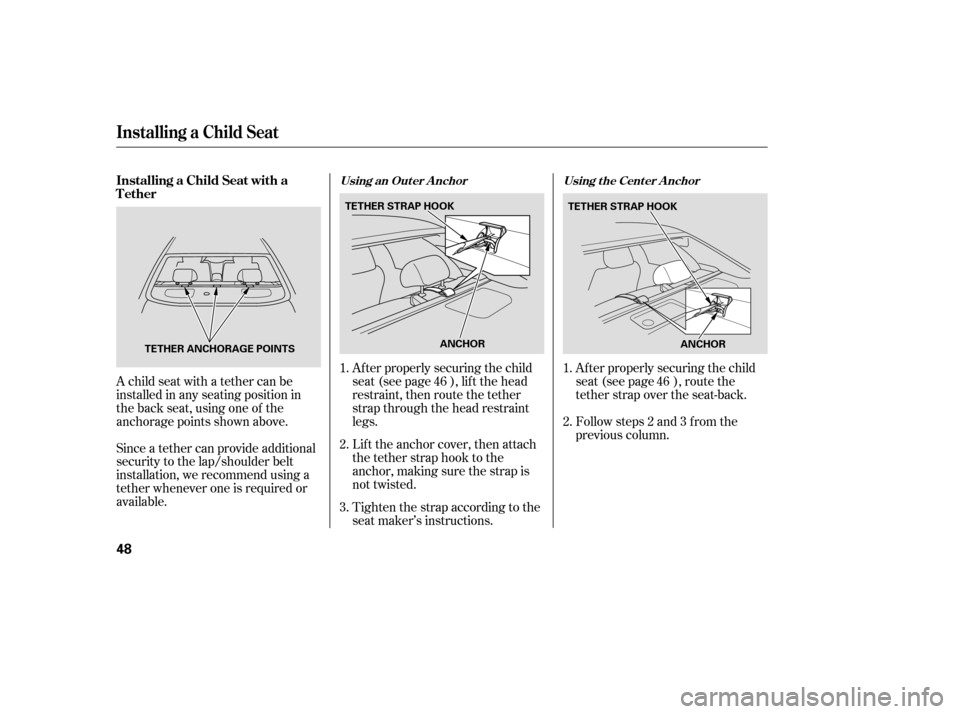

Installing a Child Seat with a
Tether
Using an Out er A nchor Using t he Cent er A nchor
Inst alling a Child Seat
48
TETHER STRAP HOOK
TETHER STRAP HOOK
ANCHOR ANCHOR
TETHER ANCHORAGE P OINTS
——
y
y
(yy

To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.
1. 2.
CONT INUED
Checking Seat Belt Fit
Protecting L arger Children
Driver and Passenger Saf ety
49
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
——
y

y
(yy

Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a f orward-
f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend to drive. If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
4. 5.
3.
42
Using a Booster Seat
Protecting L arger Children
50
——
y

y
(yy

If you decide that a child can saf ely
ride up f ront, be sure to:Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
If the passenger’s front airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.49
16
Physical Size
Maturity
When Can a L arger Child Sit in
Front
Protecting L arger Children
Driver and Passenger Saf ety
51
——
y
y
(yy

This could result
in serious neck injuries during a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Do not let a child wear a seat belt
across t he neck. Do not put any accessories on a
seat belt.
Do not let a child put the shoulder part of a seat belt behind t he back
or under t he arm.
T wo children should never use t hesame seat belt .
Additional Saf ety Precautions
Protecting L arger Children
52
——
y
y
(yy

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the heating and cooling system/
climate control system as shown
below.
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows: 1. 2.3.4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
53
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
——
y
y
(yy

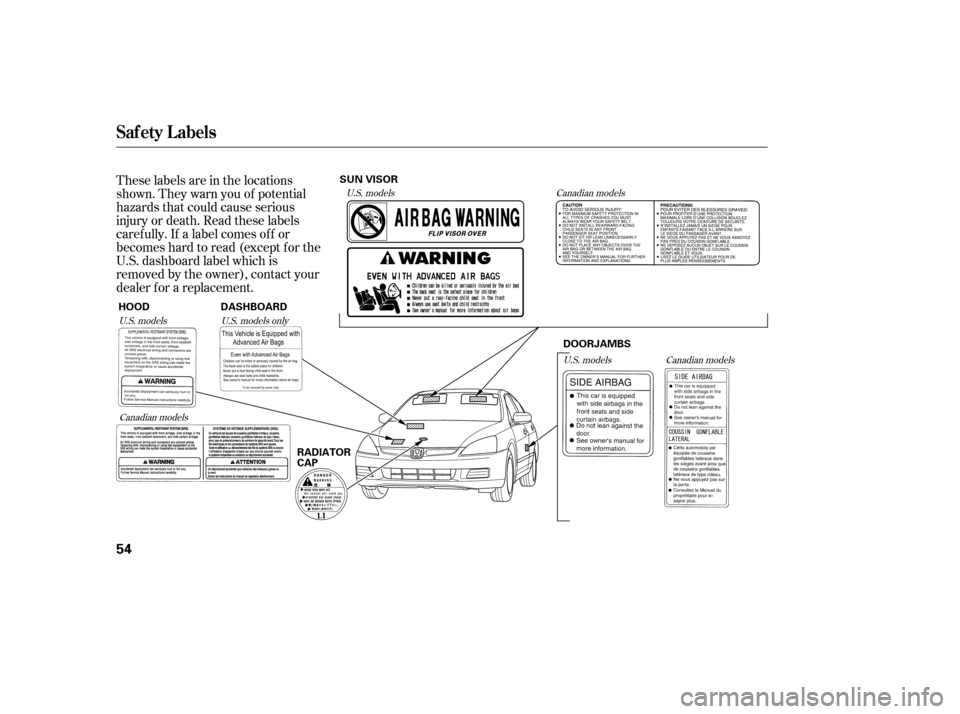

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully. If a label comes of f or
becomeshardtoread(exceptforthe
U.S. dashboard label which is
removed by the owner), contact your
dealer f or a replacement.
U.S. models Canadian models
U.S. models
Canadian models U.S. models only Canadian models
U.S. models
Saf ety L abels
54
SUN VISOR
HOOD DOORJAMBS
RADIATOR
CAP
DASHBOARD
——
y

y
(yy

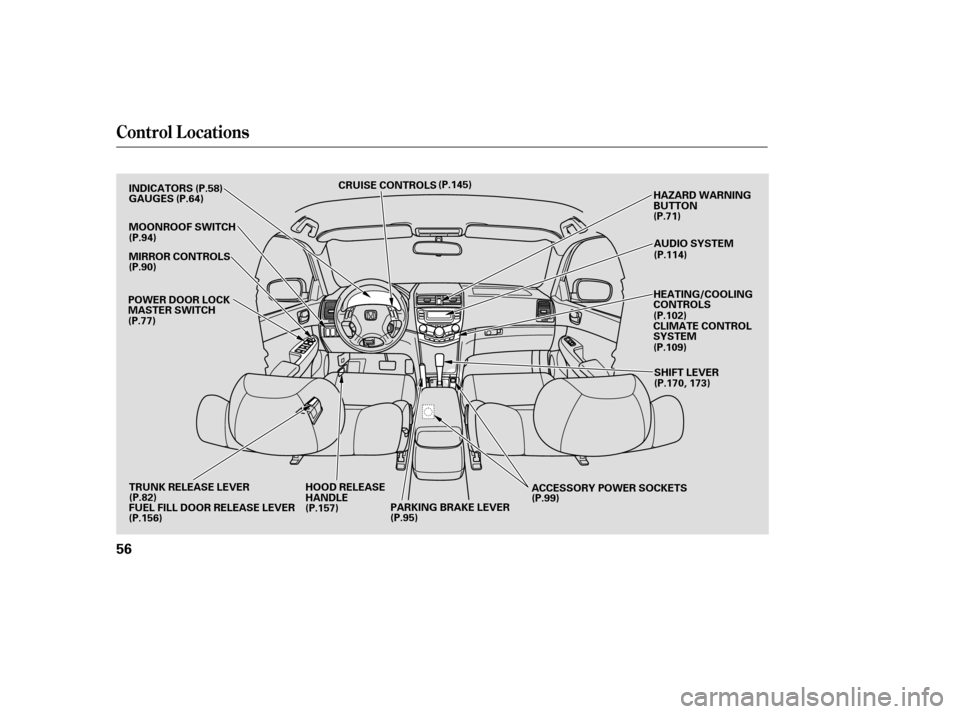

Cont rol L ocat ions
56
MIRROR CONTROLSACCESSORY POWER SOCKETSAUDIO SYSTEM
CLIMATE CONTROL
SYSTEM HEATING/COOLING
CONTROLS
HAZARD WARNING
BUTTON
CRUISE CONTROLS
MOONROOF SWITCH
TRUNK RELEASE LEVER PARKING BRAKE LEVER
HOOD RELEASE
HANDLE
INDICATORS
GAUGES
FUEL FILL DOOR RELEASE LEVER
POWER DOOR LOCK
MASTER SWITCH
SHIFT LEVER
(P.58)
(P.64)
(P.94)
(P.90)
(P.77)
(P.82)
(P.156) (P.145)
(P.71)
(P.114)
(P.102)
(P.109)
(P.170, 173)
(P.99)
(P.95)
(P.157)
——
y
y
(y
y

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

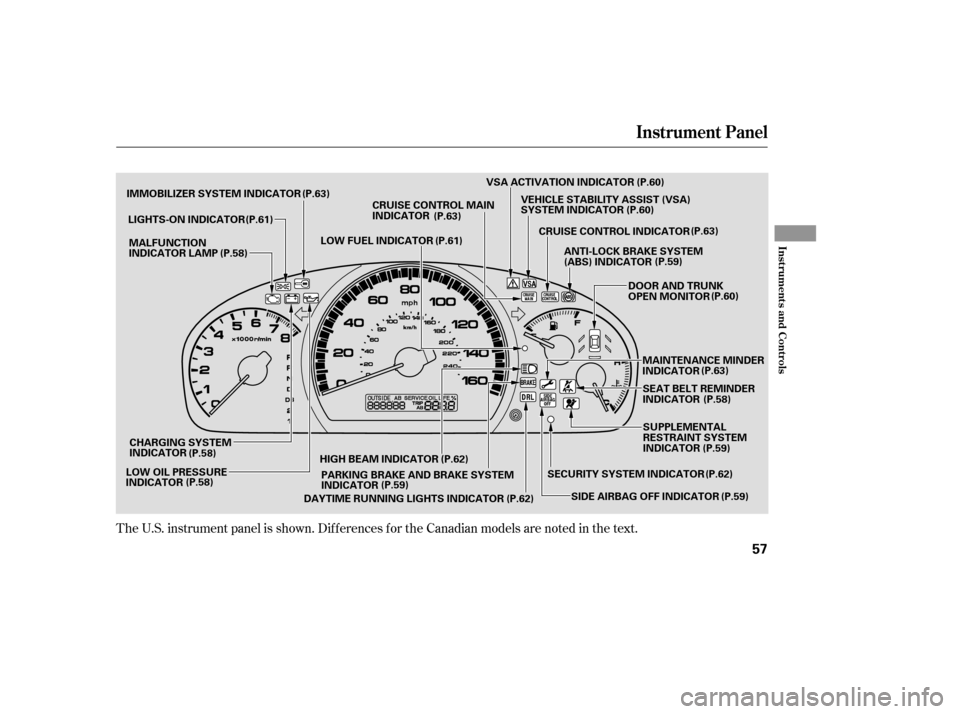

Instrument Panel
Inst rument s and Cont rols
57
CRUISE CONTROL INDICATOR
LOW FUEL INDICATOR
MALFUNCTION
INDICATOR LAMP
LOW OIL PRESSURE
INDICATOR SECURITY SYSTEM INDICATOR
IMMOBILIZER SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
DOOR AND TRUNK
OPEN MONITOR
CRUISE CONTROL MAIN
INDICATOR
HIGH BEAM INDICATOR
(P.58) (P.58) (P.61)
(P.61)
(P.62)(P.60)
(P.63)
(P.59)
(P.63)
(P.62) VSA ACTIVATION INDICATOR
(P.63)
(P.58)
CHARGING SYSTEM
INDICATOR VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR MAINTENANCE MINDER
INDICATOR
DAYTIME RUNNING LIGHTS INDICATOR SIDE AIRBAG OFF INDICATOR (P.59)
LIGHTS-ON INDICATOR
(P.60)
(P.59)
(P.60)
(P.63)
(P.59) (P.62) SEAT BELT REMINDER
INDICATOR
(P.58)
——
