HONDA ACCORD 2017 9.G Navigation Manual

20
uuPersonal Information uSaved Locations
System SetupH u (Back) uView Map
1.Select a destination from the map.
2 Map Input P. 71
2.Select the destination name at the
bottom of the map.
3. Press the (Menu) icon or select
.
4. Select Save.
u On some places other than POI,
you can edit the place name.
5. Select OK.
■Saving a Saved Location Manually

Continued21
uuPersonal Information uSaved Locations
System SetupH u (Back) uView Map
1.Select the vehicle icon.
2. Select Save.
3. Enter a name of the location.
4. Select Done.
5. Select OK.

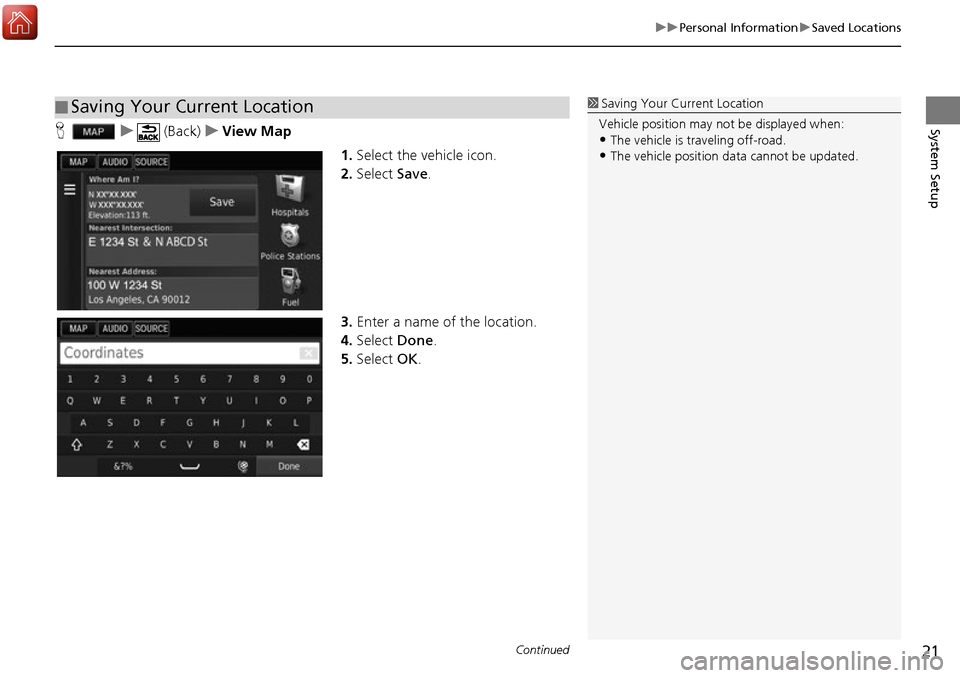

■Saving Your Current Location1
Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.

22
uuPersonal Information uSaved Locations
System SetupH uuSaved
1.Select a saved location you want
to edit.
2. Select .
3. Press the (Menu) icon or select
.
4. Select Edit.

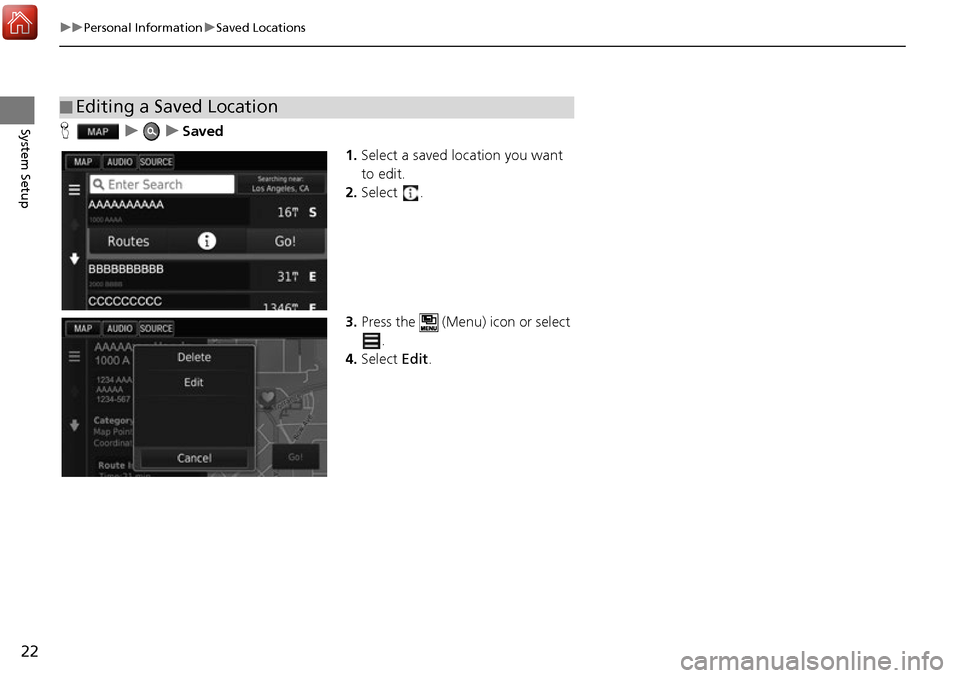

■Editing a Saved Location

23
uuPersonal Information uSaved Locations
Continued
System Setup

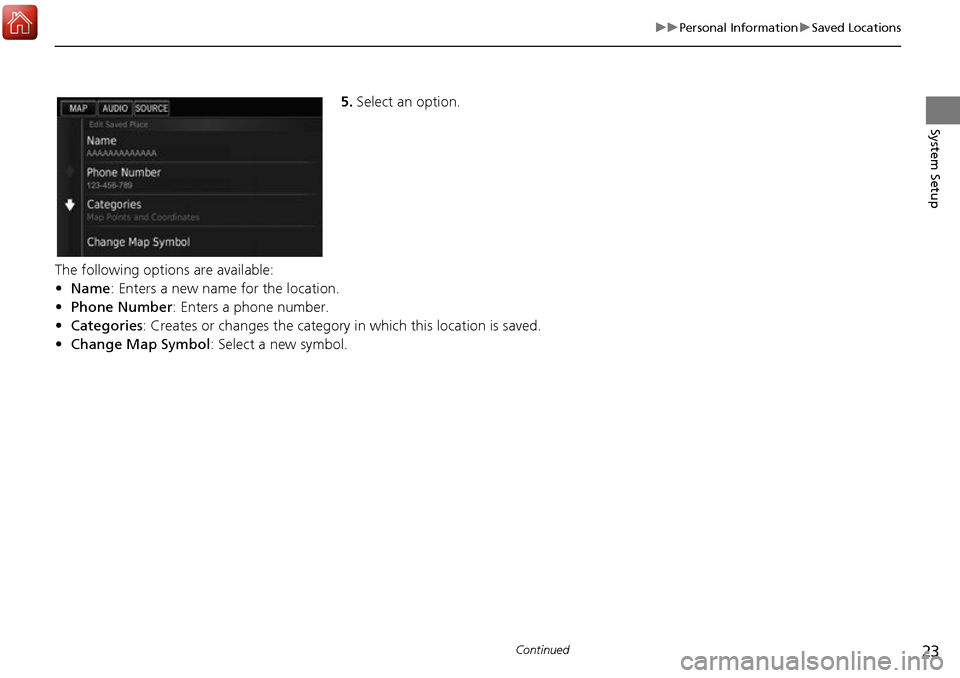

5. Select an option.
The following options are available:
• Name: Enters a new name for the location.
• Phone Number : Enters a phone number.
• Categories : Creates or changes the category in which this location is saved.
• Change Map Symbol : Select a new symbol.

24
uuPersonal Information uSaved Locations
System SetupH uuSaved
1.Select a saved location you want
to delete.
2. Select .
3. Press the (Menu) icon or select
.
4. Select Delete.
5. Select Yes.
■Deleting a Saved Location

25
uuPersonal Information uSaved Locations
System SetupH uuSaved
1.Press the (Menu) icon or select
.
2. Select Delete Saved Places .
3. Select a saved location you want
to delete.
u Select Select All to delete all
saved locations.
4. Select Delete .
5. Select Yes.
■Deleting Saved Locations

26

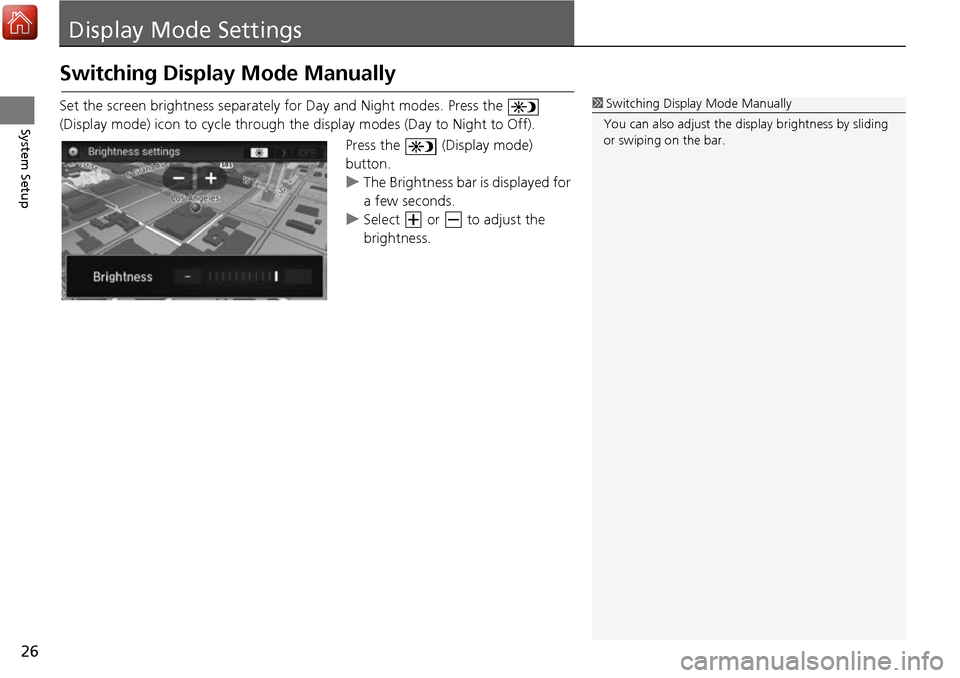

System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display mode)
button.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the bar.

27
uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination
control Priority Operation
button1Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember:
This button overrides all other display
brightness adjustment that is set by the sunlight
sensor automatically or you changed manually from
the System settings screen.
Sunlight sensor
(see your Owner’s
Manual for
location) 2 If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Nigh t display and displays the Day
display mode.
Remember: If desired, use the button to
override this automatic choice.
Dash illumination
adjustment
buttons (see your
Owner’s Manual
for location)3When the headlights are turn ed on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights
(Auto/On/Off) 4 When turned on, the di
splay changes to Night
display mode.
The previous three controls listed above can
“cancel” this function.
Remember: Use the button, or adjust the
dash illumination to full brightness, to set the display
to your desired choice.

28
System Setup

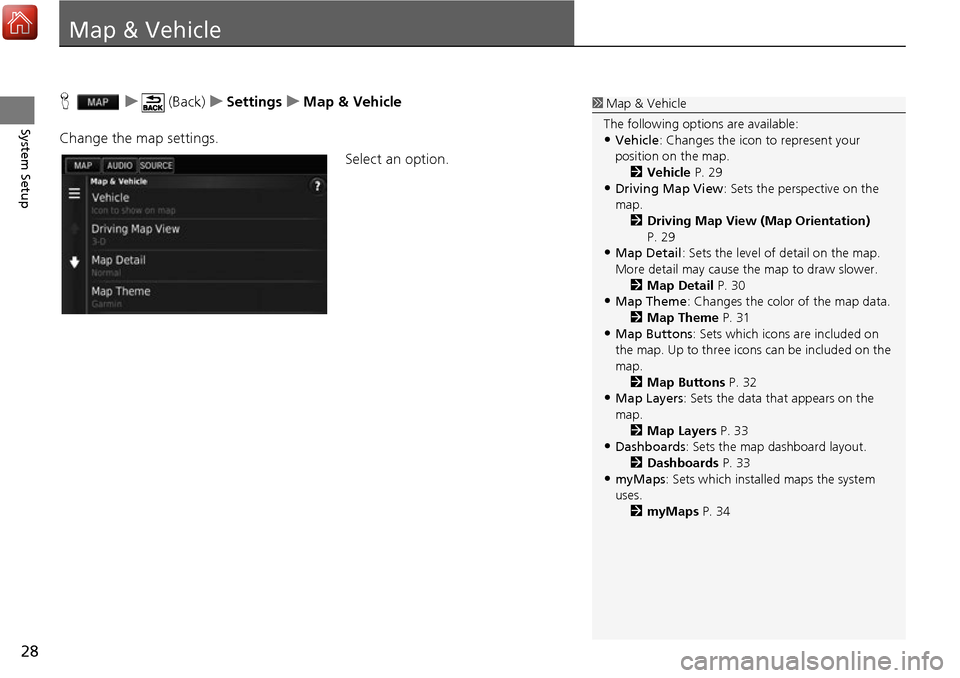

Map & Vehicle
Hu (Back) uSettings uMap & Vehicle
Change the map settings. Select an option.1Map & Vehicle
The following opti ons are available:
•Vehicle: Changes the icon to represent your
position on the map. 2 Vehicle P. 29
•Driving Map View : Sets the perspective on the
map. 2 Driving Map View (Map Orientation)
P. 29
•Map Detail: Sets the level of detail on the map.
More detail may cause th e map to draw slower.
2 Map Detail P. 30
•Map Theme : Changes the color of the map data.
2 Map Theme P. 31
•Map Buttons : Sets which icons are included on
the map. Up to three icons can be included on the
map. 2 Map Buttons P. 32
•Map Layers: Sets the data that appears on the
map.
2 Map Layers P. 33
•Dashboards : Sets the map dashboard layout.
2 Dashboards P. 33
•myMaps: Sets which installed maps the system
uses.
2 myMaps P. 34

29
uuMap & Vehicle uVehicle
System Setup

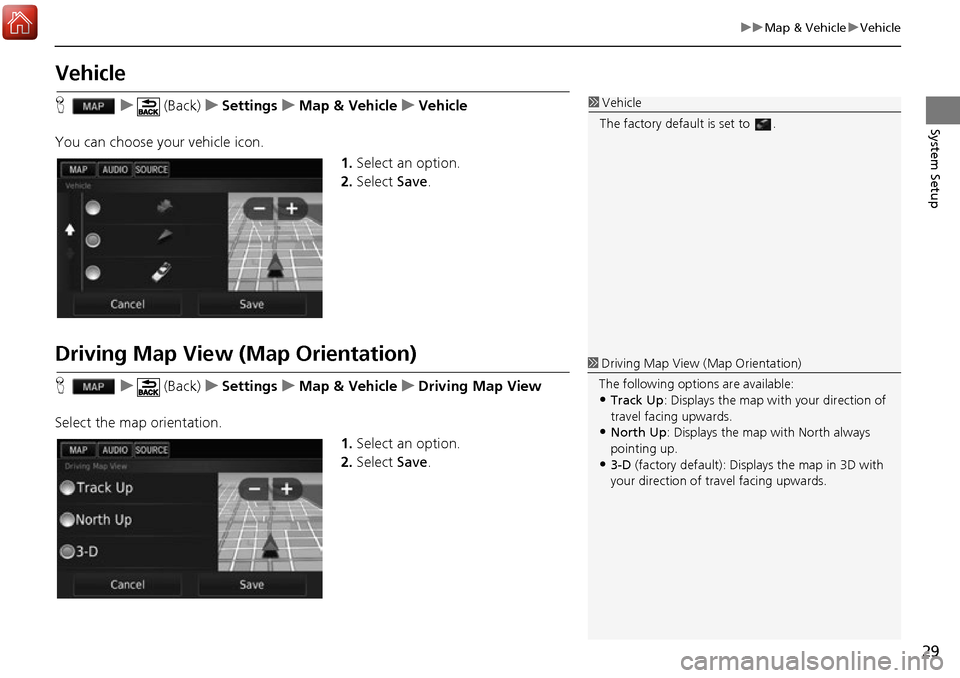

Vehicle
H u (Back) uSettings uMap & Vehicle uVehicle
You can choose your vehicle icon. 1.Select an option.
2. Select Save.
Driving Map View (Map Orientation)
H u (Back) uSettings uMap & Vehicle uDriving Map View
Select the map orientation. 1.Select an option.
2. Select Save.
1Vehicle
The factory default is set to .
1 Driving Map View (Map Orientation)
The following opti ons are available:
•Track Up: Displays the map with your direction of
travel faci ng upwards.
•North Up : Displays the map with North always
pointing up.
•3-D (factory default): Displays the map in 3D with
your direction of travel facing upwards.
