dashboard HONDA ACCORD COUPE 2002 CL7 / 7.G User Guide

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read, contact your Honda dealer
f or a replacement.
U.S. models onlyU.S. models
Canadian models
On cars without Side AirbagsOn cars with Side Airbags
Saf ety L abels
Driver and Passenger Saf ety53
RADIATOR CAP HOOD
SUN VISOR
DASHBOARD

To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the top of the switch
( ). To open the moonroof ,
press and hold the bottom of the
switch ( ). Release the switch
when the moonroof gets to the
desired position. Make sure
everyone’s hands are away f rom the
moonroof bef ore opening or closing
it.The moonroof has a key-of f delay.
You can still open and close the
moonroof f or up to ten minutes af ter
you turn of f the ignition. The key-of f
delay cancels as soon as you open
either door. You must then turn the
ignition ON (II) f or the moonroof to
operate.
The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can be slid back into
the roof . Use the switch under the
lef t dashboard vent to operate the
moonroof . The ignition switch must
be ON (II).
On Special Edition, EX, and EX-V6 models
Moonroof
Inst rument s and Cont rols96
M M O
OOONNRROOO OFF
S
SW WI ITT C
CH H
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.

Use the MODE buttons to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes.Air f lows f rom the f loor
vents. Air f low is divided between
the vents in the dashboard and the
f loor vents. Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the def roster
vents at the base of the windshield. Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C.
Heating and Cooling
Comf ort and Convenience Feat ures
Mode Buttons
109

The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable.
To adjust the air flow from the
center vent, move the tab up-and-
down and side-to-side.The vents in the corners of the
dashboard can be opened and closed
with the dials underneath them.
On the driver’s-side vent, move the
vent up-and-down and move the tab
side-to-side. On the passenger’s-side
vent, move the tab up-and-down and
move the vent side-to-side.
Heating and Cooling
Comf ort and Convenience Feat ures
Vent Controls
110
C CE
EN
NT TE
ER
R V
VE
EN
NT T
P
PA
A S
SSSEEN
NG GEER
R’ ’SS- -S
SI IDD E
E V
VE
EN
NT T
D
D
R
RIIVV E
ER
R’ ’SS- -S
SI IDD E
E V
VE
EN
NT T
C
Cl loo s
see
O
Oppe
enn C
Cl
loo s
see
O
Op pe
enn

The automatic climate control
system in your Honda picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable.To adjust the air f low f rom the
center vent, move the tab up-and-
down and side-to-side.On the driver’s-side vent, move the
vent up-and-down and move the tab
side-to-side. On the passenger’s-side
vent, move the tab up-and-down and
move the vent side-to-side.
Thesideventscanbeopenedand
closed with the dials underneath
them.
CONT INUED
On EX-V6 model
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures115
C CE
EN
NT TE
ER
R V
VE
EN
NT TS
S D
DR
RIIVV E
ER
R’ ’SS- -S
SI IDD E
E V
VE
EN
NT T
C
Cl loo s
see
O
Oppe
enn

CONT INUED
You can manually select the f an
speedbyturningthefancontroldial.
When you turn the dial clockwise,
the fan is taken out of automatic
mode and starts to run at its lowest
speed. Turning the dial f ully
clockwise increases the f an’s speed,
which increases air flow.
Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes. Each time you
press the MODE button, the display
shows the mode selected. Press the
button four times to see all the
modes.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fan Cont rol DialMode Button
119
F FAA N
N C
COON NTTR
RO OL L D
DI
IAA L
L
M
M O
ODDE
E B
BUUT TT
TO
ON N

The main air f low is divided
between the dashboard vents and
the f loor vents. The main air f low is divided
between the f loor vents and de-
froster vents at the base of the wind-
shield.
The main air flow comes
f rom the f loor vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures120

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system returns to its former settings. When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
This button turns the rear window
def ogger on and of f (see page ).72
Rear Window Def ogger Button
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures121
R RE
EA
A R
R W
WI INND DO
OW W D
DE
EF
FOOG GGGEER
R B
BUUT TT
TO
ON N

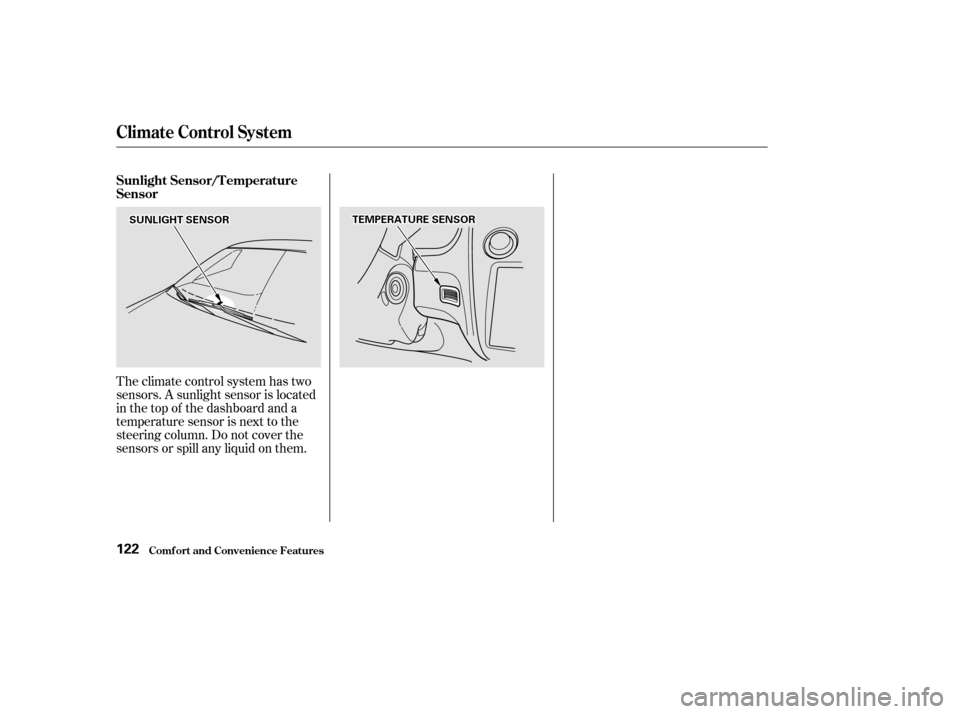

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Sunlight Sensor/T emperature
Sensor
122
T TE
EM
M P
PE
ER
RA A T
TU
UR REE S
SEEN
NS SOOR R
S
SU UN NLLIIGGH HT
T S
SEEN
NS SOOR R

Once the security system is set,
opening either door (without using
the key or the remote transmitter),
or the hood, will cause it to alarm. It
also alarms if the radio is removed
f rom the dashboard or the wiring is
cut.
The security system helps to protect
your car and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lashes if
someone attempts to break into your
carorremovetheradio.Thisalarm
continues f or two minutes, then the
system resets. To reset an alarming
system bef ore the two minutes have
elapsed, unlock either door with the
key or the remote transmitter.
The security system sets auto-
matically fifteen seconds after you
lock the doors, hood, and trunk. For
the system to activate, you must lock
the doors f rom the outside with the
key, lock tab, door lock switch, or
remote transmitter. The security
system light next to the driver’s door
lock starts blinking immediately to
show you the system is setting itself . With the system set, you can still
open the trunk with the master key
or the remote transmitter (if the
transmitter is equipped with a trunk
opener) without triggering the alarm.
The alarm will sound if the trunk
lock is f orced, or the trunk is opened
with the trunk release handle or the
emergency trunk opener.
The security system will not set if
the hood, trunk, or either door is not
f ully closed. If the system will not set,
check the Door and Brake Lamp
Monitor on the instrument panel
(see page ), to see if the doors
and trunk are f ully closed. Since it is
notpartofthemonitordisplay,
manually check the hood.
Do not attempt to alter this system
or add other devices to it.
61
Standard on Special Edition, EX, and
EX-V6 models
Security System
Comf ort and Convenience Feat ures180
S SE EC
CU UR RIITT Y
Y S
SYYSSTTE
EM
M L
LIIGGH HT
