HONDA ACCORD COUPE 2006 CL7 / 7.G Owners Manual

Air flows from the defroster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
fresh air mode and turns on the A/C.
In this case, you cannot turn the A/C
off.
When you select , the system
automatically switches to fresh air
mode.
Each
time you press a mode button,
the indicator above the button is on.
This button turns the rear window
def ogger of f and on (see page ).
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode. The system automatically
turns on the A/C,
selects , and switches to
recirculation mode. Each indicator
abovethebuttonisonwhenMAX
A/C is turned on.
Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. 72
MAX A/C Button
Rear Window Def ogger Button
Mode Control
Recirculation Button
Heating and A /C
Features
109
——y
y
(%y

y

The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Set the temperature to the lower
limit.
Make sure the A/C is off.
Select and fresh air mode.
Set the fan to the desired speed. The
heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Air
conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator above the
button comes on when a f an speed
is selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
1.
1.
2.
3.
4. 2.
3.1.
2.
3.
4.
5.64
Ventilation
Using the Heater Using the A /C
Heating and A /C
110
——y
y
(%y

y

To remove f og f rom the inside of the
windows:
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Once the engine is warmed up, this
setting is suitable f or all driving
conditions.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select the MAX A/C mode. The
system automatically turns on the
A/C, selects and switches
to recirculation mode.
Make sure the temperature is set
to maximum cool. Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
1.
1.
2.
3. 2.
3.
4.1.
2.
3.
4.
5.
If the interior is very warm,
CONT INUED
Dehumidif y the Interior
T o Def og and Def rost
Heating and A /C
Features
111
——y

y
(%y

y

Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was previously off.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
Turning the f an speed control dial all
the way to the left shuts the system
of f .
When you switch to , f rom or , the A/C stays on.
This helps prevent the windows f rom
rapidly f ogging up when the air is
suddenly routed away f rom the
windshield. If you want to turn the
A/C off, press and release the A/C
button until the indicator in the
buttoncomesonandthengoesoff. When you switch to or f rom or , the
A/C will stay on or of f depending on
howitwassetpreviously. 1.
2.
3. T o Remove Exterior Frost or Ice
From the WindowsTo Turn Everything Off
Heating and A /C
112
——y
y
(%y

y

CONT INUED
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.Press the AUTO button. The
indicator in the button comes on.
Set the desired temperature by
turning the driver’s side
temperature control dial.
YouwillseeAUTOinthesystem’s
display.
You will see FULL AUTO in the
system’s display.
1.
2.
On U.S. models
On Canadian models
Climate Control System
Automatic Operation
Features
113

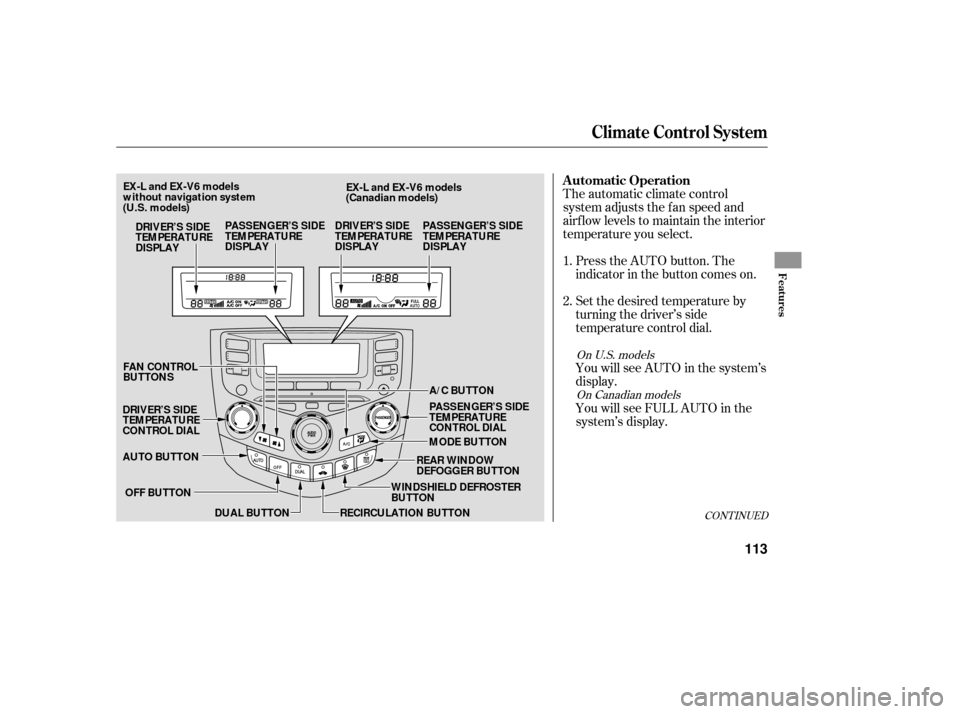

DRIVER’S SIDE
TEMPERATURE
DISPLAY PASSENGER’S SIDE
TEMPERATURE
DISPLAY
OFF BUTTON DRIVER’S SIDE
TEMPERATURE
DISPLAY
PASSENGER’S SIDE
TEMPERATURE
DISPLAY
AUTO BUTTON DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL A/C BUTTON
WINDSHIELD DEFROSTER
BUTTON
FAN CONTROL
BUTTONS
DUAL BUTTON RECIRCULATION BUTTON MODE BUTTON
REAR WINDOW
DEFOGGER BUTTON
EX -L
and EX-V6 models
without navigation system
(U.S. models) EX -L
and EX-V6 models
(Canadian models)
——y
y
(%y

y

You can manually select various
functions of the climate control
system when it is in full automatic
mode. All other features remain
automatically controlled.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
When you turn the passenger’s side
temperature control dial, the
indicator in the DUAL button comes
on and the driver’s side and
passenger’s side temperature can be
controlled
independently (see page
).
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air. Select the f an speed by pressing the
fan control buttons ( or ).
The f an speed is shown in vertical
bars in the display.
Turn these dials to the desired
temperature. The temperature
setting is shown in the display.
The driver and passenger can select
independent temperature settings.
Making any manual selection causes
thewordFULLinthedisplaytogo
out.
121
On U.S. models
On Canadian models
Semi-automatic Operation Fan Control Buttons
T emperature Control Dials
Climate Control System
114
——y

y
(%y

y

Press the DUAL button to select
dual temperature control mode (see
page ).
When you turn the A/C off, the
system cannot regulate the inside
temperature if you set the
temperature control buttons below
the outside temperature.
Press
the A/C button to turn the air
conditioningonandoff.Youwill see
A/C ON or A/C OFF in the display.
When
you press the DUAL button
again (indicator turns off), both
sides adjust to the driver’s side
temperature. When
the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in reci rculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode. This
button turns the windshield
defrost on and off.
Wh en you push this button, air flows
from the defroster vents at the base
of the windshield, and the system
au tomatically switches to fresh air
mode and turns on the A/C. When
the indicator in the button is on, the
passenger’s temperature cannot be
set separately f rom the driver’s.
This button turns the rear window defogger off and on (see page ).
121
72
Climate Control System
Dual Button
Air Conditioning (A/C) ButtonRecirculation Button Windshield Def roster Button
Rear Window Def ogger Button
Features
115
——y

y
(%y

y

Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes.
Each time you press the MODE
button, the display shows the mode
selected.Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. If you press the OFF button, the
climate control system shuts of f
completely.
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
Mode Control To Turn Everything Of f
Climate Control System
116
——y
y
(%y

y

CONT INUED
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
In the AUTO mode, the vehicle’s
interior temperature is
independently regulated f or the
driver and passenger. If the driver’s
side of the vehicle is getting too
much sun, the system will adjust to a
lower temperature. The climate control system f or your
vehicle can also be operated by voice
control. See the navigation section in
your quick start guide f or an
overview of this system, and the
navigation system manual f or
complete details.
Climate Control System
Voice Control System
Automatic Operation
Features
117

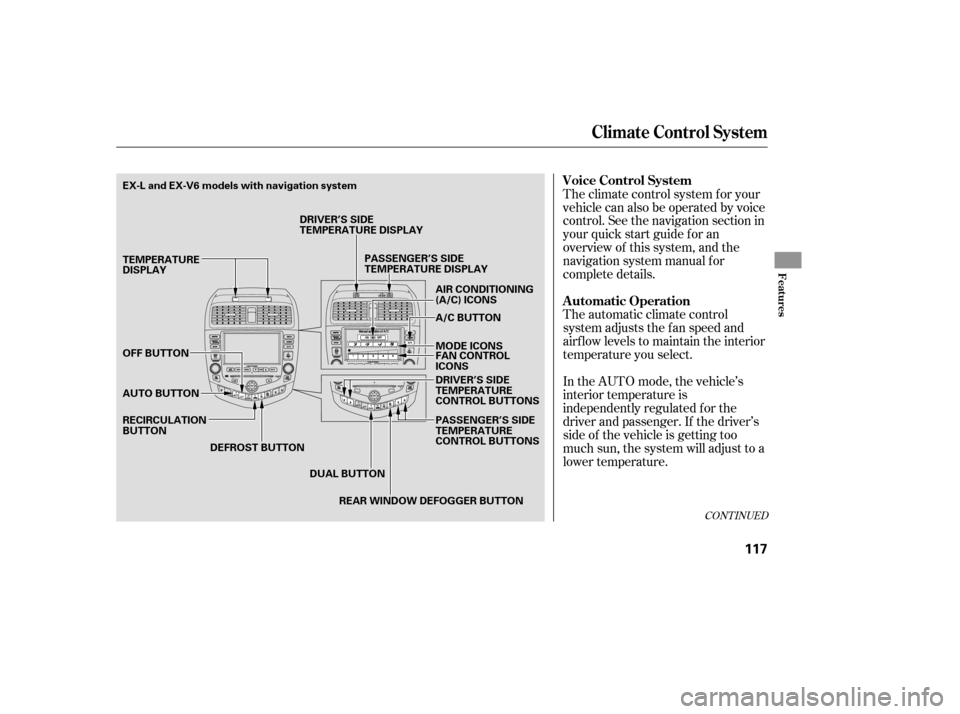

AUTO BUTTON OFF BUTTON
RECIRCULATION
BUTTONREAR WINDOW DEFOGGER BUTTONPASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
TEMPERATURE
DISPLAY
DEFROST BUTTON FAN CONTROL
ICONS MODE ICONS A/C BUTTON AIR CONDITIONING
(A/C) ICONS
PASSENGER’S SIDE
TEMPERATURE DISPLAY
DRIVER’S SIDE
TEMPERATURE DISPLAY
DUAL BUTTON
EX-L and EX-V6 models with navigation system
——y
y
(%y
y

ÛÝThe
system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
When
you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at full
cooling or heating only. It does not
regulate the interior temperature. You
can manually select various
functions of the climate control
system when it is in full automatic
mode. All other features remain
automatically controlled.
If you press the A/C button next to
the display, the manual selections
will show in the display. Making any
manual selection causes the
indicator in the AUTO button to turn
off.
Press
the AUTO button. The
indicator in the button comes on.
Set the desired temperature by
pressing the driver’s side
temperature control buttons. Press
to raise the temperature or
to lower it. The selected
temperature will show in the upper
display.
When you press the passenger’s side
temperature control buttons, the
indicator in the DUAL button comes
on and the driver’s side and
passenger’s side temperature can be
controlled independently (see page ).
1.
2.
121
Climate Control System
Semi-automatic Operation
118
——y
y
(%y

y
