HONDA ACCORD COUPE 2006 CL7 / 7.G Owners Manual

The audio system f or your vehicle
can also be operated by voice control.
See the navigation section in your
quick start guide f or an overview of
this system, and the navigation
system manual f or complete details.
A M/FM/CD Changer
Voice Control System
Features
149
AM/FM BUTTON
PWR/VOL KNOB SEEK BAR TUNE/SOUND KNOB
SCAN BUTTON
STEREO INDICATOR
PRESET ICONS AUDIO DISPLAY
BUTTON
SOUND ICON
SCAN
ICON
AUTO SELECT ICON UPPER DISPLAY
EX-L and EX-V6 models with
navigation system
——y

y
(%y
y

µµ
µ The
seek function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
The scan function samples
all stations with strong signals on the
selected band. To activate it, touch
the SCAN icon. You will see SCAN in
the display. The system will scan for
a station with a strong signal. When
it finds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 5 seconds. When it plays a
station you want to listen to, touch
the SCAN icon again.
The
ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
the PWR/VOL knob.
Pushing the AUDIO DISPLAY
button will also turn on the system. You
can use any of five methods to
find radio stations on the selected
band: tune, seek, scan, the
preset icons, and auto select.
Use the TUNE/SOUND
knob to tune the radio to a desired
frequency. Turn the knob right to
tune to a higher frequency, and turn
the knob left to tune to a lower
frequency.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction in
AM is not available.
For inf ormation on XM satellite radio,
see page . 153 SEEK
SCAN
T o Play the A M/FM Radio
T o Select a Station
TUNE
A M/FM/CD Changer
150
——y
y
(%y
y

µ
µ
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Each preset icon can store
one f requency on AM, and two
f requencies on FM.
Touch the AUTO SELECT icon.
‘‘A. SEL’’ f lashes in the upper display,
and the system goes into scan mode
f or several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset icons.You will see a ‘‘0’’ displayed af ter
pressing a preset icon if auto select
cannot f ind a strong station f or every
preset icon.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset icons
as previously described.
To turn off auto select, touch the
AUTO SELECT icon. This restores
the presets you originally set.
Push the AUDIO DISPLAY button
to
see the preset icons. Then select
the desired band, AM or FM. FM1
and FM2 let you store two
f requencies with each preset icon.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick the preset icon you want f or
that station. Touch the icon, and
hold it until you hear a beep.
1.
2.
3. 4.
AUTO SELECT
Preset
A M/FM/CD Changer
Features
151
——y
y
(%y
y

µµ
µ
µ Touch the arrows next to the BAS or
TRE icons. The adjustment shows
you the current setting. Touch the
lef t or right bars on the sound grid.
Balance is equalized when the
vertical lines are centered on the
grid. Touch the f ront or rear bars on
the sound grid. The f ader is
equalized when the horizontal lines
arecenteredonthegrid.
Touch the SOUND icon or press the
TUNE/SOUND knob.
If you want to adjust the sound while
the radio/CD is playing, push the
AUDIO DISPLAY button, then touch
the SOUND icon in the display.
The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode. Touch the
Return icon to go back to the audio
screen.
Adjusts the balance, or side-
to-side strength of the sound.
Adjusts the fader, or the
f ront-to-back strength of the sound.
Adjusts the treble.
Adjusts the bass.
Adjusting the Sound
BAL
FAD
TRE
BAS
A M/FM/CD Changer
152
FADER ADJUST ICONS
SOUND GRID
RETURN ICONBALANCE
ADJUST ICONS
BASS ADJUST ICONS TREBLE ADJUST ICONS
——y
y
(%y
y

XMis a registered trademark of
XM Satellite Radio, Inc. Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States except Hawaii and
Alaska. It is not available in Canada.
Satellite radio is available on U.S.
models only.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position.
Turn the system on by pushing the
PWR/VOL knob, the CD/AUX/XM,
button or the AUDIO DISPLAY
Turn the PWR/VOL knob to adjust
the volume.
U.S. models
Satellite Digital Radio
To Play XM
Satellite Radio
A M/FM/CD Changer
Features
153

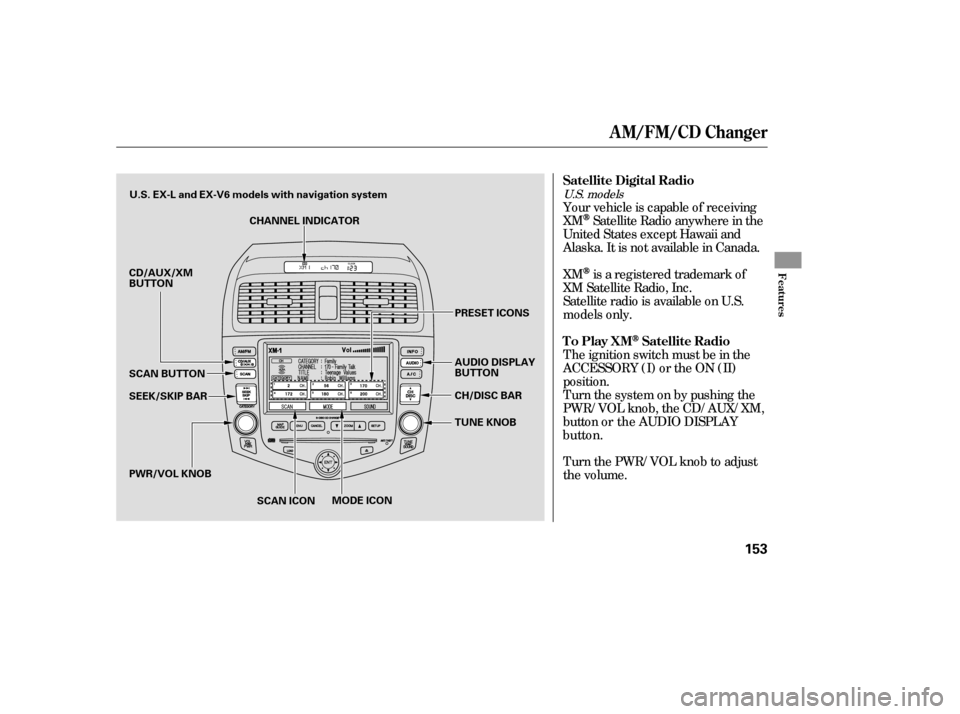

SCAN ICON MODE ICON
CHANNEL INDICATOR
SEEK/SKIP BAR AUDIO DISPLAY
BUTTON
SCAN BUTTON
PWR/VOL KNOB TUNE KNOB CH/DISC BAR PRESET ICONS
U.S. EX-L and EX-V6 models with navigation system
CD/AUX/XM
BUTTON
——y

y
(%y
y
button.

Î
Î
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You operate the CD changer with
the same controls used f or the radio.
To select the CD changer, press the
CD/AUX/XM button (CD/AUX
buttononCanadianmodels).The
number of the track playing is shown
in the display. With the in-dash CD
changer, the disc and track numbers
are displayed. The system will
continuously play a CD until you
change modes.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
:
CONT INUEDOn Canadian models
A M/FM/CD Changer
To Play a CD
Features
155

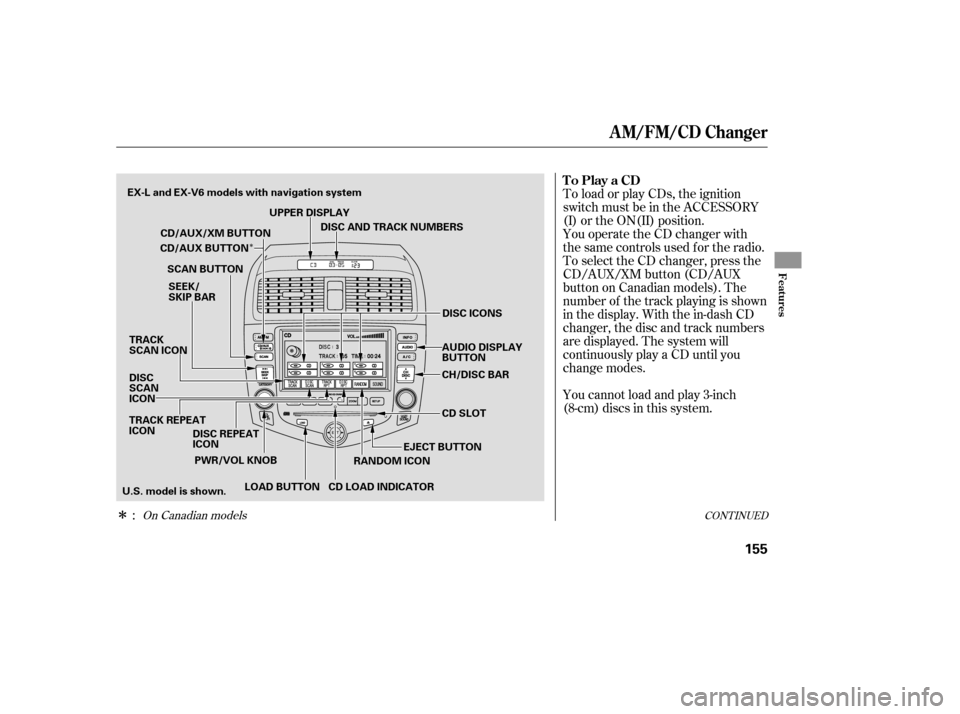

CH/DISC BAR
CD SLOT
EJECT BUTTON
DISC
SCAN
ICON TRACK
SCAN ICON
SEEK/
SKIP BAR DISC AND TRACK NUMBERS
UPPER DISPLAY
RANDOM ICON AUDIO DISPLAY
BUTTON
PWR/VOL KNOB
SCAN BUTTON
TRACK REPEAT
ICON DISC REPEAT
ICON
CD LOAD INDICATORDISC ICONS
U.S. model is shown. LOAD BUTTON
CD/AUX/XM BUTTON
CD/AUX BUTTON
EX-L and EX-V6 models with navigation system
——y

y
(%y
y

If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .Your vehicle’s in-dash CD changer
holdsuptosixdiscs.
Press the LOAD button until you
hear a beep and see ‘‘LOAd’’ in the
upper display.
To load only one CD, press and
release the LOAD button.
The disc icon f or an empty
position is highlighted and the red
CD load indicator starts blinking.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD/AUX/XM or CD/AUX
button again to switch back to the
CD changer.
To play the tape when a CD is
playing, insert a tape in the player
(optional). If a tape is in the player,
press the CD/AUX/XM or CD/AUX
button. Press the CD/AUX/XM or
CD/AUX button again to switch
back to the CD changer.
To listen to satellite radio when a CD
is playing, press the CD/AUX/XM
button.
1.
2.
On U.S. models
A M/FM/CD Changer
L oading CDs in t he In-dash CD
Changer
156
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——y

y
(%y
y

Û
Ý µ
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last CD loaded. Do not try to insert a disc until
‘‘LOAd’’ appears. You could
damage the audio unit. When the CD load indicator turns
green and ‘‘LOAd’’ appears in the
screen again, insert the next CD in
the slot. You can also load a CD into an empty
position while a CD is playing by
touching a disc icon. The system
stops playing the current CD and
starts the loading sequence. It plays
the CD just loaded.
You operate the CD changer with
the same controls used f or the radio.
The numbers of the disc and track
playingareshowninthedisplay.
These numbers also appear in the
upper display.
To select a dif f erent disc, touch the
appropriate disc icon or press the
or side of the CH/DISC bar. If
you select a loaded position in the
CD changer, the system will try to
load the CD in the next available slot.
Insert a disc into the CD slot when
the green CD load indicator comes
on. Insert it only about half way;
the drive will pull it in the rest of
the way. You will see ‘‘BUSY’’ in
the upper display as the CD load
indicator turns red and blinks as
the CD is loaded.
To use the controls, press the
AUDIO DISPLAY button.
When you touch
this icon on the audio display or
press the SCAN button, you will get
a10secondsamplingof eachtrack
on the current CD. You will see
TRACK SCAN highlighted on the
audioscreenandSCANintheupper
display. Press the icon or button
again to get out of track scan.
4.
5. 3.
CONT INUED
To Change or Select Tracks
TRACK SCAN
A M/FM/CD Changer
Features
157
——y

y
(%y
y

µ
µ
µ µ
µ
µÛÝ When you touch the
RANDOM icon on the audio display,
the system plays the tracks on the
current CD in random order. You
will see RANDOM highlighted on
the audio screen and RDM in the
upper display. To turn this f eature
of f , touch RANDOM again or select
a dif f erent disc icon.
When you touch
the TRACK RPT icon, the system
continuously plays the same track.
You will see TRACK RPT
highlighted on the audio screen and
RPT in the upper display. Press the
icon again to get out of track repeat.
When you touch the
DISC RPT icon on the audio display,
the system continuously replays the
current CD. You will see DISC RPT
highlighted on the audio screen and
D-RPT in the upper display. Touch
the icon to turn the feature off. When you touch the
DISC SCAN icon on the audio
display, the system gives you a 10
second sampling of the f irst track on
each disc in the in-dash CD changer.
You will see DISC SCAN highlighted
on the audio screen and D-SCAN in
the upper display. Touch the icon
again to get out of disc scan.
Each time you
press and release , the system
skips forward to the beginning of the
next track. Press and release to
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track, press
and hold or .
Press the or to
select an icon and play the disc. PresstheAM/FMorCD/AUX/XM
button to switch to the AM/FM
radio or satellite radio while a CD is
playing. To play the CD, press the
CD/AUX/XM button again.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . Press the AM/FM button to switch
to the AM/FM radio while a CD is
playing. To play the CD, press the
CD/AUX button.
If a tape is in the optional tape player,
press the CD/AUX/XM or CD/AUX
button to switch to the tape while a
CD is playing. Press the CD/AUX/
XM or CD/AUX button again to
switch back to the CD changer.
On Canadian models
On U.S. models
To Stop Playing a CD
RANDOM
TRACK RPT
DISC RPT DISC SCAN SEEK /SK IP
CH/DISC
A M/FM/CD Changer
158
——y

y
(%y

y
