HONDA ACCORD COUPE 2006 CL7 / 7.G Owners Manual

ÛÝ
Select
the fan speed by pressing the
A/C button to view the display, then
press any of the fan control icons.
Press these buttons ( or ) to the
desired temperature. The
temperature setting is shown in the
upper display. Press
the DUAL button to select
dual temperature control mode (see
page ). When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
The driver and passenger can select
independent temperature settings.
When you press the DUAL button
again (indicator turns of f ), both
sides adjust to the driver’s side
temperature.
Press the A/C button to view the
display. Touching ON or OFF in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control buttons below
the outside temperature.121
Climate Control System
Fan Control
Temperature Control Buttons
Dual Button Recirculation Button
Air Conditioning (A/C) Button/
Icons
Features
119
——y
y
(%y
y

This button turns the windshield
defrost on and off.
Wh en you push the button, air flows
from the defroster vents at the base
of the windshield, and the system
au tomatically switches to fresh air
mode and turns on the A/C. When
the indicator in the button is on, the
passenger’s temperature cannot be
set separately from the driver’s.
This button turns the rear window
def ogger of f and on (see page ). Use the mode control icons to select
the vents the air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
Press the A/C button to view the
display, then touch any of the mode
icons on the display.
Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. If you press the OFF button, the
climate control system shuts of f
completely.
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When the climate control system is
turned off, the temperature in the
upper display also turns of f .
72
Windshield Def roster Button
Rear Window Def ogger Button
Mode Control
To Turn Everything Of f
Climate Control System
120
——y
y
(%y
y

Your vehicle has two temperature
control dials, one f or the driver, and
one f or the f ront passenger.
Your vehicle has four temperature
control buttons, two f or the driver,
and two f or the passenger.
Thedriver’ssideandthepassenger’s
side can be controlled independently
by adjusting these dials or buttons
when the indicator in the DUAL
button is on.
CONT INUED
With navigation system
On EX-L and EX-V6 models without
navigation system
Dual Temperature Control
Features
121
DUAL BUTTON
DUAL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
Without navigation system
With navigation system
——y
y
(%y
y

ÛÝ
ÛÝ To set the driver’s side temperature
dif f erently than the passenger’s,
press the DUAL button, then turn
the driver’s control dial or press theor buttons on the driver’s side.
To set the passenger’s side
dif f erently than the driver’s, turn the
passenger’s control dial or press the or buttons on the passenger’s
side. You can adjust the passenger’s
side without pressing the DUAL
button first. When you set the temperature to its
lower or upper limit, it is displayed asor .
Push AUTO or to turn on the
system. The selected temperatures
appears in the display (in the upper
display with the navigation system).
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
adjusting the driver’s side
temperature control dial or buttons.
T emperat ure Cont rol Dials/But t ons
Dual Temperature Control
122
PASSENGER’S SIDE
DRIVER’S SIDE
——y
y
(%y
y

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
On EX-L and EX-V6 models
Climat e Cont rol Sensors
Sunlight and T emperature
Sensors
Features
123
SUNLIGHT SENSORTEMPERATURE SENSOR
——y

y
(%y
y

To operate your vehicl e’s audio
system refer to the appropriate
pages below.
For FM/AM /CD Player systems,
see pages thru .
For AM/FM/CD Changer
systems without navigation, see
page thru .
For AM/FM/CD Changer
systems with navigation, see page
to thru . 126 135
148
136
149 163
Audio System
124
AM/FM/CD Player
(LX models)
——y
y
(%y
y

Audio System
Features
125

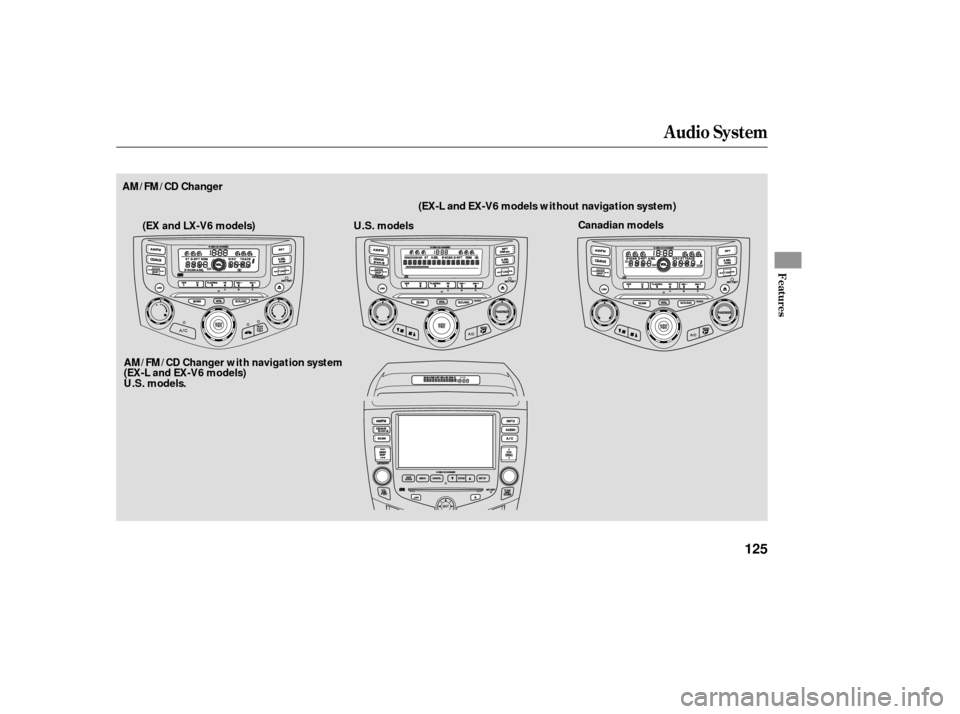

AM/FM/CD ChangerCanadian models
U.S. models
AM/FM/CD Changer with navigation system
(EX-L and EX-V6 models)
U.S. models . (EX-L and EX-V6 models without navigation system)
(EX and LX-V6 models)
——y
y
(%y
y

The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
the PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/
FM button. On the FM band, ST
will be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not
available. To Play the AM/FM Radio
AM/FM/CD Player
126

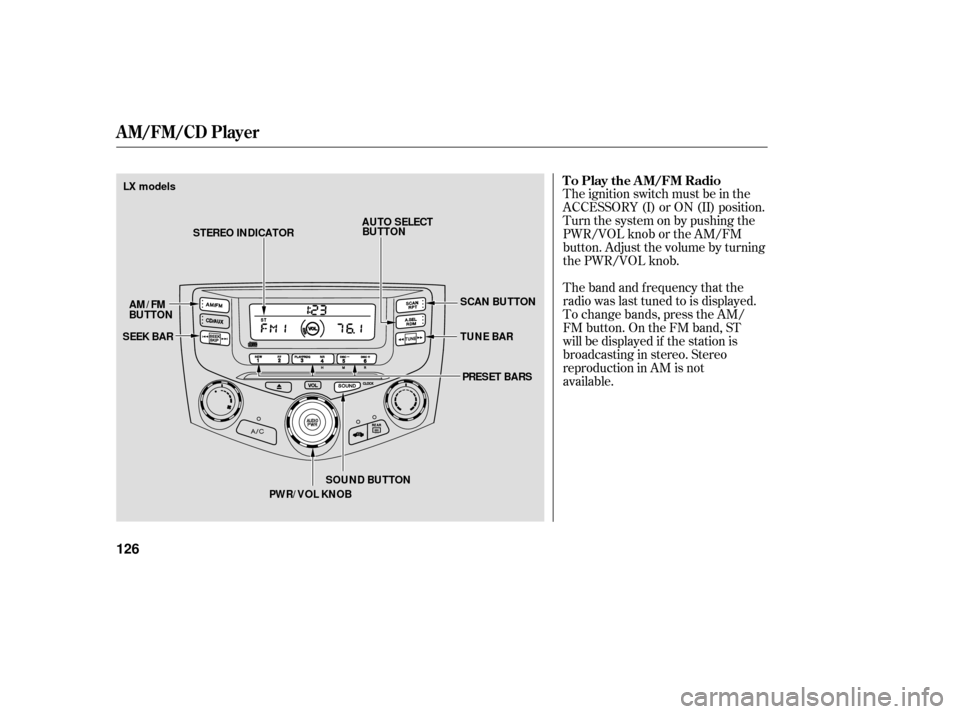

STEREO INDICATORSCAN BUTTON
SOUND BUTTON
AM/FM
BUTTON
SEEK BAR
PRESET BARS
PWR/VOL KNOB TUNE BAR
LX models
AUTO SELECT
BUTTON
——y

y
(%y
y

µ
µ µµµ
µ
You can use any of f ive methods to
find
radio stations on the selected
band: tune, seek, scan, the
preset bars, and auto select.
Use the tune bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it. The scan f unction samples
all the stations with strong signals on
the selected band. To activate it,
press the SCAN button, then release
it. You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 5 seconds. If you do
nothing, the system will then scan
f or the next strong station and play it
for 5 seconds. When it plays a station
that you want to listen to, press the
SCAN button again. Each side of the bars (1
6) can store one f requency on AM
and two f requencies on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. Usethetune,seek,orscan
function to tune the radio to a
desired station. Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each side of
the preset bar.
Pick a preset number (1 6), you
want for that station. Press the left
or right side of the bar, and hold it
until you hear a beep.
1.
2.
3.
4.
To Select a Station
TUNE
SEEK
SCA N Preset
AM/FM/CD Player
Features
127
——y
y
(%y
y

µµ
µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. You will see a ‘‘0’’ displayed af ter
pressing a preset bar if auto select
cannot f ind a strong station f or every
preset bar.
,pressthe
A. SEL button. This restores the
presets you originally set.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset bars. If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars
as previously described.Press the SOUND button repeatedly
to display the bass (BAS), treble
(TRE), f ader (FAD), and balance
(BAL) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the PWR/VOL
knob to adjust the setting to your
liking. When the level reaches the
center, you will see a ‘‘ ’’ in the
display.
The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.Adjusts the bass.
Adjusts the treble.
Adjusts the fader, or the
f ront-to-back strength of the sound.
Adjusts the balance, or side-
to-side strength of the sound.
To turn of f auto select
AUTO SELECT Adjusting the Sound
BAS
TRE
FAD
BAL
AM/FM/CD Player
128
