Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?A child who has outgrown a forward-
f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
3. 4. 5.
39
Using a Booster Seat
Protecting L arger Children
Driver and Passenger Saf ety
47
——y


y
(#yy

Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat.
If the passenger’s f ront airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
14 46
Protecting L arger Children
Physical Size
Maturity
When Can a L arger Child Sit in
Front
48
——y

y
(#yy

Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could result
in serious neck injuries during a
crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
If you decide that a child can saf ely
ride up f ront, be sure to:
Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
Protecting L arger Children
Do not put any accessories on aseat belt .
Do not let a child wear a seat belt
across t he neck.
Do not let a child put the shoulderpart of a seat belt behind t he backor under t he arm.
T wo children should never use t hesame seat belt .Additional Saf ety Precautions
Driver and Passenger Saf ety
49
——y

y
(#yy

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the heating and cooling system/
climate control system as shown
below.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. 1.2.3.4.
Carbon Monoxide Hazard
50
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even killyou.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
——y

y
(#yy

CONT INUED
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.
U.S. models only
4-cylinder LX models Except 4-cylinder LX models
U.S. models
Canadian models
Saf ety L abels
Driver and Passenger Saf ety
51
HOOD DASHBOARD
RADIATOR CAP
——y

y
(#yy

U.S. modelsCanadian models U.S. models Canadian models
Saf ety L abels
52
DOORJAMBS
SUN VISORS
——y

y
(#yy

Control L ocations
54
MIRROR CONTROLS
POWER WINDOW
SWITCHESHOOD RELEASE
HANDLE AUDIO SYSTEM
POWER DOOR LOCK
MASTER SWITCH HAZARD WARNING
BUTTON
INSTRUMENT PANEL INDICATORS
GAUGES
ACCESSORY
POWER SOCKETS
SEAT HEATER
SWITCH
(P.63)
CLOCK
(P.55, 56)
(P.95)
(P.77)
(P.91)
(P.90) (P.71)
(P.100)
(P.186) (P.124)
(P.173)
FUEL FILL
DOOR(P.185)/
TRUNK
RELEASE
HANDLE
(P.81) CLIMATE CONTROL
SYSTEM
(P.108)
HEATING/COOLING
CONTROLS
(P.113, 117)
——y

y
(#yy

Î
Î
Î If equipped.
:

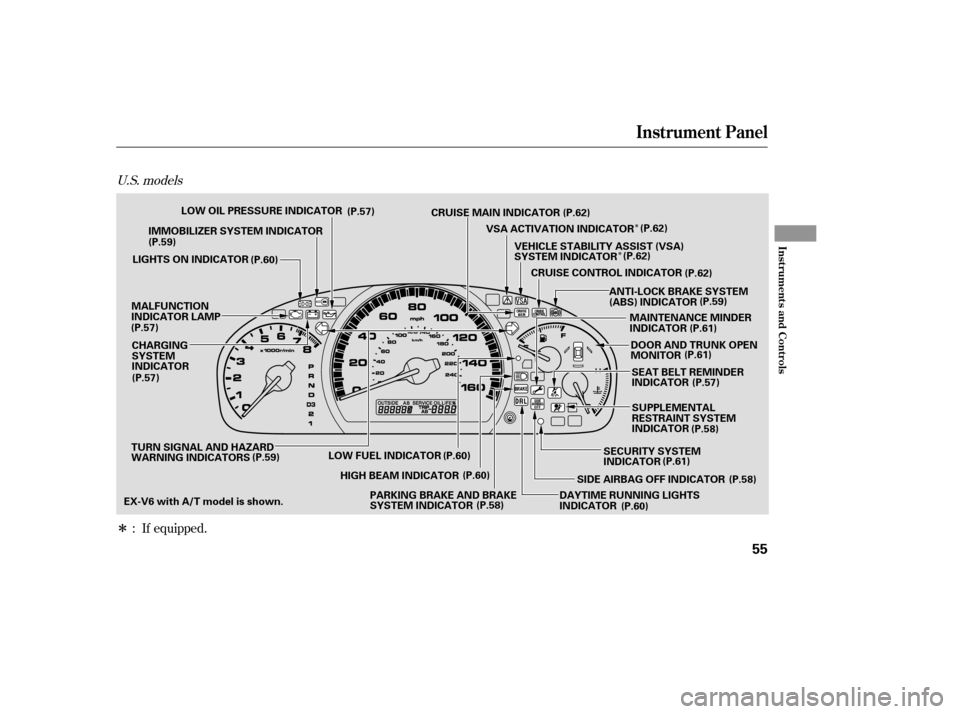

U.S. models
Instrument Panel
Inst rument s and Cont rols
55
LOW OIL PRESSURE INDICATOR
CRUISE MAIN INDICATOR
VSA ACTIVATION INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATORCRUISE CONTROL INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
DOOR AND TRUNK OPEN
MONITORSEAT BELT REMINDER
INDICATOR
SIDE AIRBAG OFF INDICATOR
DAYTIME RUNNING LIGHTS
INDICATOR
LOW FUEL INDICATOR
HIGH BEAM INDICATOR PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
TURN SIGNAL AND HAZARD
WARNING INDICATORS IMMOBILIZER SYSTEM INDICATOR
MALFUNCTION
INDICATOR LAMP CHARGING
SYSTEM
INDICATOR
SECURITY SYSTEM
INDICATOR
(P.57)
(P.59)
LIGHTS ON INDICATOR (P.60)
(P.57) (P.57)
(P.59) (P.60)
(P.60)
(P.58) (P.60)(P.58)
(P.61)
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
(P.58)(P.57)
(P.61)
MAINTENANCE MINDER
INDICATOR
(P.61)(P.59)
(P.62)
(P.62) (P.62)
(P.62)
EX-V6 with A/T model is shown.
——y

y
(#yy

ÎÎ
Î
If equipped.
:

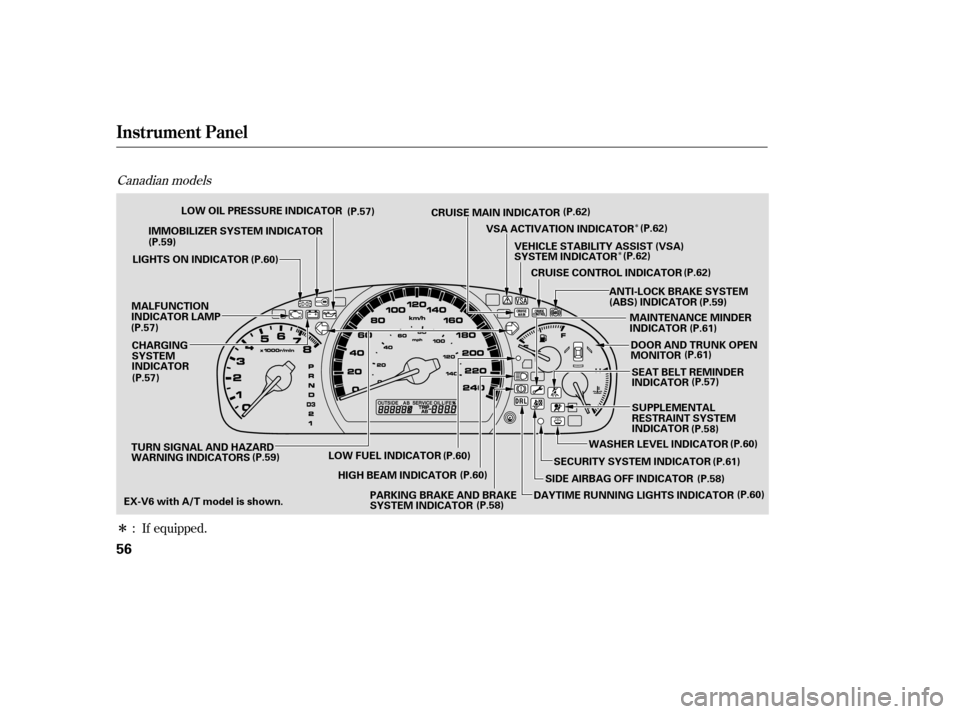

Canadian models
Instrument Panel
56
LOW OIL PRESSURE INDICATOR
CRUISE MAIN INDICATOR
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATORCRUISE CONTROL INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SEAT BELT REMINDER
INDICATORSUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
SIDE AIRBAG OFF INDICATOR
LOW FUEL INDICATOR
HIGH BEAM INDICATOR PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
TURN SIGNAL AND HAZARD
WARNING INDICATORS IMMOBILIZER SYSTEM INDICATOR
MALFUNCTION
INDICATOR LAMP CHARGING
SYSTEM
INDICATOR (P.57)
(P.59)
LIGHTS ON INDICATOR (P.60)
(P.57) (P.57)
(P.59) (P.60)
(P.60)
(P.58) (P.62)
VSA ACTIVATION INDICATOR (P.62)
(P.62) (P.62)
(P.59)
MAINTENANCE MINDER
INDICATOR (P.61)
DOOR AND TRUNK OPEN
MONITOR (P.61)
(P.57)
(P.58)
SECURITY SYSTEM INDICATOR WASHER LEVEL INDICATOR
(P.60)
(P.61)
DAYTIME RUNNING LIGHTS INDICATOR (P.60)
(P.58)
EX-V6 with A/T model is shown.
——y

y
(#y
y

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.See page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
This indicator reminds you and your
passengers to f asten your seat belts.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belts, the beeper sounds,
and the indicator f lashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
f lashing but remains on.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
17 277
276
276
Instrument Panel Indicators
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator
Seat Belt Reminder
Indicator
Inst rument s and Cont rols
57
