bolt pattern HONDA ACCORD HYBRID 2006 CL7 / 7.G Owners Manual

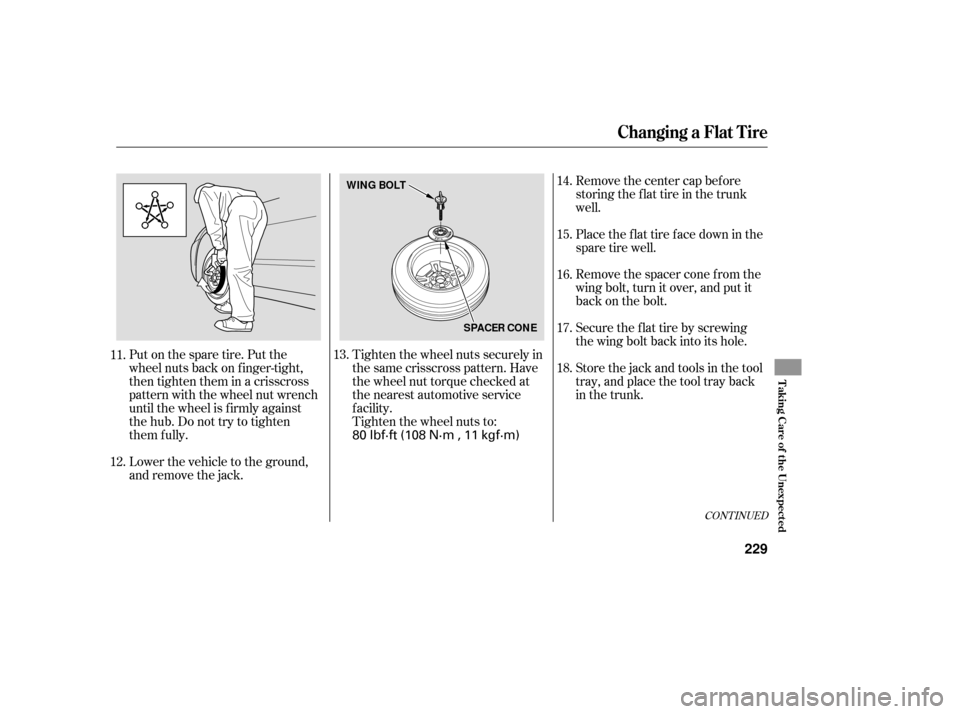

Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten
them f ully.
Lower the vehicle to the ground,
and remove the jack. Remove the center cap before
storing the f lat tire in the trunk
well.
Place the flat tire face down in the
spare tire well.
Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Store the jack and tools in the tool
tray, and place the tool tray back
in the trunk.
11.
12. 13.14.
15.
16.
17.
18.
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
229
WING BOLT
SPACER CONE
80 lbf·ft (108 N·m , 11 kgf·m)
——y
y
('
yy
