This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
147
147 193 82
209
Canadian model only
Cruise Control Indicator Cruise Control Main
Indicator Immobilizer System
Indicator
Washer Level Indicator
Maintenance Minder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
65
06/08/08 14:27:05 31SDR620_070

CONT INUED
Gauges
Inst rument s and Cont rols
67

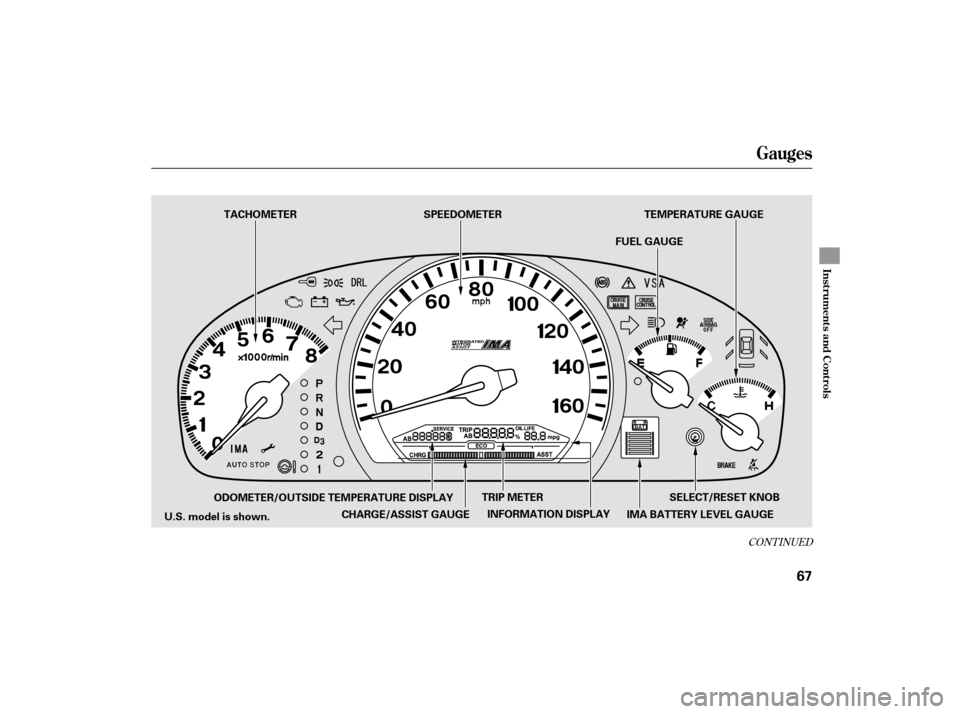

TEMPERATURE GAUGE
FUEL GAUGE
SPEEDOMETER
TACHOMETER
ODOMETER/OUTSIDE TEMPERATURE DISPLAY CHARGE/ASSIST GAUGE TRIP METER
INFORMATION DISPLAY SELECT/RESET KNOB
IMA BATTERY LEVEL GAUGE
U.S. model is shown.
06/08/08 14:27:25 31SDR620_072

This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The inf ormation display provides
various inf ormation; odometer,
outside temperature, trip meter, trip
mileage, engine oil lif e, and
maintenance service items. To
switch the display, press the Select/
Reset knob repeatedly. When you
turn the ignition switch to the ON
(II) position, what you last selected is
shownintheinformationdisplay. Outside Temperature Display
Odometer
Inf ormation Display
Gauges
68
06/08/08 14:27:34 31SDR620_073

¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Trip Meter
Gauges
Inst rument s and Cont rols
69
06/08/08 14:27:44 31SDR620_074

When either of the trip meters (trip
A or trip B) is displayed, your
vehicle’s average fuel mileage since
you last reset that trip meter can be
shownontheinformationdisplay.
This number is updated once every
10 seconds. To see the average f uel
mileage, press and release the
Select/Reset knob repeatedly.When you reset a trip meter, the
average fuel mileage for that trip
meter also resets. It shows the number of mpg (U.S.)
or l/100 km (Canada).
You can temporarily turn off the
average fuel mileage display.
Turn the ignition switch to the ON
(II) position and make sure the
transmission is in Park and the
parking brake is set.
Use the Select/Reset knob to
select the odometer display.
The display will turn back on when
you repeat the same procedure in
step 3. To turn it off:
Press and hold the Select/Reset
knob f or about 5 to 10 seconds,
then release it. The average fuel
mileage display will turn of f .
1.
2.
3.
A verage Fuel Mileage
Gauges
T urning Of f t he A verage Fuel
Mileage Display
70

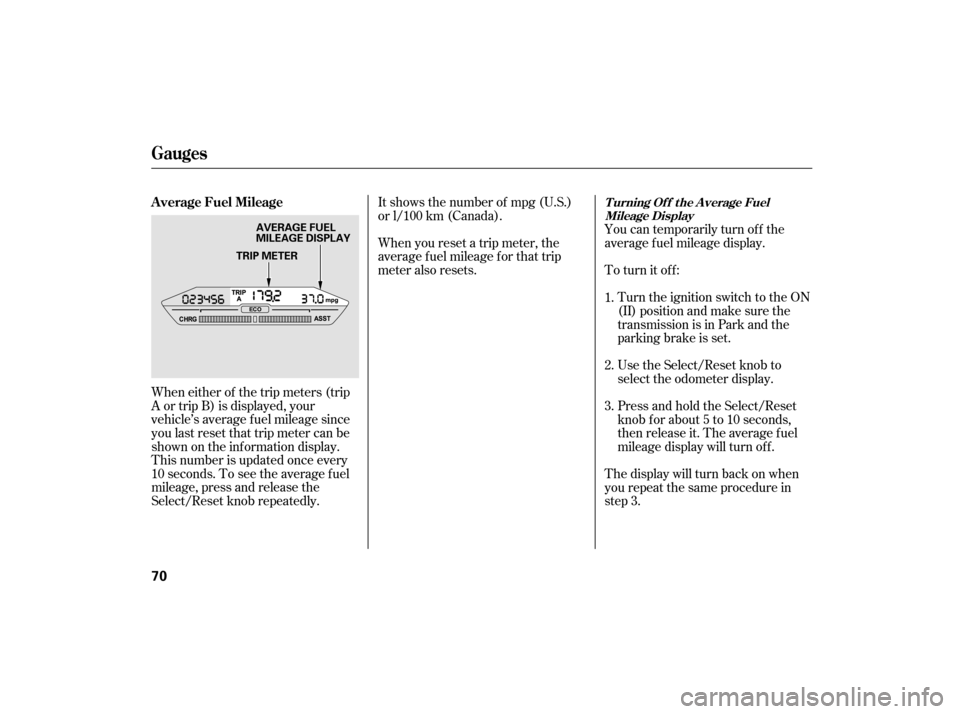

TRIP METER AVERAGE FUEL
MILEAGE DISPLAY
06/08/08 14:27:57 31SDR620_075

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the select/reset knob.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message of f .
If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
167 246
Fuel Gauge Check Fuel Cap Message
Maintenance Minder
Gauges
Inst rument s and Cont rols
73
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
06/08/08 14:28:27 31SDR620_078

Climate Control System
106
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
AUTO BUTTON OFF BUTTONDUAL BUTTON A/C BUTTON
TEMPERATURE CONTROL DIAL
(DRIVER’S SIDE)
FAN SPEED
INDICATOR
TEMPERATURE DISPLAY
TEMPERATURE CONTROL DIAL
(PASSENGER’S SIDE)
MODE BUTTON
WINDSHIELD DEFROST BUTTON
RECIRCULATION BUTTON
(U.S. model shown)
Without navigation system
06/08/08 14:33:58 31SDR620_111

Climate Control System
Features
107
AUTO BUTTONMODE ICONS A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
(U.S. model shown) With navigation system
06/08/08 14:34:04 31SDR620_112

ÛÝ
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
NavigationsectioninyourQuick
Start Guide f or an overview of this
system and the Navigation System
manual f or complete details.
Turn the temperature control dial on
the driver’s side to adjust the airf low
temperature on both the driver’s and
passenger’s sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
Press the temperature control
buttons and on the driver’s side
to adjust the airflow temperature on
both the driver’s and passenger’s
sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display.
You can manually select the f an
speed by pressing the A/C button
next to the display, and then
pressing the f an control icons.
On vehicles without navigation system
On vehicles with navigation system On vehicles without navigation system
On vehicles with navigation system
Only on models equipped with
navigation system
Voice Control System T emperature Control
Fan Control
Climate Control System
108
06/08/08 14:34:17 31SDR620_113
