HONDA ACCORD HYBRID 2015 9.G Owners Manual

uuGauges and Multi- Information Display uMulti-Information Display
100Instrument Panel

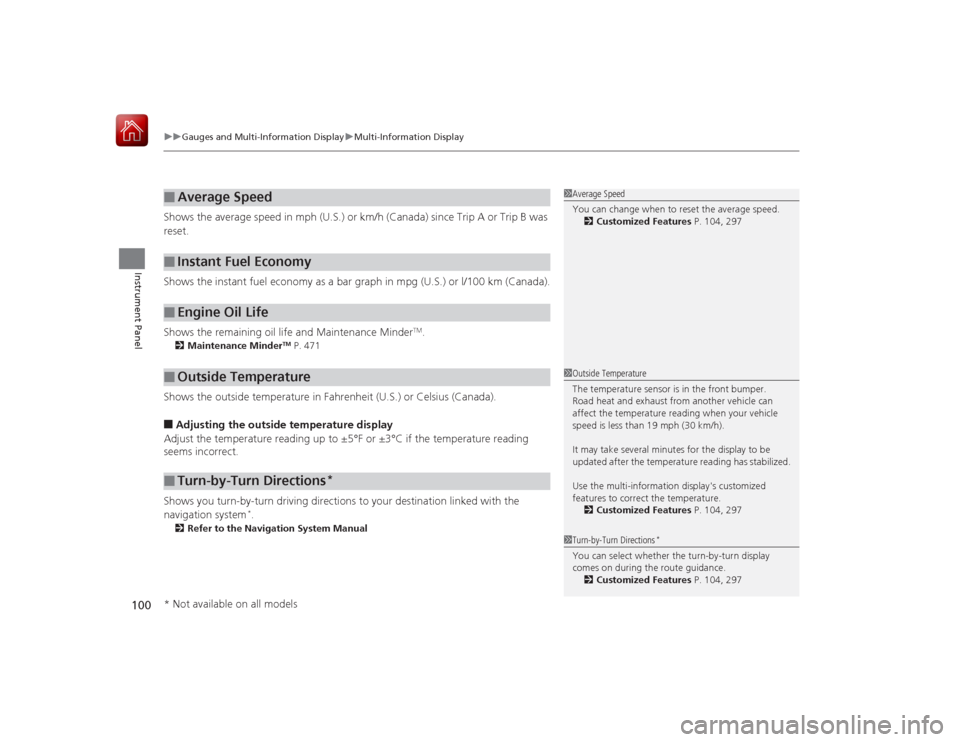

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance Minder
TM P. 471
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows you turn-by-turn driving directions to your destination linked with the
navigation system
*.
2 Refer to the Navigation System Manual■
Average Speed
■
Instant Fuel Economy
■
Engine Oil Life
■
Outside Temperature
■
Turn-by-Turn Directions
*
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 104, 2971Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several mi nutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display's customized
features to corre ct the temperature.
2 Customized Features P. 104, 2971Turn-by-Turn Directions
*
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 104, 297
* Not available on all models

101
uuGauges and Multi-Information Display uMulti-Information DisplayContinued
Instrument Panel

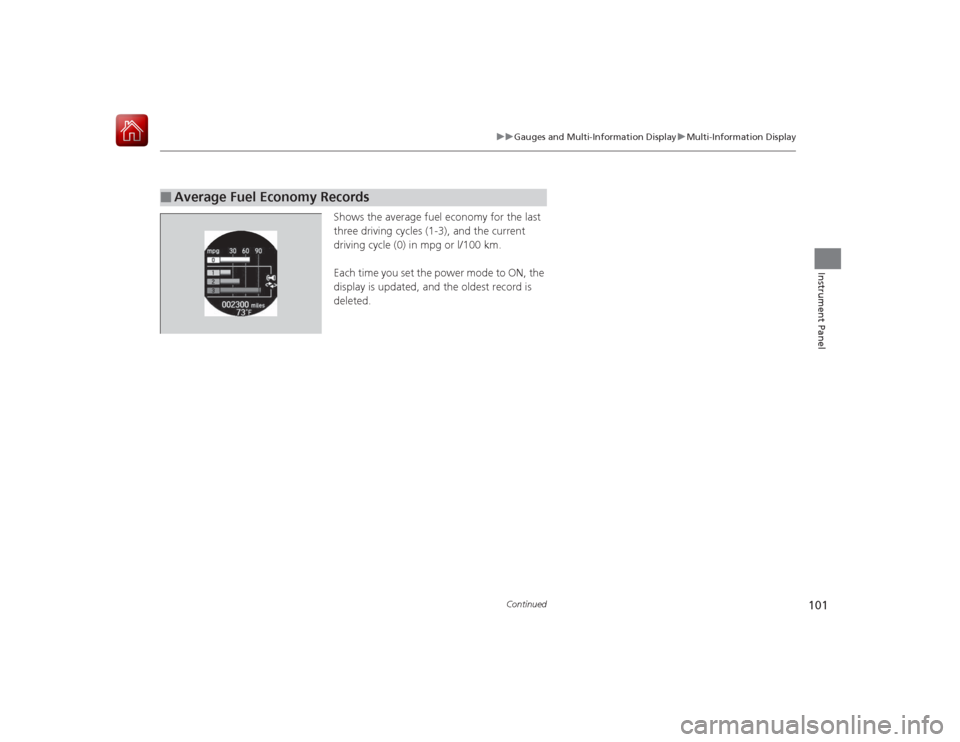

Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■
Average Fuel Economy Records

uuGauges and Multi- Information Display uMulti-Information Display
102Instrument Panel

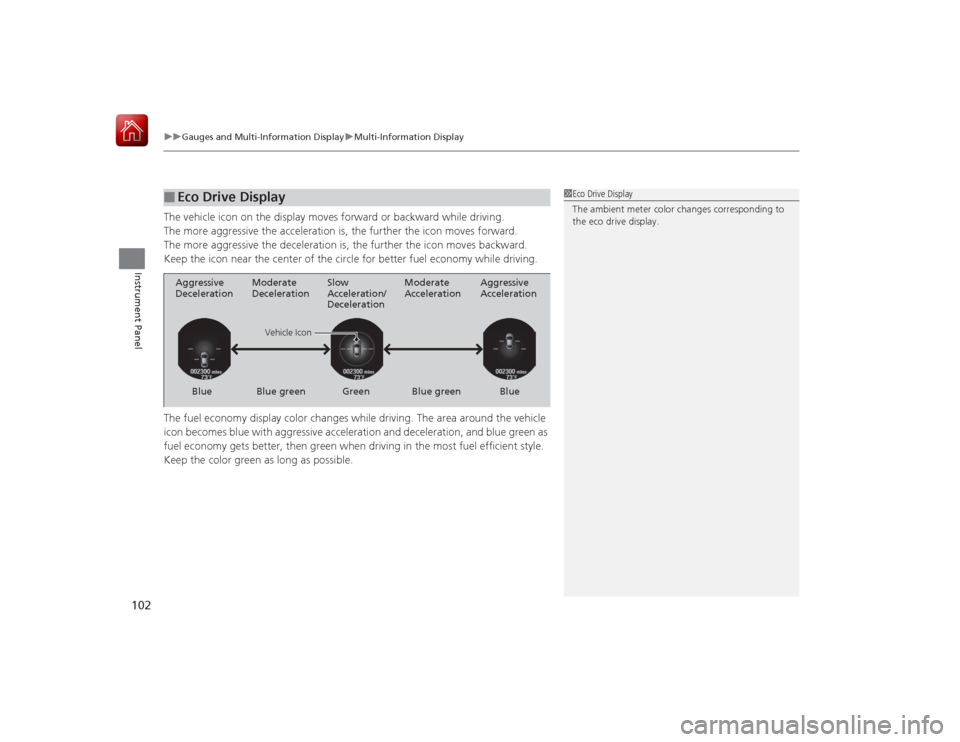

The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circle for better fuel economy while driving.
The fuel economy display color changes while driving. The area around the vehicle
icon becomes blue with aggressive acceleration and deceleration, and blue green as
fuel economy gets better, then green when driving in the most fuel efficient style.
Keep the color green as long as possible.■
Eco Drive Display
1Eco Drive Display
The ambient meter color changes corresponding to
the eco drive display.
Aggressive
Deceleration
Vehicle Icon
Aggressive
Acceleration
Blue Green Blue Moderate
Deceleration
Slow
Acceleration/
Deceleration Moderate
Acceleration
Blue green Blue green

Continued
103
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

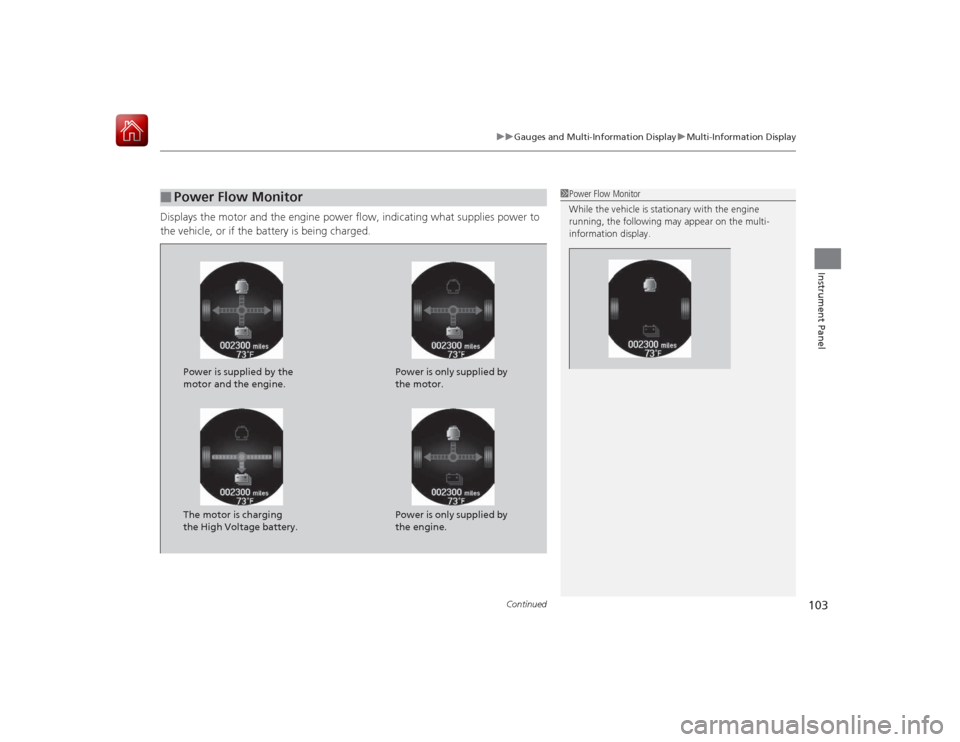

Displays the motor and the engine power flow, indicating what supplies power to
the vehicle, or if the battery is being charged.■
Power Flow Monitor
1 Power Flow Monitor
While the vehicle is stationary with the engine
running, the following may appear on the multi-
information display.
Power is supplied by the
motor and the engine. Power is only supplied by
the motor.
The motor is charging
the High Voltage battery. Power is only supplied by
the engine.

uuGauges and Multi- Information Display uMulti-Information Display
104Instrument Panel

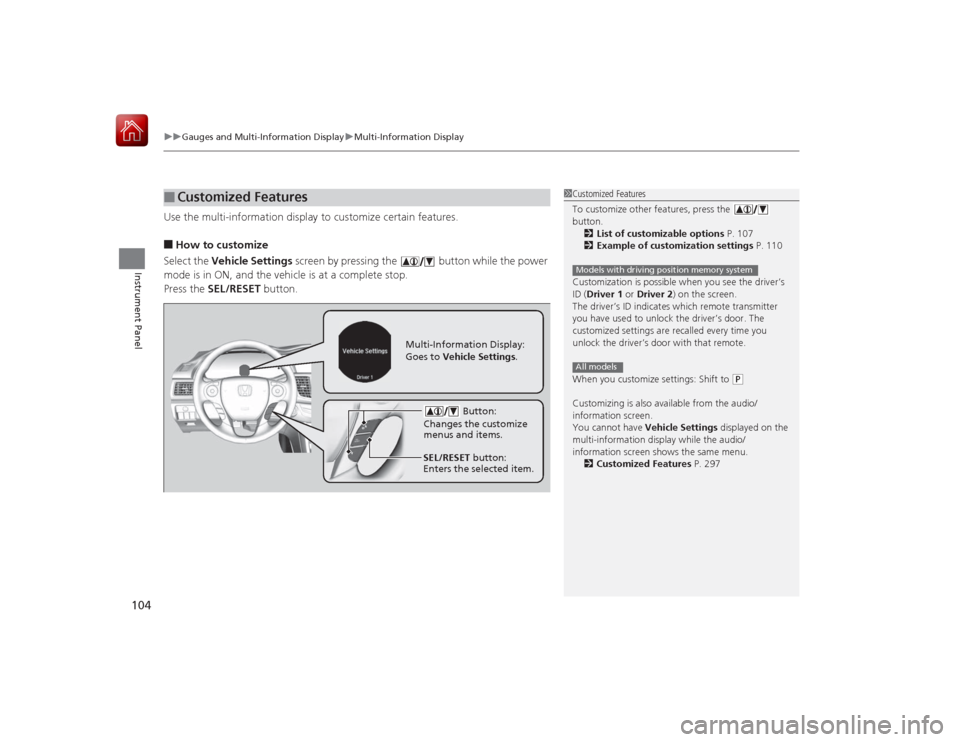

Use the multi-information display to customize certain features.■How to customize
Select the Vehicle Settings screen by pressing the button while the power
mode is in ON, and the vehicle is at a complete stop.
Press the SEL/RESET button.■
Customized Features
1Customized Features
To customize other features, press the
button.
2 List of customizable options P. 107
2 Example of customization settings P. 110
Customization is possible when you see the driver’s
ID ( Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.
When you customize settings: Shift to
( P
Customizing is also available from the audio/
information screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the audio/
information screen shows the same menu. 2 Customized Features P. 297Models with driving position memory systemAll models
Button:
Changes the customize
menus and items.
Multi-Information Display:
Goes to Vehicle Settings.
SEL/RESET button:
Enters the selected item.

105
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Customization flow
Press the button.
SEL/RESET
Vehicle Settings
“Trip A” Reset TimingLanguage SelectionAdjust Outside Temp. DisplayMemory Position LinkDoor Unlock ModeKeyless Access Light Flash
4444
TPMS Calibration
Driver Assist System Setup
*
Meter Setup
Driving Position Setup
*
Keyless Access Setup
SEL/RESETSEL/RESETSEL/RESETSEL/RESET
“Trip B” Reset TimingFuel Efficiency Backlight
4
Head-up Warning
ACC Pre-Running Car Detect Beep
*
ACC Display Speed Unit
*
4
Turn-by-Turn Display
*
SEL/RESET
Keyless Access Beep
Forward Collision Warning Distance
444
* Not available on all models

106
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel

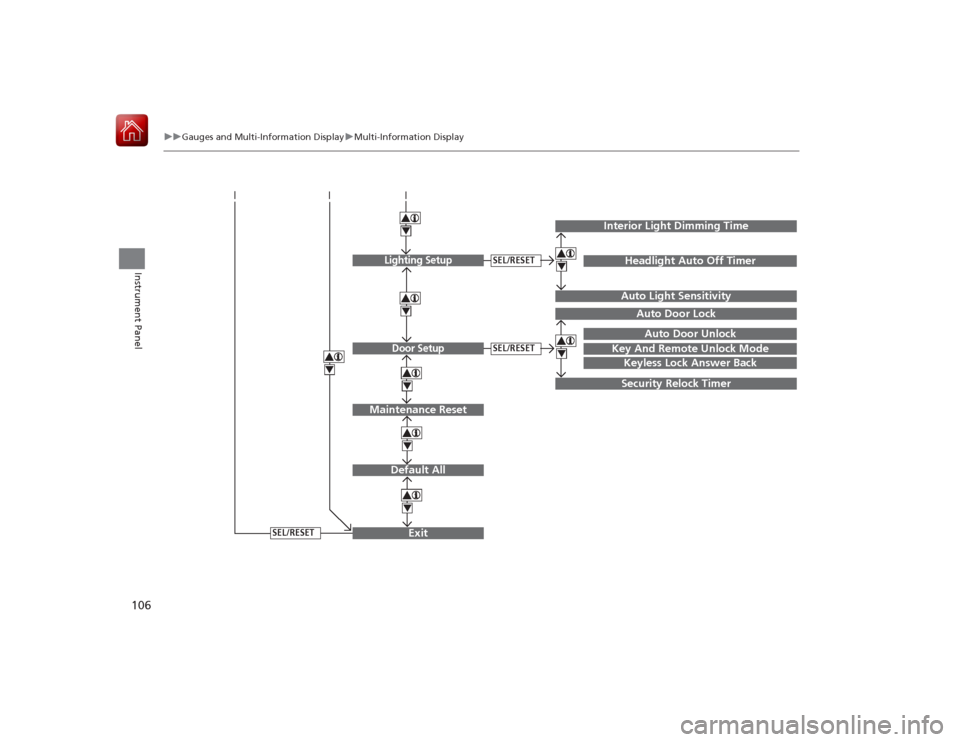

Exit444Door Setup
Maintenance Reset
Default All
SEL/RESET
4
SEL/RESET
4
Lighting Setup
SEL/RESET
4
Key And Remote Unlock Mode
Auto Door LockAuto Door Unlock
Keyless Lock Answer BackSecurity Relock Timer
Interior Light Dimming Time
Headlight Auto Off TimerAuto Light Sensitivity
44

107
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

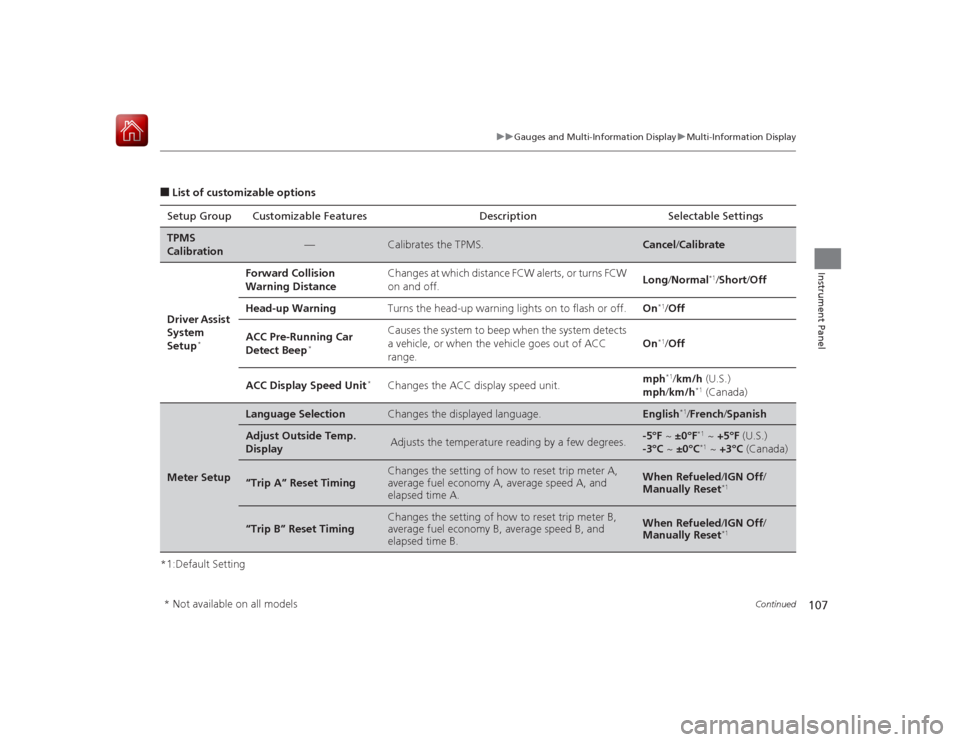

■List of customizable options
*1:Default Setting Setup Group Customizable Features Description Selectable SettingsTPMS
Calibration
—
Calibrates the TPMS.
Cancel
/Calibrate
Driver Assist
System
Setup
*
Forward Collision
Warning Distance
Changes at which distance FCW alerts, or turns FCW
on and off.
Long /Normal
*1/ Short /Off
Head-up Warning
Turns the head-up warning lights on to flash or off.
On
*1/ Off
ACC Pre-Running Car
Detect Beep
*
Causes the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
On
*1/Off
ACC Display Speed Unit
*
Changes the ACC display speed unit.
mph
*1/km/h (U.S.)
mph /km/h
*1 (Canada)
Meter Setup
Language Selection
Changes the displayed language.
English
*1/French /Spanish
Adjust Outside Temp.
Display
Adjusts the temperature reading by a few degrees.
-5°F ~ ±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.
When Refueled /IGN Off /
Manually Reset
*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.
When Refueled /IGN Off /
Manually Reset
*1
* Not available on all models

108

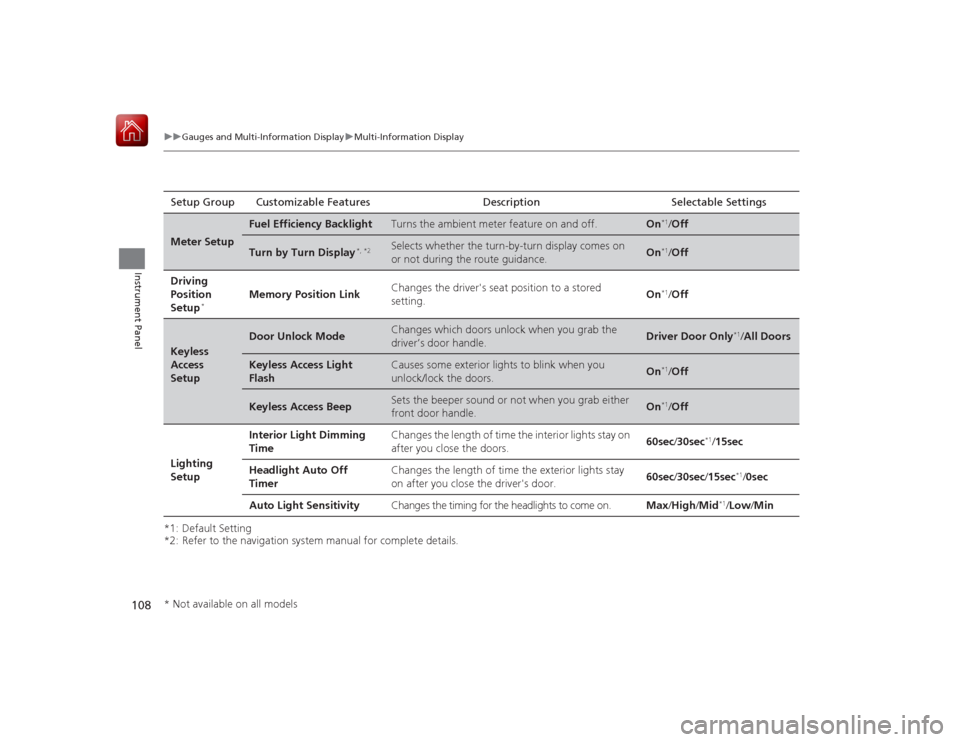

uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
*1: Default Setting
*2: Refer to the navigation system manual for complete details.Setup Group Customizable Features Description Selectable SettingsMeter Setup
Fuel Efficiency Backlight
Turns the ambient meter feature on and off.
On
*1/
Off
Turn by Turn Display
*, *2
Selects whether the turn-by-turn display comes on
or not during the route guidance.
On
*1/Off
Driving
Position
Setup
*
Memory Position Link Changes the driver's seat position to a stored
setting. On
*1/
Off
Keyless
Access
Setup
Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/All Doors
Keyless Access Light
Flash
Causes some exterior lights to blink when you
unlock/lock the doors.
On
*1/Off
Keyless Access Beep
Sets the beeper sound or not when you grab either
front door handle.
On
*1/Off
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto Off
Timer Changes the length of time the exterior lights stay
on after you close the driver's door.
60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low/ Min
* Not available on all models

109
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

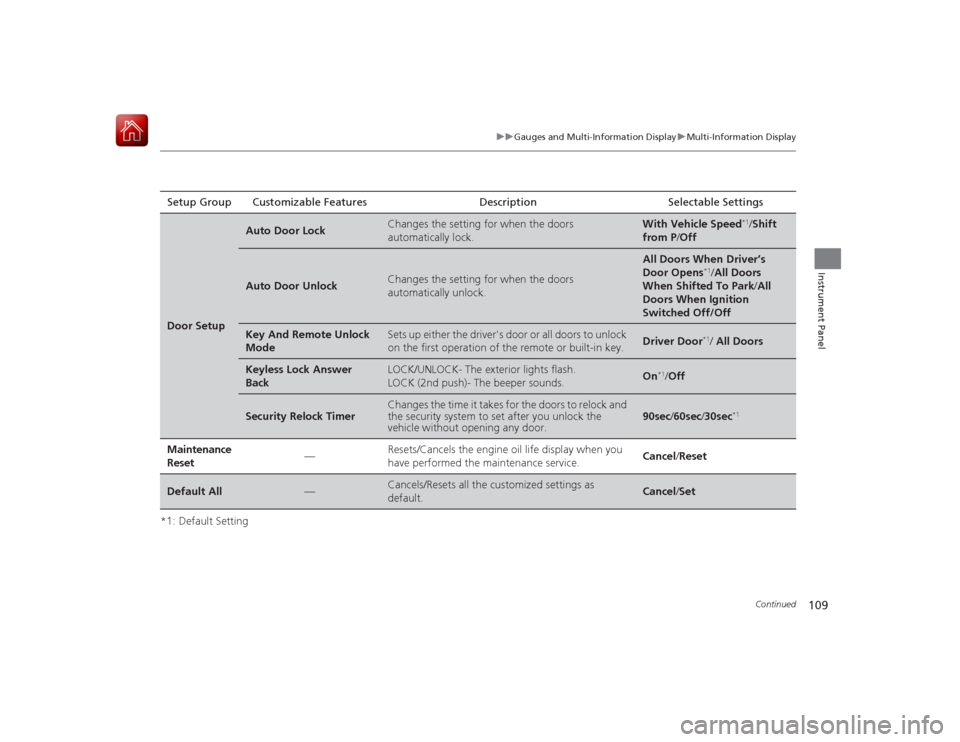

*1: Default SettingSetup Group Customizable Features Description Selectable SettingsDoor Setup
Auto Door Lock
Changes the setting for when the doors
automatically lock.
With Vehicle Speed
*1/
Shift
from P /Off
Auto Door Unlock
Changes the setting for when the doors
automatically unlock.
All Doors When Driver’s
Door Opens
*1/All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off/Off
Key And Remote Unlock
Mode
Sets up either the driver's door or all doors to unlock
on the first operation of the remote or built-in key.
Driver Door
*1/ All Doors
Keyless Lock Answer
Back
LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/Off
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec
*1
Maintenance
Reset
—
Resets/Cancels the engine oil life display when you
have performed the maintenance service.
Cancel /Reset
Default All
—
Cancels/Resets all the customized settings as
default.
Cancel /Set
