Page 21 of 584

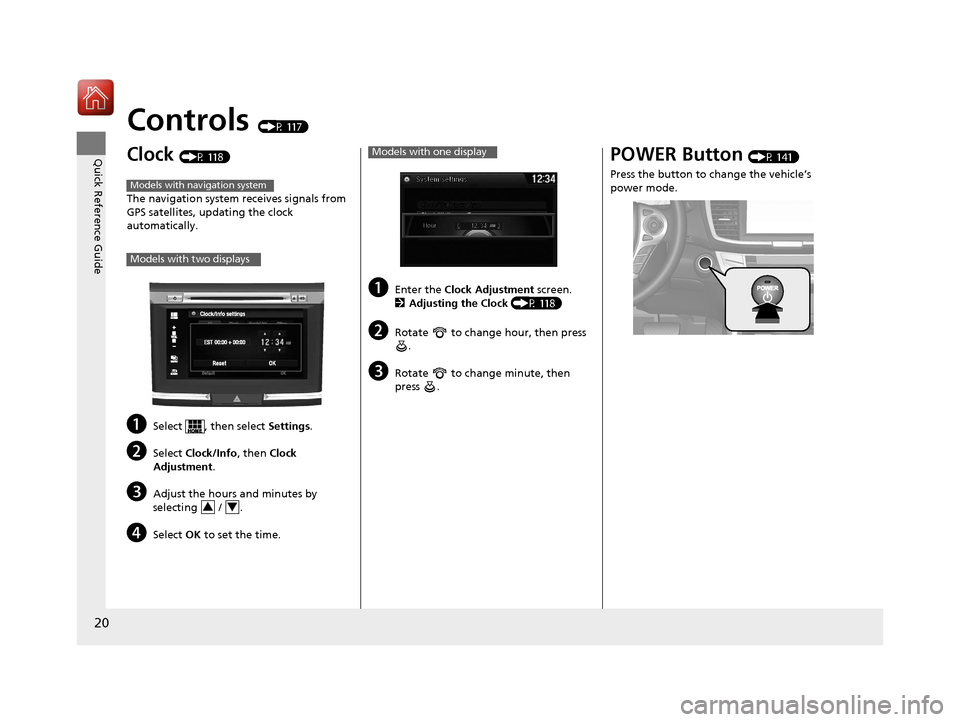

20
Quick Reference Guide
Controls (P 117)
Clock (P 118)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aSelect , then select Settings.
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the hours and minutes by
selecting / .
dSelect OK to set the time.
Models with navigation system
Models with two displays
34
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P 118)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
Models with one displayPOWER Button (P 141)
Press the button to change the vehicle’s
power mode.
17 ACCORD FHEV-31T3W6200.book 20 ページ 2016年4月11日 月曜日 午後2時40分
Page 22 of 584

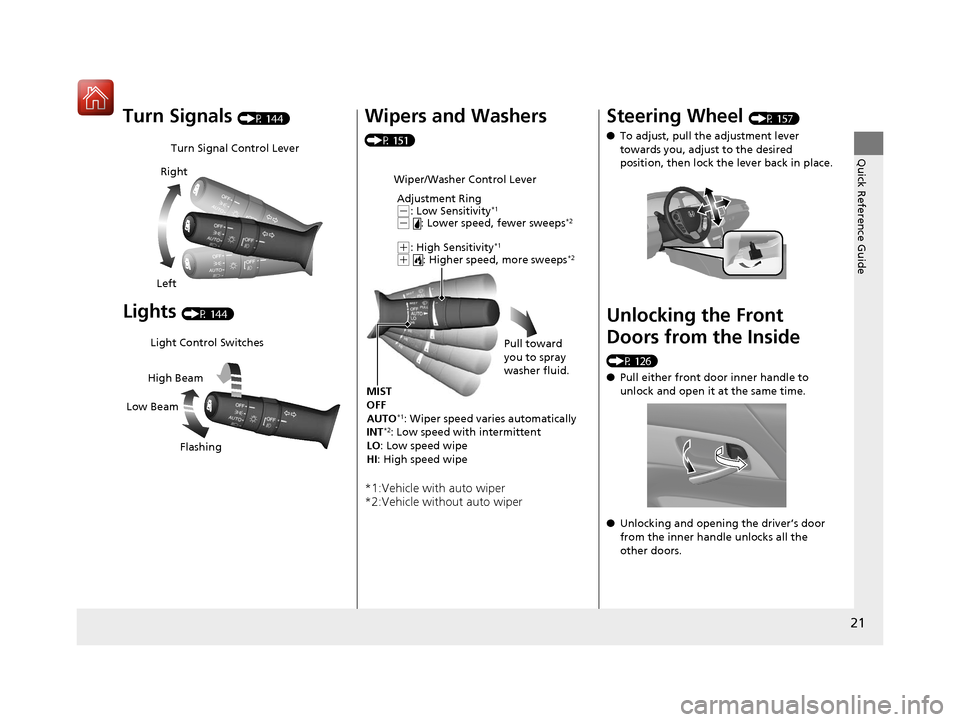

21
Quick Reference Guide
Turn Signals (P 144)
Lights (P 144)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 151)
*1:Vehicle with auto wiper
*2:Vehicle without auto wiper
Wiper/Washer Control LeverAdjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P 157)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 126)
●Pull either front door inner handle to
unlock and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
17 ACCORD FHEV-31T3W6200.book 21 ページ 2016年4月11日 月曜日 午後2時40分
Page 23 of 584

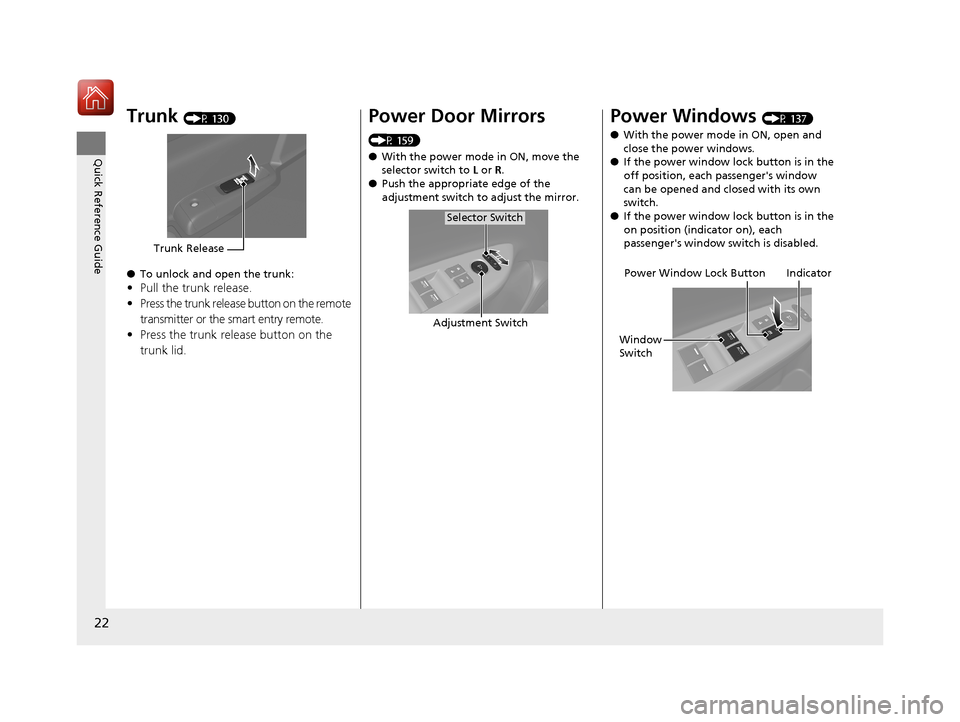

22
Quick Reference Guide
Trunk (P 130)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the remote
transmitter or the smart entry remote.
• Press the trunk release button on the
trunk lid.
Trunk Release
Power Door Mirrors
(P 159)
● With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 137)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
17 ACCORD FHEV-31T3W6200.book 22 ページ 2016年4月11日 月曜日 午後2時40分
Page 24 of 584

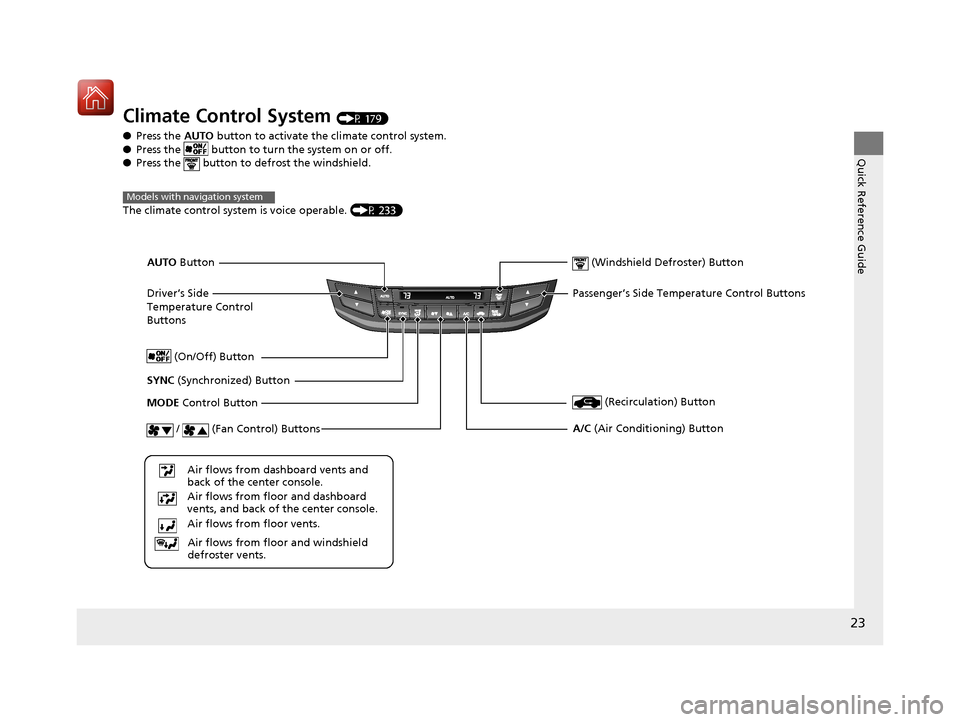

23
Quick Reference Guide
Climate Control System (P 179)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 233)
Models with navigation system
Driver’s Side
Temperature Control
Buttons (Windshield Defroster) Button
SYNC
(Synchronized) Button
Air flows from floor and windshield
defroster vents.
Air flows from floor vents. Air flows from floor and dashboard
vents, and back of the center console. Air flows from dashboard vents and
back of the center console.
AUTO
Button
(On/Off) Button
(Recirculation) ButtonMODE Control Button
/ (Fan Control) Buttons
A/C (Air Conditioning) Button
Passenger’s Side Temperature Control Buttons
17 ACCORD FHEV-31T3W6200.book 23 ページ 2016年4月11日 月曜日 午後2時40分
Page 25 of 584

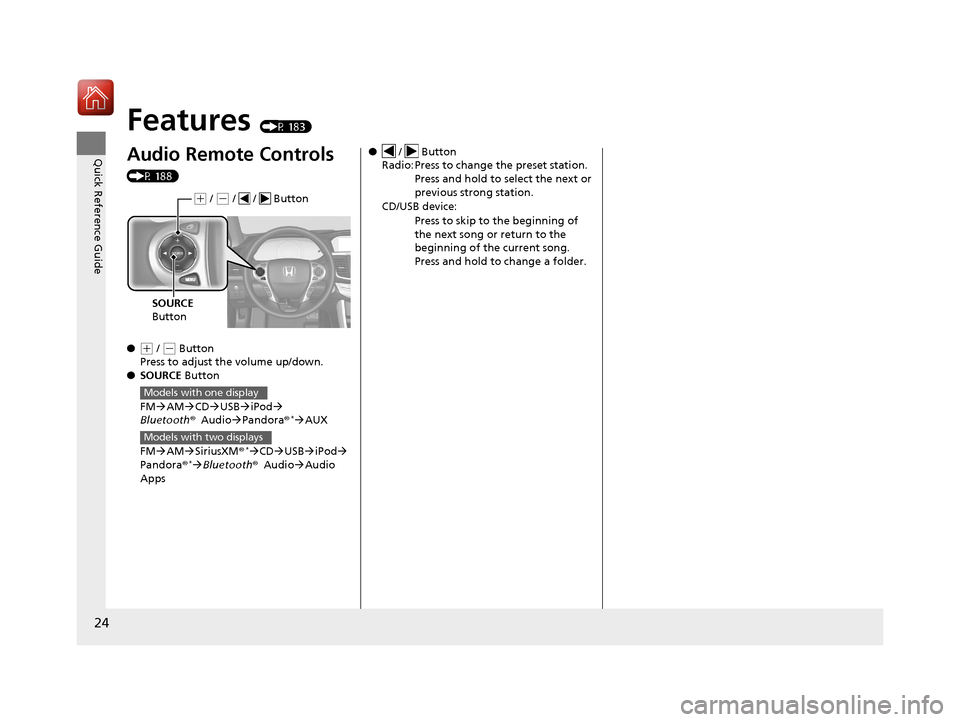

24
Quick Reference Guide
Features (P 183)
Audio Remote Controls
(P 188)
●
(+ / ( - Button
Press to adjust the volume up/down.
● SOURCE Button
FM AMCD USB iPod
Bluetooth ®Audio Pandora®
*AUX
FM AMSiriusXM ®
*CD USB iPod
Pandora®* Bluetooth ®Audio Audio
Apps
( + / (- / / Button
SOURCE
Button
Models with one display
Models with two displays
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
17 ACCORD FHEV-31T3W6200.book 24 ページ 2016年4月11日 月曜日 午後2時40分
Page 26 of 584

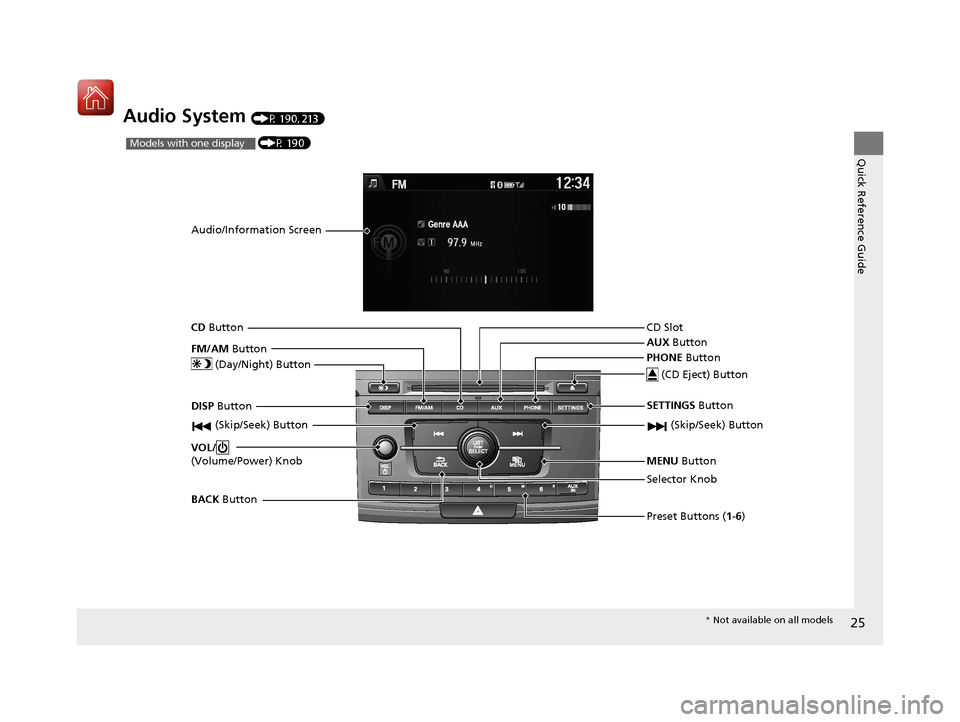

25
Quick Reference Guide
Audio System (P 190, 213)
(P 190)Models with one display
Audio/Information Screen
BACK Button
FM/AM Button
(Skip/Seek) Button
Selector Knob
(Day/Night) Button
VOL/
(Volume/Power) Knob
CD Button
AUX Button
CD Slot
(CD Eject) Button
Preset Buttons ( 1-6)
SETTINGS Button
(Skip/Seek) Button
PHONE Button
MENU Button
DISP Button
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 25 ページ 2016年4月11日 月曜日 午後2時40分
Page 27 of 584

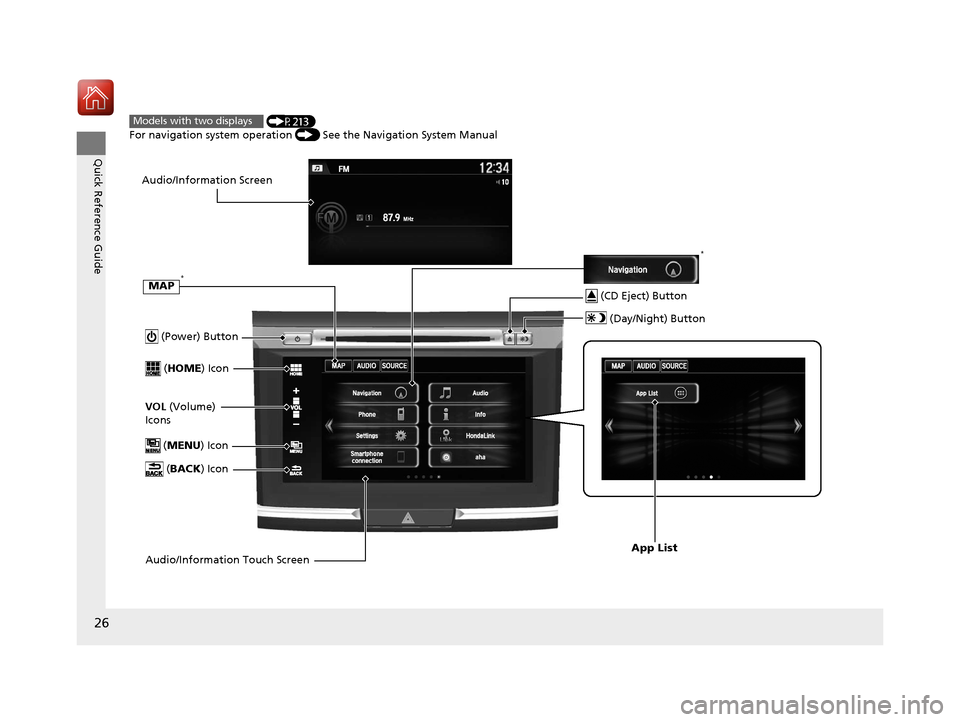

26
Quick Reference Guide
(Power) Button
(HOME ) Icon
VOL (Volume)
Icons
(MENU ) Icon
(BACK ) Icon
Audio/Information Touch Screen
Audio/Information Screen
App List
(P213)
For navigation system operation () See the Navigation System ManualModels with two displays
MAP* *
(Day/Night) Button
(CD Eject) Button
17 ACCORD FHEV-31T3W6200.book 26 ページ 2016年4月11日 月曜日 午後2時40分
Page 28 of 584
27
Quick Reference Guide

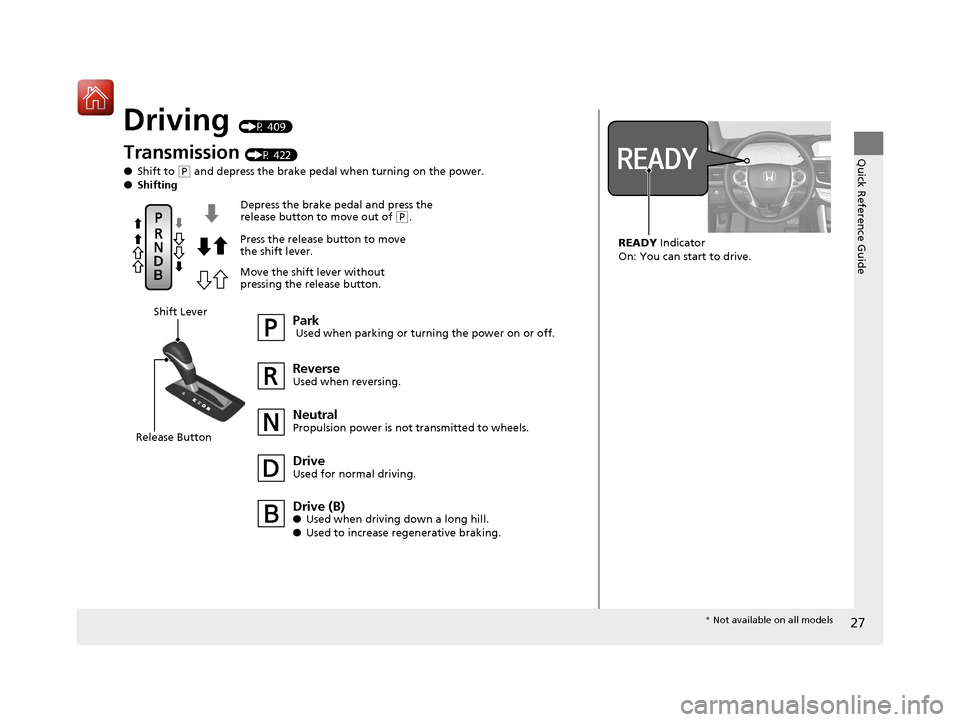

Driving (P 409)
Transmission (P 422)
● Shift to
(P and depress the brake pedal when turning on the power.
● Shifting
Park Used when parking or turning the power on or off.
NeutralPropulsion power is no t transmitted to wheels.
Drive (B)●Used when driving down a long hill.
● Used to increase regenerative braking.
Depress the brake pedal and press the
release button to move out of
(
P.
Press the release button to move
the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.
DriveUsed for normal driving.
Shift Lever
Release Button
READY Indicator
On: You can start to drive.
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 27 ページ 2016年4月11日 月曜日 午後2時40分
Page 29 of 584

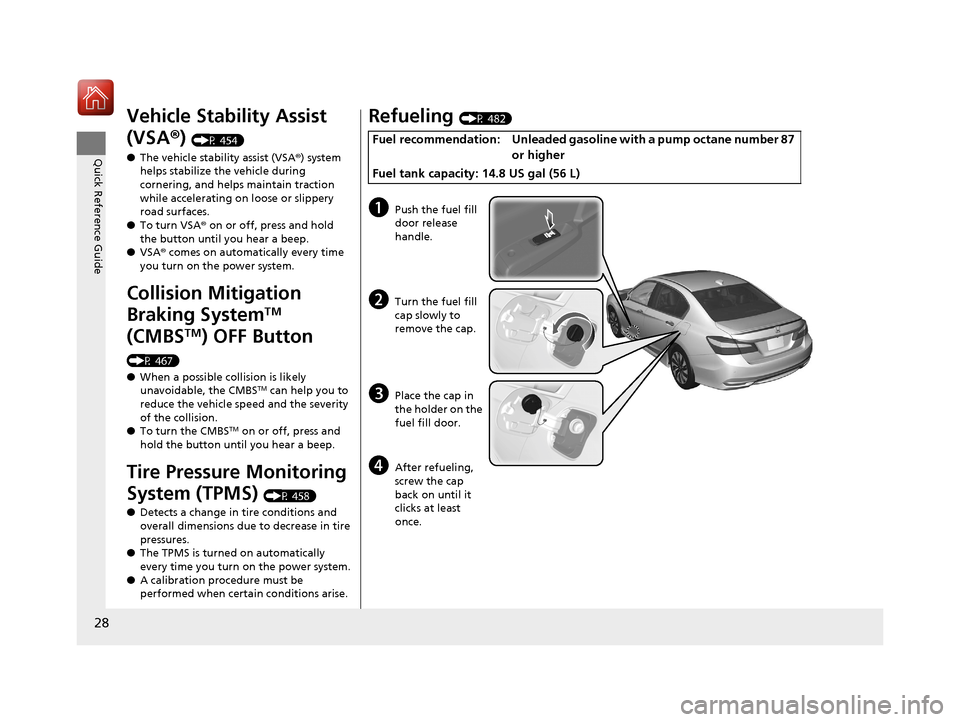

28
Quick Reference Guide
Vehicle Stability Assist
(VSA®)
(P 454)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
● VSA ® comes on automatically every time
you turn on the power system.
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button
(P 467)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 458)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● The TPMS is turned on automatically
every time you turn on the power system.
● A calibration procedure must be
performed when certain conditions arise.
Refueling (P 482)
Fuel recommendation: Unleaded gasoline with a pump octane number 87
or higher
Fuel tank capacity: 14.8 US gal (56 L)
aPush the fuel fill
door release
handle.
bTurn the fuel fill
cap slowly to
remove the cap.
cPlace the cap in
the holder on the
fuel fill door.
dAfter refueling,
screw the cap
back on until it
clicks at least
once.
17 ACCORD FHEV-31T3W6200.book 28 ページ 2016年4月11日 月曜日 午後2時40分
Page 30 of 584
29
Quick Reference Guide
Maintenance (P 485)
Under the Hood (P 493)
● Check engine oil, engine coolant, inverter coolant, and
windshield washer fluid. Add when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 506)
● Inspect all lights regularly.
Wiper Blades (P 514)
● Replace blades if they leave streaks
across the windshield.
Tires (P 516)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
17 ACCORD FHEV-31T3W6200.book 29 ページ 2016年4月11日 月曜日 午後2時40分
