spark plugs replace HONDA ACCORD HYBRID 2017 9.G Owners Manual

491

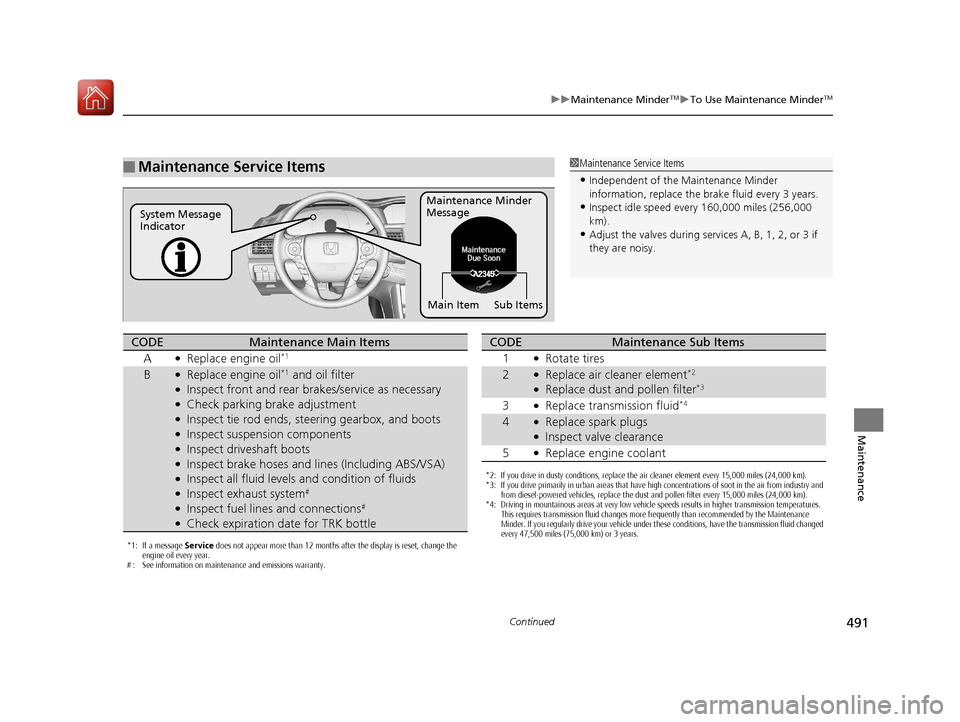

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message Service does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear bra kes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Check expiration date for TRK bottle
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (75,000 km) or 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
17 ACCORD FHEV-31T3W6200.book 491 ページ ２０１６年４月１１日　月曜日　午後２時４０分

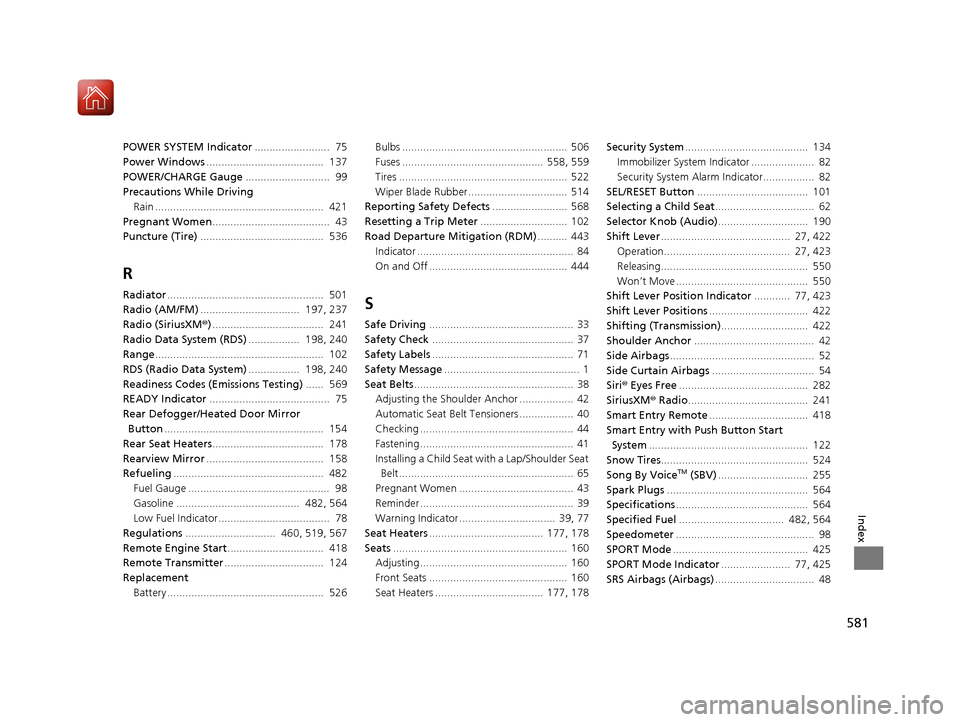

581
Index
POWER SYSTEM Indicator......................... 75
Power Windows ....................................... 137
POWER/CHARGE Gauge ............................ 99
Precautions While Driving Rain ........................................................ 421
Pregnant Women ....................................... 43
Puncture (Tire) ......................................... 536
R
Radiator.................................................... 501
Radio (AM/FM) ................................. 197, 237
Radio (SiriusXM ®)..................................... 241
Radio Data System (RDS) ................. 198, 240
Range ........................................................ 102
RDS (Radio Data System) ................. 198, 240
Readiness Codes (Emissions Testing) ...... 569
READY Indicator ........................................ 75
Rear Defogger/Heated Door Mirror Button ..................................................... 154
Rear Seat Heaters ..................................... 178
Rearview Mirror ....................................... 158
Refueling .................................................. 482
Fuel Gauge ............................................... 98
Gasoline ......................................... 482, 564
Low Fuel Indicator..................................... 78
Regulations .............................. 460, 519, 567
Remote Engine Start ................................ 418
Remote Transmitter ................................. 124
Replacement
Battery .................................................... 526 Bulbs ....................................................... 506
Fuses ............................................... 558, 559
Tires ........................................................ 522
Wiper Blade Rubber ................................. 514
Reporting Safety Defects ......................... 568
Resetting a Trip Meter ............................. 102
Road Departure Mitigation (RDM) .......... 443
Indicator .................................................... 84
On and Off .............................................. 444S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 71
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 42
Automatic Seat Belt Tensioners .................. 40
Checking ................................................... 44
Fastening ................................................... 41
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 65
Pregnant Women ...................................... 43
Reminder................................................... 39
Warning Indicator ................................ 39, 77
Seat Heaters ...................................... 177, 178
Seats .......................................................... 160
Adjusting ................................................. 160
Front Seats .............................................. 160
Seat Heaters .................................... 177, 178 Security System
......................................... 134
Immobilizer System Indicator ..................... 82
Security System Alarm Indicator................. 82
SEL/RESET Button ..................................... 101
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 190
Shift Lever ........................................... 27, 422
Operation.......................................... 27, 423
Releasing................................................. 550
Won’t Move ............................................ 550
Shift Lever Position Indicator ............ 77, 423
Shift Lever Positions ................................. 422
Shifting (Transmission) ............................. 422
Shoulder Anchor ........................................ 42
Side Airbags ................................................ 52
Side Curtain Airbags .................................. 54
Siri ® Eyes Free ........................................... 282
SiriusXM ® Radio ........................................ 241
Smart Entry Remote ................................. 418
Smart Entry with Push Button Start System ..................................................... 122
Snow Tires ................................................. 524
Song By Voice
TM (SBV) .............................. 255
Spark Plugs ............................................... 564
Specifications ............................................ 564
Specified Fuel ................................... 482, 564
Speedometer .............................................. 98
SPORT Mode ............................................. 425
SPORT Mode Indicator ....................... 77, 425
SRS Airbags (Airbags) ................................. 48
17 ACCORD FHEV-31T3W6200.book 581 ページ ２０１６年４月１１日　月曜日　午後２時４０分
