sensor HONDA ACCORD HYBRID 2019 Owner's Manual

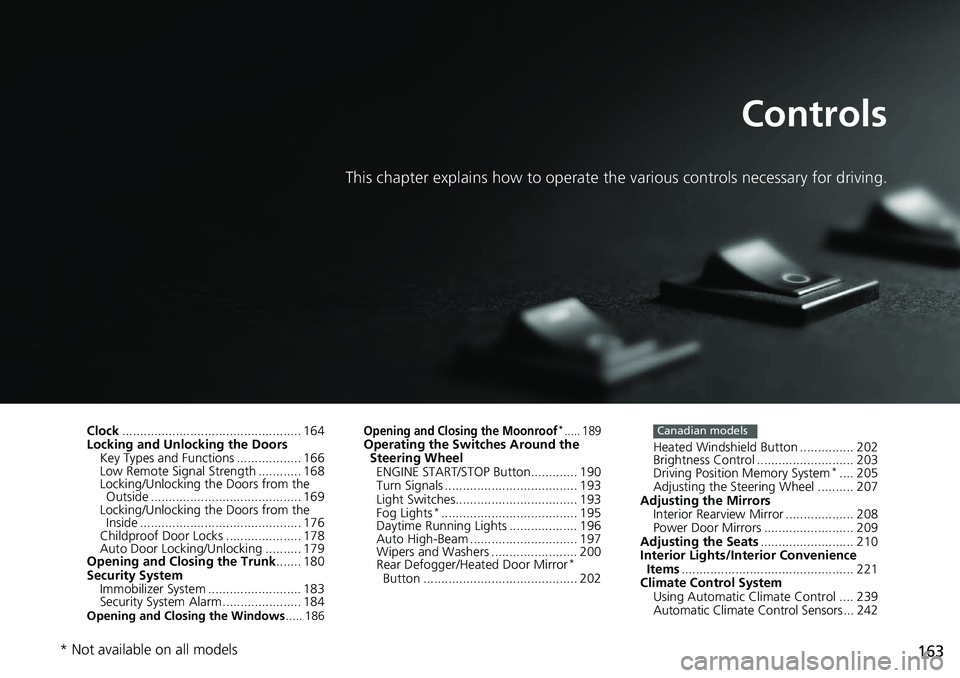

163Controls This chapter explains how to operate th e various controls necessary for driving.
Clock .................................................. 164
Locking and Unlocking the Doors
Key Types and Functions .................. 166
Low Remote Signal Strength ............ 168
Locking/Unlocking the Doors from the
Outside .......................................... 169
Locking/Unlocking the Doors from the
Inside ............................................. 176
Childproof Door Locks ..................... 178
Auto Door Locking/Unlocking .......... 179
Opening and Closing the Trunk ....... 180
Security System
Immobilizer System .......................... 183
Security System Alarm ...................... 184
Opening and Closing the Windows ..... 186 Opening and Closing the Moonroof *
..... 189
Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 190
Turn Signals ..................................... 193
Light Switches.................................. 193
Fog Lights *
...................................... 195
Daytime Running Lights ................... 196
Auto High-Beam .............................. 197
Wipers and Washers ........................ 200
Rear Defogger/Heat ed Door Mirror *

Button ........................................... 202 Heated Windshield Button ............... 202
Brightness Control ........................... 203
Driving Position Memory System *
.... 205
Adjusting the Steering Wheel .......... 207
Adjusting the Mirrors
Interior Rearview Mirror ................... 208
Power Door Mirrors ......................... 209
Adjusting the Seats .......................... 210
Interior Lights/Interior Convenience
Items ................................................ 221
Climate Control System
Using Automatic Climate Control .... 239
Automatic Climate Control Sensors ... 242 Canadian models
* Not available on all models

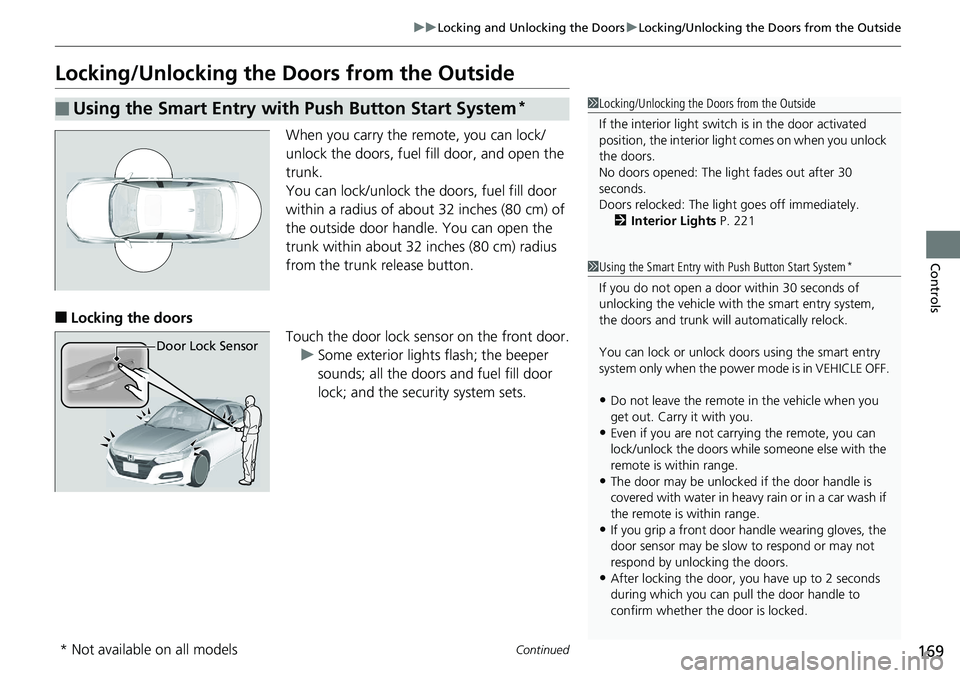

169uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside When you carry the re mote, you can lock/
unlock the doors, fuel fill door, and open the
trunk.
You can lock/unlock the doors, fuel fill door
within a radius of about 32 inches (80 cm) of
the outside door handle. You can open the
trunk within about 32 inches (80 cm) radius
from the trunk release button.
■ Locking the doors
Touch the door lock sensor on the front door.
u Some exterior lights flash; the beeper
sounds; all the doors and fuel fill door
lock; and the security system sets.■ Using the Smart Entry with Push Button Start System * 1 Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 221
Door Lock Sensor 1 Using the Smart Entry with Push Button Start System *
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors and trunk will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
• Do not leave the remote in the vehicle when you
get out. Carry it with you.
• Even if you are not carr ying the remote, you can
lock/unlock the doors whil e someone else with the
remote is within range.
• The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the remote is within range.
• If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
• After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked.
* Not available on all models

uu Operating the Switches Around the Steering Wheel u Light Switches
194
Controls Automatic lighting control can be used when
the power mode is in ON.
When you turn the light switch to AUTO , the
headlights and other exte rior lights will switch
on and off automatically depending on the
ambient brightness.
u You can change the au to light sensitivity
setting. 2 Customized Features P. 370, 381
The headlights comes on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.■ Automatic Operation (automatic lighting control) 1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor Models without automatic
intermittent wipers
Light Sensor Models with automatic
intermittent wipers

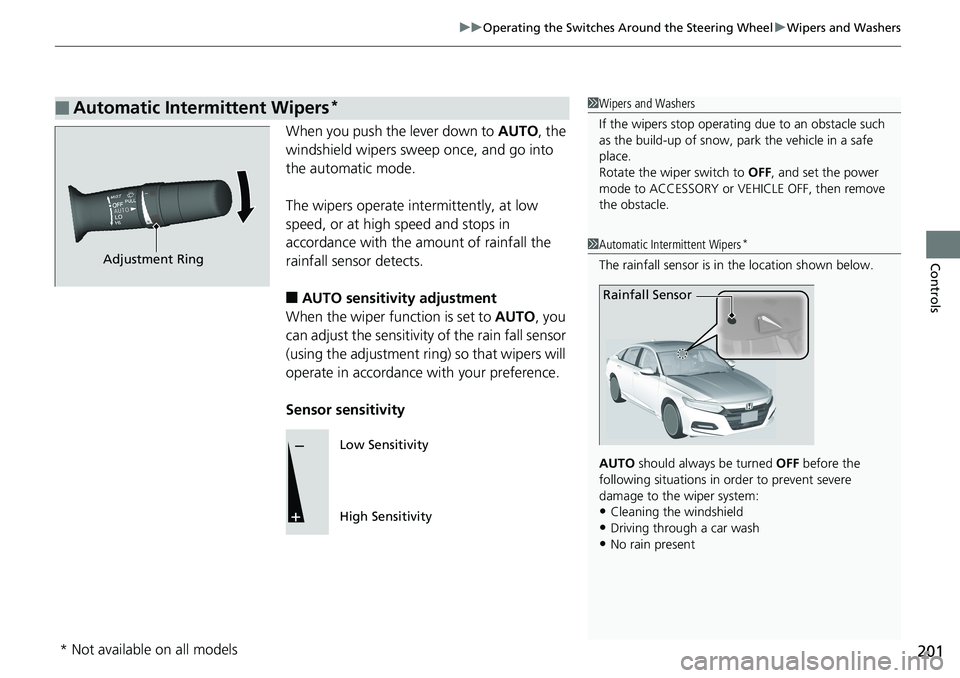

201uu Operating the Switches Around the Steering Wheel u Wipers and Washers
Controls
When you push the lever down to AUTO , the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.
■ AUTO sensitivity adjustment
When the wiper function is set to AUTO , you
can adjust the sensitivity of the rain fall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity■ Automatic Intermittent Wipers * 1 Wipers and Washers
If the wipers st op operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF , and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
1 Automatic Intermittent Wipers *
The rainfall sensor is in the location shown below.
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
• Cleaning the windshield
• Driving through a car wash
• No rain presentRainfall SensorAdjustment Ring
Low Sensitivity
High Sensitivity
* Not available on all models

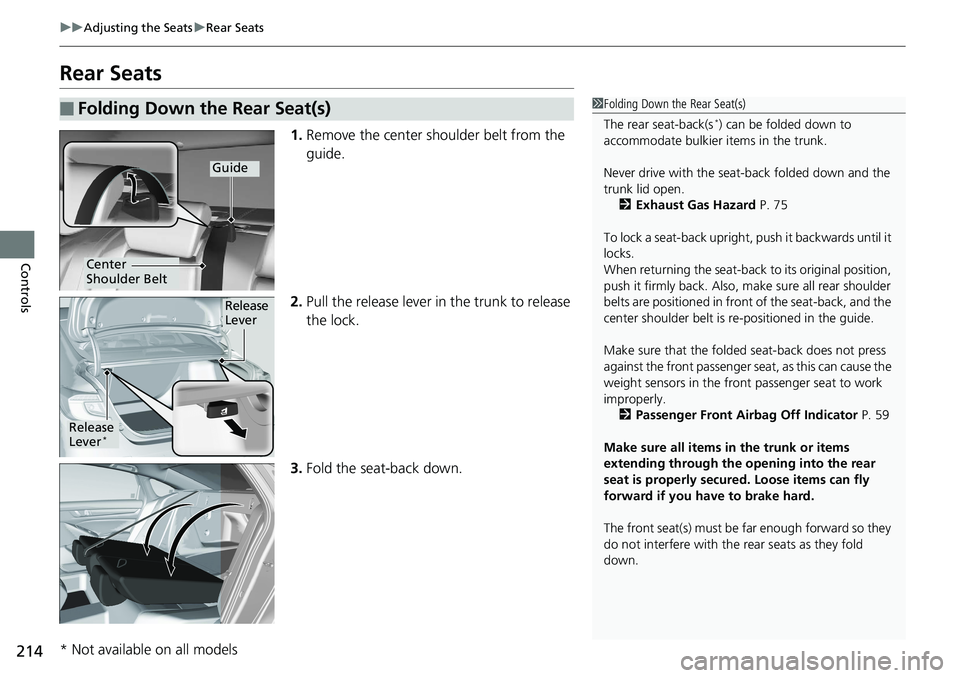

214 uu Adjusting the Seats u Rear Seats
Controls Rear Seats 1. Remove the center shoulder belt from the
guide.
2. Pull the release lever in the trunk to release
the lock.
3. Fold the seat-back down.■ Folding Down the Rear Seat(s) 1 Folding Down the Rear Seat(s)
The rear seat-back(s *
) can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open.
2 Exhaust Gas Hazard P. 75
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Front Airbag Off Indicator P. 59
Make sure all items in the trunk or items
extending through the opening into the rear
seat is properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.Guide
Center
Shoulder Belt
Release
Lever
Release
Lever *
* Not available on all models

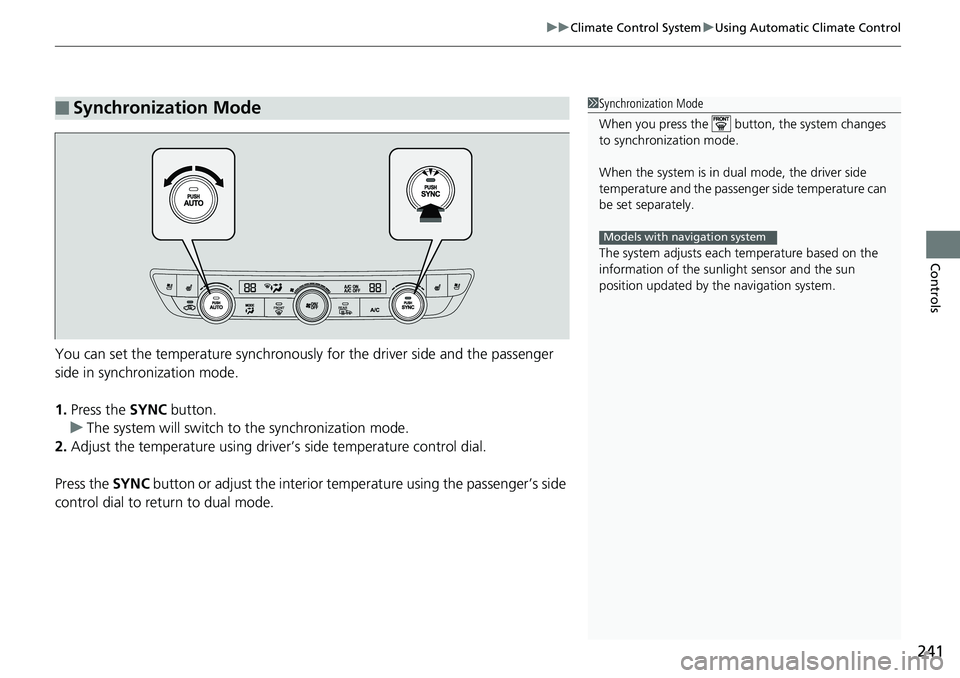

241uu Climate Control System u Using Automatic Climate Control
Controls
You can set the temperature synchronously for the driver side and the passenger
side in synchronization mode.
1. Press the SYNC button.
u The system will switch to the synchronization mode.
2. Adjust the temperature using driver ’s side temperat ure control dial.
Press the SYNC button or adjust the interior temp erature using the passenger’s side
control dial to return to dual mode.■ Synchronization Mode 1 Synchronization Mode
When you press the button, the system changes
to synchronization mode.
When the system is in dua l mode, the driver side
temperature and the passenger side temperature can
be set separately.
The system adjusts each temperature based on the
information of the sunli ght sensor and the sun
position updated by the navigation system.Models with navigation system

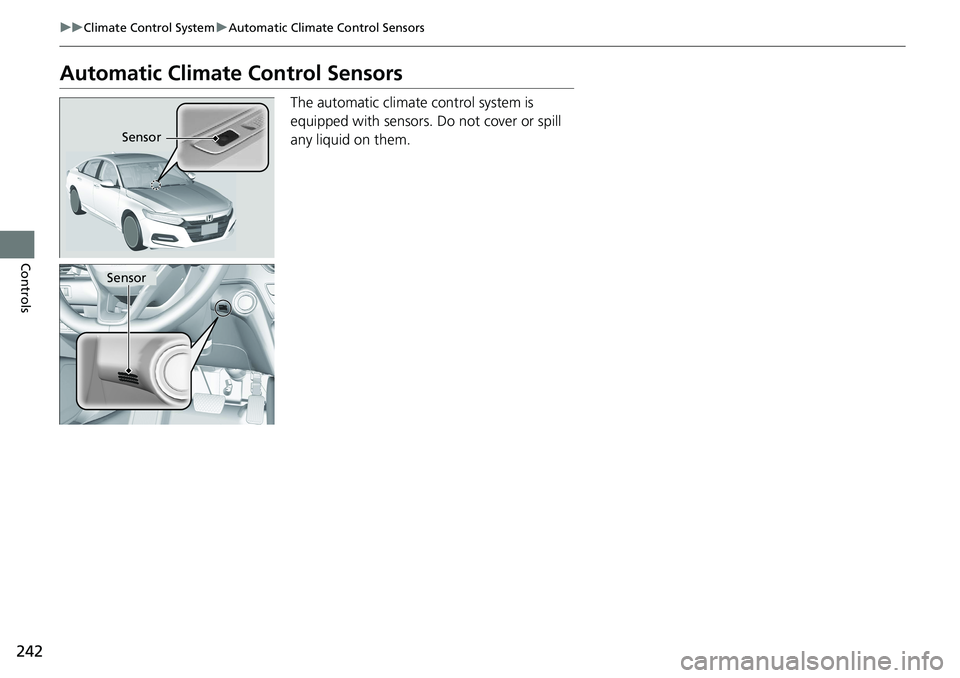

242 uu Climate Control System u Automatic Climate Control Sensors
Controls Automatic Climate Control Sensors The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor

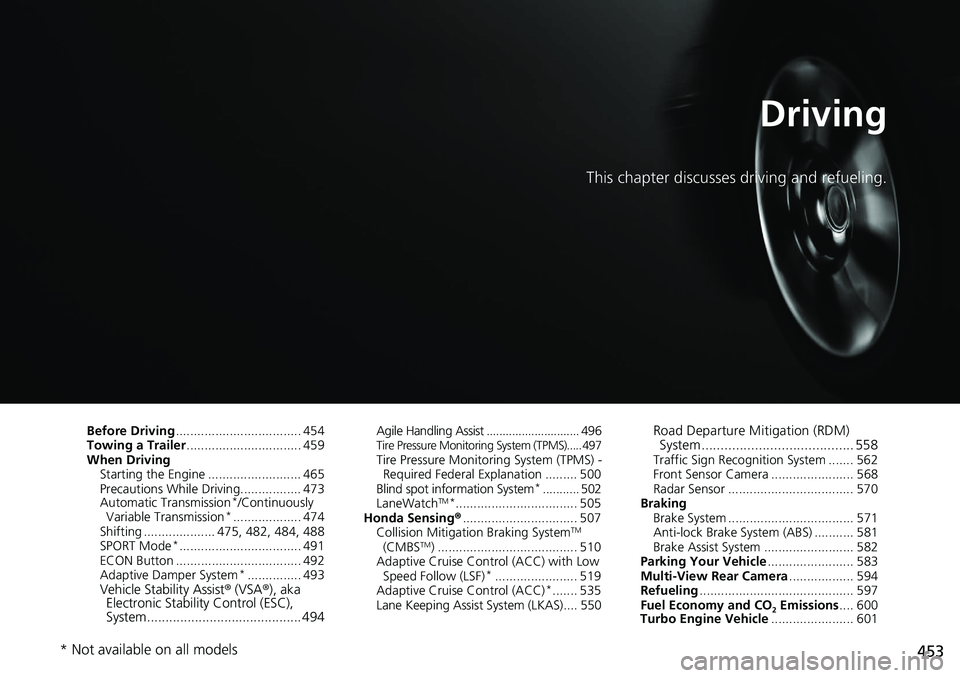

453Driving This chapter discusses driving and refueling.
Before Driving ................................... 454
Towing a Trailer ................................ 459
When Driving
Starting the Engine .......................... 465
Precautions While Driving................. 473
Automatic Transmission *
/Continuously
Variable Transmission *
................... 474
Shifting .................... 475, 482, 484, 488
SPORT Mode *
.................................. 491
ECON Button ................................... 492
Adaptive Damper System *
............... 493
Vehicle Stability Assist ® (VSA ® ), aka
Electronic Stability Control (ESC),
System.......................................... 494 Agile Handling Assist ............................. 496 Tire Pressure Monitoring System (TPMS)..... 497
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 500
Blind spot information System *
........... 502
LaneWatch TM
*
.................................. 505
Honda Sensing ® ................................ 507
Collision Mitigati on Braking System TM

(CMBS TM
) ....................................... 510
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) *
....................... 519
Adaptive Cruise Control (ACC) *
....... 535
Lane Keeping Assist System (LKAS).... 550 Road Departure Mi tigation (RDM)
System ........................................ 558
Traffic Sign Recognition System ....... 562
Front Sensor Camera ....................... 568
Radar Sensor ................................... 570
Braking
Brake System ................................... 571
Anti-lock Brake System (ABS) ........... 581
Brake Assist System ......................... 582
Parking Your Vehicle ........................ 583
Multi-View Rear Camera .................. 594
Refueling ........................................... 597
Fuel Economy and CO 2
Emissions .... 600
Turbo Engine Vehicle ....................... 601
* Not available on all models

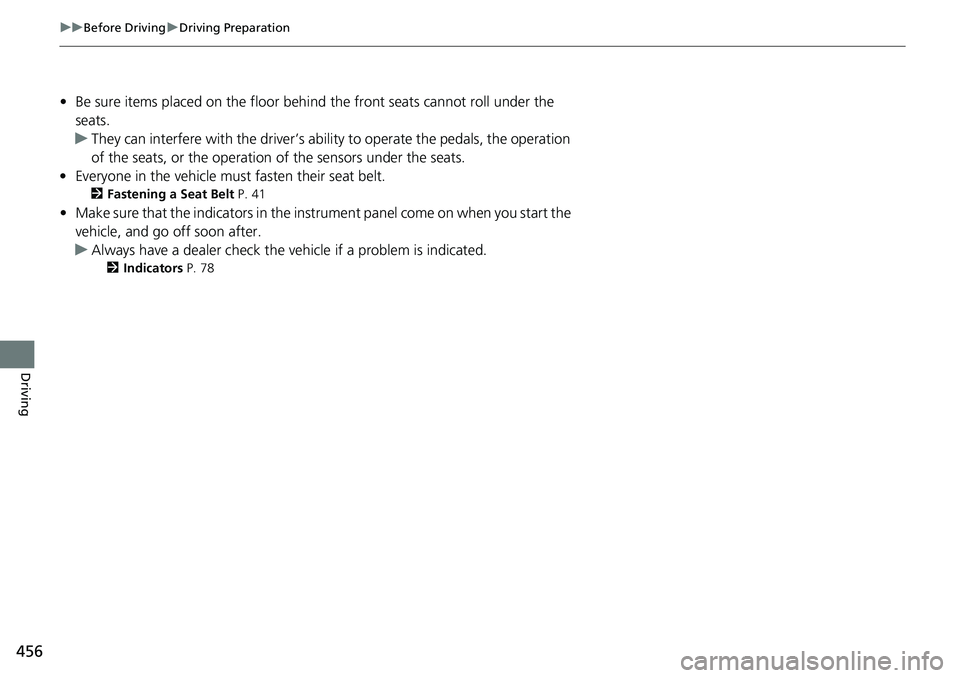

456 uu Before Driving u Driving Preparation
Driving • Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.2 Fastening a Seat Belt P. 41
• Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the ve hicle if a problem is indicated.2 Indicators P. 78

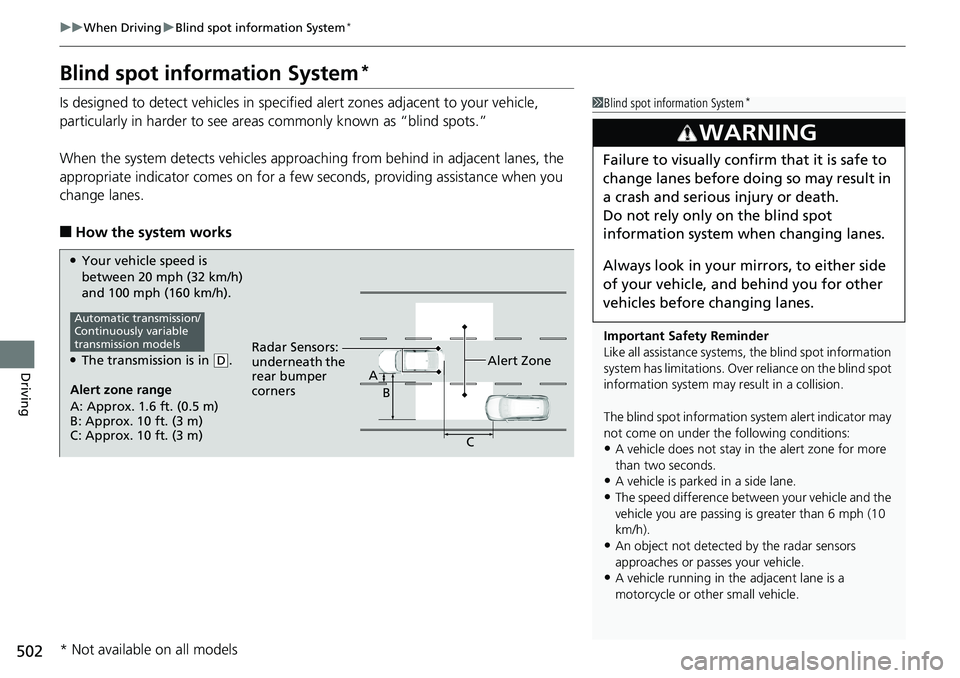

502 uu When Driving u Blind spot information System *
Driving Blind spot information System *Is designed to detect vehicles in specified alert zones adjacent to your vehicle,
particularly in harder to see area s commonly known as “blind spots.”
When the system detects vehi cles approaching from behind in adjacent lanes, the
appropriate indicator comes on for a few seconds, providing assistance when you
change lanes.
■ How the system works 1 Blind spot information System *
Important Safety Reminder
Like all assistance systems, the blind spot information
system has limitations. Over reliance on the blind spot
information system may result in a collision.
The blind spot information system alert indicator may
not come on under the following conditions:
• A vehicle does not stay in the alert zone for more
than two seconds.
• A vehicle is parked in a side lane.
• The speed difference betw een your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).
• An object not detected by the radar sensors
approaches or passes your vehicle.
• A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.3
WARNING Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on the blind spot
information system wh en changing lanes.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
Alert zone range
A: Approx. 1.6 ft. (0.5 m)
B: Approx. 10 ft. (3 m)
C: Approx. 10 ft. (3 m) Radar Sensors:
underneath the
rear bumper
corners Alert Zone
A
B
C●
Your vehicle speed is
between 20 mph (32 km/h)
and 100 mph (160 km/h). ●
The transmission is in ( D
.Automatic transmission/
Continuously variable
transmission models
* Not available on all models
