sensor HONDA ACCORD HYBRID 2019 Owner's Guide

Continued
503uu When Driving u Blind spot information System *
Driving

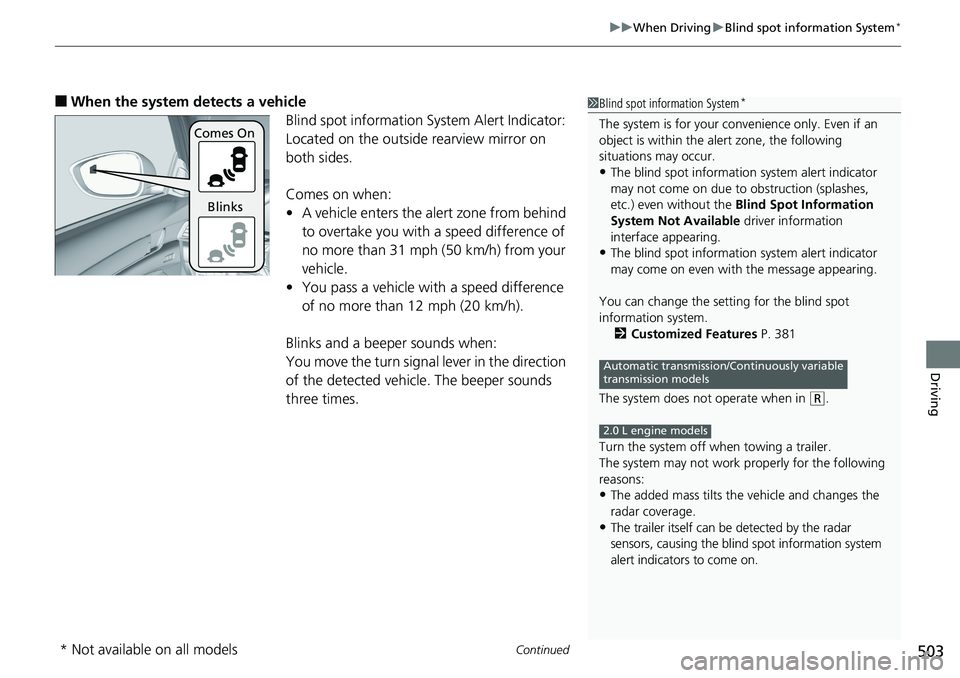

■ When the system detects a vehicle
Blind spot information System Alert Indicator:
Located on the outside rearview mirror on
both sides.
Comes on when:
• A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
• You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
Blinks and a beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times. 1 Blind spot information System *
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur.
• The blind spot informatio n system alert indicator
may not come on due to obstruction (splashes,
etc.) even without the Blind Spot Information
System Not Available driver information
interface appearing.
• The blind spot informatio n system alert indicator
may come on even with the message appearing.
You can change the setting for the blind spot
information system.
2 Customized Features P. 381
The system does not operate when in ( R
.
Turn the system off when towing a trailer.
The system may not work properly for the following
reasons:
• The added mass tilts the vehicle and changes the
radar coverage.
• The trailer itself can be detected by the radar
sensors, causing the blind spot information system
alert indicators to come on. Automatic transmission/Continuously variable
transmission models
2.0 L engine modelsComes On
Blinks
* Not available on all models

uu When Driving u Blind spot information System *
504

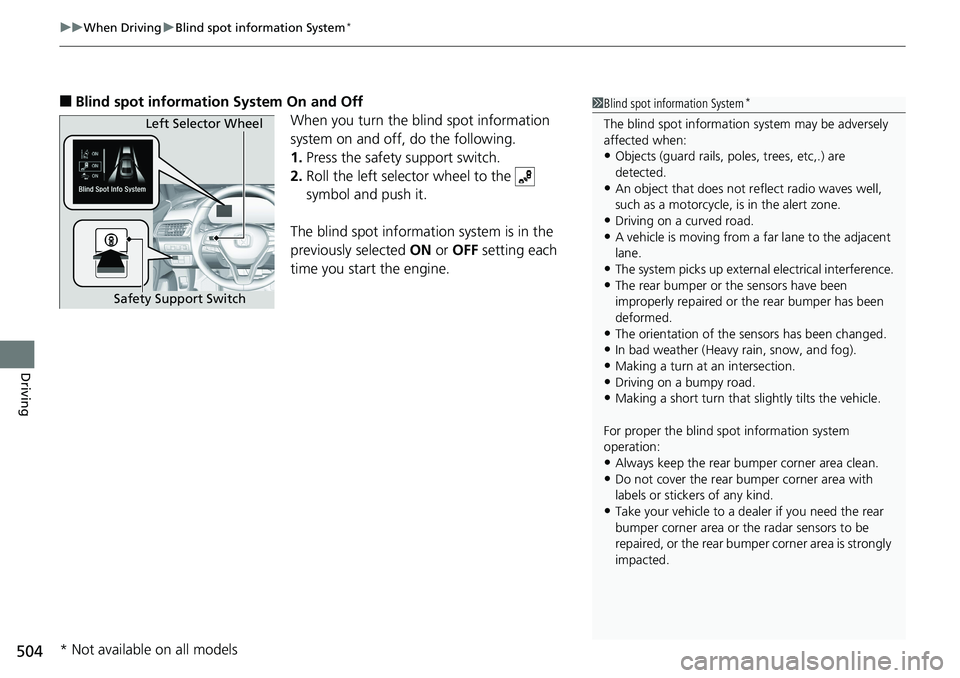

Driving ■ Blind spot information System On and Off
When you turn the blind spot information
system on and off, do the following.
1. Press the safety support switch.
2. Roll the left selector wheel to the
symbol and push it.
The blind spot information system is in the
previously selected ON or OFF setting each
time you start the engine. 1 Blind spot information System *
The blind spot information system may be adversely
affected when:
• Objects (guard rails, poles, trees, etc,.) are
detected.
• An object that does not re flect radio waves well,
such as a motorcycle, is in the alert zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent
lane.
• The system picks up external electrical interference.
• The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed.
• The orientation of the sensors has been changed.
• In bad weather (Heavy rain, snow, and fog).
• Making a turn at an intersection.
• Driving on a bumpy road.
• Making a short turn that slightly tilts the vehicle.
For proper the blind spot information system
operation:
• Always keep the rear bumper corner area clean.
• Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
• Take your vehicle to a dealer if you need the rear
bumper corner area or th e radar sensors to be
repaired, or the rear bumper corner area is strongly
impacted.Left Selector Wheel
Safety Support Switch
* Not available on all models

507Continued
Driving

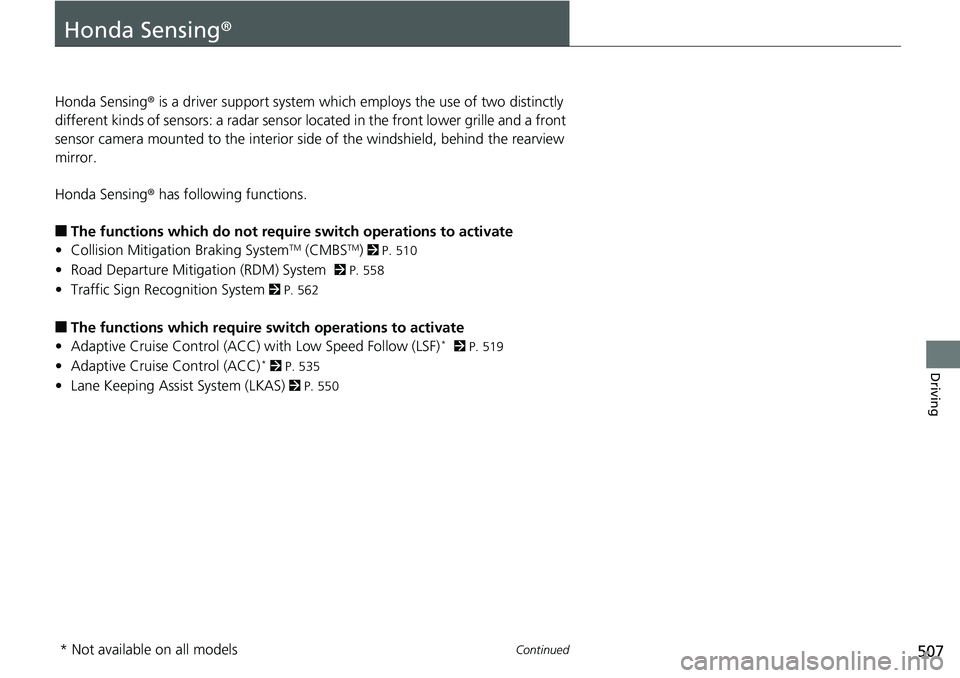

Honda Sensing ®Honda Sensing ® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located in the front lo wer grille and a front
sensor camera mounted to the interior side of the windshield, behind the rearview
mirror.
Honda Sensing ® has following functions.
■ The functions which do not require switch operations to activate
• Collision Mitigation Braking System TM
(CMBS TM
) 2 P. 510
• Road Departure Mitigation (RDM) System 2 P. 558
• Traffic Sign Recognition System 2 P. 562
■ The functions wh ich require switch ope rations to activate
• Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) *
2 P. 519
• Adaptive Cruise Control (ACC) *
2 P. 535
• Lane Keeping Assist System (LKAS) 2 P. 550
* Not available on all models

510 uu Honda Sensing ® u Collision Mitigation Braking System TM
(CMBS TM
)

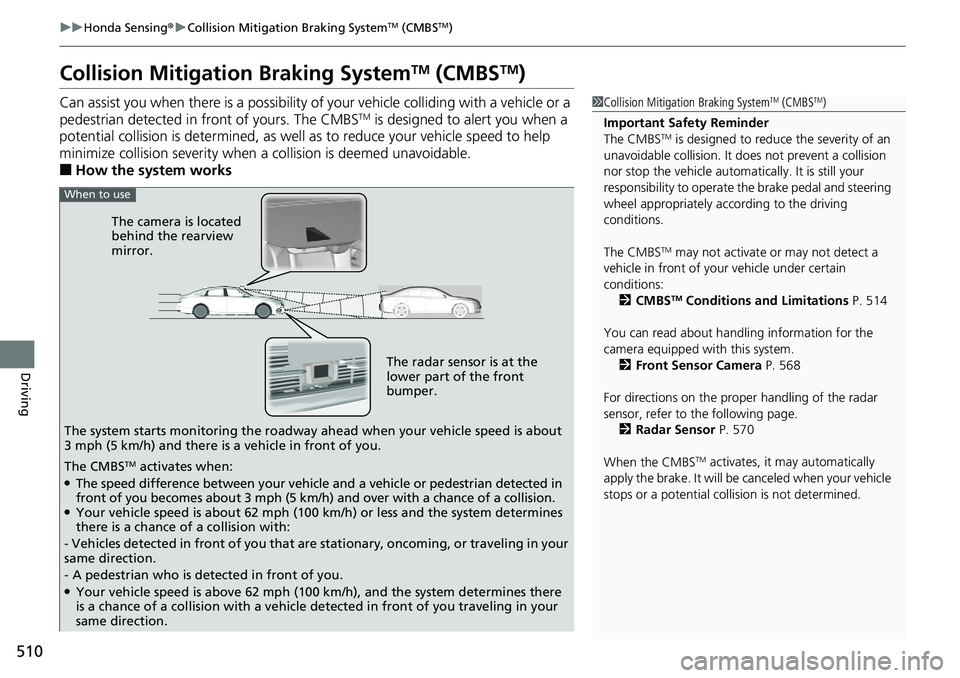

Driving Collision Mitigati on Braking System TM
(CMBS TM
)Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBS TM
is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■ How the system works 1 Collision Mitigation Braking System TM
(CMBS TM
)
Important Safety Reminder
The CMBS TM
is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS TM
may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS TM
Conditions and Limitations P. 514
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 568
For directions on the prop er handling of the radar
sensor, refer to the following page.
2 Radar Sensor P. 570
When the CMBS TM
activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.The radar sensor is at the
lower part of the front
bumper.The camera is located
behind the rearview
mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you. When to use
The CMBS TM
activates when:●
The speed difference between your vehicle and a vehicle or pedestrian detected in
front of you becomes about 3 mph (5 km/h) and over with a chance of a collision. ●
Your vehicle speed is about 62 mph (100 km/h) or less and the system determines
there is a chance of a collision with:
- Vehicles detected in front of you that ar e stationary, oncoming, or traveling in your
same direction.
- A pedestrian who is detected in front of you. ●
Your vehicle speed is above 62 mph (100 km/h), and the system determines there
is a chance of a collision with a vehicle detected in front of you traveling in your
same direction.

512 uu Honda Sensing ® u Collision Mitigation Braking System TM
(CMBS TM
)

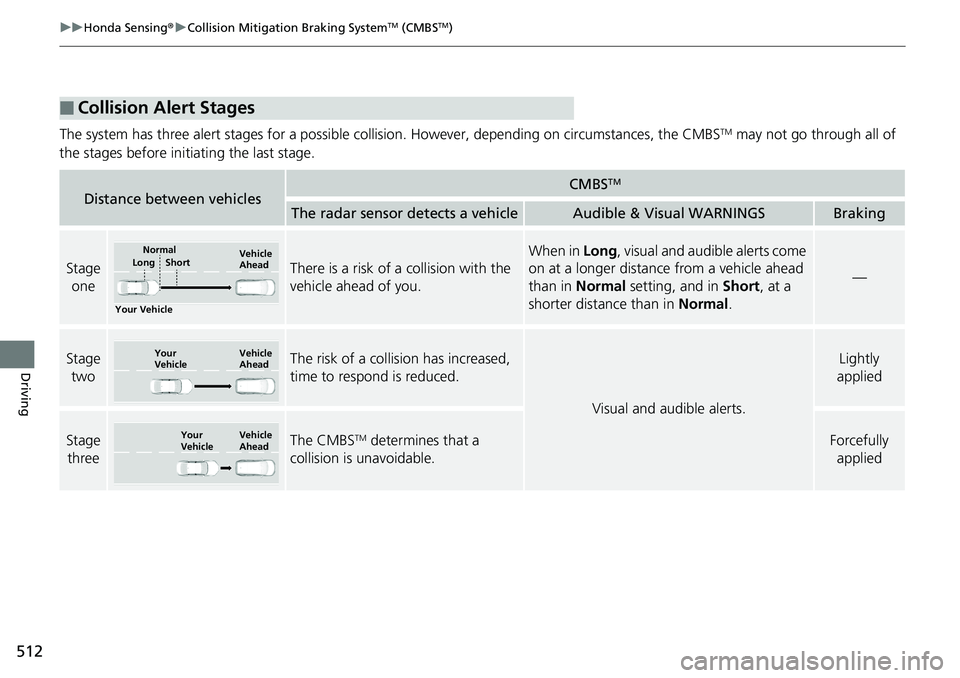

Driving The system has three alert stages for a possible collis ion. However, depending on circumstances, the CMBS TM
may not go through all of
the stages before initiating the last stage.
■ Collision Alert Stages Distance between vehicles CMBS TM
The radar sensor detects a vehicle Audible & Visual WARNINGS Braking
Stage
one There is a risk of a collision with the
vehicle ahead of you. When in Long , visual and audible alerts come
on at a longer distance from a vehicle ahead
than in Normal setting, and in Short , at a
shorter distance than in Normal . —
Stage
two The risk of a collision has increased,
time to respond is reduced.
Visual and audible alerts. Lightly
applied
Stage
three The CMBS TM
determines that a
collision is unavoidable. Forcefully
appliedYour Vehicle Vehicle
AheadNormal
ShortLong
Your
Vehicle Vehicle
Ahead
Your
Vehicle Vehicle
Ahead

uu Honda Sensing ® u Collision Mitigation Braking System TM
(CMBS TM
)
514

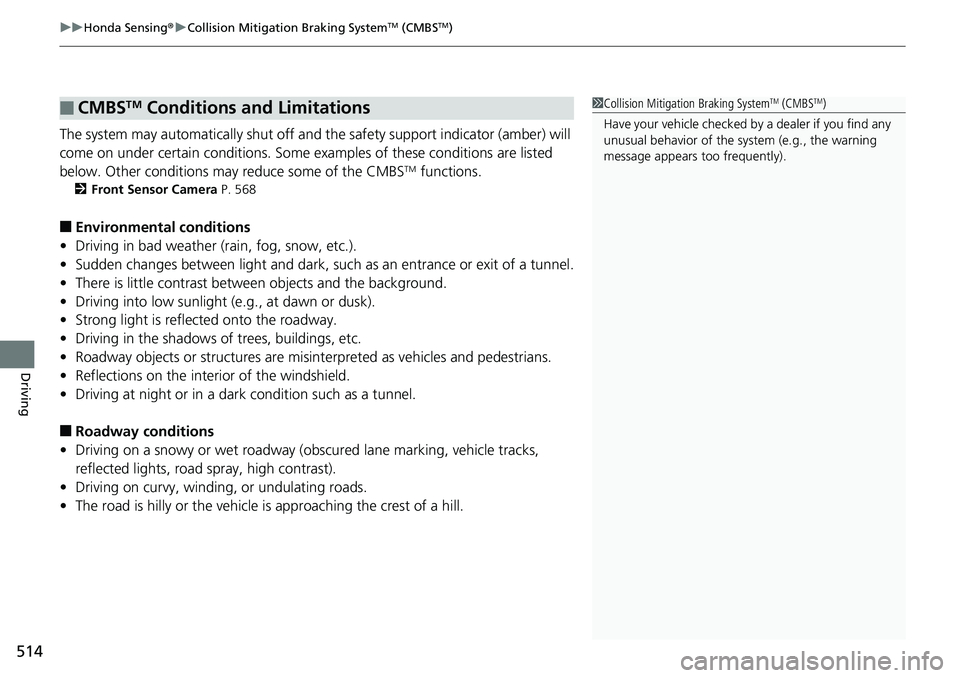

Driving The system may automatically shut off and the safety support indicator (amber) will
come on under certain conditions. Some ex amples of these conditions are listed
below. Other conditions may reduce some of the CMBS TM
functions.2 Front Sensor Camera P. 568
■ Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, su ch as an entrance or exit of a tunnel.
• There is little contrast between objects and the background.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Roadway objects or structures are misint erpreted as vehicles and pedestrians.
• Reflections on the interi or of the windshield.
• Driving at night or in a dark condition such as a tunnel.
■ Roadway conditions
• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on curvy, winding, or undulating roads.
• The road is hilly or the vehicle is approaching the crest of a hill.■ CMBS TM
Conditions and Limitations 1 Collision Mitigation Braking System TM
(CMBS TM
)
Have your vehicle checked by a dealer if you find any
unusual behavior of the sy stem (e.g., the warning
message appears too frequently).

515uu Honda Sensing ® u Collision Mitigation Braking System TM
(CMBS TM
)
Continued
Driving

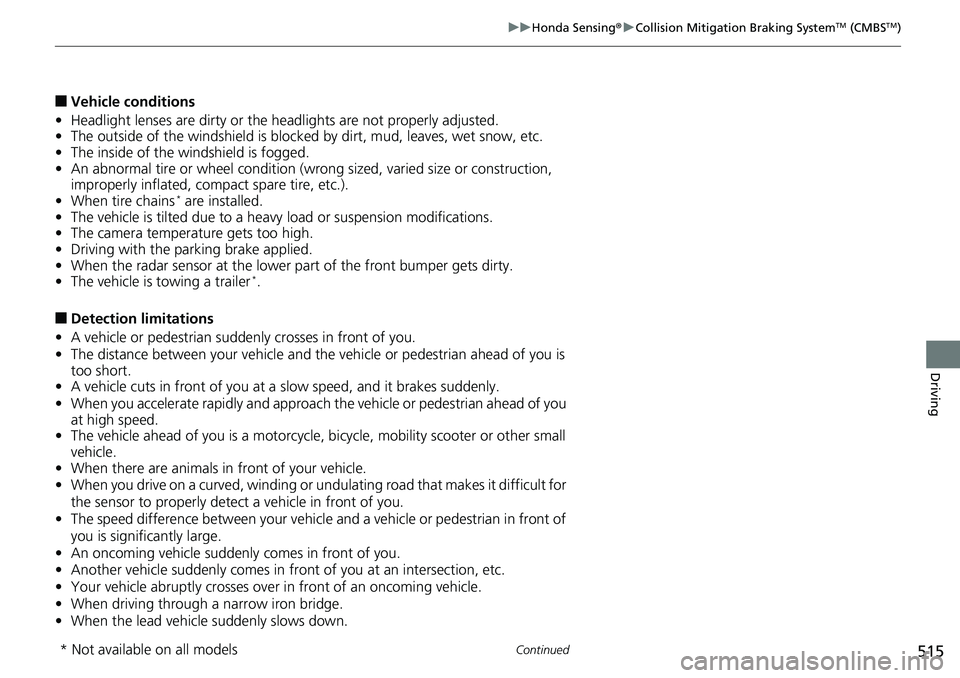

■ Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains *
are installed.
• The vehicle is tilted du e to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor at the lower part of the front bumper gets dirty.
• The vehicle is towing a trailer *
.
■ Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved, winding or und ulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in fr ont of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down.
* Not available on all models

519uu Honda Sensing ® u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) *
Continued
Driving

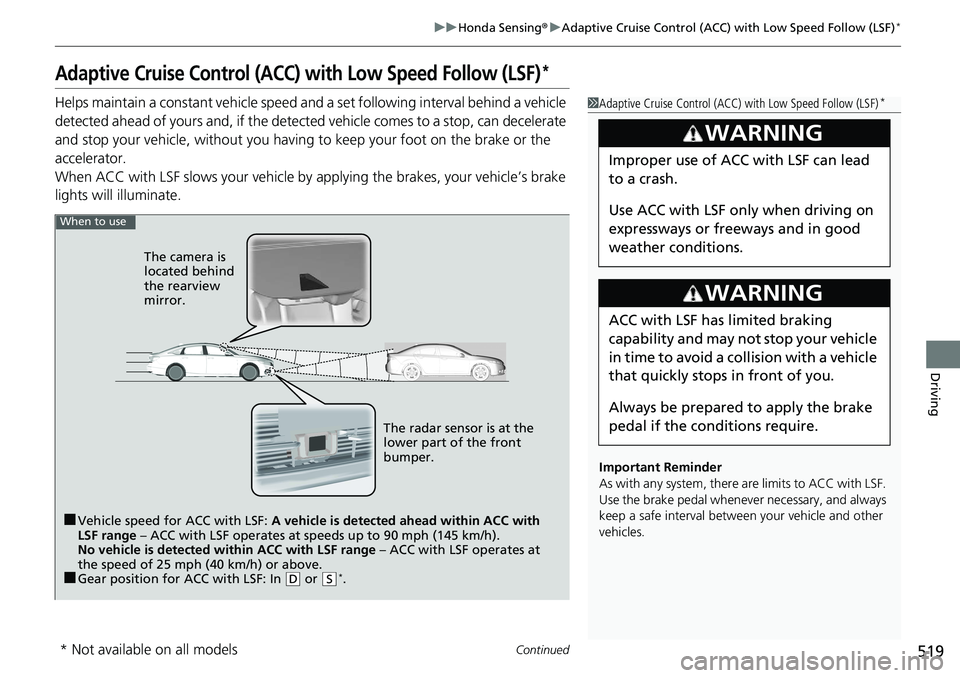

Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) *Helps maintain a constant vehicle speed and a set following interval behind a vehicle
detected ahead of yours and, if the detect ed vehicle comes to a stop, can decelerate
and stop your ve hicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with LSF slows your vehicle by applying the brakes, your vehicle’s brake
lights will illuminate. 1 Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) *
Important Reminder
As with any system, there are limits to ACC with LSF.
Use the brake pedal whenever necessary, and always
keep a safe interval betw een your vehicle and other
vehicles.3
WARNING Improper use of ACC with LSF can lead
to a crash.
Use ACC with LSF only when driving on
expressways or freeways and in good
weather conditions.
3
WARNING ACC with LSF has limited braking
capability and may not stop your vehicle
in time to avoid a co llision with a vehicle
that quickly stops in front of you.
Always be prepared to apply the brake
pedal if the cond itions require.When to use
■ Vehicle speed for ACC with LSF: A vehicle is detected ahead within ACC with
LSF range – ACC with LSF operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with LSF range – ACC with LSF operates at
the speed of 25 mph (40 km/h) or above.
■ Gear position for ACC with LSF: In ( D
or ( S *
. The radar sensor is at the
lower part of the front
bumper.The camera is
located behind
the rearview
mirror.
* Not available on all models

Continued

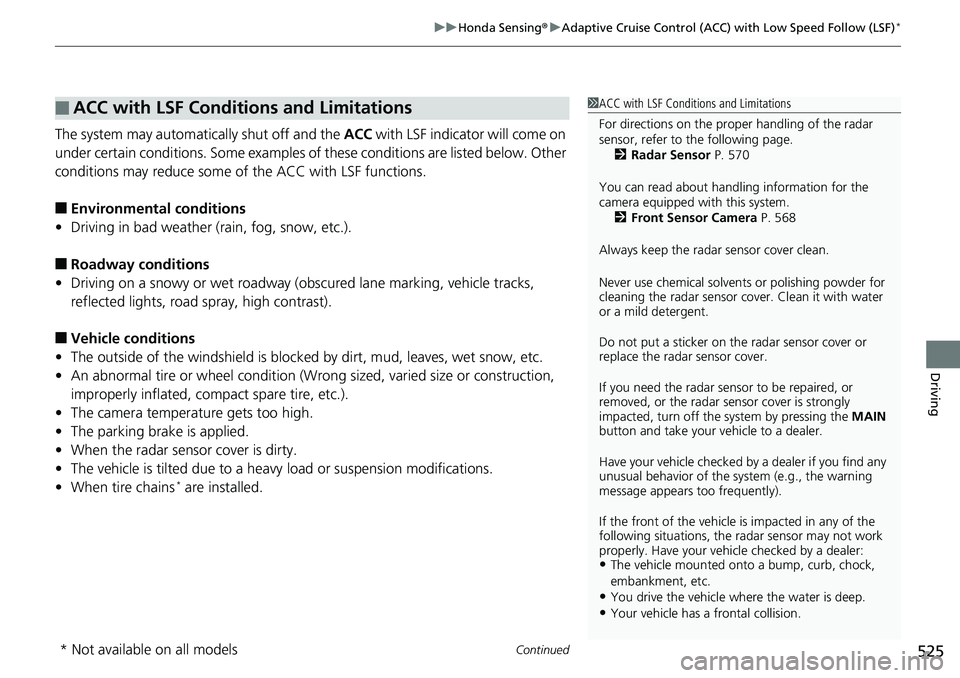

525uu Honda Sensing ® u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) *
Driving
The system may automatically shut off and the ACC with LSF indicator will come on
under certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC with LSF functions.
■ Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
■ Roadway conditions
• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■ Vehicle conditions
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wrong sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the radar sensor cover is dirty.
• The vehicle is tilted du e to a heavy load or suspension modifications.
• When tire chains *
are installed.■ ACC with LSF Conditions and Limitations 1 ACC with LSF Conditions and Limitations
For directions on the prop er handling of the radar
sensor, refer to the following page.
2 Radar Sensor P. 570
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 568
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the radar sensor cover. Clean it with water
or a mild detergent.
Do not put a sticker on the radar sensor cover or
replace the radar sensor cover.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the MAIN
button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the sy stem (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
• The vehicle mounted onto a bump, curb, chock,
embankment, etc.
• You drive the vehicle where the water is deep.
• Your vehicle has a frontal collision.
* Not available on all models

526 uu Honda Sensing ® u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) *

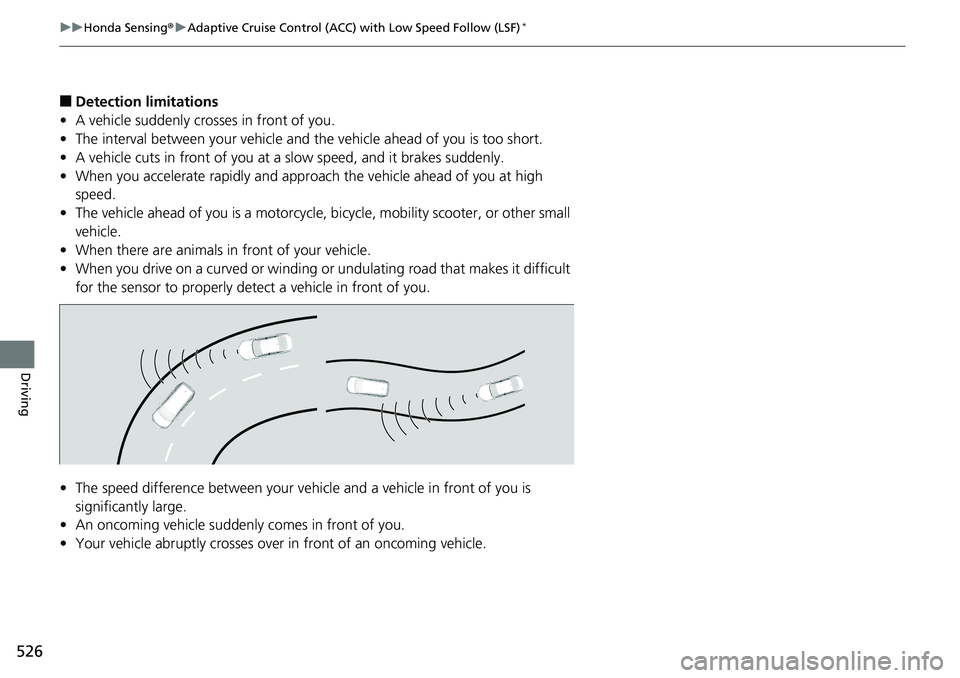

Driving ■ Detection limitations
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle ahead of you at high
speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicl e and a vehicle in front of you is
significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
