585uu Parking Your Vehicle u Parking Sensor System *
Continued
Driving

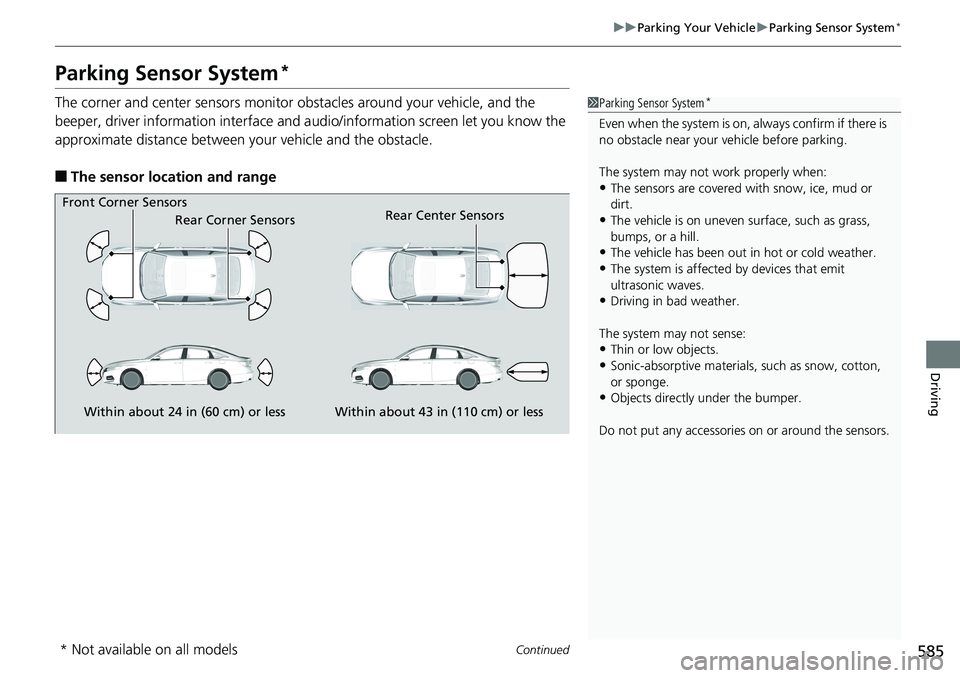

Parking Sensor System *The corner and center sensors monitor ob stacles around your vehicle, and the
beeper, driver information interface and a udio/information screen let you know the
approximate distance between your vehicle and the obstacle.
■ The sensor location and range 1 Parking Sensor System *
Even when the system is on, always confirm if there is
no obstacle near your ve hicle before parking.
The system may not work properly when:
• The sensors are covered with snow, ice, mud or
dirt.
• The vehicle is on uneven su rface, such as grass,
bumps, or a hill.
• The vehicle has been out in hot or cold weather.
• The system is affected by devices that emit
ultrasonic waves.
• Driving in bad weather.
The system may not sense:
• Thin or low objects.
• Sonic-absorptive materials, such as snow, cotton,
or sponge.
• Objects directly under the bumper.
Do not put any accessories on or around the sensors.Within about 24 in (60 cm) or lessFront Corner Sensors
Rear Corner Sensors
Within about 43 in (110 cm) or less Rear Center Sensors
* Not available on all models

uu Parking Your Vehicle u Parking Sensor System *
586

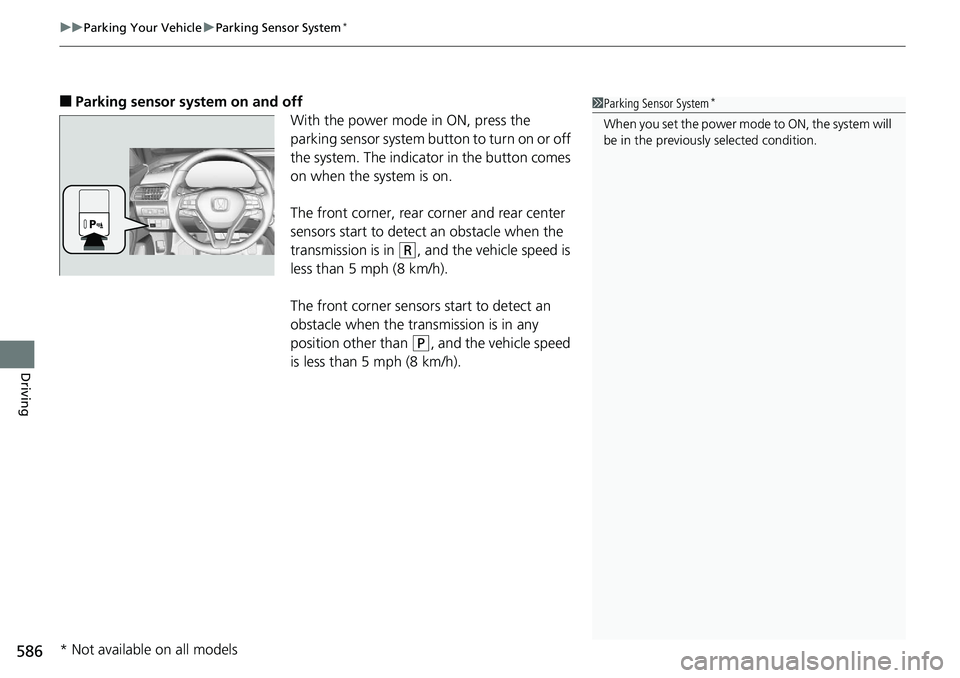

Driving ■ Parking sensor system on and off
With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicato r in the button comes
on when the system is on.
The front corner, rear corner and rear center
sensors start to detect an obstacle when the
transmission is in ( R
, and the vehicle speed is
less than 5 mph (8 km/h).
The front corner sensors start to detect an
obstacle when the transmission is in any
position other than ( P
, and the vehicle speed
is less than 5 mph (8 km/h). 1 Parking Sensor System *
When you set the power mode to ON, the system will
be in the previously selected condition.
* Not available on all models

Continued
587uu Parking Your Vehicle u Parking Sensor System *
Driving

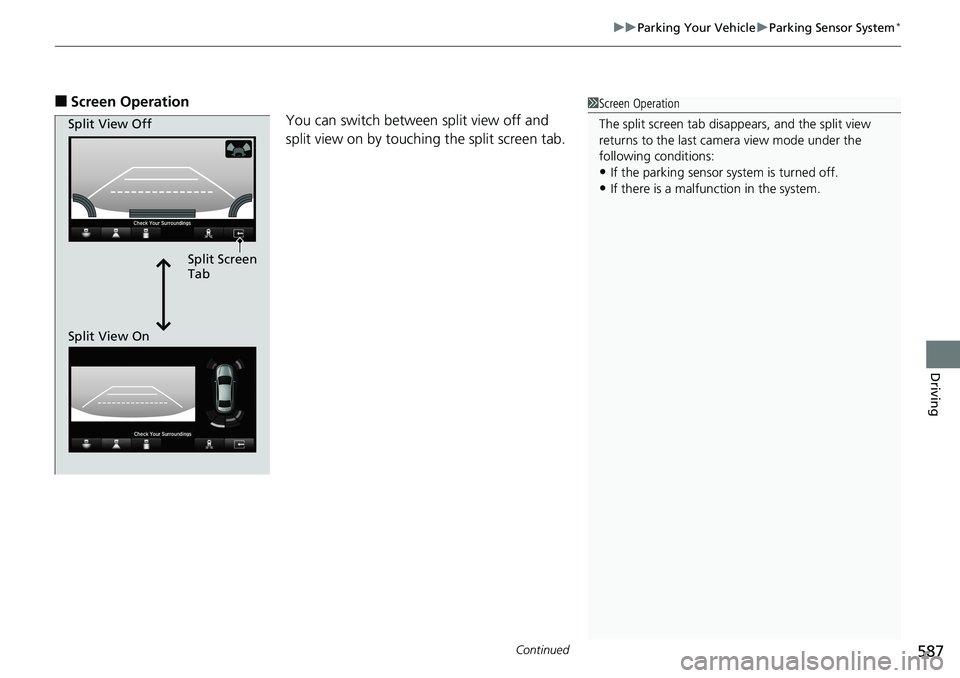

■ Screen Operation
You can switch between split view off and
split view on by touching the split screen tab. 1 Screen Operation
The split screen tab disappears, and the split view
returns to the last camera view mode under the
following conditions:
• If the parking sensor system is turned off.
• If there is a malfunction in the system.
Split Screen
TabSplit View Off
Split View On

588 uu Parking Your Vehicle u Parking Sensor System *

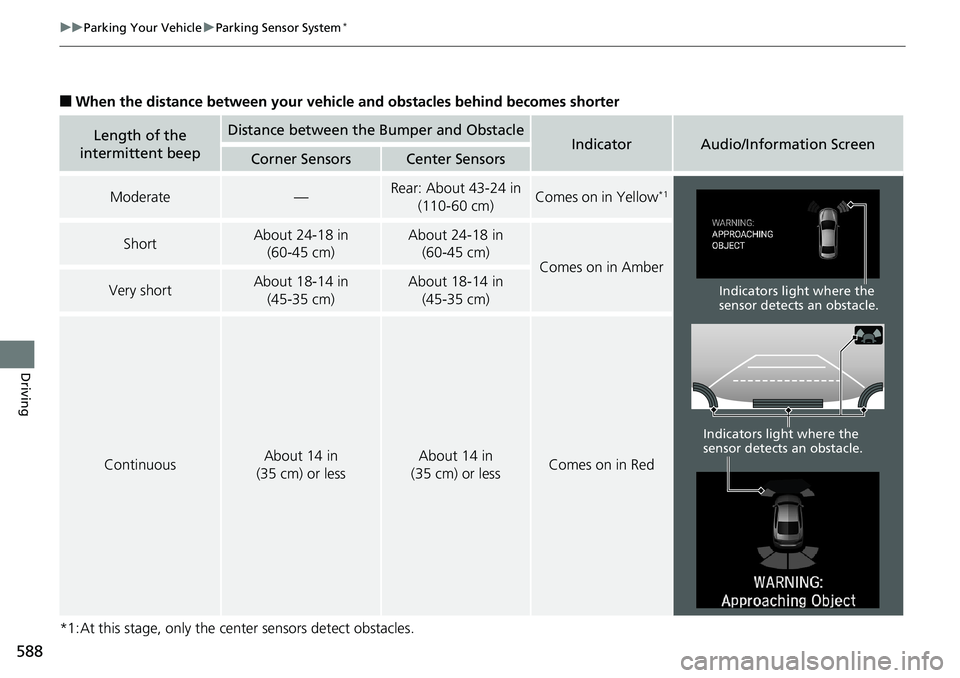

Driving ■ When the distance between your vehicle and obstacles behind becomes shorter
*1:At this stage, only the center sensors detect obstacles. Length of the
intermittent beep Distance between the Bumper and Obstacle
Indicator Audio/Information Screen
Corner Sensors Center Sensors
Moderate — Rear: About 43-24 in
(110-60 cm) Comes on in Yellow *1
Short About 24-18 in
(60-45 cm) About 24-18 in
(60-45 cm)
Comes on in Amber
Very short About 18-14 in
(45-35 cm) About 18-14 in
(45-35 cm)
Continuous About 14 in
(35 cm) or less About 14 in
(35 cm) or less Comes on in Red Indicators light where the
sensor detects an obstacle.
Indicators light where the
sensor detects an obstacle.

589uu Parking Your Vehicle u Parking Sensor System *
Driving

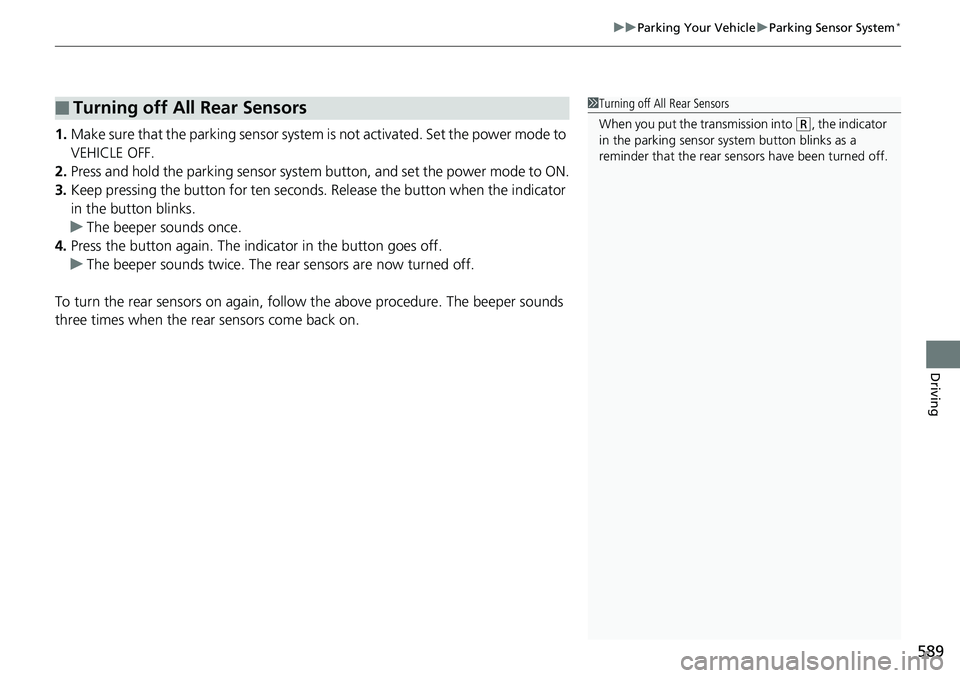

1. Make sure that the parking sensor system is not activated. Set the power mode to
VEHICLE OFF.
2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for ten seconds. Release the button when the indicator
in the button blinks.
u The beeper sounds once.
4. Press the button again. The indi cator in the button goes off.
u The beeper sounds twice. The rear sensors are now turned off.
To turn the rear sensors on again, follo w the above procedure. The beeper sounds
three times when the rear sensors come back on.■ Turning off All Rear Sensors 1 Turning off All Rear Sensors
When you put the transmission into ( R
, the indicator
in the parking sensor system button blinks as a
reminder that the rear sens ors have been turned off.

590 uu Parking Your Vehicle u Cross Traffic Monitor *

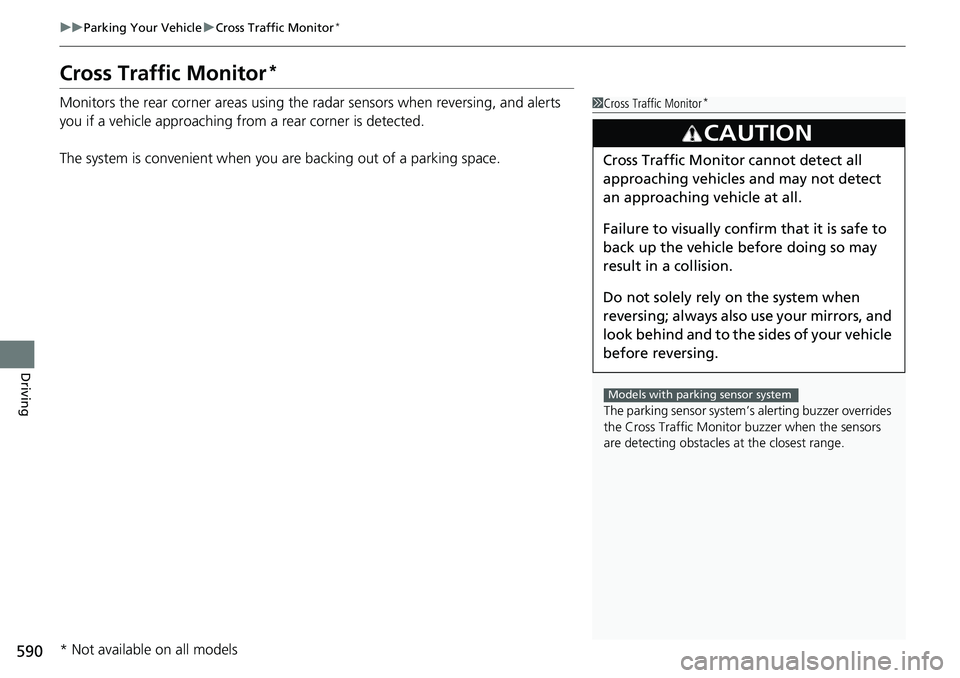

Driving Cross Traffic Monitor *Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space. 1 Cross Traffic Monitor *
The parking sensor system’s alerting buzze r overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.3
CAUTION Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing. Models with parking sensor system
* Not available on all models

Continued

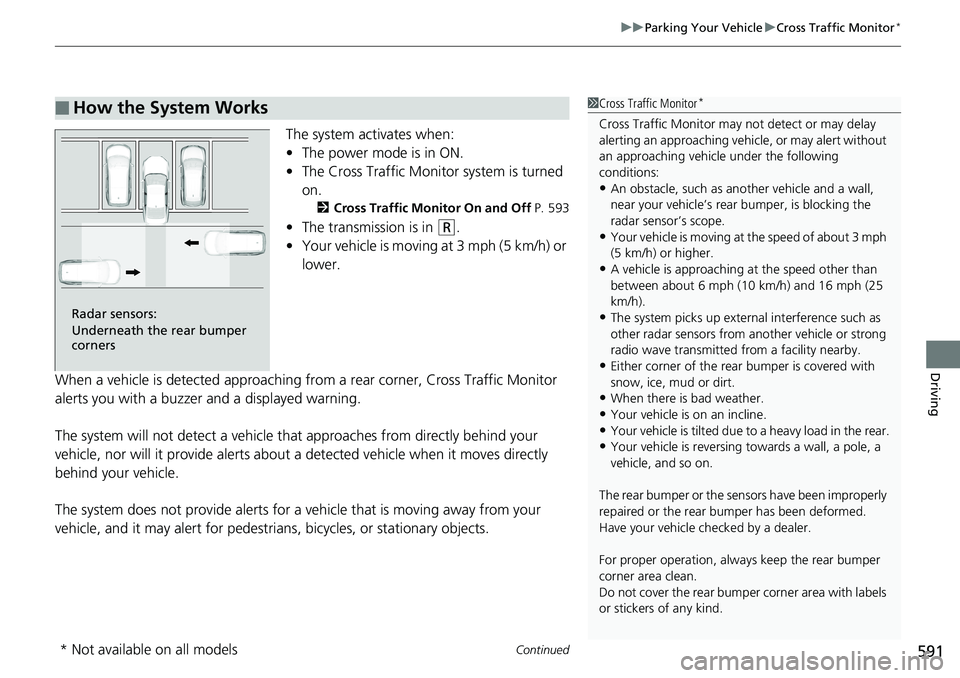

591uu Parking Your Vehicle u Cross Traffic Monitor *
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on. 2 Cross Traffic Monitor On and Off P. 593
• The transmission is in ( R
.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestri ans, bicycles, or stationary objects.■ How the System Works 1 Cross Traffic Monitor *
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
• An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
• Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
• A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
• The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
• Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
• When there is bad weather.
• Your vehicle is on an incline.
• Your vehicle is tilt ed due to a heavy load in the rear.
• Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the se nsors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.Radar sensors:
Underneath the rear bumper
corners
* Not available on all models

uu Parking Your Vehicle u Cross Traffic Monitor *
592

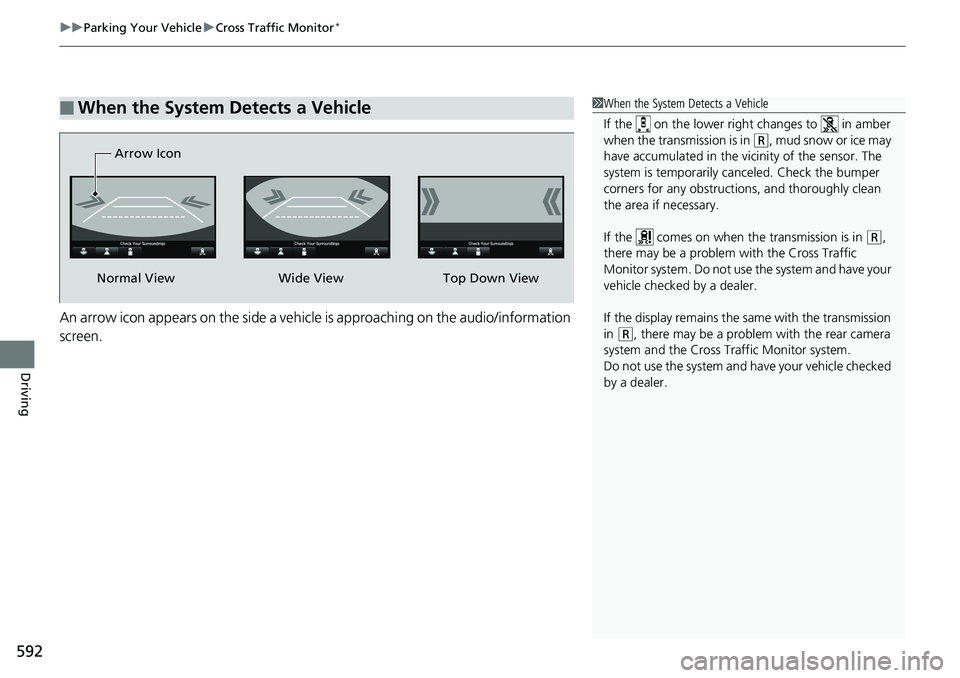

Driving An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.■ When the System Detects a Vehicle 1 When the System Detects a Vehicle
If the on the lower right changes to in amber
when the transmission is in ( R
, mud snow or ice may
have accumulated in the vi cinity of the sensor. The
system is temporarily canceled. Check the bumper
corners for any obstructions, and thoroughly clean
the area if necessary.
If the comes on when the transmission is in ( R
,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in ( R
, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.Wide ViewNormal View Arrow Icon
Top Down View

651
Maintenance

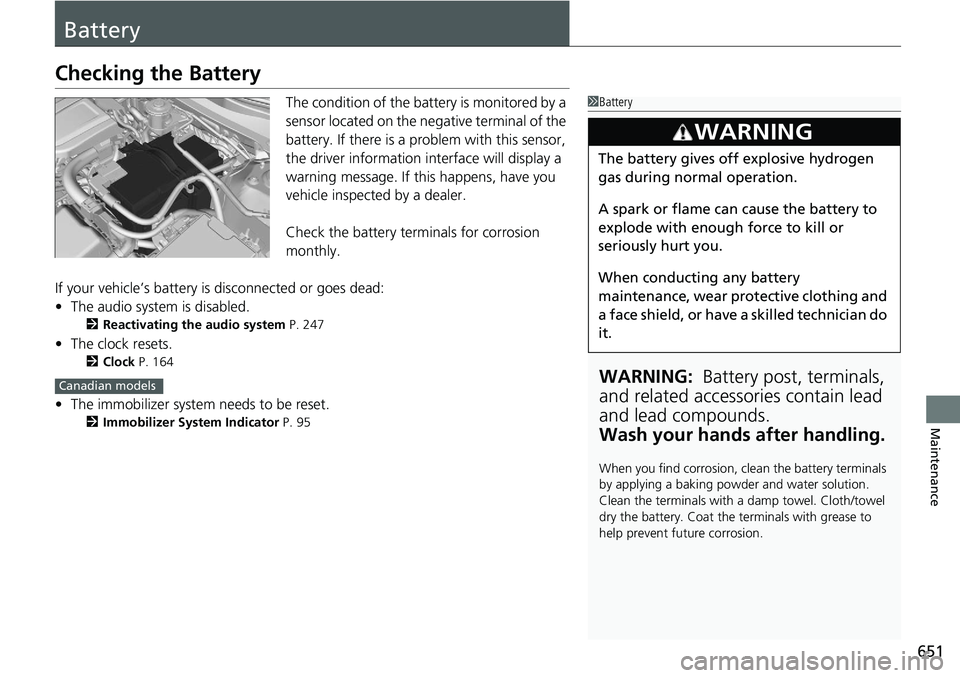

BatteryChecking the Battery The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have you
vehicle inspected by a dealer.
Check the battery term inals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled. 2 Reactivating the audio system P. 247
• The clock resets. 2 Clock P. 164
• The immobilizer system needs to be reset. 2 Immobilizer System Indicator P. 95 1 Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling. When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.3
WARNING The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.Canadian models

655Continued
Maintenance

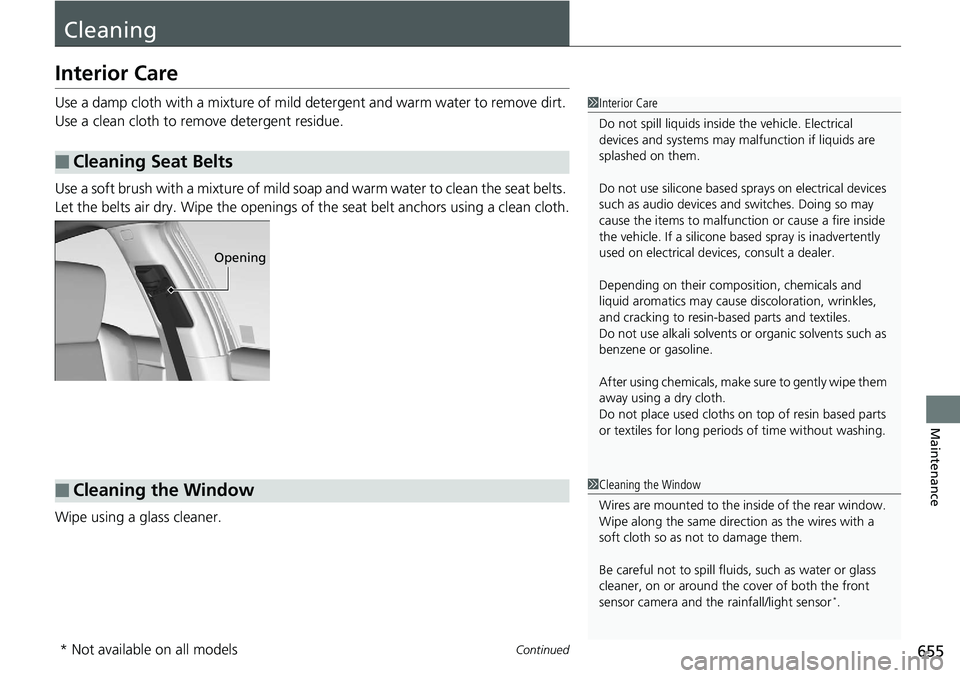

CleaningInterior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.■ Cleaning Seat Belts 1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle. If a silicone based spray is inadvertently
used on electrical devi ces, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.Opening
■ Cleaning the Window 1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor *
.
* Not available on all models
