689 uu Fuses u Fuse Locations
Continued
Handling the Unexpected

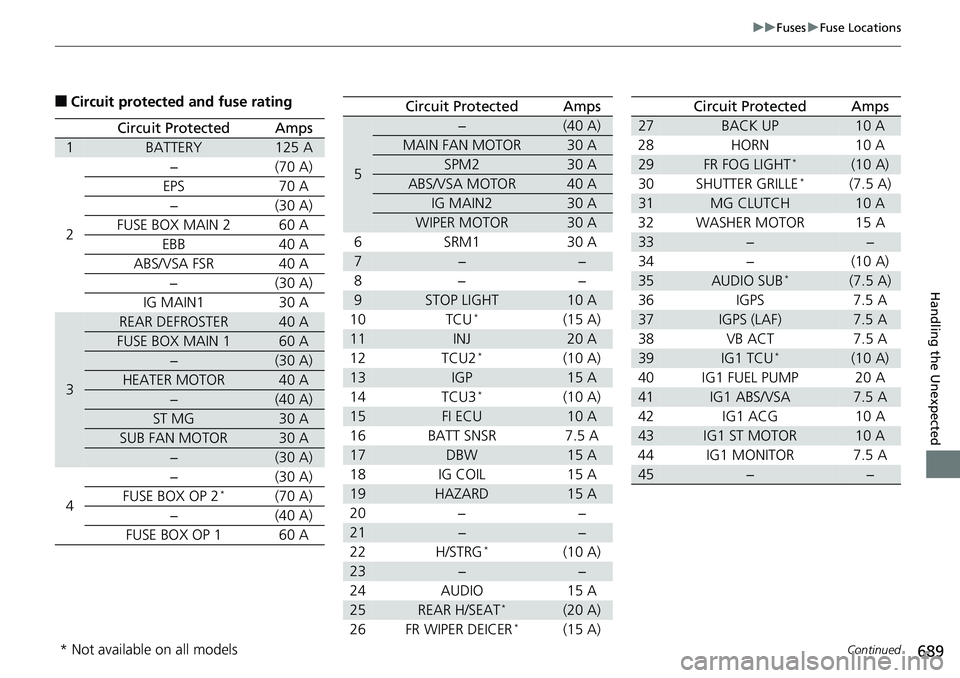

■ Circuit protected and fuse rating
Circuit Protected Amps
1 BATTERY 125 A
2 − (70 A)
EPS 70 A
−(30A)
FUSE BOX MAIN 2 60 A
EBB 40 A
ABS/VSA FSR 40 A
−(30A)
IG MAIN1 30 A
3 REAR DEFROSTER 40 A
FUSE BOX MAIN 1 60 A
− (30 A)
HEATER MOTOR 40 A
− (40 A)
ST MG 30 A
SUB FAN MOTOR 30 A
− (30 A)
4 −(30A)
FUSE BOX OP 2 *
(70 A)
−(40A)
FUSE BOX OP 1 60 A 5 − (40 A)
MAIN FAN MOTOR 30 A
SPM2 30 A
ABS/VSA MOTOR 40 A
IG MAIN2 30 A
WIPER MOTOR 30 A
6SRM1 30A
7 − −
8− −
9 STOP LIGHT 10 A
10 TCU *
(15 A)
11 INJ 20 A
12 TCU2 *
(10 A)
13 IGP 15 A
14 TCU3 *
(10 A)
15 FI ECU 10 A
16 BATT SNSR 7.5 A
17 DBW 15 A
18 IG COIL 15 A
19 HAZARD 15 A
20 − −
21 − −
22 H/STRG *
(10 A)
23 − −
24 AUDIO 15 A
25 REAR H/SEAT *
(20 A)
26 FR WIPER DEICER *
(15 A)Circuit Protected Amps
27 BACK UP 10 A
28 HORN 10 A
29 FR FOG LIGHT *
(10 A)
30 SHUTTER GRILLE *
(7.5 A)
31 MG CLUTCH 10 A
32 WASHER MOTOR 15 A
33 − −
34 − (10 A)
35 AUDIO SUB *
(7.5 A)
36 IGPS 7.5 A
37 IGPS (LAF) 7.5 A
38 VB ACT 7.5 A
39 IG1 TCU *
(10 A)
40 IG1 FUEL PUMP 20 A
41 IG1 ABS/VSA 7.5 A
42 IG1 ACG 10 A
43 IG1 ST MOTOR 10 A
44 IG1 MONITOR 7.5 A
45 − −Circuit Protected Amps
* Not available on all models

690 uu Fuses u Fuse Locations

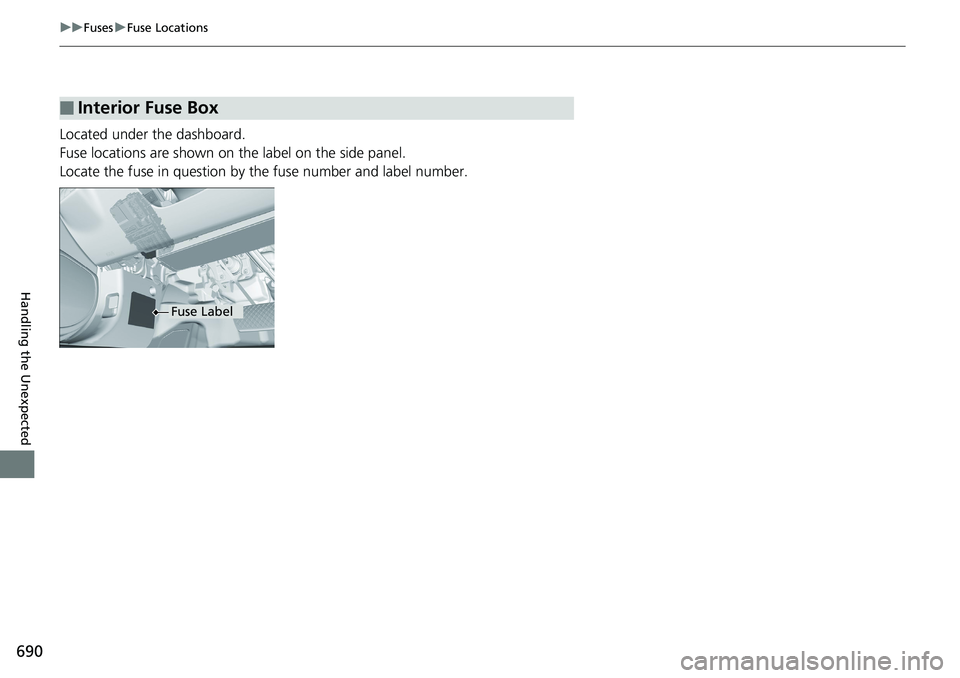

Handling the Unexpected Located under the dashboard.
Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.
■ Interior Fuse Box
Fuse Label

691 uu Fuses u Fuse Locations
Handling the Unexpected

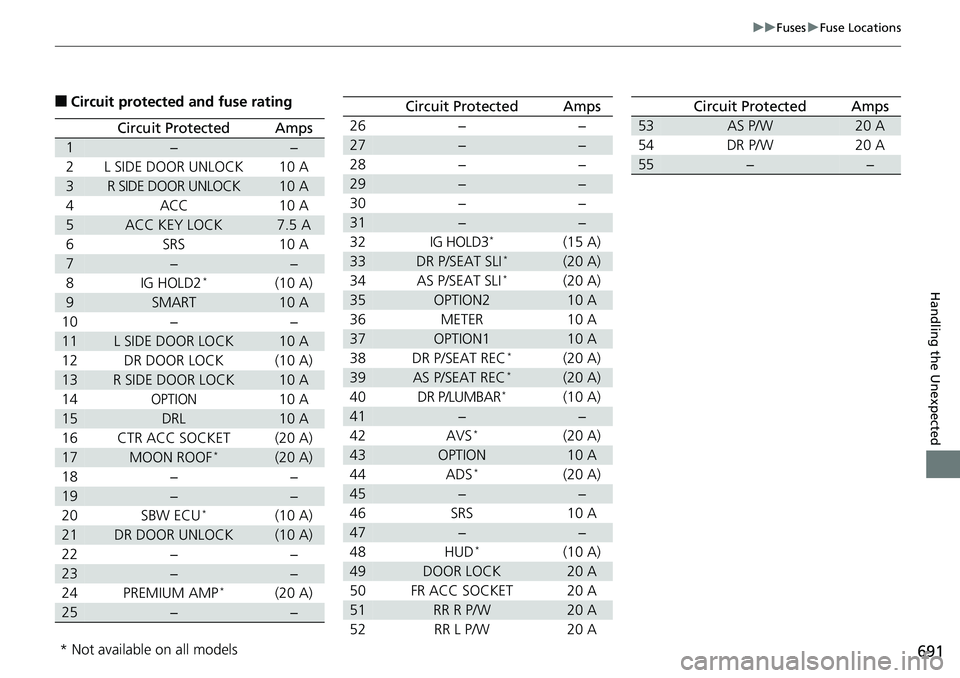

■ Circuit protected and fuse rating
Circuit Protected Amps
1 − −
2 L SIDE DOOR UNLOCK 10 A
3 R SIDE DOOR UNLOCK 10 A
4 ACC 10 A
5 ACC KEY LOCK 7.5 A
6 SRS 10 A
7 − −
8 IG HOLD2 *
(10 A)
9 SMART 10 A
10 − −
11 L SIDE DOOR LOCK 10 A
12 DR DOOR LOCK (10 A)
13 R SIDE DOOR LOCK 10 A
14 OPTION 10 A
15 DRL 10 A
16 CTR ACC SOCKET (20 A)
17 MOON ROOF *
(20 A)
18 − −
19 − −
20 SBW ECU *
(10 A)
21 DR DOOR UNLOCK (10 A)
22 − −
23 − −
24 PREMIUM AMP *
(20 A)
25 − − 26 − −
27 − −
28 − −
29 − −
30 − −
31 − −
32 IG HOLD3 *
(15 A)
33 DR P/SEAT SLI *
(20 A)
34 AS P/SEAT SLI *
(20 A)
35 OPTION2 10 A
36 METER 10 A
37 OPTION1 10 A
38 DR P/SEAT REC *
(20 A)
39 AS P/SEAT REC *
(20 A)
40 DR P/LUMBAR *
(10 A)
41 − −
42 AVS *
(20 A)
43 OPTION 10 A
44 ADS *
(20 A)
45 − −
46 SRS 10 A
47 − −
48 HUD *
(10 A)
49 DOOR LOCK 20 A
50 FR ACC SOCKET 20 A
51 RR R P/W 20 A
52 RR L P/W 20 ACircuit Protected Amps
53 AS P/W 20 A
54 DR P/W 20 A
55 − −Circuit Protected Amps
* Not available on all models

692 uu Fuses u Inspecting and Changing Fuses

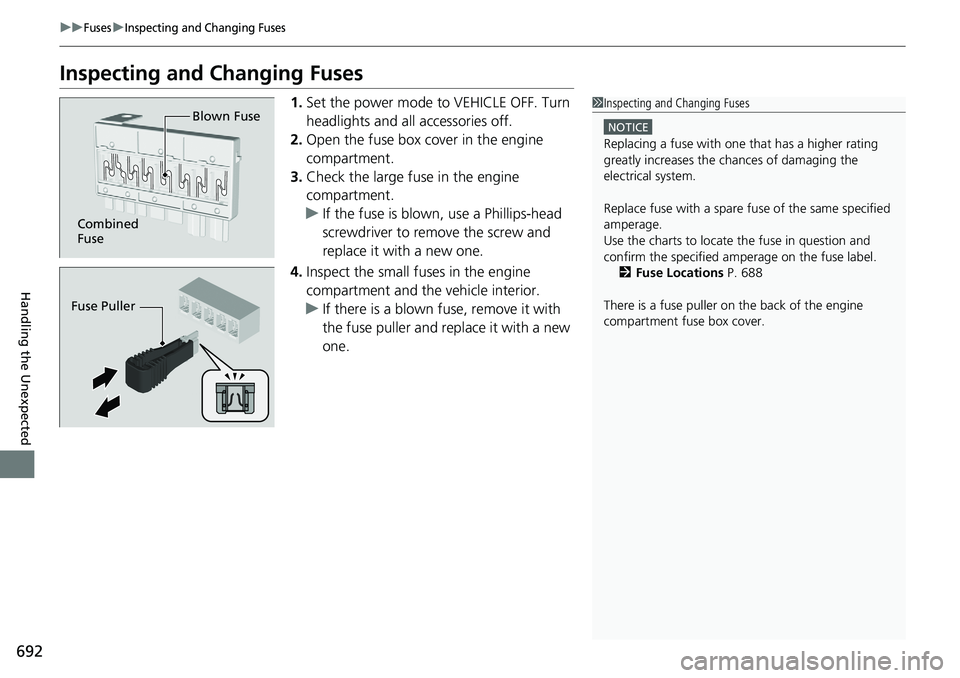

Handling the Unexpected Inspecting and Changing Fuses 1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Open the fuse box cover in the engine
compartment.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one. 1 Inspecting and Changing Fuses NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 688
There is a fuse puller on the back of the engine
compartment fuse box cover.Combined
Fuse Blown Fuse
Fuse Puller

693
Handling the Unexpected

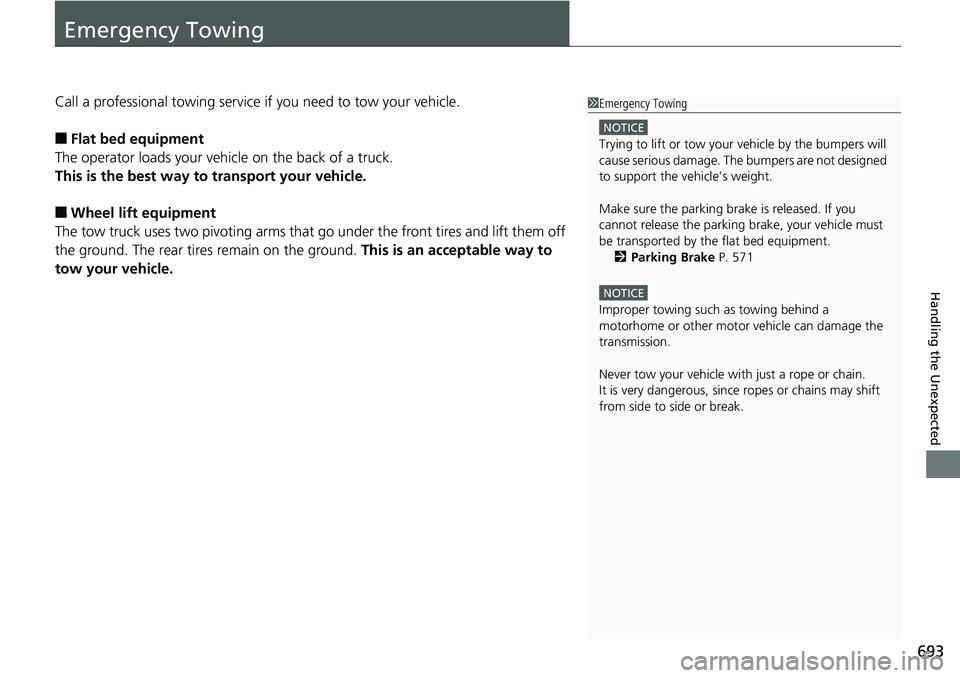

Emergency Towing Call a professional towing service if you need to tow your vehicle.
■ Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■ Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle. 1 Emergency Towing NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 571NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

694

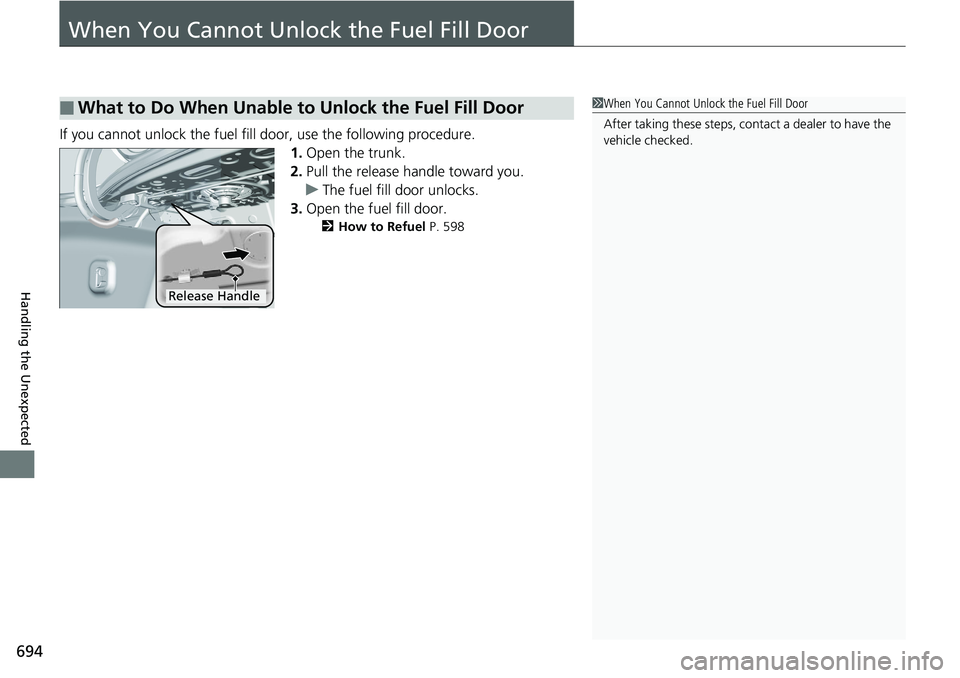

Handling the Unexpected When You Cannot Unlock the Fuel Fill Door If you cannot unlock the fuel fill door, use the following procedure.
1. Open the trunk.
2. Pull the release handle toward you.
u The fuel fill door unlocks.
3. Open the fuel fill door. 2 How to Refuel P. 598
■ What to Do When Unable to Unlock the Fuel Fill Door 1 When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Release Handle

695Continued
Handling the Unexpected

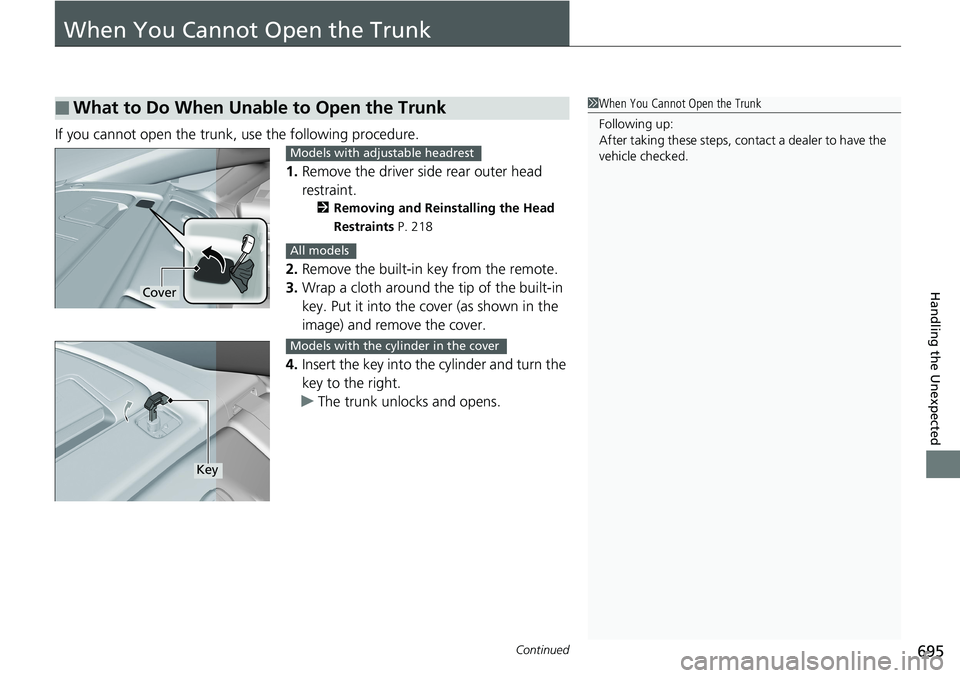

When You Cannot Open the Trunk If you cannot open the trunk, use the following procedure.
1. Remove the driver side rear outer head
restraint. 2 Removing and Reinstalling the Head
Restraints P. 218
2. Remove the built-in key from the remote.
3. Wrap a cloth around the tip of the built-in
key. Put it into the cover (as shown in the
image) and remove the cover.
4. Insert the key into the cylinder and turn the
key to the right.
u The trunk unlocks and opens.■ What to Do When Unable to Open the Trunk 1 When You Cannot Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover Models with adjustable headrest
All models
Key Models with the cylinder in the cover

696 uu When You Cannot Open the Trunk u

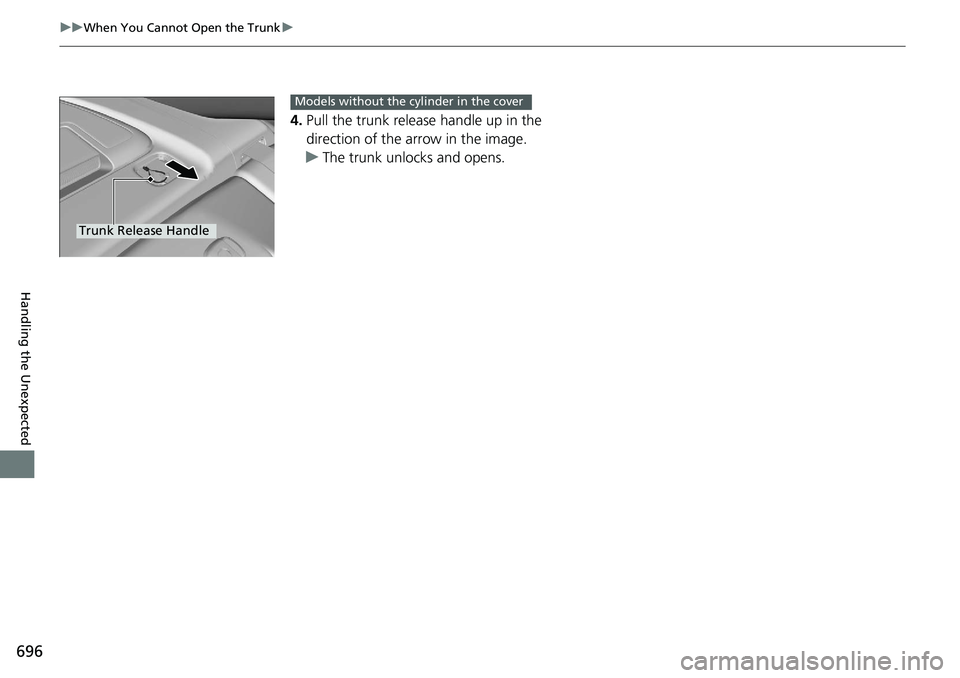

Handling the Unexpected 4. Pull the trunk release handle up in the
direction of the arrow in the image.
u The trunk unlocks and opens.
Trunk Release Handle Models without the cylinder in the cover

697
Handling the Unexpected

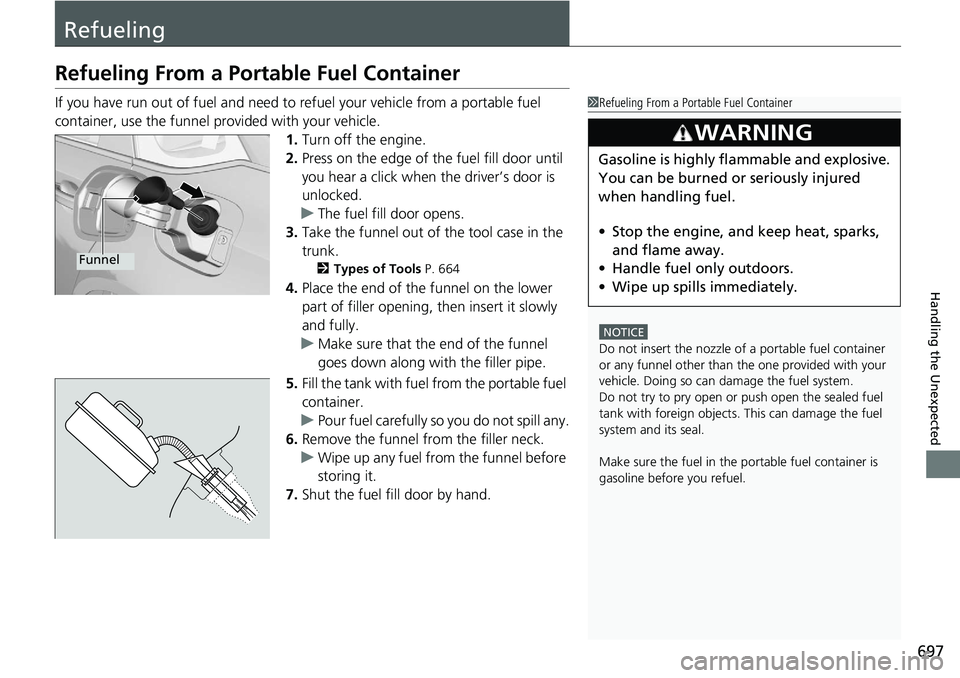

RefuelingRefueling From a Portable Fuel Container If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1. Turn off the engine.
2. Press on the edge of the fuel fill door until
you hear a click when the driver’s door is
unlocked.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk. 2 Types of Tools P. 664
4. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand. 1 Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.3
WARNING Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
