HONDA ACCORD HYBRID 2019 Owners Manual

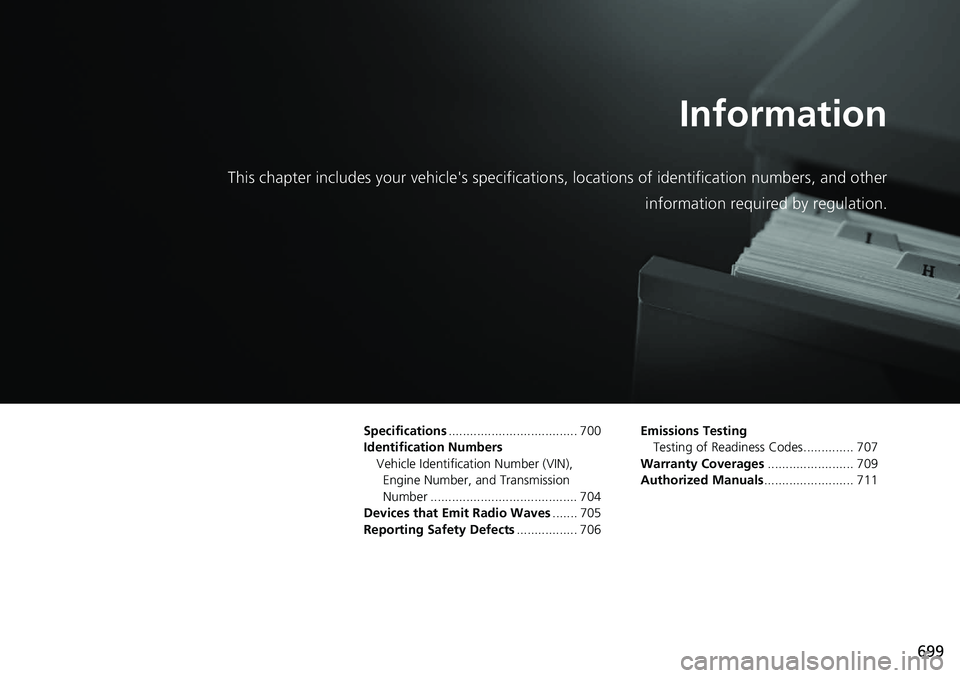

699InformationThis chapter includes your vehicl e's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 700
Identification Numbers
Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number ......................................... 704
Devices that Emit Radio Waves ....... 705
Reporting Safety Defects ................. 706 Emissions Testing
Testing of Readiness Codes.............. 707
Warranty Coverages ........................ 709
Authorized Manuals ......................... 711

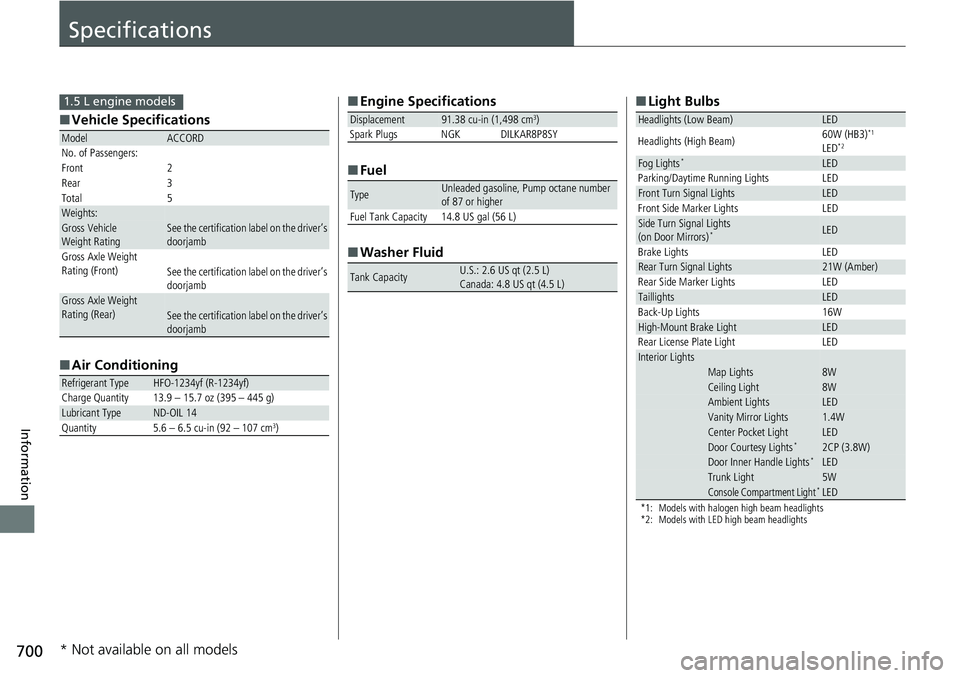

700
Information Specifications ■ Vehicle Specifications
■ Air Conditioning Model ACCORD
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)
See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)
See the certification label on the driver’s
doorjamb
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant Type ND-OIL 14
Quantity 5.6 – 6.5 cu-in (92 – 107 cm 3
)1.5 L engine models
■ Engine Specifications
■ Fuel
■ Washer Fluid Displacement 91.38 cu-in (1,498 cm 3
)
Spark Plugs NGK DILKAR8P8SY
Type Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14.8 US gal (56 L)
Tank Capacity U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L) ■ Light Bulbs
*1: Models with halogen high beam headlights
*2: Models with LED high beam headlightsHeadlights (Low Beam) LED
Headlights (High Beam) 60W (HB3) *1
LED *2
Fog Lights *
LED
Parking/Daytime Running Lights LED
Front Turn Signal Lights LED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors) *
LED
Brake Lights LED
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights LED
Taillights LED
Back-Up Lights 16W
High-Mount Brake Light LED
Rear License Plate Light LED
Interior Lights
Map Lights 8W
Ceiling Light 8W
Ambient Lights LED
Vanity Mirror Lights 1.4W
Center Pocket Light LED
Door Courtesy Lights *
2CP (3.8W)
Door Inner Handle Lights *
LED
Trunk Light 5W
Console Compartment Light *
LED
* Not available on all models

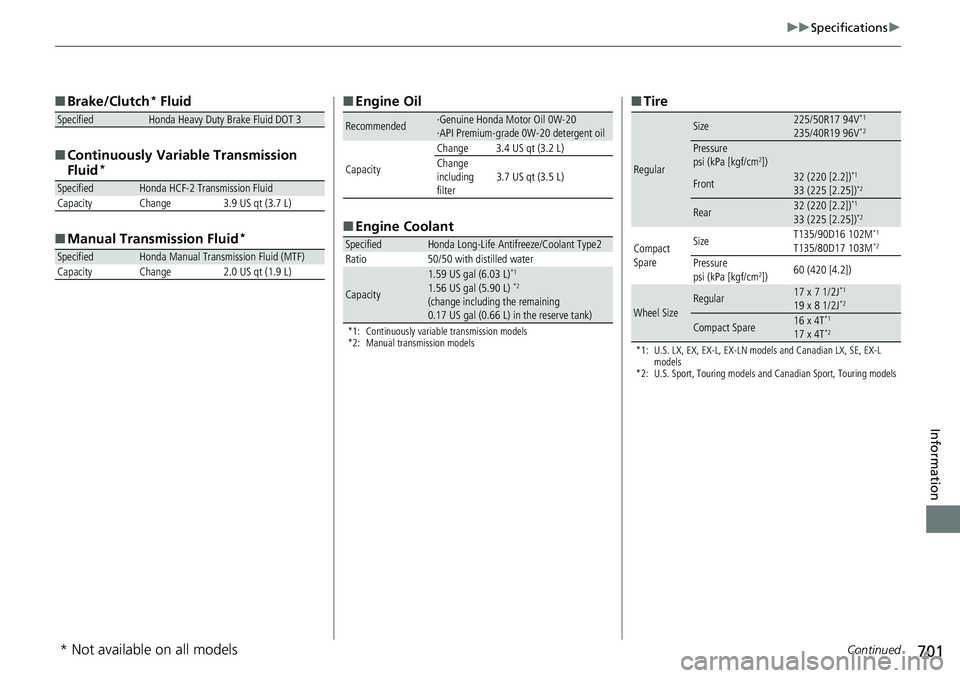

701 uu Specifications u
Continued
Information
■ Brake/Clutch *
Fluid
■ Continuously Variable Transmission
Fluid *
■ Manual Transmission Fluid *Specified Honda Heavy Duty Brake Fluid DOT 3
Specified Honda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)
Specified Honda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L) ■ Engine Oil
■ Engine Coolant *1: Continuously variable transmission models
*2: Manual transmission modelsRecommended ·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter 3.7 US qt (3.5 L)
Specified Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity 1.59 US gal (6.03 L) *1
1.56 US gal (5.90 L) *2
(change including the remaining
0.17 US gal (0.66 L) in the reserve tank) ■ Tire
*1: U.S. LX, EX, EX-L, EX-LN models and Canadian LX, SE, EX-L
models
*2: U.S. Sport, Touring models and Canadian Sport, Touring modelsRegular Size 225/50R17 94V *1
235/40R19 96V *2
Pressure
psi (kPa [kgf/cm 2
])
Front 32 (220 [2.2]) *1
33 (225 [2.25]) *2
Rear 32 (220 [2.2]) *1
33 (225 [2.25]) *2
Compact
Spare Size T135/90D16 102M *1
T135/80D17 103M *2
Pressure
psi (kPa [kgf/cm 2
]) 60 (420 [4.2])
Wheel Size Regular 17 x 7 1/2J *1
19 x 8 1/2J *2
Compact Spare 16 x 4T *1
17 x 4T *2
* Not available on all models

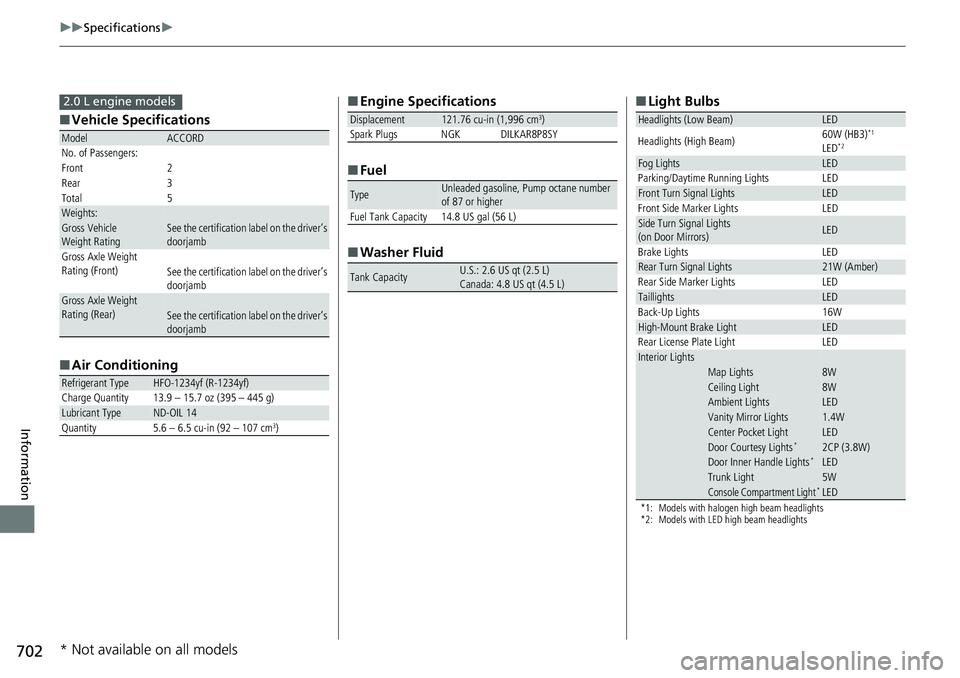

702 uu Specifications u
Information ■ Vehicle Specifications
■ Air Conditioning Model ACCORD
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)
See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)
See the certification label on the driver’s
doorjamb
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant Type ND-OIL 14
Quantity 5.6 – 6.5 cu-in (92 – 107 cm 3
)2.0 L engine models
■ Engine Specifications
■ Fuel
■ Washer Fluid Displacement 121.76 cu-in (1,996 cm 3
)
Spark Plugs NGK DILKAR8P8SY
Type Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14.8 US gal (56 L)
Tank Capacity U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L) ■ Light Bulbs
*1: Models with halogen high beam headlights
*2: Models with LED high beam headlightsHeadlights (Low Beam) LED
Headlights (High Beam) 60W (HB3) *1
LED *2
Fog Lights LED
Parking/Daytime Running Lights LED
Front Turn Signal Lights LED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights LED
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights LED
Taillights LED
Back-Up Lights 16W
High-Mount Brake Light LED
Rear License Plate Light LED
Interior Lights
Map Lights 8W
Ceiling Light 8W
Ambient Lights LED
Vanity Mirror Lights 1.4W
Center Pocket Light LED
Door Courtesy Lights *
2CP (3.8W)
Door Inner Handle Lights *
LED
Trunk Light 5W
Console Compartment Light *
LED
* Not available on all models

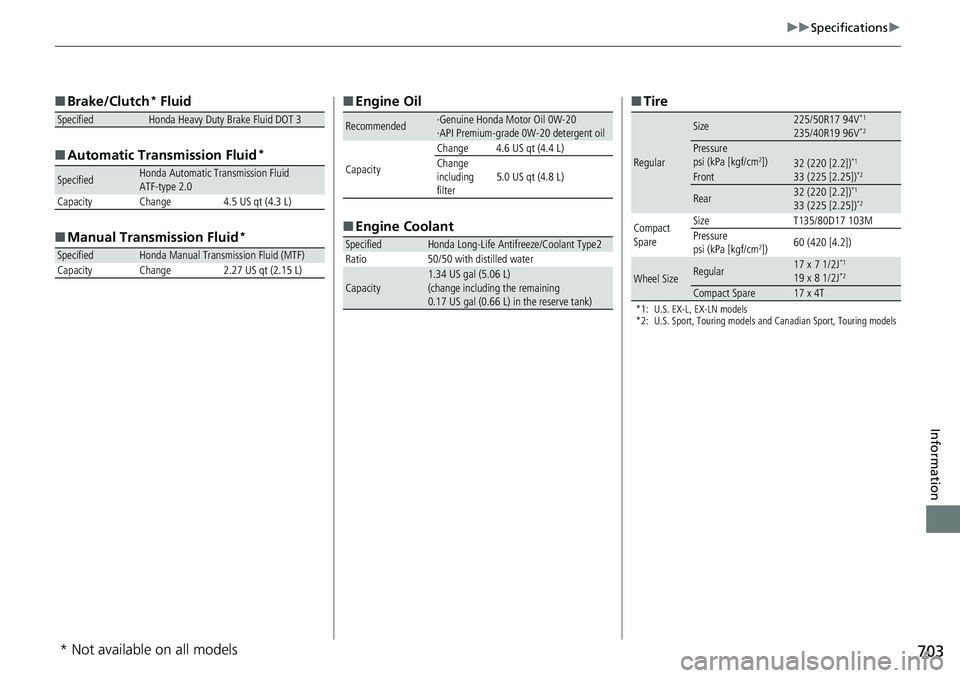

703 uu Specifications u
Information
■ Brake/Clutch *
Fluid
■ Automatic Transmission Fluid *
■ Manual Transmission Fluid *Specified Honda Heavy Duty Brake Fluid DOT 3
Specified Honda Automatic Transmission Fluid
ATF-type 2.0
Capacity Change 4.5 US qt (4.3 L)
Specified Honda Manual Transmission Fluid (MTF)
Capacity Change 2.27 US qt (2.15 L) ■ Engine Oil
■ Engine Coolant Recommended ·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.6 US qt (4.4 L)
Change
including
filter 5.0 US qt (4.8 L)
Specified Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity 1.34 US gal (5.06 L)
(change including the remaining
0.17 US gal (0.66 L) in the reserve tank) ■ Tire
*1: U.S. EX-L, EX-LN models
*2: U.S. Sport, Touring models and Canadian Sport, Touring modelsRegular Size 225/50R17 94V *1
235/40R19 96V *2
Pressure
psi (kPa [kgf/cm 2
])
32 (220 [2.2]) *1
33 (225 [2.25]) *2
Front
Rear 32 (220 [2.2]) *1
33 (225 [2.25]) *2
Compact
Spare Size T135/80D17 103M
Pressure
psi (kPa [kgf/cm 2
]) 60 (420 [4.2])
Wheel Size Regular 17 x 7 1/2J *1
19 x 8 1/2J *2
Compact Spare 17 x 4T
* Not available on all models

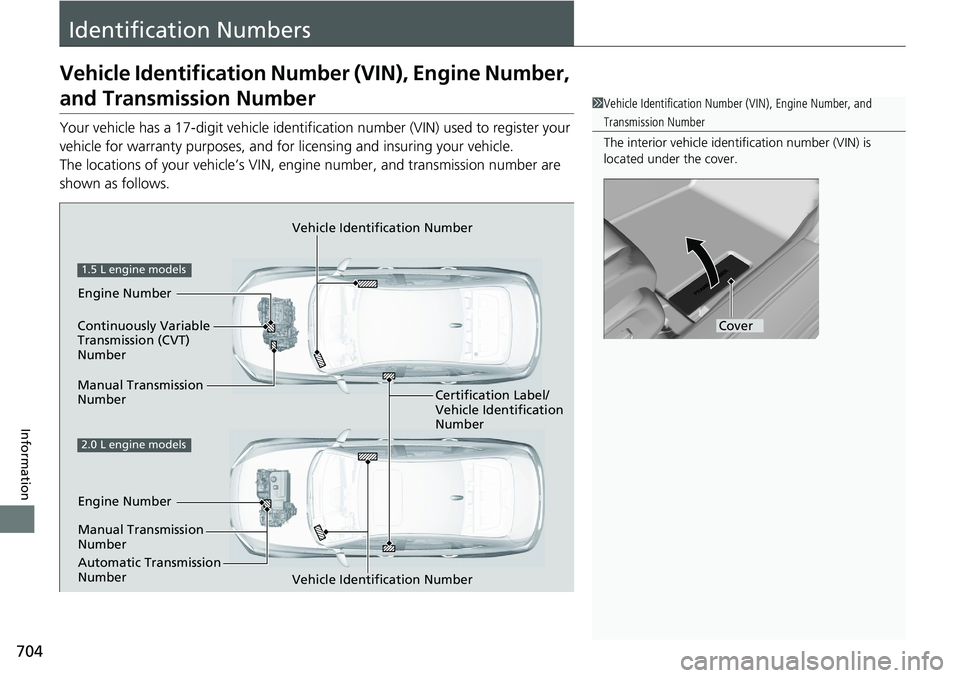

704
Information Identification NumbersVehicle Identification Numb er (VIN), Engine Number,
and Transmission Number Your vehicle has a 17-digit ve hicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows. 1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
CoverVehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
NumberManual Transmission
Number Continuously Variable
Transmission (CVT)
Number
2.0 L engine models1.5 L engine models
Engine Number
Automatic Transmission
Number
Vehicle Identification NumberManual Transmission
Number

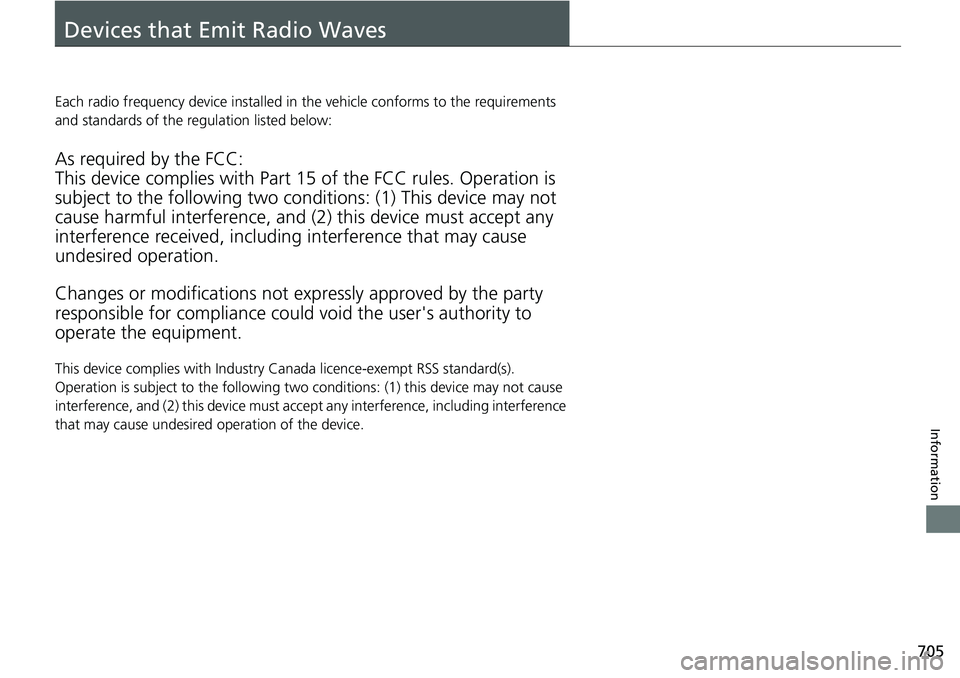

705
Information
Devices that Emit Radio Waves Each radio frequency device installed in th e vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment. This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.

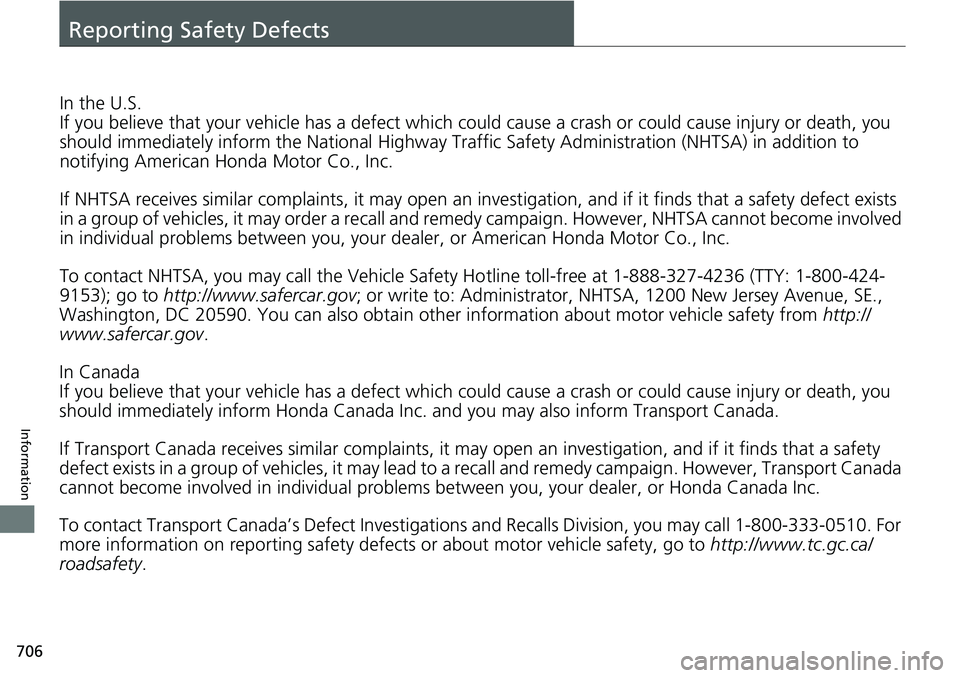

706
Information Reporting Safety Defects In the U.S.
If you believe that your vehicle has a defect which c ould cause a crash or could ca use injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Admini stration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds th at a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about moto r vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could ca use injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about mo tor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .

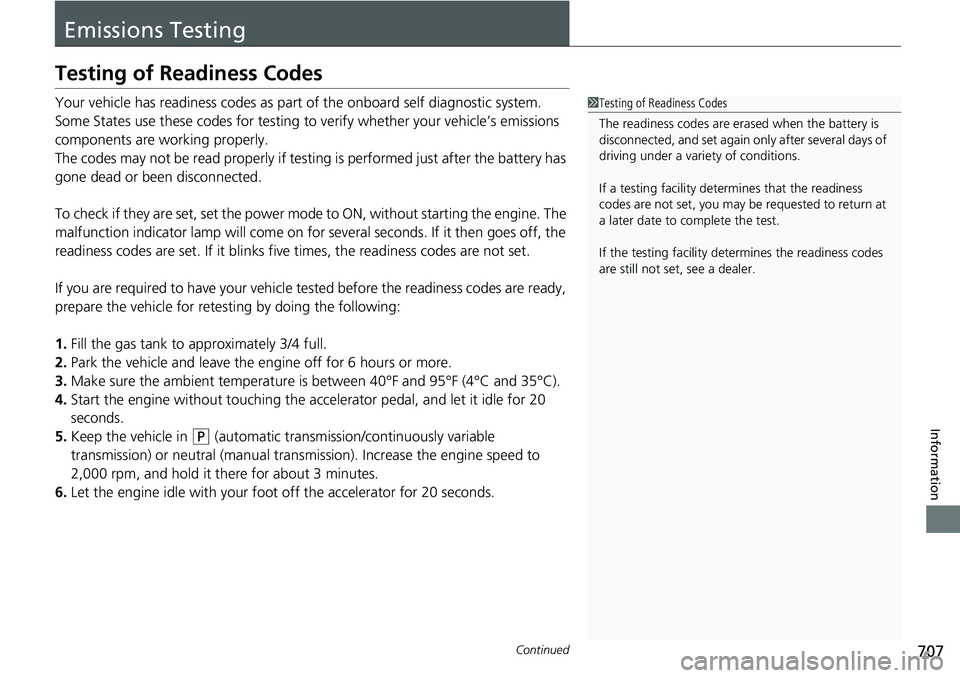

707Continued
Information
Emissions TestingTesting of Readiness Codes Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power m ode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in ( P
(automatic transmission/continuously variable
transmission) or neutral (manual transm ission). Increase the engine speed to
2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds. 1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

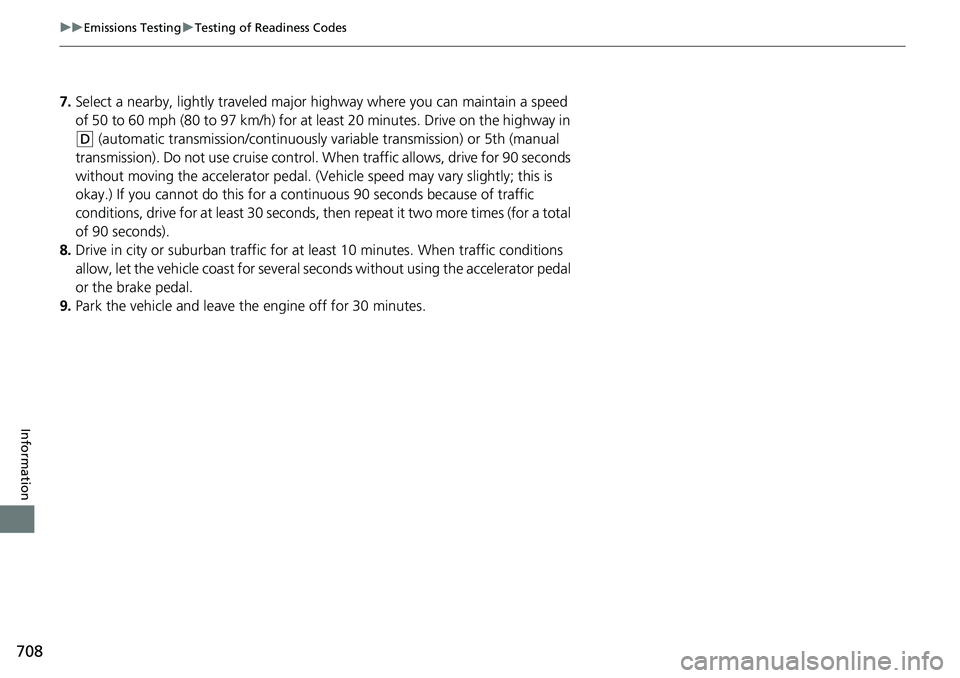

708 uu Emissions Testing u Testing of Readiness Codes
Information 7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
( D
(automatic transmission/continuously va riable transmission) or 5th (manual
transmission). Do not use cruise control. When traffic allows, drive for 90 seconds
without moving the accelerator pedal. (Veh icle speed may vary slightly; this is
okay.) If you cannot do this for a continuous 90 seconds because of traffic
conditions, drive for at least 30 seconds, th en repeat it two more times (for a total
of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
