HONDA ACCORD SEDAN 2001 Owner's Manual (in English)

Audio System

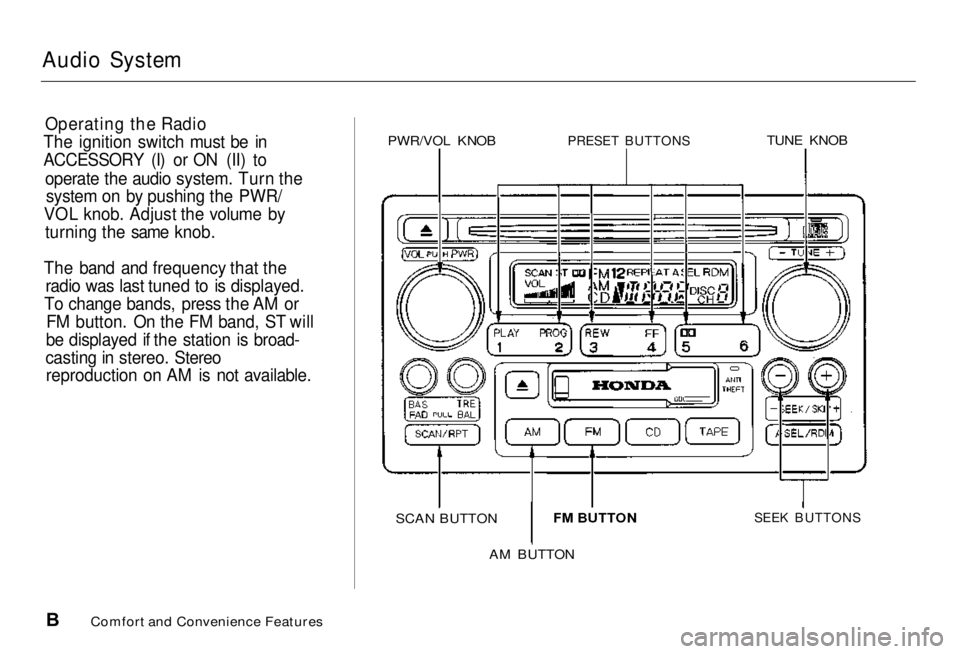

Operating the Radio
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob. Adjust the volume by
turning the same knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
casting in stereo. Stereo
reproduction on AM is not available.

PWR/VOL KNOB
PRESET BUTTONS
TUNE KNOB
SCAN BUTTON
SEEK BUTTONS

AM BUTTON
Comfort and Convenience Features

B

Audio System

You can use any of four methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
TUNE — Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob clockwise to tune to a
higher frequency, or
counterclockwise to tune to a lower
frequency.
SEEK — The SEEK function
searches the band for a station with
a strong signal. To activate it, press
either SEEK button or then
release it. Depending on which
SEEK button you press, the system
scans upward or downward from the
current frequency. It stops when it
finds a station with a strong signal.
SCAN — The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. The system will scan
up the band for a station with a
strong signal. When it finds one, it
will stop and play that station for
approximately five seconds. If you do
nothing, the system will then scan
for the next strong station and play
that for five seconds. When it plays a
station that you want to continue
listening to, press the SCAN button

again.

Preset — You can store the
frequencies of your favorite radio
stations in the six preset buttons.
Each button will store one frequency

on the AM band, and two

frequencies on the FM band.
To store a frequency:
1. Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each Preset
button.
2. Use the TUNE or SEEK function
to tune the radio to a desired

station.

3. Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Once a station's frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset frequencies will be lost if
your vehicle's battery goes dead, is
disconnected, or the radio fuse is

removed.

CONTINUED

Comfort and Convenience Features

C

Audio System
AUTO SELECT — If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local

area.

To activate Auto Select, press the
A. SEL button. A. SEL will flash in
the display, and the system will go
into scan mode for several seconds.
It automatically scans both bands,
looking for stations with strong
signals. It stores the frequencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
If you are in a remote area, Auto
Select may not find six strong AM
stations or twelve strong FM stations.
If this happens, you will see a "0"
displayed when you press any preset
button that does not have a station

stored.

Comfort and Convenience Features

A. SEL BUTTON
A. SEL INDICATOR

D

Audio System

If you do not like the stations Auto
Select has stored, you can store
other frequencies in the preset
buttons. Use the TUNE, SEEK, or
SCAN function to find the desired
frequencies, then store them in the
selected preset buttons as described
previously.
Auto Select does not erase the
frequencies that you preset pre-
viously. When you return home, turn
off Auto Select by pressing the
A. SEL button. The preset buttons
will then select the frequencies you
originally set.
TUNE KNOB
SCAN BUTTONPRESET BUTTONSSEEK BUTTONS
Comfort and Convenience Features

E

Audio System

Adjusting the Sound
Balance/Fader — These two
controls adjust the strength of the
sound coming from each speaker.
The Balance control adjusts the side-
to-side strength, while the Fader
control adjusts the front-to-back

strength.

To adjust the fader, push on the
BASS/FADER control knob to get it
to pop out. Pull it out slightly farther,
and adjust the front-to-back sound to
your liking. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
To adjust the balance, push on the
TREBLE/BALANCE control knob
to get it to pop out. Pull it out slightly
farther, and adjust the side-to-side
sound to your liking. Push the knob
back in when you are done so you
cannot change the setting by
accidentally bumping it.

BASS/FADER
CONTROL
TREBLE/BALANCECONTROL
Treble/Bass — Use these controls
to adjust the tone to your liking.
To adjust the Treble level, push on
the TREBLE/BALANCE control
knob to get it to pop out. Without
pulling it out farther, turn the knob
to adjust the treble level. Push the
knob back in when you are done so
you cannot change the setting by
accidentally bumping it.
To adjust the Bass level, push on the
BASS/FADER control knob to get it
to pop out. Without pulling it out
farther, turn the knob to adjust the
bass level. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.

Comfort and Convenience Features

F

Audio System

Operating the CD Player
You operate the CD player with the
same controls used for the radio.
With the system on, insert the disc
into the CD slot. Push the disc in
halfway, the drive will pull it in the
rest of the way and begin to play.
The number of the track that is
playing is shown in the display.
You can also play 3-inch (8-cm) discs
without using an adapter ring. In all
cases, play only standard round discs.
Odd-shaped CDs may jam in the
drive or cause other problems.
When the system reaches the end of
the disc, it will return to the begin-
ning and play that disc again.
You can switch to the radio while a
CD is playing by pressing the AM or
FM button. Press the CD button to
return to playing the CD. The CD
will begin playing where it left off.
CONTINUED

Comfort and Convenience Features

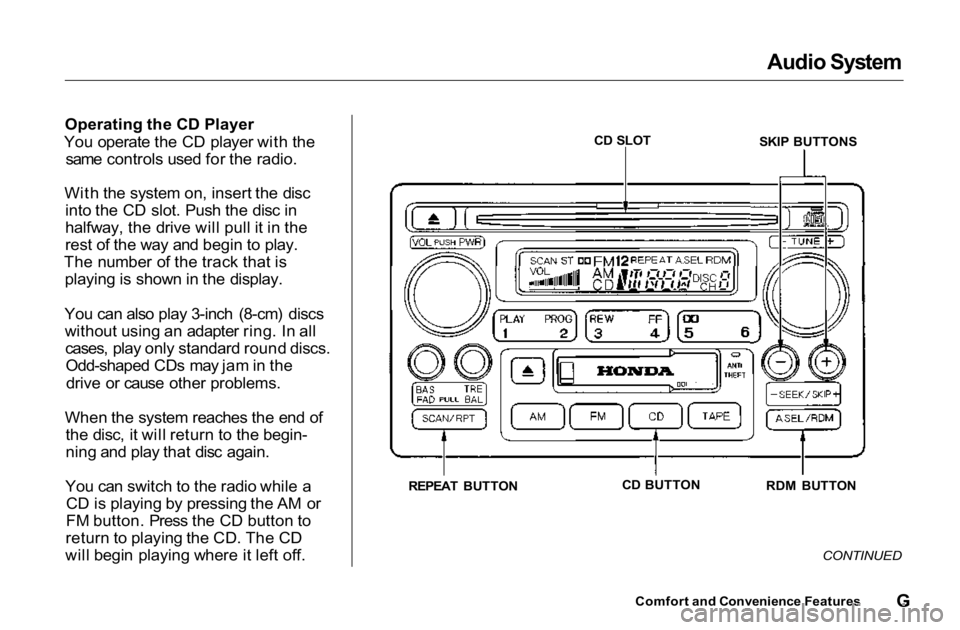

CD SLOTSKIP BUTTONS
REPEAT BUTTONCD BUTTONRDM BUTTON

G

Audio System

If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
you turn the system back on, the CD
will begin playing where it left off.
Press the eject button to remove the
disc from the drive.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc
after 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD button.
You can use the SKIP buttons while
a disc is playing to select passages
and change tracks.
To move rapidly within a track, press
and hold an appropriate SKIP button.
Press the button to move forward,or the button to move backward.
Release the button when the system
reaches the point you want.
Each time you press the button
and release it, the system skips
forward to the beginning of the next
track. Press and release the
button to skip backward to the
beginning of the current track. Press
and release it again to skip to the
beginning of the previous track.

REPEAT — To activate the Repeat

feature, press and release the Repeat

button. You will see REPEAT in the

display. The system continuously

replays the current track. Press the

Repeat button again to turn it off.

RANDOM PLAY — This feature,

when activated, plays the tracks on

the CD in random order, rather than

in the order they are recorded on the

CD. To activate Random Play, press

the RDM button. You will see RDM

in the display. The system will then

select and play tracks randomly.

This continues until you deactivate

Random Play by pressing the RDM

button again.
Comfort and Convenience Features

H

Audio System

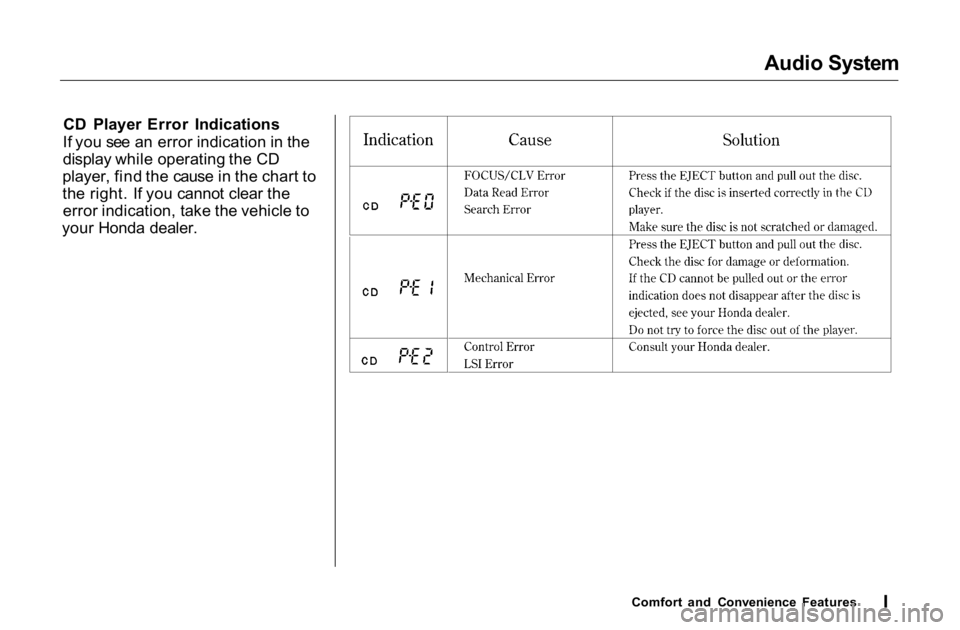

CD Player Error Indications
If you see an error indication in the
display while operating the CD
player, find the cause in the chart to
the right. If you cannot clear the
error indication, take the vehicle to
your Honda dealer.
Comfort and Convenience Features

I

Audio System

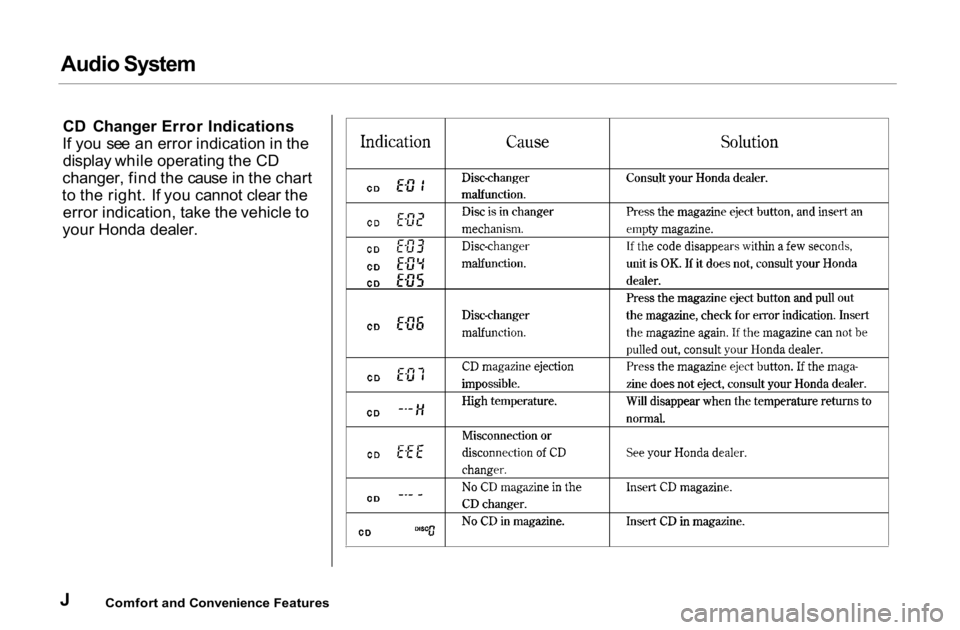

CD Changer Error Indications
If you see an error indication in the
display while operating the CD
changer, find the cause in the chart
to the right. If you cannot clear the
error indication, take the vehicle to
your Honda dealer.

Comfort and Convenience Features

J

Audio System
Operating the Cassette Player
The cassette system features Dolby
B* noise reduction, automatic
sensing of chromium-dioxide (CrO2)
tape, and autoreverse for continuous
play.
Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play.

* Dolby noise reduction manufactured under

license from Dolby Laboratories Licensing Corpo-

ration. "DOLBY" and the double-D symbol

are trademarks of Dolby Laboratories

Licensing Corporation.

CONTINUED
Comfort and Convenience Features

PLAY
BUTTON
REW
BUTTON
DOLBY BUTTON
FF BUTTON
REPEAT BUTTON
PROG BUTTONCD BUTTON
SKIP BUTTONS

K
