HONDA ACCORD SEDAN 2001 (in English) Workshop Manual

Additional Information About Your Airbags

Airbag ServiceYour front and side airbag systems (if equipped) are virtually
maintenance-free, and there are no
parts you can safely service. However, you must have your car
serviced if:
Your airbags ever inflate. Any
airbag that has deployed must be
replaced along with the control
unit and other related parts. Do
not try to remove or replace any airbag by yourself.
This must be done by a Honda dealer or a knowledgeable body
shop.

The SRS indicator light alerts you

to a problem. Take your car to an
authorized Honda dealer as soon as possible. If you ignore this
indication, the airbags might not
inflate when you need them. Additional Safety Precautions

Do not attempt to deactivate your

airbags. Together, airbags and

seat belts provide the best
protection.
Do not tamper with airbag
components or wiring for any

reason. Tampering could cause

the airbags to deploy, possibly causing very serious injury.

Do not expose the front seat-backs
to water. If rain or spilled water
soaks into a seat-back, it can
prevent the side airbag system from working properly.
Do not cover or replace front seat-

back covers without consulting a

Honda dealer. Improperly

replacing or covering front seat-
back covers can prevent your side airbags from inflating during a
collision.
See page 187 for further information
and precautions relating to your
airbags.

Driver and Passenger Safety

Carbon Monoxide Hazard
Your car's exhaust contains carbon monoxide gas. You should have no
problem with carbon monoxide entering the car in normal driving if
you maintain your car properly. Have the exhaust system inspected
for leaks whenever:
The car is raised for an oil change.
You notice a change in the soundof the exhaust.
The car was in an accident that may have damaged the underside. High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. With the trunk lid open, air flow can
pull exhaust gas into your car'sinterior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows and set the heating and coolingsystem as shown below.
If you must sit in your parked car,
even in an unconfined area, with the
engine running, adjust the heating and cooling system as follows: 1. Push the button.
2. Select the mode.
3. Turn the fan on high speed.
4. Set the temperature control to a
comfortable setting.

Driver and Passenger Safety

Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

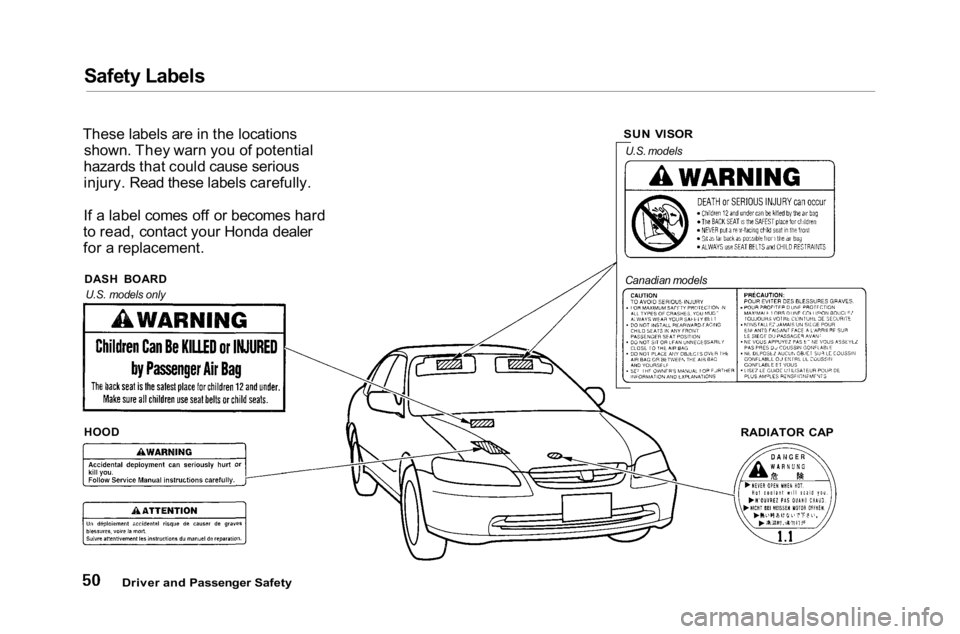

Safety Labels

These labels are in the locations shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Honda dealer
for a replacement.

Driver and Passenger Safety

DASH BOARD

SUN VISOR

U.S. models

RADIATOR CAP

HOOD
Canadian models
U.S. models only

Instruments and Controls

This section gives information about
the controls and displays thatcontribute to the daily operation of

your Honda. All the essential
controls are within easy reach.

Control Locations............................ 52

Indicator Lights................................ 53

Gauges.............................................. 58
Speedometer................................ 58

Tachometer.................................. 58

Odometer...................................... 58

Trip Meter.................................... 59
Temperature Gauge.................... 59
Fuel Gauge................................... 59

Maintenance Required
Indicator.................................... 60

Controls Near the Steering Wheel........................................ 61
Headlights.................................... 62
Automatic Lighting Off Feature...................................... 63
Daytime Running Lights............. 63 Instrument Panel Brightness..... 63
Turn Signals................................. 64
Windshield Wipers...................... 64
Windshield Washers................... 66
Hazard Warning........................... 66
Rear Window Defogger.............. 66

Steering Wheel Adjustment....... 67

Steering Wheel Controls ................ 68 Cruise Control.............................. 68
Remote Audio Controls .............. 70
Keys and Locks................................ 71
Keys...............................................71

Immobilizer System..................... 72
Ignition Switch............................. 73
Door Locks................................... 74
Power Door Locks....................... 75
Remote Transmitter.................... 76Childproof Door Locks............... 80
Trunk............................................ 80 Inside Trunk Opener................... 82
Glove Box..................................... 82

HomeLink Universal Transmitter......... 83

Seat Adjustments............................. 88
Front Seat Adjustments.............. 88

Driver's Seat Manual Height
Adjustment............................... 89
Driver's Seat Power Height

Adjustment............................... 89

Driver's Seat Full Power
Adjustments............................. 90

Driver's Lumbar Support............ 91
Front Passenger's Seat
Adjustments............................. 92

Head Restraints........................... 92

Folding Rear Seat........................ 93
Rear Seat Armrest....................... 94
Trunk Pass-through Cover......... 95

Seat Heaters..................................... 96

Power Windows............................... 97

Moonroof.......................................... 98

Mirrors.............................................. 99
Adjusting the Power Mirrors... 100

Parking Brake................................ 101

Digital Clock................................... 102
Console Compartment.................. 103

Coin Box......................................... 103

Beverage Holder............................ 104

Sun Visor......................................... 105

Vanity Mirror................................. 105
Sunglasses Holder......................... 106

Accessory Power Socket.............. 106
Interior Lights................................ 107

Instruments and Controls

Control Locations

Instruments and Controls
MIRROR
CONTROLS
(P.100) DIGITAL CLOCK
(P.102)

HEATING/COOLING

CONTROL
(P.110)

AUDIO SYSTEM
(P.125)
HOOD RELEASE
HANDLE
(P.180)
TRUNK RELEASE

HANDLE/

FUEL FILL DOOR
(P.80, 178)
DOOR LOCK
SWITCH (P.75)
POWER WINDOW
SWITCHES (P.97)

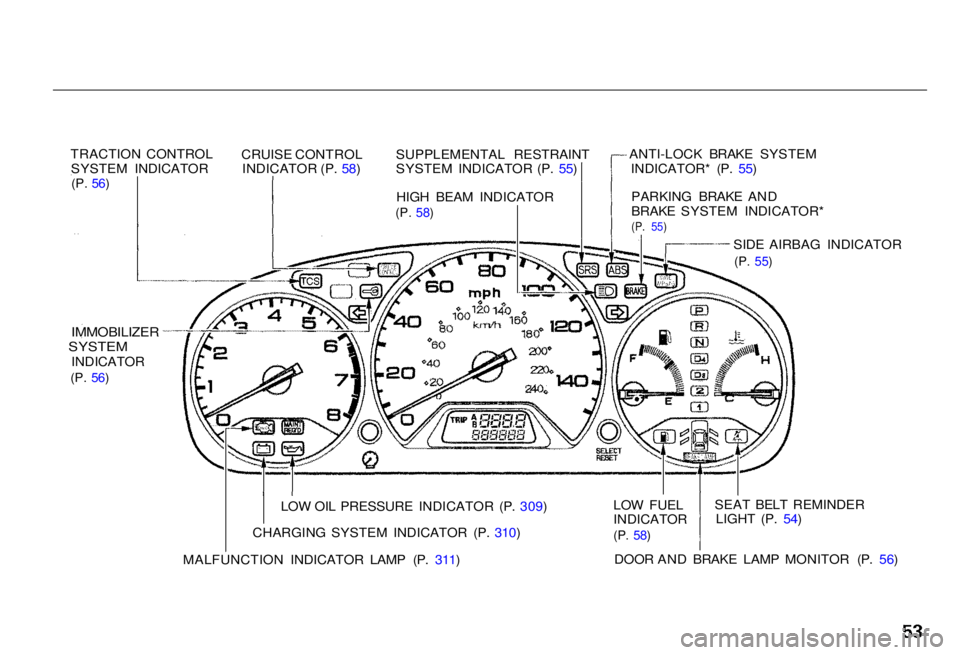

Indicator Lights
TRACTION CONTROLSYSTEM INDICATOR
(P. 56)

CRUISE CONTROLINDICATOR (P. 58)SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR (P. 55)
HIGH BEAM INDICATOR
(P. 58)

ANTI-LOCK BRAKE SYSTEMINDICATOR* (P. 55)
PARKING BRAKE AND BRAKE SYSTEM INDICATOR*
(P. 55)

SIDE AIRBAG INDICATOR
(P. 55)

IMMOBILIZER
SYSTEM
INDICATOR
(P. 56)

LOW OIL PRESSURE INDICATOR (P. 309)
CHARGING SYSTEM INDICATOR (P. 310)
MALFUNCTION INDICATOR LAMP (P. 311)
LOW FUEL INDICATOR
(P. 58)

SEAT BELT REMINDERLIGHT (P. 54)
DOOR AND BRAKE LAMP MONITOR (P. 56)
* The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.

Instruments and Controls

TRACTION CONTROLSYSTEM INDICATOR
(P. 56)

CRUISE CONTROLINDICATOR (P. 58)SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR (P. 55)
HIGH BEAM INDICATOR
(P. 58)

ANTI-LOCK BRAKE SYSTEMINDICATOR* (P. 55)
PARKING BRAKE AND BRAKE SYSTEM INDICATOR*
(P. 55)

SIDE AIRBAG INDICATOR
(P. 55)

IMMOBILIZER
SYSTEM
INDICATOR
(P. 56)

LOW OIL PRESSURE INDICATOR (P. 309)
CHARGING SYSTEM INDICATOR (P. 310)
MALFUNCTION INDICATOR LAMP (P. 311)
LOW FUEL INDICATOR
(P. 58)

SEAT BELT REMINDERLIGHT (P. 54)
DOOR AND BRAKE LAMP MONITOR (P. 56)

Indicator Lights

The instrument panel has many

indicators to give you important
information about your car.

Seat Belt Reminder Light
This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by fastening
the seat belts. A beeper also sounds
if you have not fastened your seat

belt.

If you do not fasten your seat belt,
the beeper will stop after a few
seconds but the light stays on until
you do. Both the light and the beeper
stay off if you fasten your seat belt
before turning on the ignition.
Low Oil Pressure

Indicator

The engine can be severely damaged
if this light flashes or stays on when

the engine is running. For complete

information, see page 309 .

Charging System

Indicator

If this light comes on when the

engine is running, the battery is not

being charged. For complete

information, see page 310 .

Instruments and Controls

Indicator Lights

U.S.

Parking Brake and
Brake System Indicator
1. This indicator comes on when you turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not fully released candamage the brakes and tires.
2. If the indicator remains lit after you have fully released theparking brake while the engine isrunning, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
information, see page 313 .
Supplemental Restraint

System Indicator
This indicator lights when you turn the ignition switch ON (II). If itcomes on at any other time, it
indicates a potential problem with
your front airbags or automatic seat belt tensioners. This light willalso alert you to a potential problem
with your side airbags. For complete information, see page 47.
Side Airbag Indicator
Only on models equipped with side
airbags
This indicator lights when you turn the ignition switch ON (II). If itcomes on at any other time, it
indicates that the passenger's side airbag has automatically shut off.
For complete information, see page
47.

Malfunction IndicatorLamp

See page 311.
U.S.


Anti-lock Brake System
(ABS) Indicator

Only on models equipped with ABS (see

page 204)

This light normally comes on for a few seconds when you turn theignition switch ON (II), and when
the ignition switch is turned toSTART (III). If this light comes on at
any other time, there is a problem in
the ABS. If this happens, take the car to your dealer to have it checked.
With the light on, your car still has normal braking ability but no anti-
lock. For complete information, see
page 205.

Instruments and Controls

Canada

S R S
SIDEAIRBAG
A B S

Canada

Indicator Lights

Traction Control System(TCS) Indicator

On all V6 models

This indicator has three functions:
1. It comes on as a reminder that you have turned off the Traction
Control System.
2. It flashes when the TCS is regulating wheelspin.
3. If it comes on and stays on when the Traction Control System is on,it indicates that there is a problem
in the TCS.
This light also comes on when you turn the ignition ON (II) and goes offafter the engine starts. See page
206 for more information on the

TCS.
Door and Brake Lamp Monitor
The appropriate light comes on in this display if the trunk or any dooris not closed tightly. If a brake light does not work, the BRAKE LAMP
indicator comes on when you push
the brake pedal with the ignition switch ON (II).
A burned out brake light is a hazard when drivers behind you cannot tell
you are braking. Have your brakelights repaired right away.
All the lights in the monitor display
come on for a few seconds when you
turn the ignition switch ON (II). Turn Signal and
Hazard WarningIndicators
The left or right turn signal light blinks when you signal a lane changeor turn. If the light does not blink or
blinks rapidly, it usually means oneof the turn signal bulbs is burned out (see page 277 ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
When you turn on the Hazard
Warning switch, both turn signal lights blink. All turn signals on the
outside of the car should flash.
Instruments and Controls

TCS

Indicator Lights

"Daytime Running
Lights" Indicator

Canadian models only

This indicator lights when you turn the ignition switch to ON (II) withthe headlight switch off and the
parking brake set. It should go off if
you turn on the headlights or release
the parking brake. If it comes on at any other time, it means there is a
problem with the DRL. There may also be a problem with the high
beam headlights.
High Beam Indicator
This light comes on with the high beam headlights. See page 60 forinformation on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights (DRL) are on (see page 63 ). Cruise Control Indicator

Only on models equipped with Cruise
Control System

This lights when you set the cruise control. See page 68 for information
on operating the cruise control.
Low Fuel Indicator
This light comes on as a reminder that you must refuel soon. Immobilizer System
Indicator
This indicator comes on for a few seconds when you turn the ignition
switch ON (II). It will then go off if
you have inserted a properly-coded ignition key. If it is not a properly-coded key, the indicator will blink
and the engine will not start (see
page 72 ).
This indicator also blinks several times when you turn the ignitionswitch from ON (II) to ACCESSORY (I) or LOCK (0).
Washer Level Indicator

Canadian models only

This light comes on when the
washer fluid level is low. Add washer fluid when you see this light come on (see page 246 ).
Instruments and Controls

CRUISE
CONTROL
DRL
