Gauges

Speedometer
U.S. Models

This shows your speed in miles per hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).

Canadian Models

This shows your speed in kilometers per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph). Tachometer
The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone. Odometer
The odometer shows the total dis- tance your car has been driven. Itmeasures miles in U.S. models and
kilometers in Canadian models. It is illegal under U.S. federal law andCanadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.

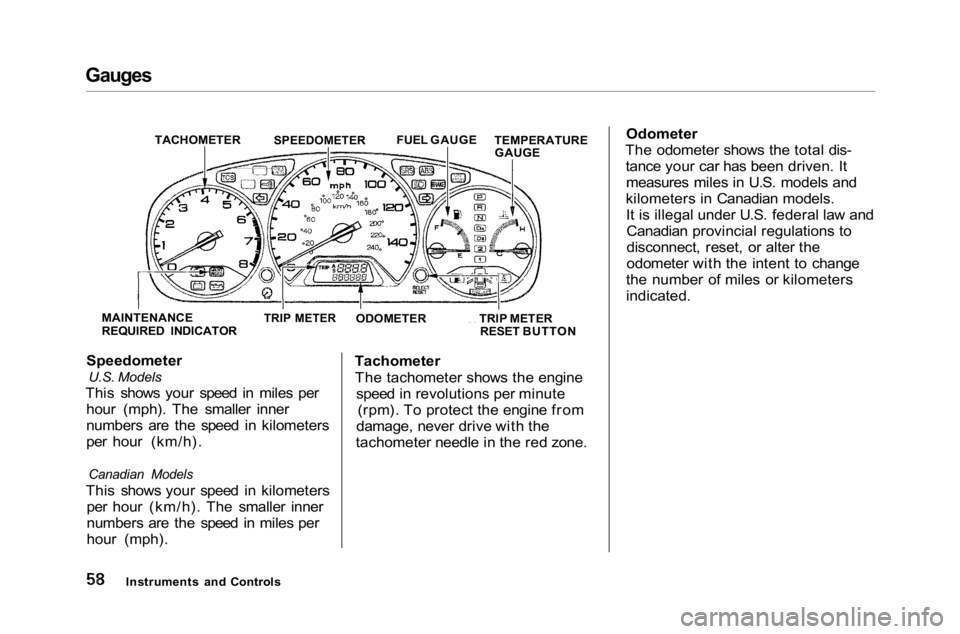

Instruments and Controls
TACHOMETER

SPEEDOMETER
FUEL GAUGE
TEMPERATURE
GAUGE
TRIP METER RESET BUTTON

ODOMETER

TRIP METER

MAINTENANCE
REQUIRED INDICATOR

Gauges

Trip Meter

This meter shows the number of miles (U.S.) or kilometers (Canada)driven since you last reset it.
There are two trip meters: Trip A and Trip B. Switch between these
displays by pressing the Select/
Reset button repeatedly. Each trip
meter works independently, so you
can keep track of two different

distances.

To reset a trip meter, display it and then press and hold the Select/Reset
button until the number resets to "0.0". Both trip meters will reset if
the vehicle's battery goes dead or isdisconnected. Temperature Gauge
This shows the temperature of the engine's coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe driving conditions, such as very hot
weather or a long period of uphill driving, the pointer may rise to near
the upper grey zone. If it reaches the
red (Hot) mark, pull safely to the side of the road. Turn to page 239 for
instructions and precautions on
checking the engine's cooling
system.
Fuel Gauge
This shows how much fuel you have. It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
when you are driving on curvy or hilly roads.
4-cylinder models
The gauge stays at the same fuel level reading after you turn off the
ignition. When you add fuel, the
gauge slowly changes to the new reading after you turn the ignitionswitch back ON (II).

6-cylinder models

The needle returns to the bottom after you turn off the ignition. The
gauge shows the fuel level reading immediately after you turn the
ignition switch back ON (II).

Instruments and Controls

Gauges

Maintenance Required Indicator

This indicator reminds you that it is time to take your car in for
scheduled maintenance.

Refer to the Maintenance Schedules
for Normal and Severe Driving Conditions on pages 224 — 228.
For the first 6,000 miles (9,600 km)
after the Maintenance Required
Indicator is reset, it will come on for
two seconds when you turn the
ignition switch ON (II). Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km) this
indicator will light for two seconds
when you first turn the ignition switch ON (II), and then flash for
ten seconds.
If you exceed 7,500 miles (12,000
km) without having the scheduled maintenance performed, this
indicator will remain on as a constant
reminder. Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is done by someone other than your
Honda dealer, reset the indicator as

follows.

1. Turn off the engine.
2. Press and hold the select/reset button in the instrument panel,
then turn the ignition switch ON
(II).
3. Hold the buttons for about ten sec- onds, until the indicator resets.

Instruments and Controls
MAINTENANCE REQUIRED
INDICATOR

SELECT/RESET BUTTON

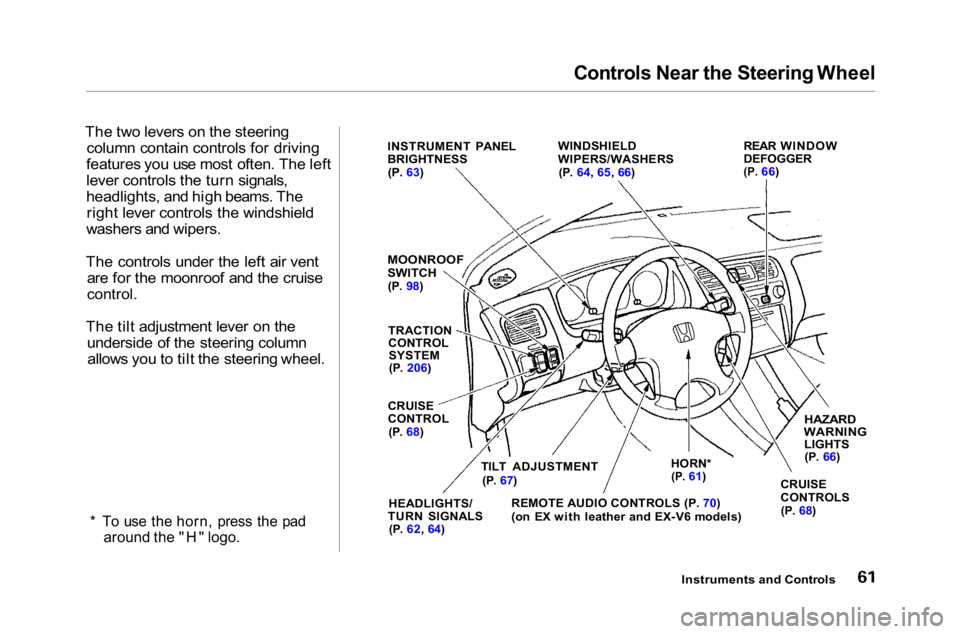

Controls Near the Steering Wheel

The two levers on the steering column contain controls for driving
features you use most often. The left
lever controls the turn signals,
headlights, and high beams. The right lever controls the windshield
washers and wipers.
The controls under the left air vent are for the moonroof and the cruise

control.

The tilt adjustment lever on the underside of the steering columnallows you to tilt the steering wheel.

* To use the horn, press the pad
around the "H" logo.

Instruments and Controls

INSTRUMENT PANEL
BRIGHTNESS
(P. 63)

WINDSHIELD
WIPERS/WASHERS

(P.
64, 65, 66) REAR WINDOW
DEFOGGER

(P.
66)

MOONROOF

SWITCH
(P.
98)
TRACTION
CONTROLSYSTEM
(P.
206)
CRUISE
CONTROL
(P.
68)
TILT ADJUSTMENT
(P.
67) HORN*

(P.
61)
HAZARD
WARNING
LIGHTS
(P.
66)
CRUISE
CONTROLS
(P.
68)
REMOTE AUDIO CONTROLS (P. 70)
(on EX with leather and EX-V6 models)
HEADLIGHTS/
TURN SIGNALS
(P.
62, 64)

Controls Near the Steering Wheel

Headlights
The rotating switch on the left lever controls the lights. Turning this switch to the position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights. Turning the switch to the
position turns on the headlights. If you leave the lights on with the
ignition switch in ACCESSORY (I)or LOCK (0), you will hear a
reminder chime when you open the driver's door.
To change between low beams and high beams, pull the turn signal lever
until you hear a click, then let go.
The blue high beam indicator will light (see page 58). To flash the high beams, pull the
turn signal lever back lightly, thenrelease it. The high beams will comeon and go off.
The high beams will stay on for as long as you hold the lever back, no
matter what position the headlightswitch is in.

Instruments and Controls

Controls Near the Steering Wheel

Automatic Lighting Off Feature
On EX and EX-V6 models

The Automatic Lighting Off feature turns off the headlights, parking
lights, taillights, side marker lights,license plate lights and instrument
panel lights within 15 seconds of
removing the key from the ignitionswitch and closing the driver's door.
This feature activates if you leave the headlight switch in the
or position, remove the key,
open, then close the driver's door.
If you remove the key from the
ignition switch with the headlight switch on, but do not open the door
and get out, the lights will turn off
after ten minutes.
The lights will turn on again when you unlock or open the driver's door.If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver's door open, you will hear a lights-on
reminder chime.
Daytime Running Lights

(Canadian Models)

With the headlight switch off, the high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignitionoff, even if you set the parking brake.
The headlights revert to normal operation when you turn them on
with the switch. Instrument Panel Brightness
The knob on the instrument panel controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
Instruments and Controls

Controls Near the Steering Wheel

Turn Signals
Signal a turn or lane change with this
lever. Push down on the lever to signal a left turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn. To signal a lane change, push lightly
on the turn signal lever in the properdirection and hold it. The lever will
return to the center position as soon as you release it. Windshield Wipers

The right lever controls the wind-
shield wipers and washers. The

rotary switch at the end of the lever
has three positions:
INT : intermittent
: low speed
: high speed

Instruments and Controls

TURN SIGNAL LEVER

Controls Near the Steering Wheel
In intermittent, the wipers operate
every few seconds. The sweep
interval will change slightly with speed; getting shorter as you drive
faster. In low speed and high speed,
the wipers run continuously.
On all models except DX
You can vary how often the wipers sweep the windshield by turning the
INT TIME ring next to the rotary switch.
If you turn the INT TIME ring to the shortest delay, the wipers will
change from intermittent to low speed operation when vehicle speed
exceeds 12 mph (20 km/h). To operate the wipers in mist mode,
push the control lever down. The
wipers run at high speed until you release the lever. This gives you aquick way to clear the windshield.
Instruments and Controls

Controls Near the Steering Wheel

Windshield Washers
To clean the windshield, pull back on the wiper control lever. The washersspray until you release the lever. The
wipers run at low speed while you're pulling the lever, then complete onemore sweep of the windshield after
you release it. Hazard Warning
Push the button to the left of the
clock to turn on the hazard warning
lights (four-way flashers). This
causes all four outside turn signals and both indicators in the instrument
panel to flash. Use the hazard
warning lights if you need to park in a dangerous area near heavy traffic,
or if your car is disabled. Rear Window Defogger
The rear window defogger will clear fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The light above
the button lights to show thedefogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition.
You have to turn it on again when
you restart the car.
Instruments and Controls

Controls Near the Steering Wheel
Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger and antenna wires on the inside of the rear window can beaccidentally damaged. When
cleaning the glass, always wipe side
to side. Steering Wheel Adjustment

See page 16 for important safety
information about how to properly

position the steering wheel.
Make any steering wheel adjustment
before you start driving.
To adjust the steering wheel upward or downward:
1. Push the lever under the steering column all the way down. 2. Move the steering wheel to the
desired position, making sure the
wheel points toward your chest, not toward your face. Make sure
you can see the instrument panel gauges and the indicator lights.
3. Push the lever up to lock the steering wheel in that position.
4. Make sure you have securely locked the steering wheel in placeby trying to move it up and down.

Instruments and Controls

Adjusting the steering wheel
position while driving may
cause you to lose control of the car and be seriously injured in a
crash.
Adjust the steering wheel only
when the car is stopped.
