HONDA ACCORD SEDAN 2001 (in English) Owners Manual

Seat Adjustments

All V-6 models, and the 4-cylinder EX model with leather interior have a
power adjustable driver's seat.
The EX-V6 model also has a power adjustable passenger's seat (See
page 92 ).
The 4-cylinder EX model without leather interior has a power seat
bottom height adjustment. All otherseat adjustments in this model are
manual.

The 4-cylinder DX, LX models have
manual seat adjustments (see next
column).
The front passenger's seat in all
4-cylinder models and the LX-V6

model adjusts manually. Front Seat Adjustments

See pages 12 — 13 for important safety

information and warnings about how to

properly position seats and seat-backs.

Adjust the seat before you start
driving.
To adjust the seat forward and backward, pull up on the lever underthe seat cushion's front edge. Move
the seat to the desired position and
release the lever. Try to move theseat to make sure it is locked in

position.
To change the angle of the seat-back,
pull up on the lever on the outside of
the seat bottom. Move the seat-back
to the desired position and release
the lever. Let the seat-back latch in
the new position.
Instruments and Controls

Seat Adjustments

Driver's Seat Manual Height
Adjustment
On LX model
The height of your driver's seat is adjustable. Turn the front dial on the
outside of the seat cushion to raise
the front of the seat bottom and turn
the rear dial to raise the rear. Driver's Seat Power Height
Adjustment

On EX model without leather

The height of your driver's seat is power adjustable. Pull up on theswitch to raise the seat. Push it down
to lower the seat.
Make all adjustments before you
start driving.
Instruments and Controls

Seat Adjustments

Driver's Seat Full Power

Adjustments
On all V-6 models, and the 4-cylinder EX

model with leather interior
See pages 12 — 13 for important safety

information and warnings about how to

properly position seats and seat-backs.

The two power seat adjustment switches are on the outside edge of
the seat bottom. The horizontal switch adjusts the seat bottom in
several directions. The short vertical
switch adjusts the seat-back angle.
You can adjust the seat with the ignition switch in any position. Makeall adjustments before you start

driving.
Push the horizontal switch forward
or backward to move the seat
forward or backward. Pull up or push down on the front of
the switch to move the seat bottom's

front edge up or down. Pull up or

push down on the rear of the switch
to move the rear of the seat bottom

up or down.

Instruments and Controls

Seat Adjustments

Pull the center of the horizontal
switch up to raise the seat. Push it down to lower the seat. Adjust the seat-back angle by
pushing the rear switch in thedirection you want to move. Driver's Lumbar Support

On EX and EX V-6 models

Vary the lumbar support by moving the lever on the right side of theseat-back. Pivot the lever forward
until it stops, then let it return. Doing
this several times adjusts the lumbar support through its full range.
Instruments and Controls

Seat Adjustments

Front Passenger's Seat
Adjustments

On EX-V6 model

The seat adjustment switches are on the outside edge of the seat bottom. Push the long horizontal switch
forward or backward to move the seat bottom in that direction.
Adjust the seat-back angle by pushing the vertical switch in thedirection you want to move. Head Restraints

See page 14 for important safety
information and a warning about how to
properly position the head restraints.
The head restraints help protect you
and your passengers from whiplash
and other injuries. They are most
effective when you adjust them so
the back of the occupant's head rests against the center of the restraint. A
taller person should adjust the
restraint as high as possible.
The front head restraints adjust for height. You need both hands toadjust the restraint. Do not attempt
to adjust it while driving. To raise it,
pull upward. To lower the restraint,
push the release button sideways and push the restraint down.
To remove a head restraint for cleaning or repair, pull it up as far as
it will go. Push the release button
and pull the restraint out of the seat-

back.

Instruments and Controls
RELEASE BUTTON

Seat Adjustments

Folding Rear Seat

The back of the rear seat folds down, giving you direct access to the trunk.
The seat-back can be released from inside the car or inside the trunk.
To fold down the seat-back from inside the car, insert the master key
in the lock on the rear shelf. Turn
the key clockwise, pull down the top of the seat-back, then release the
key.
When storing cargo, you can move

the rear center shoulder belt out of
the way by removing the belt from
the guide.
To release the seat-back from inside
the trunk, pull the release loop under
the trunk panel.
To lock the seat-back upright, push it firmly against the trunk panel. Makesure it is latched in place by pulling
on the top of the seat.

CONTINUED

Instruments and Controls

MASTER KEY

Seat Adjustments

Make sure all rear shoulder belts are
positioned in front of the rear seat-
back whenever the seat-back is in its upright position.
Make sure all items in the trunk, or
items extending through the opening
into the back seat, are secured.Loose items can fly forward and
cause injury if you have to brake
hard. See Carrying Cargo on page
188.
Never drive with the seat-back
folded down and the trunk lid open. See Carbon Monoxide Hazard on
page 49. Rear Seat Armrest
On all models except DX
The rear seat armrest is located at the center of the rear seat. Pivot itdown to use it.
Instruments and Controls

Seat Adjustments

Trunk Pass-through Cover

The pass-through cover can be opened from either side; it folds
forward onto the center armrest. Open the cover by sliding the knob
downward and pushing or pulling on
the cover. To close the cover, swing
it up and push firmly on the top. Make sure it latches properly.
Make sure all items in the trunk and
those extending through the pass-
through are secured. For security, this cover can be
locked and unlocked only with the
master key. To lock the cover, insert
the key and turn it clockwise.
Never drive with this cover open and
the trunk lid open. See Carbon Monoxide Hazard on

page 49.

Instruments and Controls

KNOB
LID

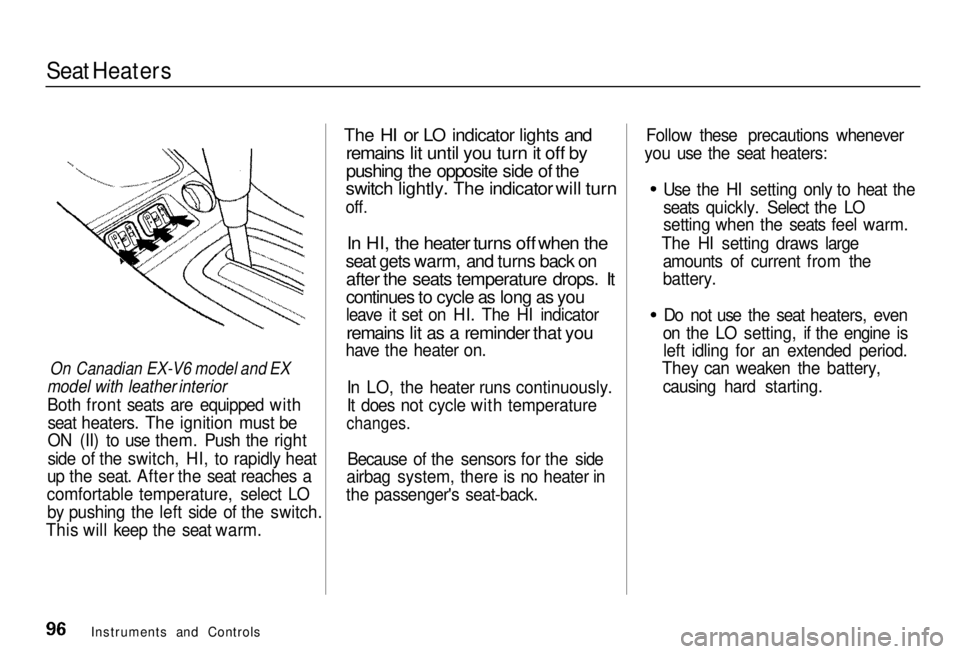

Seat Heaters

On Canadian EX-V6 model and EX

model with leather interior

Both front seats are equipped with
seat heaters. The ignition must be
ON (II) to use them. Push the right
side of the switch, HI, to rapidly heat
up the seat. After the seat reaches a
comfortable temperature, select LO
by pushing the left side of the switch.
This will keep the seat warm.

The HI or LO indicator lights and

remains lit until you turn it off by

pushing the opposite side of the

switch lightly. The indicator will turn

off.

In HI, the heater turns off when the

seat gets warm, and turns back on

after the seats temperature drops. It

continues to cycle as long as you

leave it set on HI. The HI indicator

remains lit as a reminder that you

have the heater on.
In LO, the heater runs continuously.
It does not cycle with temperature

changes.

Because of the sensors for the side
airbag system, there is no heater in
the passenger's seat-back.
Follow these precautions whenever
you use the seat heaters:
Use the HI setting only to heat the
seats quickly. Select the LO
setting when the seats feel warm.
The HI setting draws large
amounts of current from the
battery.
Do not use the seat heaters, even
on the LO setting, if the engine is
left idling for an extended period.
They can weaken the battery,
causing hard starting.
Instruments and Controls

Power Windows

On all models except DX

Your car's windows are electrically- powered. Turn the ignition switch toON (II) to raise or lower any window.
Each door has a switch that controls
its window. To open the window,
push the switch down and hold it. Release the switch when you want
the window to stop. Close the
window by pushing the switch up and holding it.
DRIVER'S WINDOW
SWITCH
MAIN
SWITCH

The driver's door armrest has a master power window control panel.
To open any of the passengers' win- dows, push down on the appropriate
switch and hold it down until the
window reaches the desired position.
To close the window, pull back on the window switch. Release theswitch when the window gets to the
position you want.

CONTINUED

Instruments and Controls

Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
