HONDA ACCORD SEDAN 2006 (in English) Owner's Guide

Your seat belt system includes lap/
shoulder belts in all f ive seating
positions. The f ront seat belts are
also equipped with automatic seat
belt tensioners.The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore
the beeper stops, the indicator will
stop f lashing but remain on. The seat belts use the same
monitoring system as the f ront
airbags. The system may not work
properly under these conditions:
Placing heavy items on the front
passenger’s seat.
The f ront passenger is not sitting
properly.
The f ront passenger’s seat-back is
pressed f orward by a f olded-down
rear seat.
If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either the driver or a f ront
passenger does not f asten their seat
belt while driving, the beeper will
sound and the indicator will f lash
again at regular intervals.
When no one is sitting in the f ront
passenger’s seat, or a small child is
riding there, the indicator will not
come on and the beeper will not
sound.
Have your vehicle checked by a
dealer if the indicator comes on or
the beeper sounds when there is no
frontpassengerorobjectsonthe
front seat.
Additional Inf ormation About Your Seat Belts
Seat Belt System Components
20
——y
y
(yy

CONTINUED
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
The
lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automati cally locks the belt to help restrain
your body.
The seat belts in all positions except
the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move f reely.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt f ully retract. To
ref asten the seat belt, pull it out only
as f ar as needed.
16
45
Additional Inf ormation About Your Seat Belts
A utomatic Seat Belt T ensioners
L ap/Shoulder Belt
Driver and Passenger Saf ety
21
——yy
(yy

The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners acti vate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same lev el
of protection in a subsequent crash. For safety, you should c heck the
condition of your seat belts regularly.
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a lif etime warranty
on seat belts f or U.S. models. See
your
booklet f or details.
The tensioners are designed to
activate in any collision severe
enough to cause the f ront airbags to
deploy.
If a side curtain airbag deploys
during a side impact, the tensioner
on that side of the vehicle will also
deploy.
The tensioners can also be activated
during a collision in which the f ront
airbags
. In this case, the
airbags would not be needed, but the
additional restraint could be helpf ul.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
If the f ront seat belt tensioners ever
activate, they must be replaced as
the belts will no longer retract
properly. 224
224
Honda Warranty Inf ormation
do not deploy
Additional Inf ormation About Your Seat Belts
Seat Belt Maintenance
22
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
——yy
(yy

Your airbag system includes:
Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page ). 25
28
30
CONT INUED
Additional Inf ormation About Your Airbags
A irbag System Components
Driver and Passenger Saf ety
23
(1) (2)
(3) (4)(5)
(8)
(7)
(10) (11)
(9)
(6) (4)
(7)
(8)
(10)(5)
(11) Occupant Position Detection System (OPDS) Sensors (1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger’s Airbag Off Indicator
(10) Side Impact Sensors
——yy
(yy

Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact or
side impact.An indicator on the instrument
panel that alerts you that the
passenger’s side airbag h
as been
turned off (see page ).
Emergency b ackup power in case
your vehicle’s electrical system is
disconnected in a crash.
A sophisticated electronic system
that continually monito
rs and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition is in ON (II).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ). An indicator on the dashboard that
alerts you that the front
passenger’s side airbag h
as been
turned off (see page ).
Sensors that can detect whether a
child is in the p
assenger’s side
airbag path and signal the control
unit to turn the airb ag off (see
page ). Weight sensors that monitor the
weight on the front passenger’s
seat. If the weight of an infant or
sm
all child is detected, the
passenger’s front airbag will be
turned off.
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page ). 21
27 30 31
31
27
Additional Inf ormation About Your Airbags
24
——yy
(yy

CONTINUED

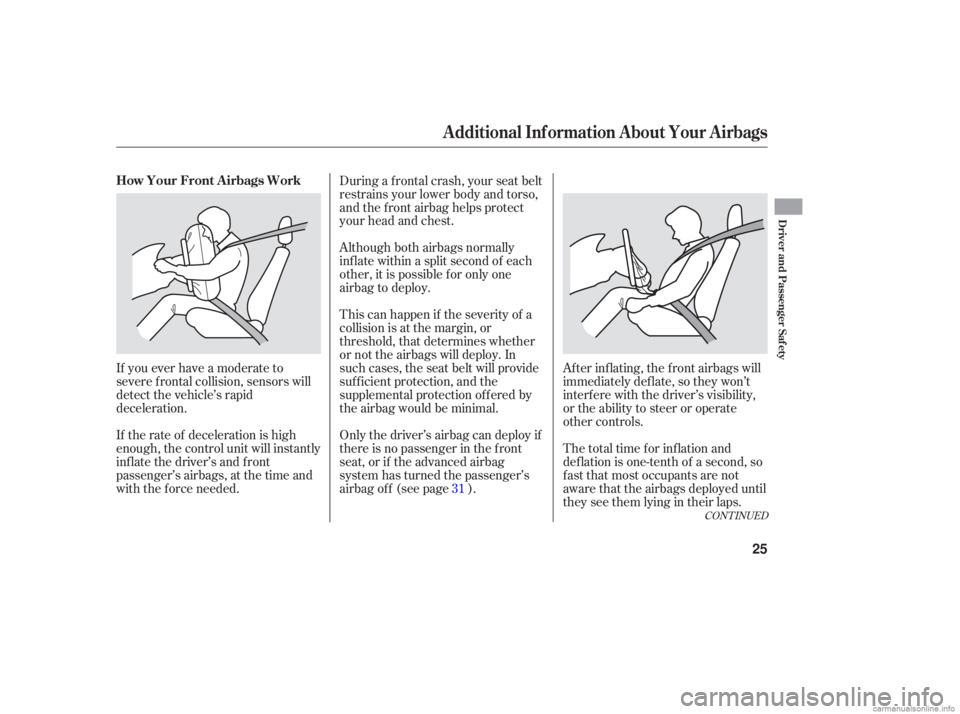

After inflating, the front airbags will
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
Du
ring a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Al though both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
Only the driver’s airbag can deploy if
there is no passenger in the f ront
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inf late the driver’s and f ront
passenger’s airbags, at the time and
with the f orce needed.
31
Additional Inf ormation About Your Airbags
How Your Front Airbags Work
Driver and Passenger Saf ety
25
——yy
(yy

Your f ront airbags are also dual-
threshold airbags. Airbags with this
f eature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
If the occupant’s belt is , the
airbag will inf late at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a
crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.
Additional Inf ormation About Your Airbags
Dual-T hreshold A irbags
not lat chedlatched
Dual-Stage A irbags
more severeless severe
26
——y
y
(yy

CONT INUED

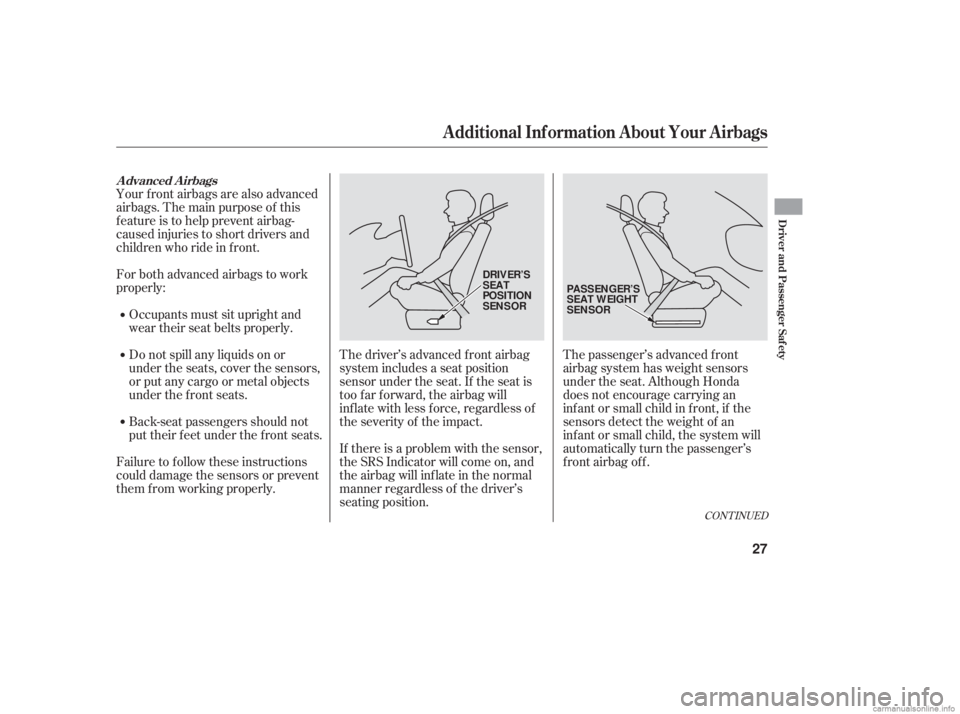

Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children who ride in f ront.
For both advanced airbags to work
properly:Occupants must sit upright and
wear their seat belts properly.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any cargo or metal objects
under the f ront seats.
Back-seat passengers should not
put their f eet under the f ront seats.
Failure to f ollow these instructions
could damage the sensors or prevent
them f rom working properly. The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too f ar f orward, the airbag will
inf late with less f orce, regardless of
the severity of the impact.
If there is a problem with the sensor,
the SRS Indicator will come on, and
the airbag will inf late in the normal
manner regardless of the driver’s
seating position.The passenger’s advanced f ront
airbag system has weight sensors
under the seat. Although Honda
does not encourage carrying an
inf ant or small child in f ront, if the
sensors detect the weight of an
inf ant or small child, the system will
automatically turn the passenger’s
front airbag off.
Additional Inf ormation About Your Airbags
Advanced Airbags
Driver and Passenger Saf ety
27
DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSOR
——y
y
(yy

Moving the front seat forcibly
back against cargo on the seat or
floor behind it.
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
When
the airbag is turned off, an
indicator in the center of the
dashboard will come on indicating
passenger airbag ‘‘OFF’’ (see page
).
Also,makesurethefloormatbehind
the front passenger’s seat is hooked
to the floor mat anchor (see page
). If it is not, the mat may
interfere with the proper operation
of the sensors and operation of the
seat. If you ever have a moderate to
severe side impact, sensors will
detect rapid deceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag.
If the weight sensors detect that
there is no passenger in the f ront
seat, the airbag will be off. However,
the Passenger Airbag Of f indicator
will not come on.
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the
passenger’s seat.
31
224
Additional Inf ormation About Your Airbags
How Your Side A irbags Work
do not do anyt hing
t hat would increase or decrease t he weight on the f ront passenger’s seat.
28
——yy
(y
y

There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
pathandwhentheindicatorcomes
on or goes off.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
Only
one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupa nts
should wear their seat belts and sit
upright and well back in their seats. If the side airbag of f indicator comes
on (see page ), have the
passenger
sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbag back on, and the
indicator will go out.
Objects placed on the f ront
passenger seat can also cause the
side airbag to be shut of f . Thesideairbagmayalsoshutoff if a
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path. Your vehicle has a side airbag cutof f
system designed primarily to protect
a child riding in the f ront passenger’s
seat.
Although Honda does not encourage
children to ride in f ront, if the height
and position sensors in the seat
detect a child has leaned into the
side airbag’s deployment path, the
airbag will shut off. 31
Additional Inf ormation About Your Airbags
Side A irbag Cut of f Syst em
Driver and Passenger Saf ety
29
——yy
(yy
