HONDA ACCORD SEDAN 2016 Navigation Manual (in English)

110
uu ecoRouteTM u Setting Up the Vehicle Profile
Other Features
Setting Up the Vehicle Profile
H u (Back) u Apps u ecoRouteTM
The first time you use the ecoRouteTM features, you must enter vehicle information.
1.Select Yes.
2.Select a fuel type.
3.Select Next.

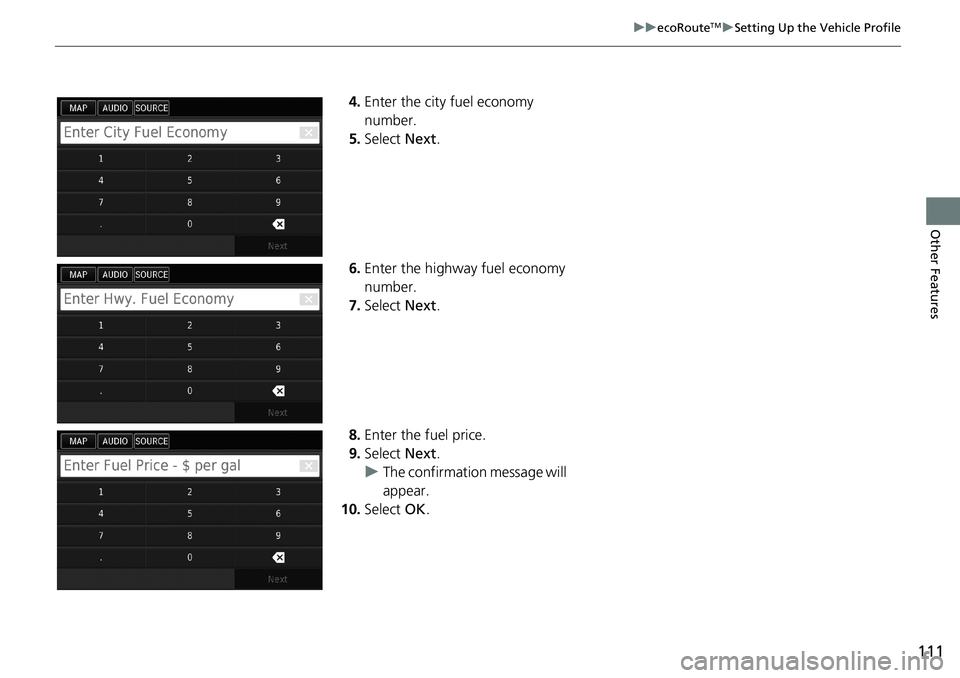

111
uu ecoRouteTM u Setting Up the Vehicle Profile
Other Features
4.Enter the city fuel economy
number.
5.Select Next.
6.Enter the highway fuel economy
number.
7.Select Next.
8.Enter the fuel price.
9.Select Next.
uThe confirmation message will
appear.
10.Select OK.

112
uu ecoRouteTM u Viewing the Vehicle Profile
Other Features
Viewing the Vehicle Profile
H u (Back) u Apps u ecoRouteTM
Select Vehicle Profile.
uIf you want to reset the Vehicle
Profile, select Reset.

113
uu ecoRouteTM u Calibrating the Fuel Economy
Other Features
Calibrating the Fuel Economy
H u (Back) u Apps u ecoRouteTM u At The Pump
You can calibrate the fuel economy to receive more accurate fuel reports for your
specific vehicle and driving habits. You should calibrate when you fill up your fuel
tank.
1.Enter the current fuel price.
2.Enter the amount of fuel the
vehicle has used since the last time
the fuel tank was filled.
3.Enter the distance you have
traveled since the last time the fuel
tank was filled.
4.Select Next.
uThe system calculates the
average vehicle fuel economy.
5.Select Save.

114
uu ecoRouteTM u Viewing the ecoChallenge Scores
Other Features
Viewing the ecoChallenge Scores
H u (Back) u Apps u ecoRouteTM u ecoChallenge
The ecoChallenge feature helps you maximize the vehicle fuel economy by scoring
your driving habits. The higher your ecoChallenge scores, the more fuel you have
saved. The ecoChallenge collects data and calculates a score whenever your system
is moving and in Automobile transportation mode.
The following information is displayed:
•Current: Displays the score for your current driving activity.
•Overall: Displays an average of the speed, acceleration, and braking score.
•Speed: Displays your score for driving your vehicle at the optimal speed for
conserving fuel (45–60 mph (72–96 km/h) for most vehicles).
•Acceleration: Displays your score for smooth and gradual acceleration. You lose
points for rapid acceleration.
•Braking: Displays your score for smooth and gradual braking. You lose points for
hard braking.
1Viewing the ecoChallenge Scores
If you want to reset the ecoChallenge Scores, select
and then select Reset.

115
uu ecoRouteTM u Viewing Fuel Economy Information
Other Features
Viewing Fuel Economy Information
H u (Back) u Apps u ecoRouteTM u Fuel Economy
You can view your fuel consumption, your total fuel cost, and your average fuel
economy.
Select a section of the graph to zoom
in.
1Viewing Fuel Economy Information
If you want to reset the Fuel Economy information,
select and then select Reset.

116
uu ecoRouteTM u Viewing a Mileage Report
Other Features
Viewing a Mileage Report
H u (Back) u Apps u ecoRouteTM u Mileage Report
You can view saved mileage reports on the system.
Select a report.
uDisplay the Mileage Report.
1Viewing a Mileage Report
Mileage Reports
Mileage reports provide the distance, the time, the
average fuel economy, and the fuel cost of
navigating to a destination.
A mileage report is created for every route that you
drive. If you stop a route on the system, a mileage
report is created for the distance you traveled.

117Continued
Other Features
Information Functions
Help
H u (Back) u Apps u Help
Select a help topic you want to
display.
H u (Back) u Apps u Help u
1.Enter a keyword. Select Done.
1Help
You can also display the help topic to select on
each menu screen.
■Searching Help Topics

uu Information Functions u Where I've Been
118
Other Features
2.Select a help topic you want to
confirm.
Where I've Been
H u (Back) u Apps u Where I've Been
Before you can use this feature, you must enable the travel history feature. You can
view your previous routes and places you have stopped on the map.
1Where I've Been
If you want to delete the recorded information, select
and then select Clear Travel History.
If you select , you can select the day to
display the travel history.

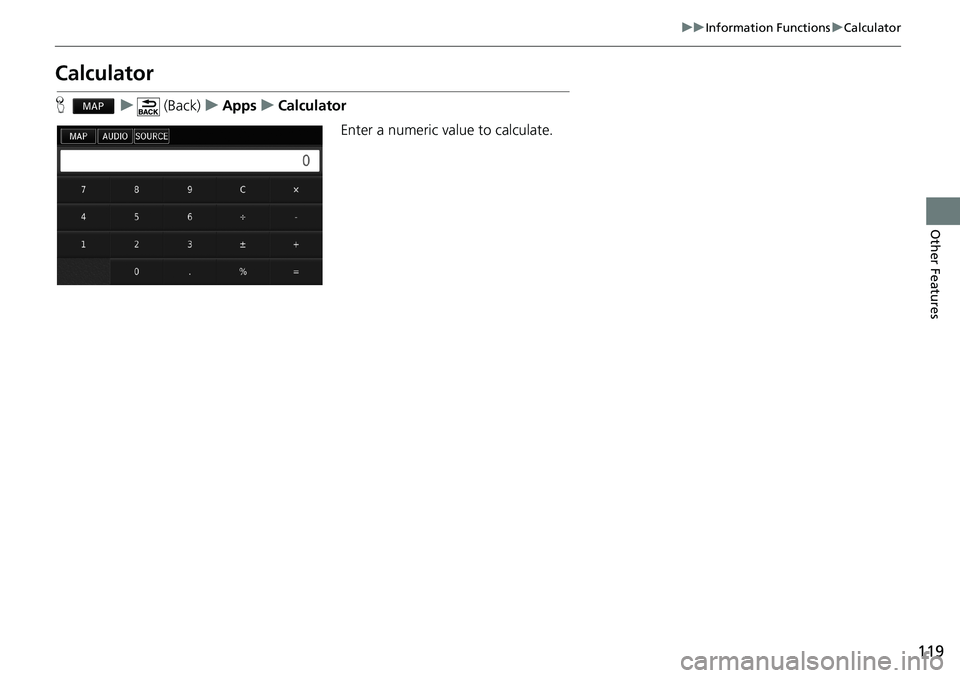

119
uu Information Functions u Calculator
Other Features
Calculator
H u (Back) u Apps u Calculator
Enter a numeric value to calculate.
