HONDA ACCORD SEDAN 2016 Navigation Manual (in English)

120

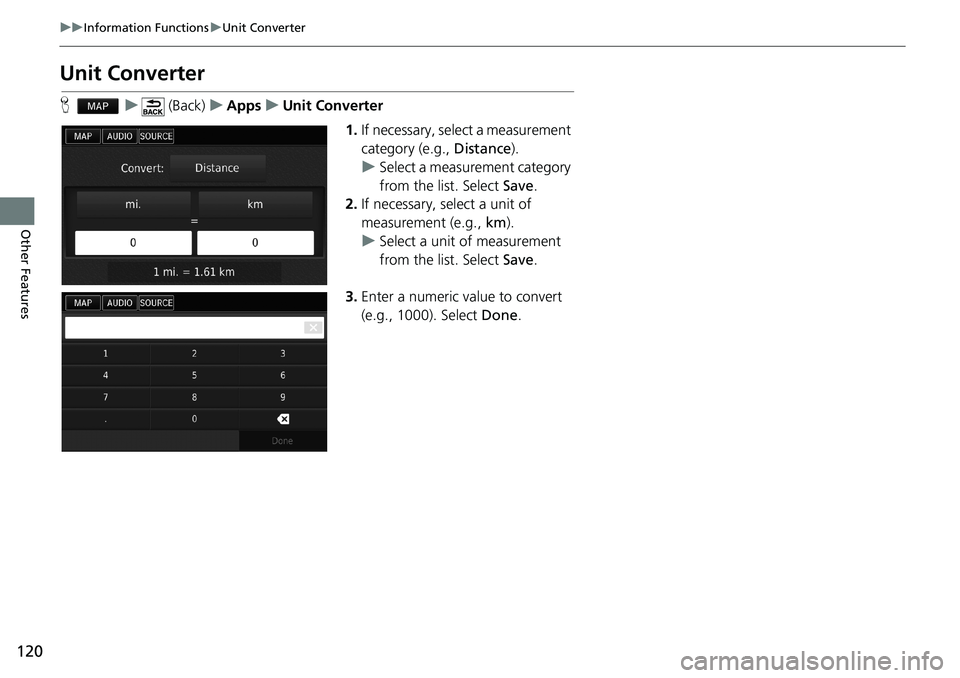

uu Information Functions u Unit Converter
Other Features
Unit Converter
H u (Back) u Apps u Unit Converter
1.If necessary, select a measurement
category (e.g., Distance).
uSelect a measurement category
from the list. Select Save.
2.If necessary, select a unit of
measurement (e.g., km).
uSelect a unit of measurement
from the list. Select Save.
3.Enter a numeric value to convert
(e.g., 1000). Select Done.

121
uu Information Functions u GPS Information
Other Features
GPS Information
H u (Back)
The GPS info screen displays the satellites status.
Select and hold the .
uA solid bar indicates that the GPS
satellite is ready for use.

122

123

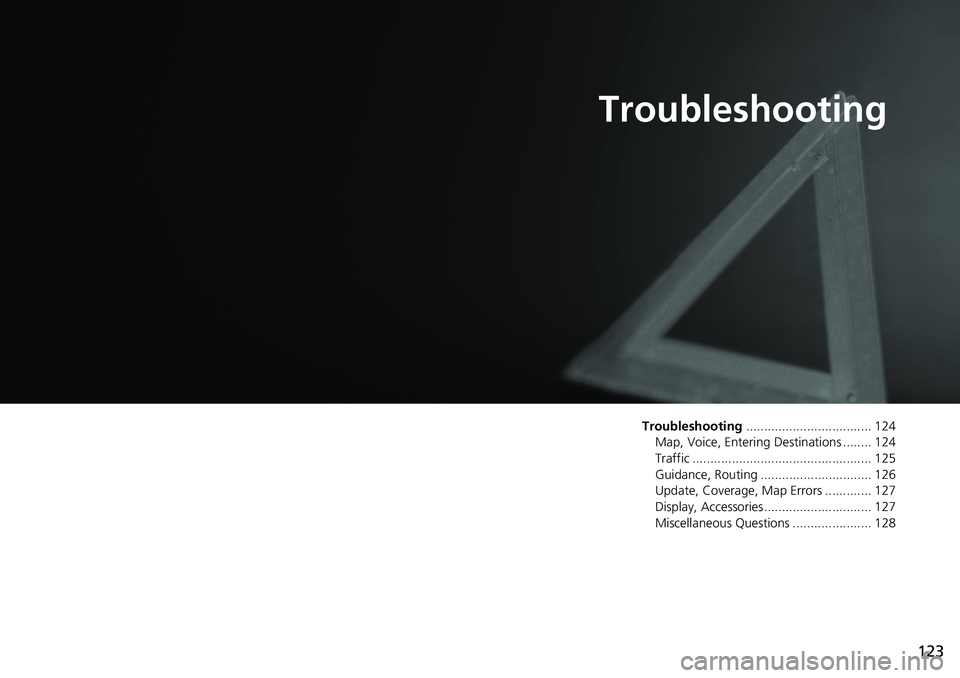

Troubleshooting
Troubleshooting................................... 124
Map, Voice, Entering Destinations ........ 124
Traffic .................................................. 125Guidance, Routing ............................... 126
Update, Coverage, Map Errors ............. 127
Display, Accessories.............................. 127Miscellaneous Questions ...................... 128

124

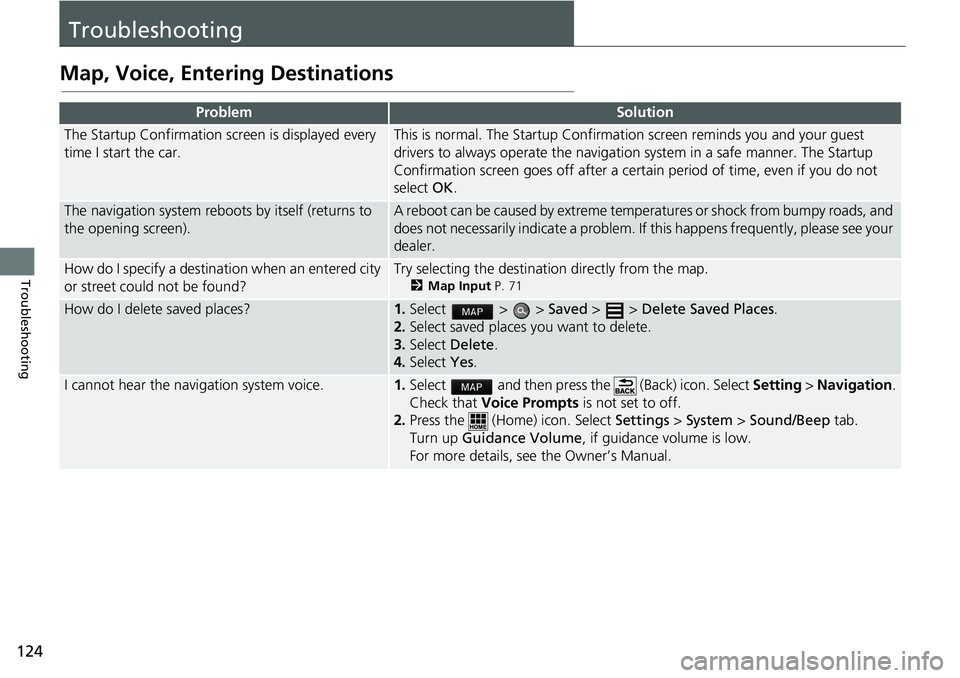

Troubleshooting
Troubleshooting
Map, Voice, Entering Destinations
ProblemSolution
The Startup Confirmation screen is displayed every
time I start the car.This is normal. The Startup Confirmation screen reminds you and your guest
drivers to always operate the navigation system in a safe manner. The Startup
Confirmation screen goes off after a certain period of time, even if you do not
select OK.
The navigation system reboots by itself (returns to
the opening screen).A reboot can be caused by extreme temperatures or shock from bumpy roads, and
does not necessarily indicate a problem. If this happens frequently, please see your
dealer.
How do I specify a destination when an entered city
or street could not be found?Try selecting the destination directly from the map.
2Map Input P. 71
How do I delete saved places?1.Select > > Saved > > Delete Saved Places.
2.Select saved places you want to delete.
3.Select Delete.
4.Select Yes.
I cannot hear the navigation system voice.1.Select and then press the (Back) icon. Select Setting > Navigation.
Check that Voice Prompts is not set to off.
2.Press the (Home) icon. Select Settings > System > Sound/Beep tab.
Turn up Guidance Volume, if guidance volume is low.
For more details, see the Owner’s Manual.

125

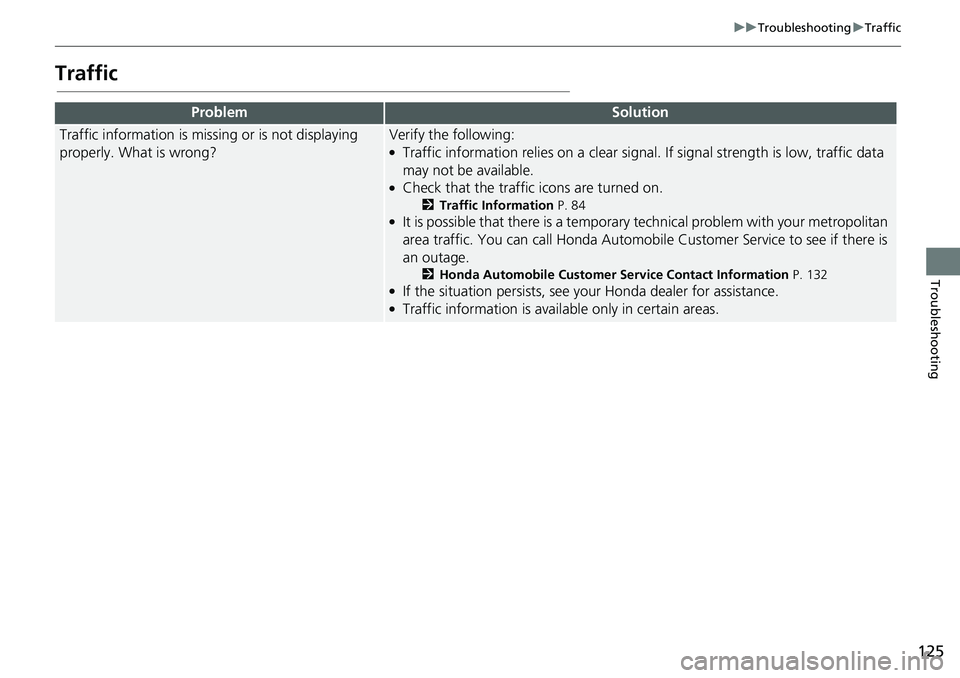

uu Troubleshooting u Traffic
Troubleshooting
Traffic
ProblemSolution
Traffic information is missing or is not displaying
properly. What is wrong?Verify the following:●Traffic information relies on a clear signal. If signal strength is low, traffic data
may not be available.
●Check that the traffic icons are turned on.
2Traffic Information P. 84●It is possible that there is a temporary technical problem with your metropolitan
area traffic. You can call Honda Automobile Customer Service to see if there is
an outage.
2Honda Automobile Customer Service Contact Information P. 132●If the situation persists, see your Honda dealer for assistance.●Traffic information is available only in certain areas.

126

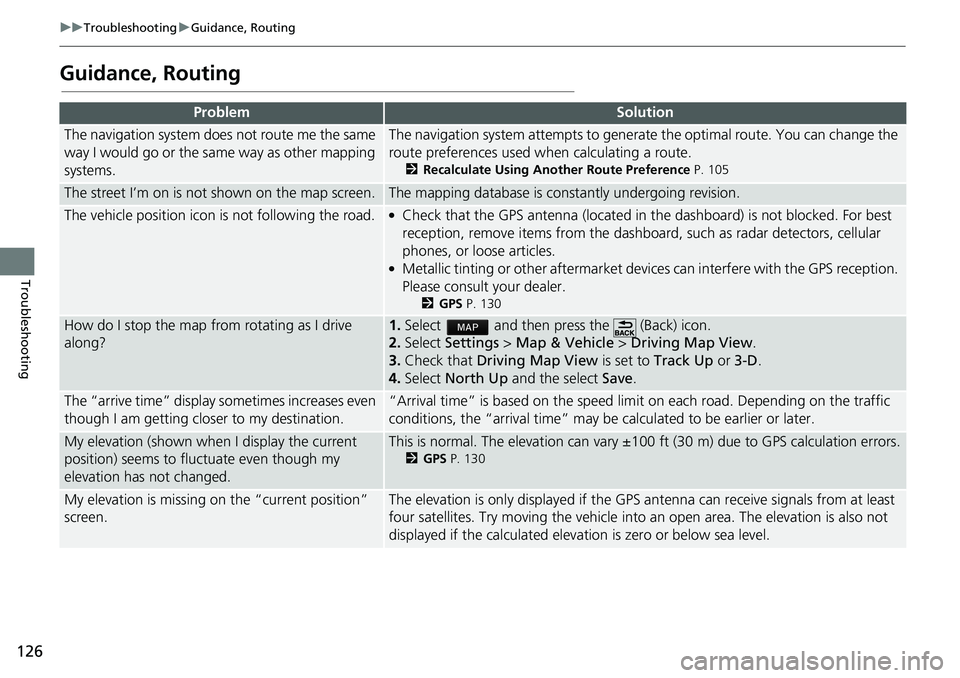

uu Troubleshooting u Guidance, Routing
Troubleshooting
Guidance, Routing
ProblemSolution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.The navigation system attempts to generate the optimal route. You can change the
route preferences used when calculating a route.
2Recalculate Using Another Route Preference P. 105
The street I’m on is not shown on the map screen.The mapping database is constantly undergoing revision.
The vehicle position icon is not following the road. ●Check that the GPS antenna (located in the dashboard) is not blocked. For best
reception, remove items from the dashboard, such as radar detectors, cellular
phones, or loose articles.
●Metallic tinting or other aftermarket devices can interfere with the GPS reception.
Please consult your dealer.
2GPS P. 130
How do I stop the map from rotating as I drive
along?1.Select and then press the (Back) icon.
2.Select Settings > Map & Vehicle > Driving Map View.
3.Check that Driving Map View is set to Track Up or 3-D.
4.Select North Up and the select Save.
The “arrive time” display sometimes increases even
though I am getting closer to my destination.“Arrival time” is based on the speed limit on each road. Depending on the traffic
conditions, the “arrival time” may be calculated to be earlier or later.
My elevation (shown when I display the current
position) seems to fluctuate even though my
elevation has not changed.This is normal. The elevation can vary ±100 ft (30 m) due to GPS calculation errors.
2GPS P. 130
My elevation is missing on the “current position”
screen.The elevation is only displayed if the GPS antenna can receive signals from at least
four satellites. Try moving the vehicle into an open area. The elevation is also not
displayed if the calculated elevation is zero or below sea level.

127

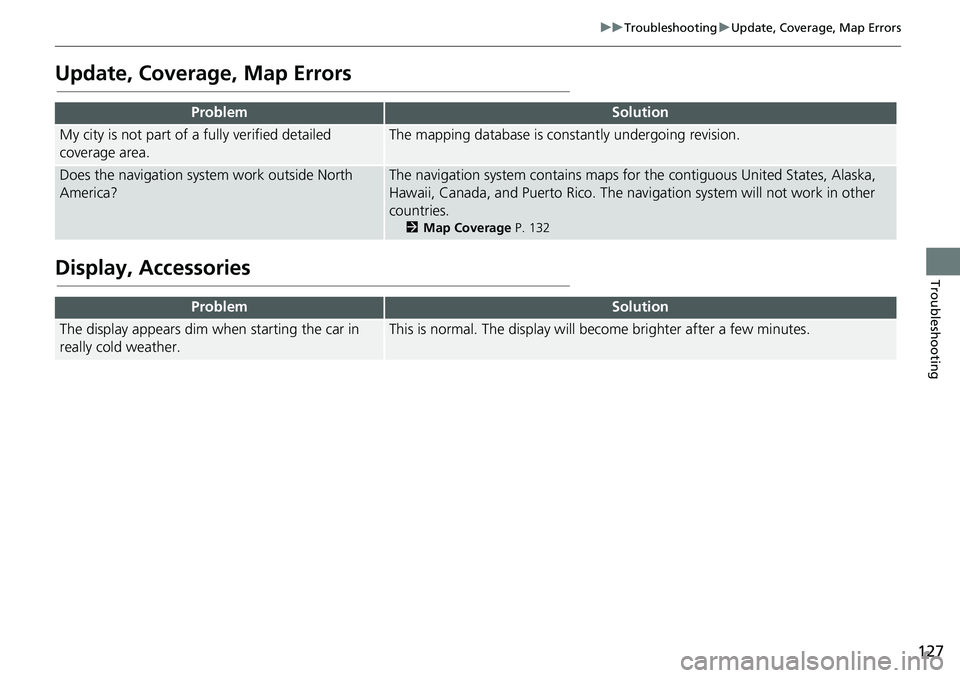

uu Troubleshooting u Update, Coverage, Map Errors
Troubleshooting
Update, Coverage, Map Errors
Display, Accessories
ProblemSolution
My city is not part of a fully verified detailed
coverage area.The mapping database is constantly undergoing revision.
Does the navigation system work outside North
America?The navigation system contains maps for the contiguous United States, Alaska,
Hawaii, Canada, and Puerto Rico. The navigation system will not work in other
countries.
2Map Coverage P. 132
ProblemSolution
The display appears dim when starting the car in
really cold weather.This is normal. The display will become brighter after a few minutes.

128
uu Troubleshooting u Miscellaneous Questions
Troubleshooting
Miscellaneous Questions
ProblemSolution
My clock frequently changes forward and backward
by one hour.The clock setting is automatically updated based on your GPS location.
2Units P. 44
How do I change the interface language?Press the (Home) icon and then select Settings > System > Others tab >
Language.
Select the desired language for system language.
For more information, see the Owner's Manual.

129
Reference Information
System Limitations................................130
GPS ......................................................130
Address Calculation ..............................130Database ..............................................130
Customer Assistance.............................132
Resolving Problems ...............................132Obtaining a Navigation Update .............132
Honda Automobile Customer Service
Contact Information ............................132Visiting Your Dealer ..............................132
Map Coverage ......................................132
Traffic Information ................................132
Legal Information................................. 133
User Agreement ................................... 133
