HONDA ACCORD SEDAN 2016 Navigation Manual (in English)

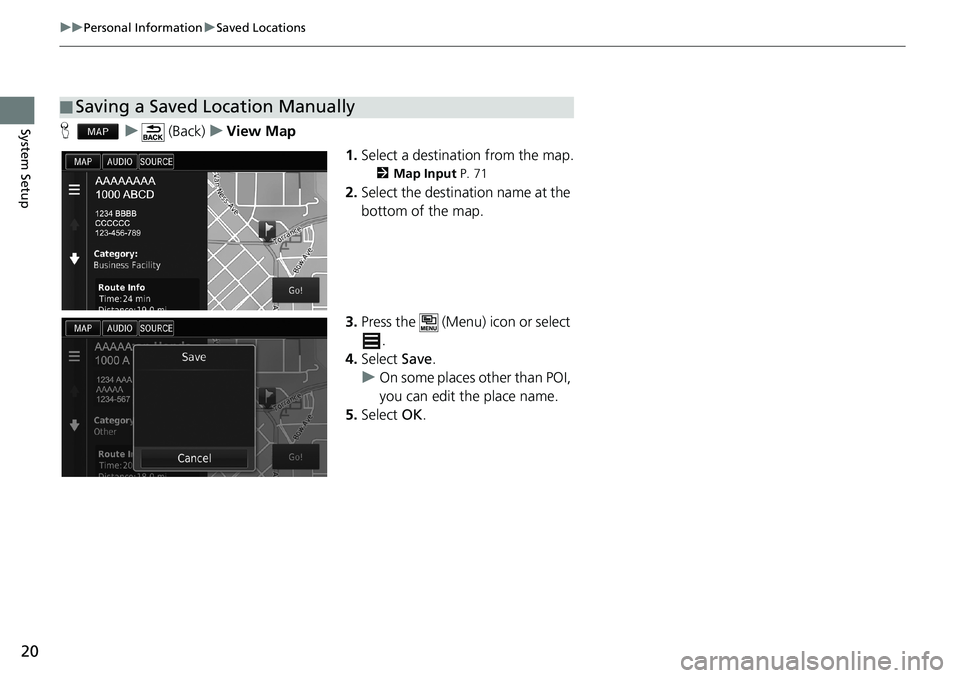

20
uu Personal Information u Saved Locations
System SetupH u (Back) u View Map
1.Select a destination from the map.
2Map Input P. 71
2.Select the destination name at the
bottom of the map.
3.Press the (Menu) icon or select
.
4.Select Save.
uOn some places other than POI,
you can edit the place name.
5.Select OK.
■Saving a Saved Location Manually

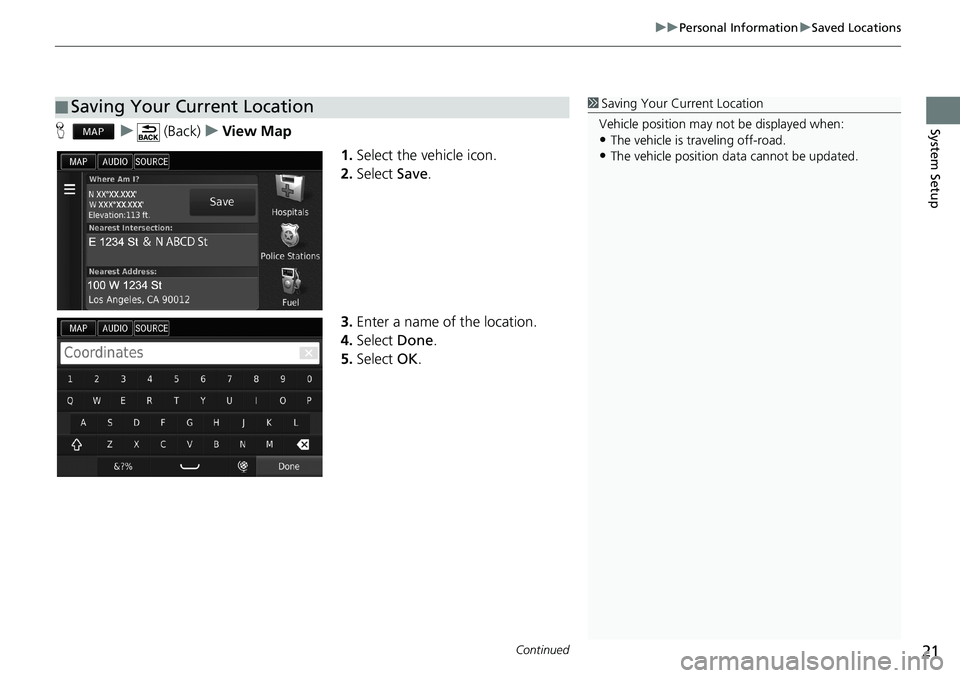

Continued21
uu Personal Information u Saved Locations
System SetupH u (Back) u View Map
1.Select the vehicle icon.
2.Select Save.
3.Enter a name of the location.
4.Select Done.
5.Select OK.
■Saving Your Current Location1Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position data cannot be updated.

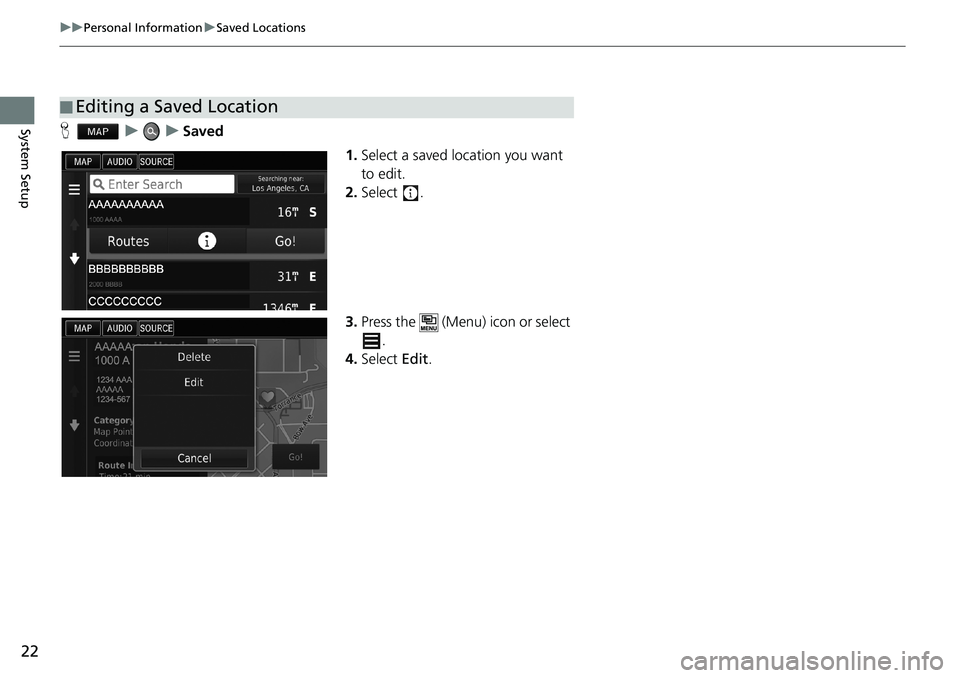

22
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Select a saved location you want
to edit.
2.Select .
3.Press the (Menu) icon or select
.
4.Select Edit.
■Editing a Saved Location

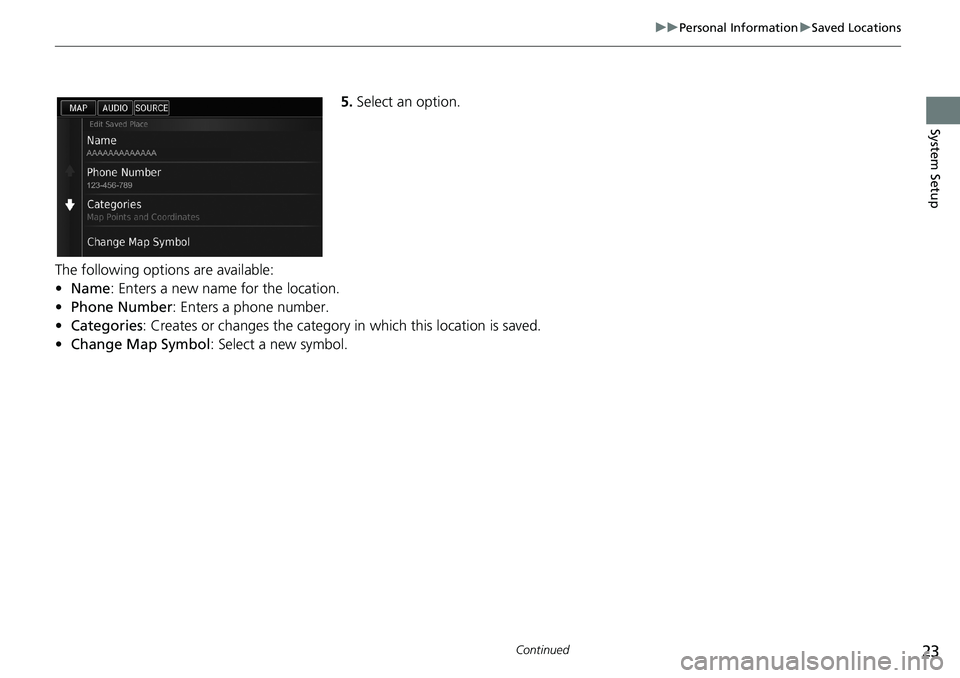

23
uu Personal Information u Saved Locations
Continued
System Setup
5.Select an option.
The following options are available:
•Name: Enters a new name for the location.
•Phone Number: Enters a phone number.
•Categories: Creates or changes the category in which this location is saved.
•Change Map Symbol: Select a new symbol.

24
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Select a saved location you want
to delete.
2.Select .
3.Press the (Menu) icon or select
.
4.Select Delete.
5.Select Yes.
■Deleting a Saved Location

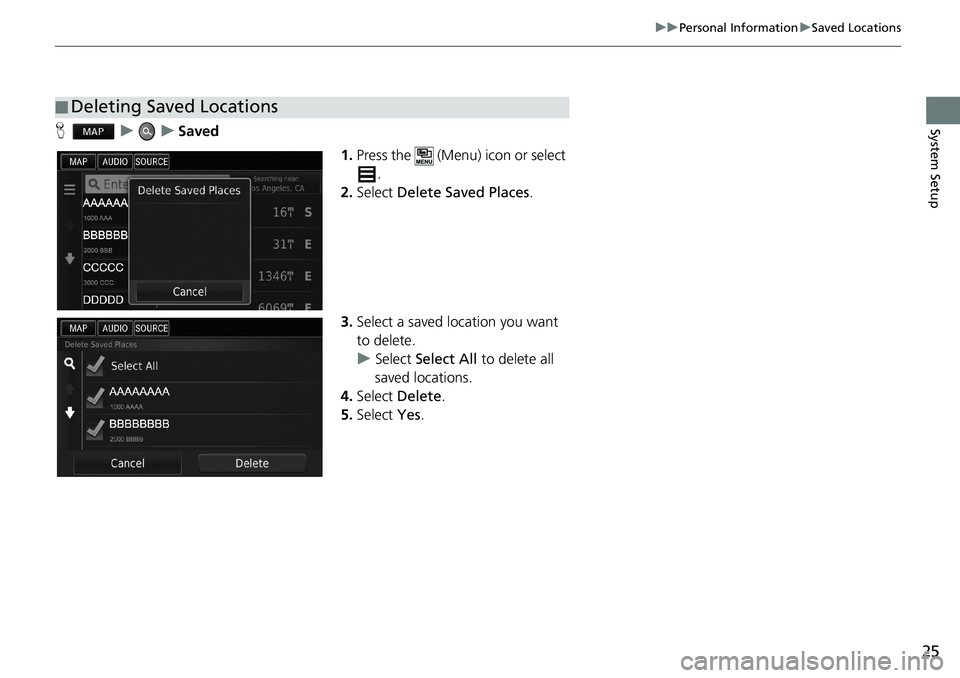

25
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Press the (Menu) icon or select
.
2.Select Delete Saved Places.
3.Select a saved location you want
to delete.
uSelect Select All to delete all
saved locations.
4.Select Delete.
5.Select Yes.
■Deleting Saved Locations

26

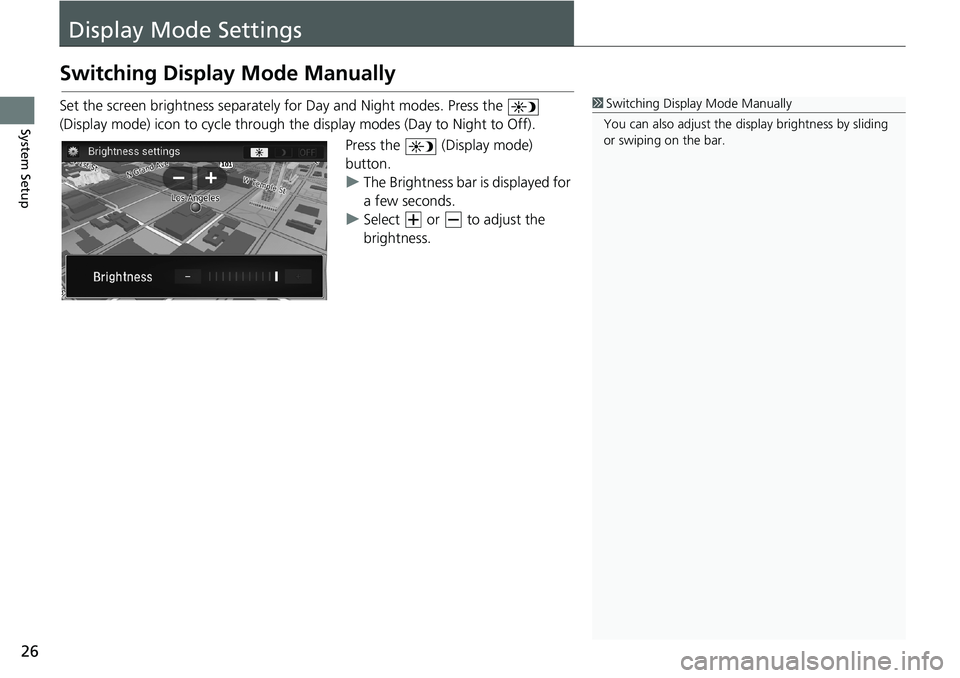

System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display mode)
button.
uThe Brightness bar is displayed for
a few seconds.
uSelect or to adjust the
brightness.
1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the bar.

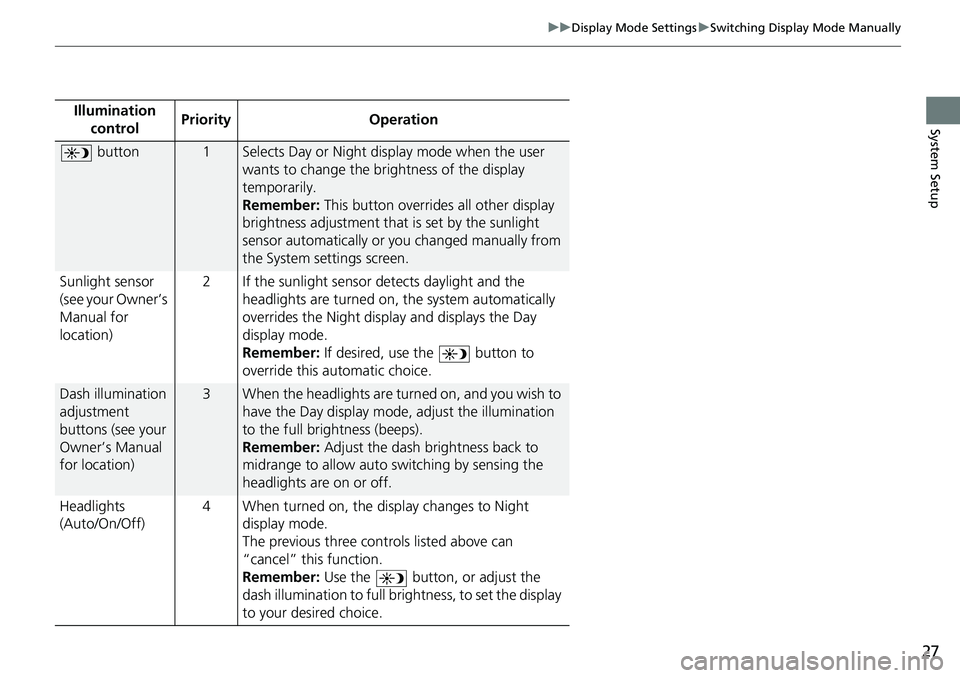

27
uu Display Mode Settings u Switching Display Mode Manually
System SetupIllumination
controlPriorityOperation
button1Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
brightness adjustment that is set by the sunlight
sensor automatically or you changed manually from
the System settings screen.
Sunlight sensor
(see your Owner’s
Manual for
location)2If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Night display and displays the Day
display mode.
Remember: If desired, use the button to
override this automatic choice.
Dash illumination
adjustment
buttons (see your
Owner’s Manual
for location)3When the headlights are turned on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights 
(Auto/On/Off)
4When turned on, the display changes to Night
display mode.
The previous three controls listed above can
“cancel” this function.
Remember: Use the button, or adjust the
dash illumination to full brightness, to set the display
to your desired choice.

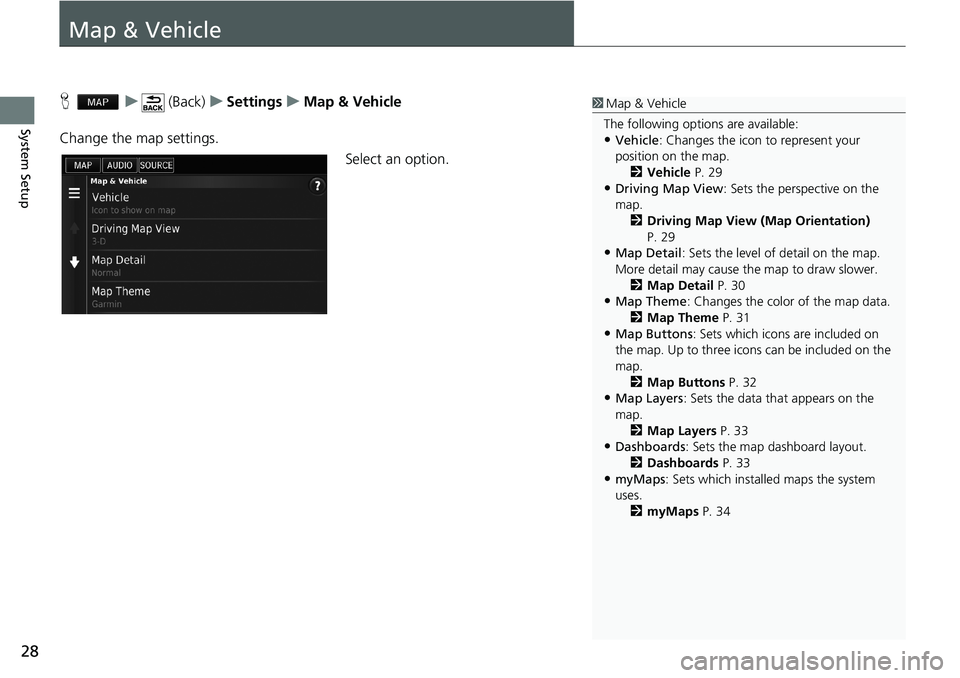

28
System Setup
Map & Vehicle
H u (Back) u Settings u Map & Vehicle
Change the map settings.
Select an option.
1Map & Vehicle
The following options are available:
•Vehicle: Changes the icon to represent your
position on the map.
2Vehicle P. 29
•Driving Map View: Sets the perspective on the
map.
2Driving Map View (Map Orientation)
P. 29
•Map Detail: Sets the level of detail on the map.
More detail may cause the map to draw slower.
2Map Detail P. 30
•Map Theme: Changes the color of the map data.
2Map Theme P. 31
•Map Buttons: Sets which icons are included on
the map. Up to three icons can be included on the
map.
2Map Buttons P. 32
•Map Layers: Sets the data that appears on the
map.
2Map Layers P. 33
•Dashboards: Sets the map dashboard layout.
2Dashboards P. 33
•myMaps: Sets which installed maps the system
uses.
2myMaps P. 34

29

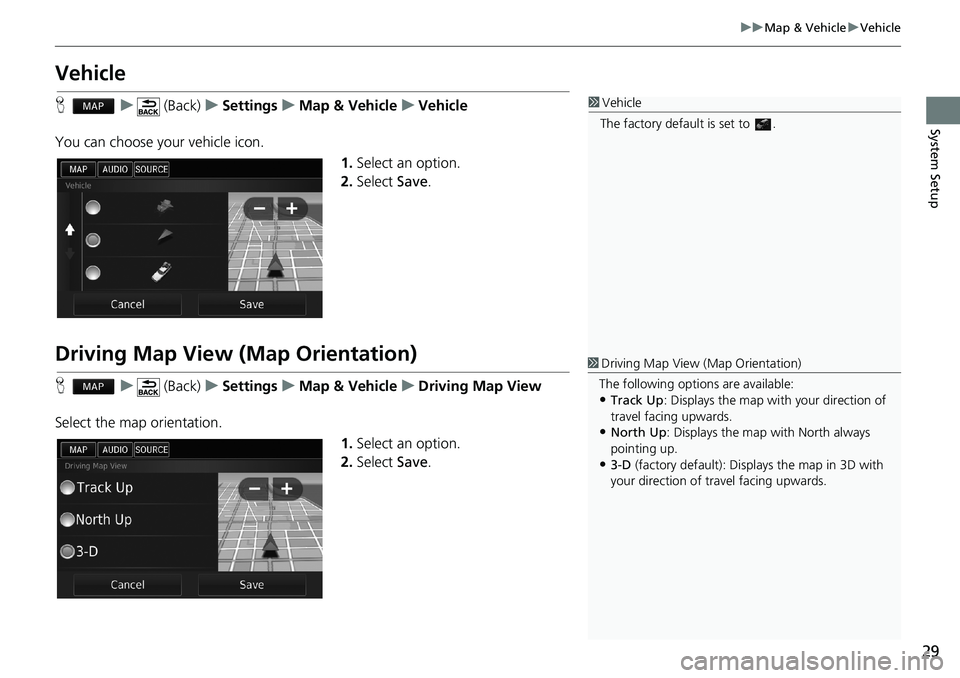

uu Map & Vehicle u Vehicle
System Setup
Vehicle
H u (Back) u Settings u Map & Vehicle u Vehicle
You can choose your vehicle icon.
1.Select an option.
2.Select Save.
Driving Map View (Map Orientation)
H u (Back) u Settings u Map & Vehicle u Driving Map View
Select the map orientation.
1.Select an option.
2.Select Save.
1Vehicle
The factory default is set to .
1Driving Map View (Map Orientation)
The following options are available:
•Track Up: Displays the map with your direction of
travel facing upwards.
•North Up: Displays the map with North always
pointing up.
•3-D (factory default): Displays the map in 3D with
your direction of travel facing upwards.
