79

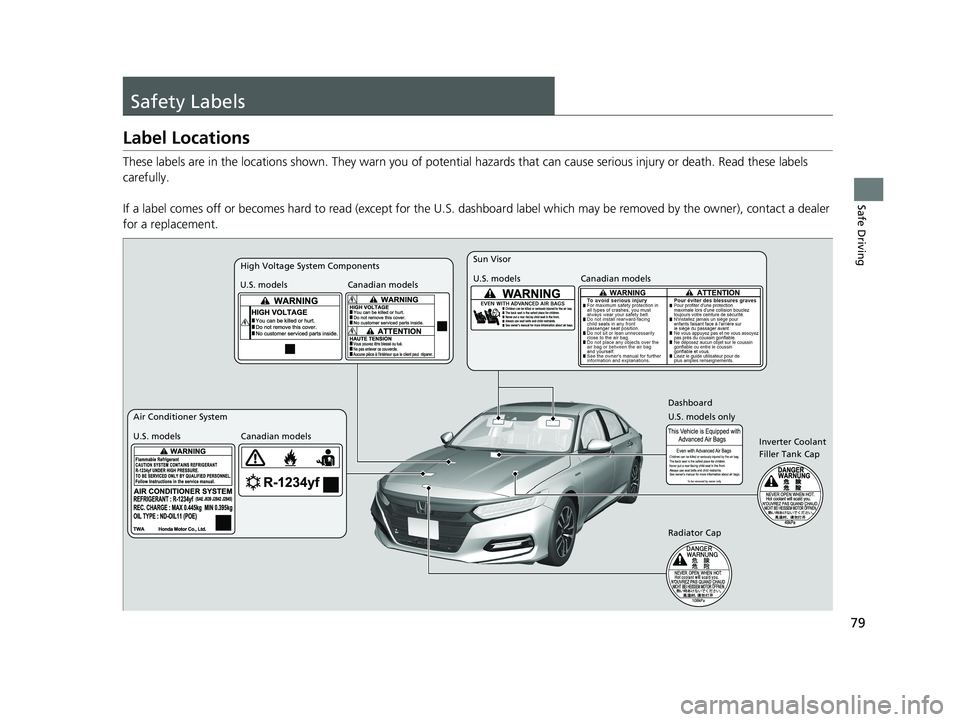

Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap Dashboard
U.S. models only
High Voltage System Components
U.S. models Canadian models
Air Conditioner System
U.S. models Canadian models Inverter Coolant
Filler Tank Cap
Sun Visor
U.S. models Canadian models
18 ACCORD HYBRID-31TWA6000.book 79 ページ ２０１８年１月３０日　火曜日　午後７時３８分

80
18 ACCORD HYBRID-31TWA6000.book 80 ページ ２０１８年１月３０日　火曜日　午後７時３８分

81
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 82
Driver Information Interface Warning and Information Messages .................... 108
Gauges and Displays Gauges ............................................ 133
Driver Information Interface ............. 135
Head-Up Display
*............................ 157
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 81 ページ ２０１８年１月３０日　火曜日　午後７時３８分

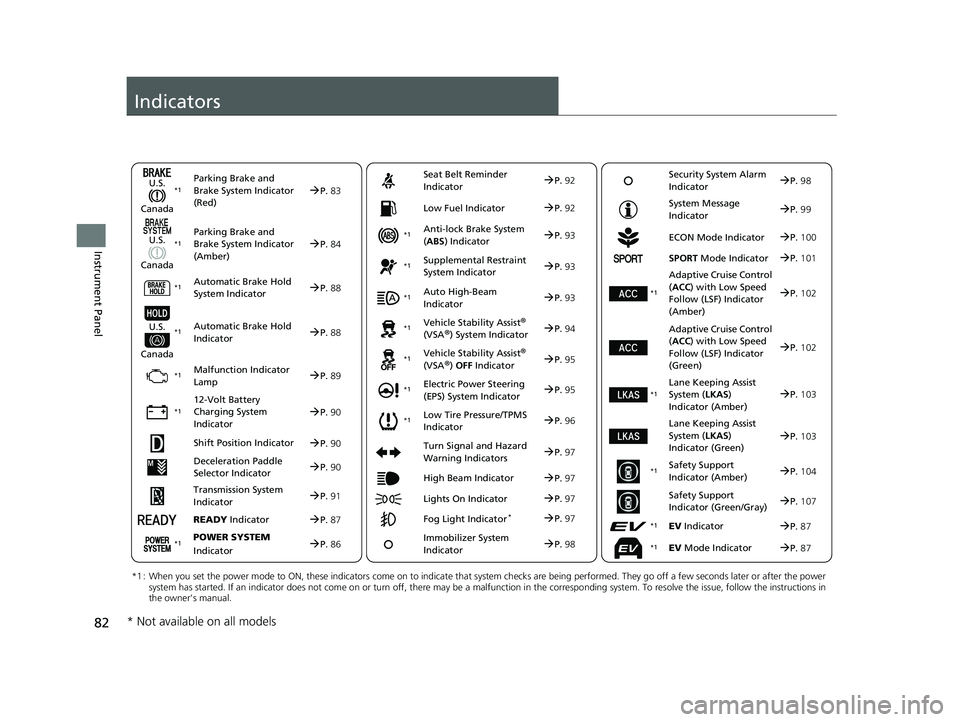

82
Instrument Panel
Indicators
Deceleration Paddle
Selector IndicatorP.90
Parking Brake and
Brake System Indicator
(Red)
Parking Brake and
Brake System Indicator
(Amber)
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
P. 83*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
Vehicle Stability Assist®
(VSA®) System Indicator
Vehicle Stability Assist
®
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message
Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow (LSF) Indicator
(Amber)
Lane Keeping Assist
System ( LKAS)
Indicator (Amber)
Safety Support
Indicator (Amber)
Safety Support
Indicator (Green/Gray)
P. 84
P.88
P.88
P.89
P.90
*1
*1
*1 *1
P.
96
*1
*1
Shift Position IndicatorP.90
Transmission System
Indicator
P. 91
READY Indicator
P.87
POWER SYSTEM
Indicator
P. 86
P.92
P.92
P.93
P.93
P.93
P.94
*1
*1
*1
*1
P.95
*1P.95
P.97
P.102
*1
P.97
P.97
P.100
P.97
Immobilizer System
Indicator
P. 98
Security System Alarm
Indicator P.98
P.99
P.101
P.103
P.104
P.107
*1
Adaptive Cruise Control
(ACC ) with Low Speed
Follow (LSF) Indicator
(Green)
P. 102
Lane Keeping Assist
System ( LKAS)
Indicator (Green)P. 103
*1
*1
EV IndicatorP.87*1
EV Mode IndicatorP.87*1 *1
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 82 ページ ２０１８年１月３０日　火曜日　午後７時３８分

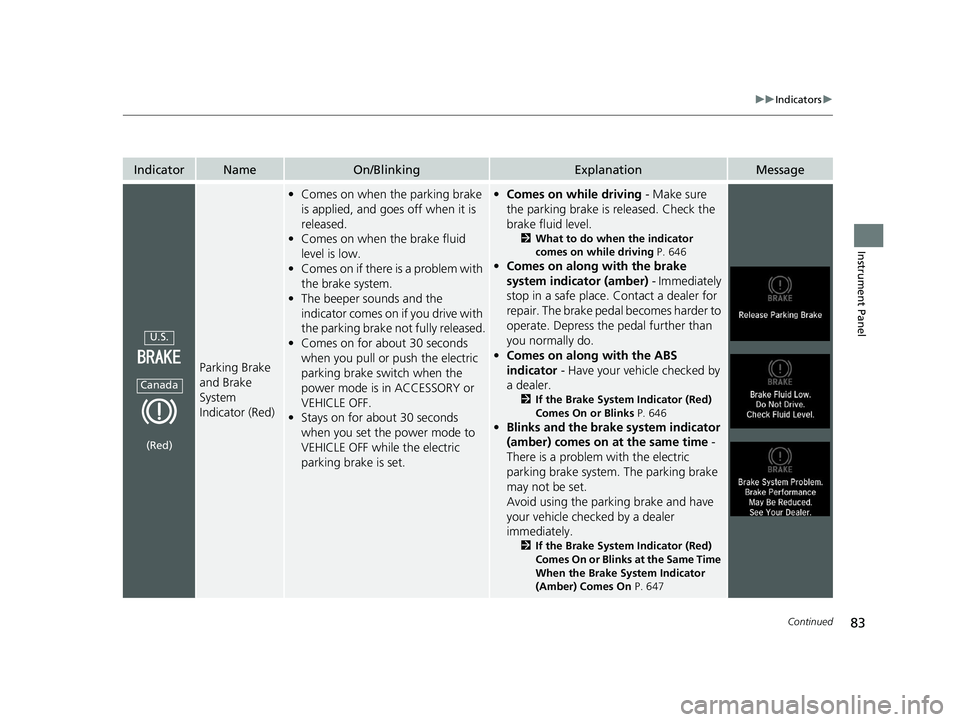

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator (Red)
•Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem with
the brake system.
• The beeper sounds and the
indicator comes on if you drive with
the parking brake not fully released.
• Comes on for about 30 seconds
when you pull or push the electric
parking brake switch when the
power mode is in ACCESSORY or
VEHICLE OFF.
• Stays on for about 30 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.•Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 646
•Comes on along with the brake
system indicator (amber) - Immediately
stop in a safe place. Contact a dealer for
repair. The brake pedal becomes harder to
operate. Depress the pedal further than
you normally do.
• Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 646
•Blinks and the brake system indicator
(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 647
U.S.
Canada
(Red)
18 ACCORD HYBRID-31TWA6000.book 83 ページ ２０１８年１月３０日　火曜日　午後７時３８分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
a system related to braking other
than the conventional brake
system.
• Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
• Comes on if there is a problem with
the electric parking brake system.•Stays on constantly - Have your vehicle
checked by a dealer.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
• With this indicator on, your vehicle still
has normal braking ability.
• Comes on if there is a problem with
the radar sensor.
• Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.•Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 455
U.S.
Canada
(Amber)
U.S.
Canada
18 ACCORD HYBRID-31TWA6000.book 84 ページ ２０１８年１月３０日　火曜日　午後７時３８分

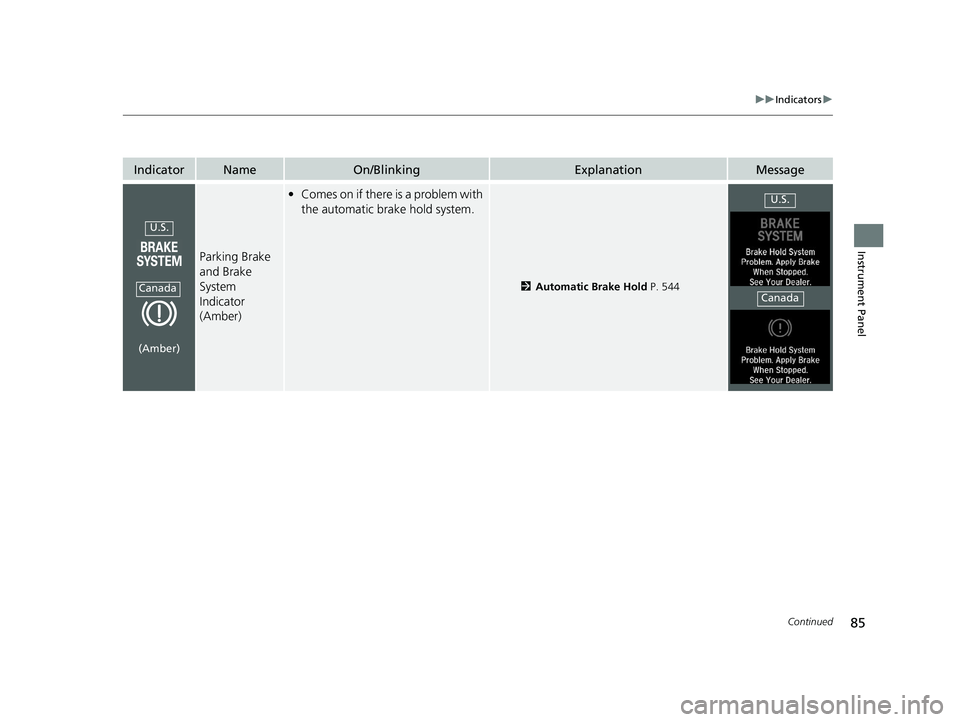

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
the automatic brake hold system.
2 Automatic Brake Hold P. 544
U.S.
Canada
(Amber)
U.S.
Canada
18 ACCORD HYBRID-31TWA6000.book 85 ページ ２０１８年１月３０日　火曜日　午後７時３８分

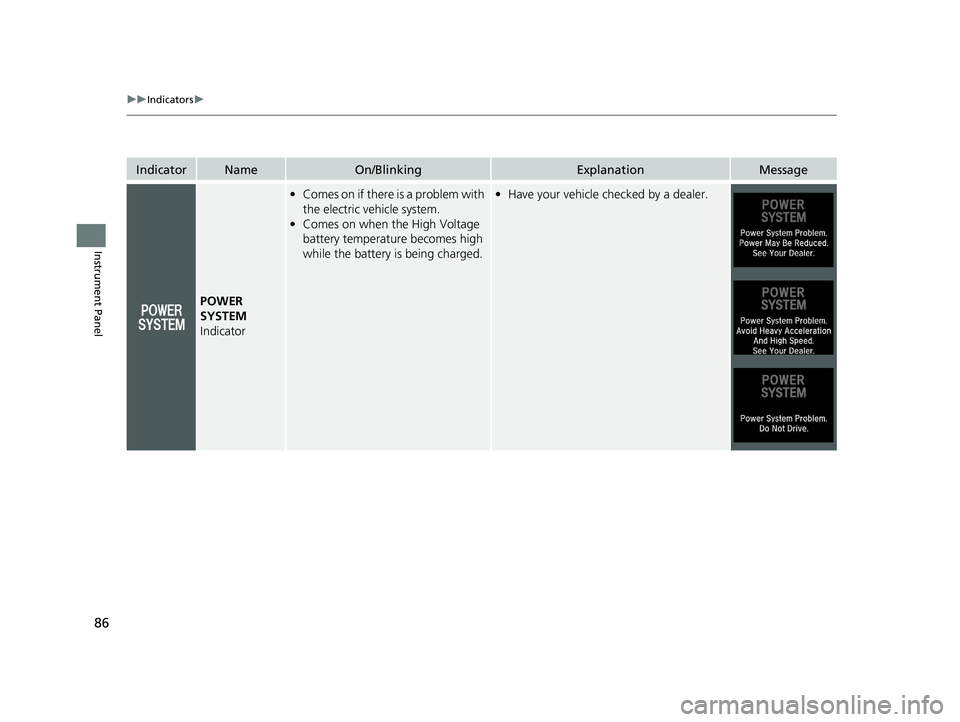

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
• Comes on if there is a problem with
the electric vehicle system.
• Comes on when the High Voltage
battery temperature becomes high
while the battery is being charged.•Have your vehicle ch ecked by a dealer.
18 ACCORD HYBRID-31TWA6000.book 86 ページ ２０１８年１月３０日　火曜日　午後７時３８分

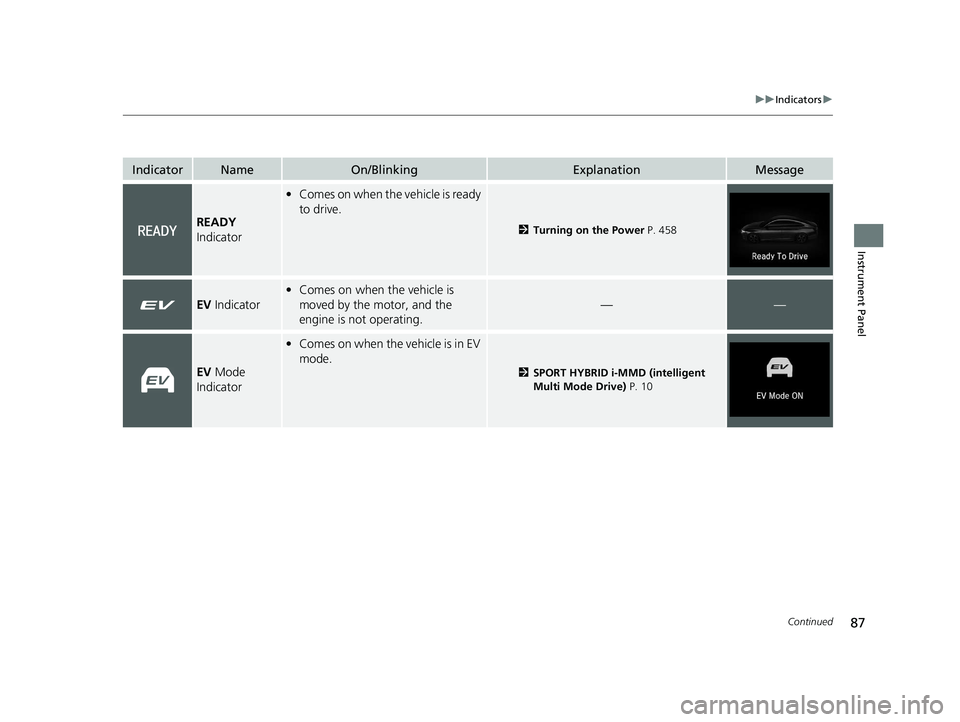

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
READY
Indicator
• Comes on when the vehicle is ready
to drive.
2 Turning on the Power P. 458
EV Indicator
•Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
——
EV Mode
Indicator
• Comes on when the vehicle is in EV
mode.
2 SPORT HYBRID i-MMD (intelligent
Multi Mode Drive) P. 10
18 ACCORD HYBRID-31TWA6000.book 87 ページ ２０１８年１月３０日　火曜日　午後７時３８分

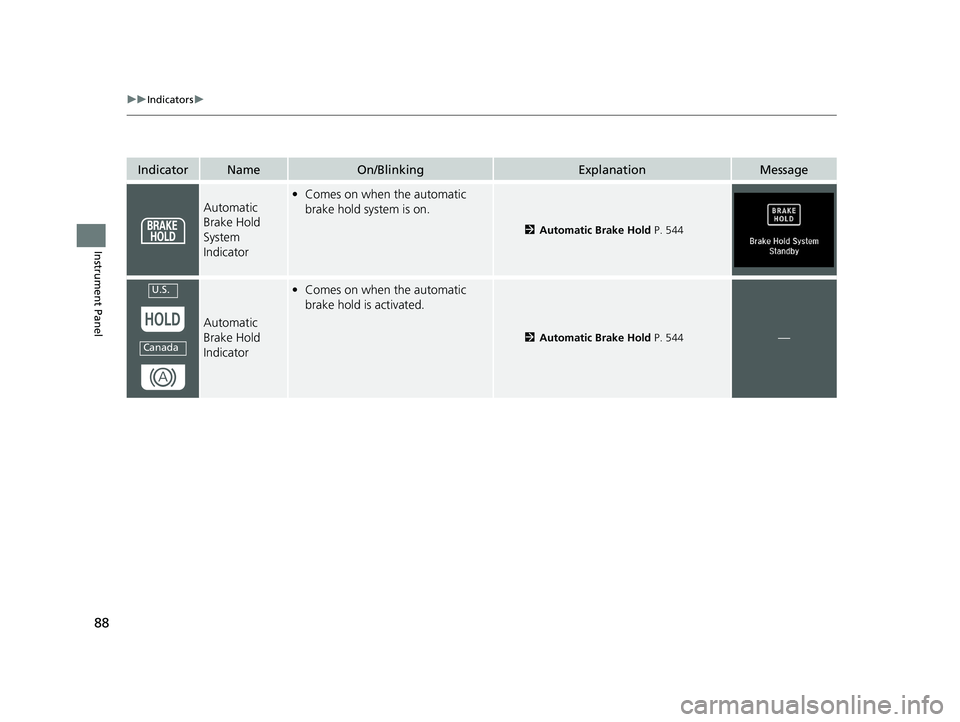

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic
Brake Hold
System
Indicator•Comes on when the automatic
brake hold system is on.
2 Automatic Brake Hold P. 544
Automatic
Brake Hold
Indicator
•Comes on when the automatic
brake hold is activated.
2 Automatic Brake Hold P. 544—
U.S.
Canada
