HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

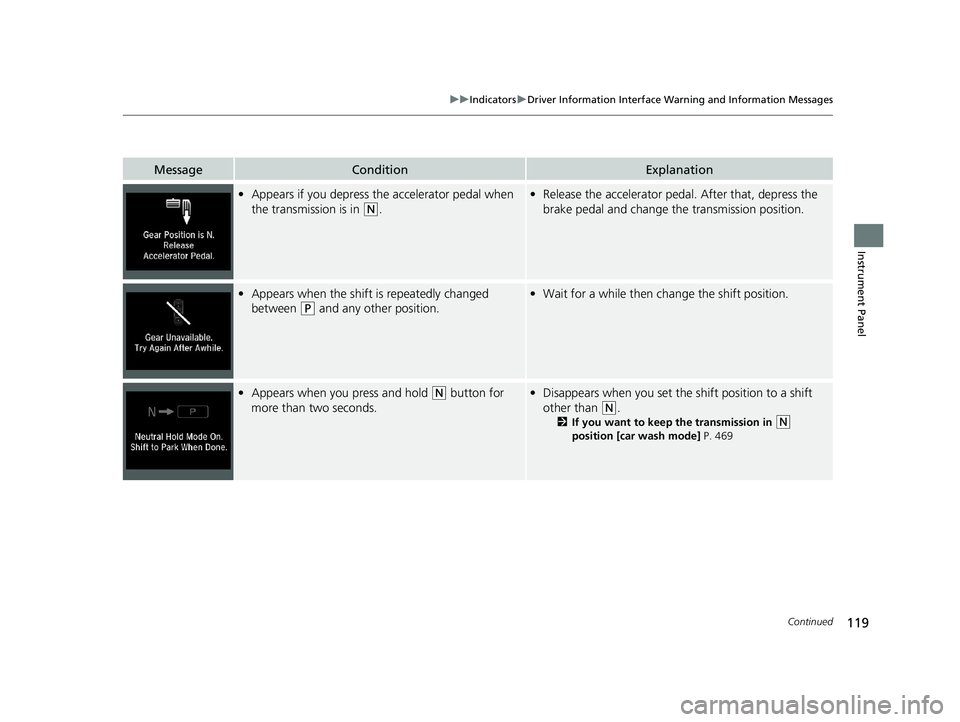

•Appears if you depress the accelerator pedal when
the transmission is in
(N.
•Release the accelerator pedal. After that, depress the
brake pedal and change the transmission position.
•Appears when the shift is repeatedly changed
between
(P and any other position.
• Wait for a while then ch ange the shift position.
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the shift position to a shift
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 469
18 ACCORD HYBRID-31TWA6000.book 119 ページ ２０１８年１月３０日　火曜日　午後７時３８分

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a pr oblem with the automatic
lighting control system.• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a dealer as soon as possible.
• Appears if there is a problem with the parking sensor
system.
•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
• Appears if there are obstacles around the sensors.
•Check for obstacles near your vehicle to make sure it is
safe to park.
Models with parking sensor system
Models with parking sensor system
18 ACCORD HYBRID-31TWA6000.book 120 ページ ２０１８年１月３０日　火曜日　午後７時３８分

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the Auto high-
beam.•Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
• Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Radar Sensor P. 538
•Appears if the temperature inside the front sensor
camera is too high and the ACC with LSF, LKAS,
traffic sign recognition system and auto high beam
cannot be activated.•Use the climate control system to cool down the
camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 536
•Appears if the area around the front sensor camera
is blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 536
18 ACCORD HYBRID-31TWA6000.book 121 ページ ２０１８年１月３０日　火曜日　午後７時３８分

122
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

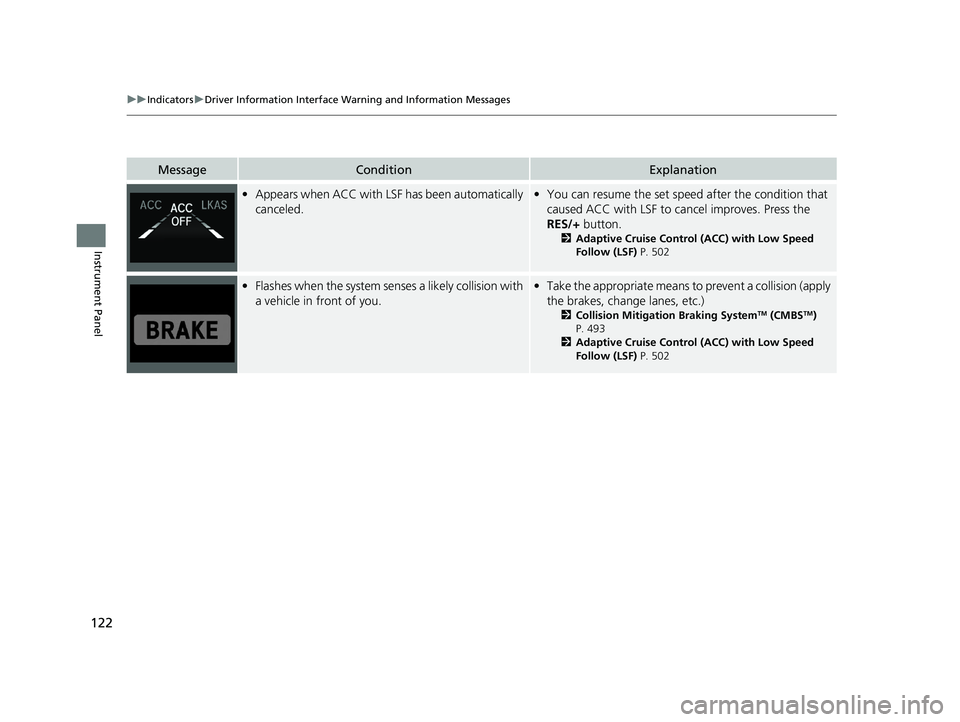

•Appears when ACC with LSF has been automatically
canceled.• You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the
RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Flashes when the system senses a likely collision with
a vehicle in front of you.•Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 493
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
18 ACCORD HYBRID-31TWA6000.book 122 ページ ２０１８年１月３０日　火曜日　午後７時３８分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when ACC with LS F is canceled due to
excessive high vehicle speed.• Reduce the speed, then reset ACC with LSF.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when the speed of the vehicle is too high
for you to set ACC with LSF.• Reduce the speed, then set ACC with LSF.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF is in operation.•ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when pressing the SET/– button while the
distance between your vehicle and the vehicle
ahead of you is too close.• ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
18 ACCORD HYBRID-31TWA6000.book 123 ページ ２０１８年１月３０日　火曜日　午後７時３８分

124
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

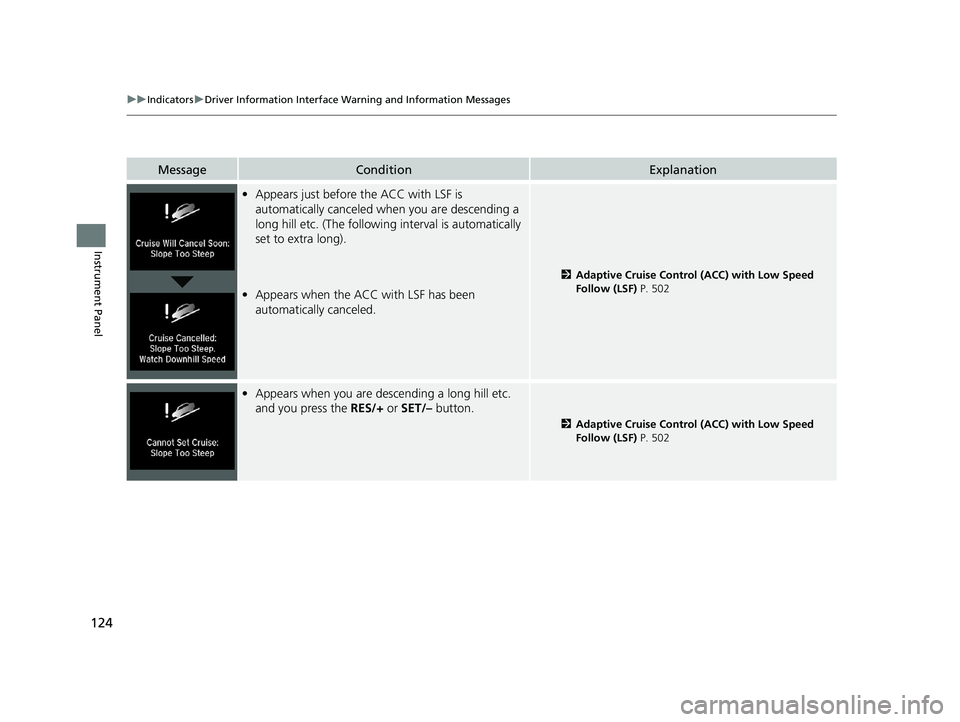

•Appears just before the ACC with LSF is
automatically canceled when you are descending a
long hill etc. (The following interval is automatically
set to extra long).
• Appears when the ACC with LSF has been
automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when you are descen ding a long hill etc.
and you press the RES/+ or SET/– button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
18 ACCORD HYBRID-31TWA6000.book 124 ページ ２０１８年１月３０日　火曜日　午後７時３８分

125
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

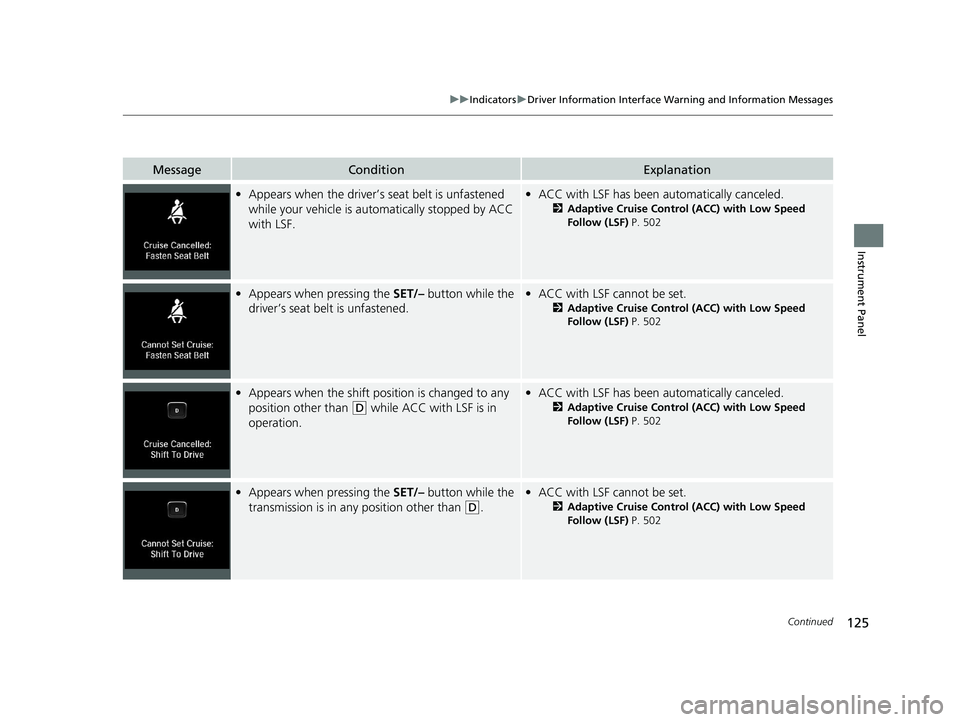

•Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with LSF.• ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when pressing the SET/– button while the
driver’s seat belt is unfastened.• ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when the shift position is changed to any
position other than
(D while ACC with LSF is in
operation.
• ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears when pressing the SET/– button while the
transmission is in any position other than
(D.
•ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
18 ACCORD HYBRID-31TWA6000.book 125 ページ ２０１８年１月３０日　火曜日　午後７時３８分

126
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

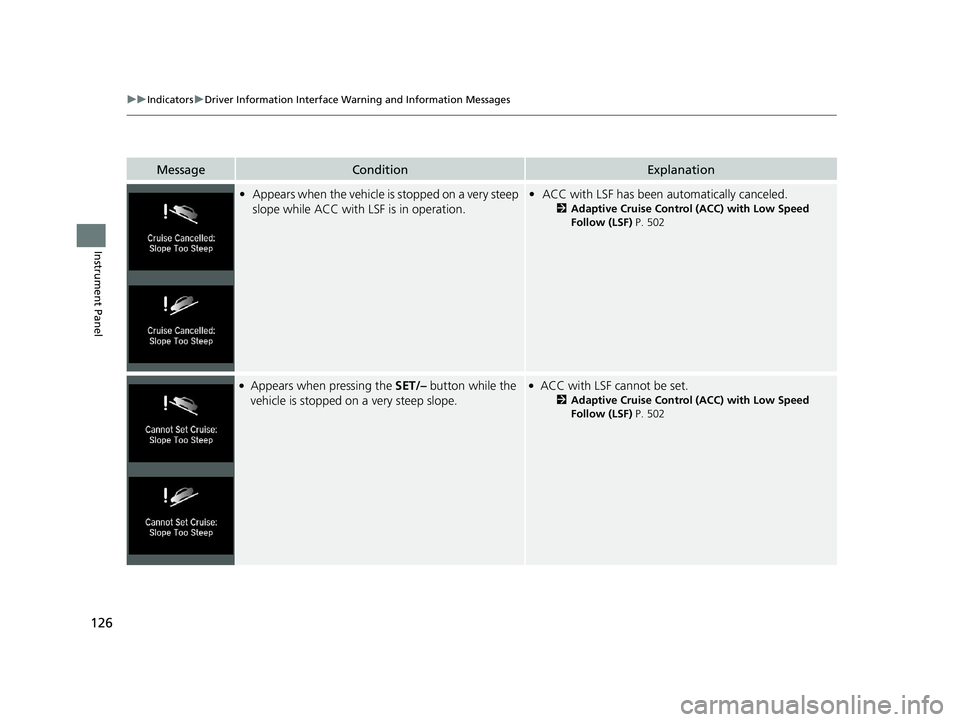

•Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.• ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
●Appears when pressing the SET/– button while the
vehicle is stopped on a very steep slope.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
18 ACCORD HYBRID-31TWA6000.book 126 ページ ２０１８年１月３０日　火曜日　午後７時３８分

127
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

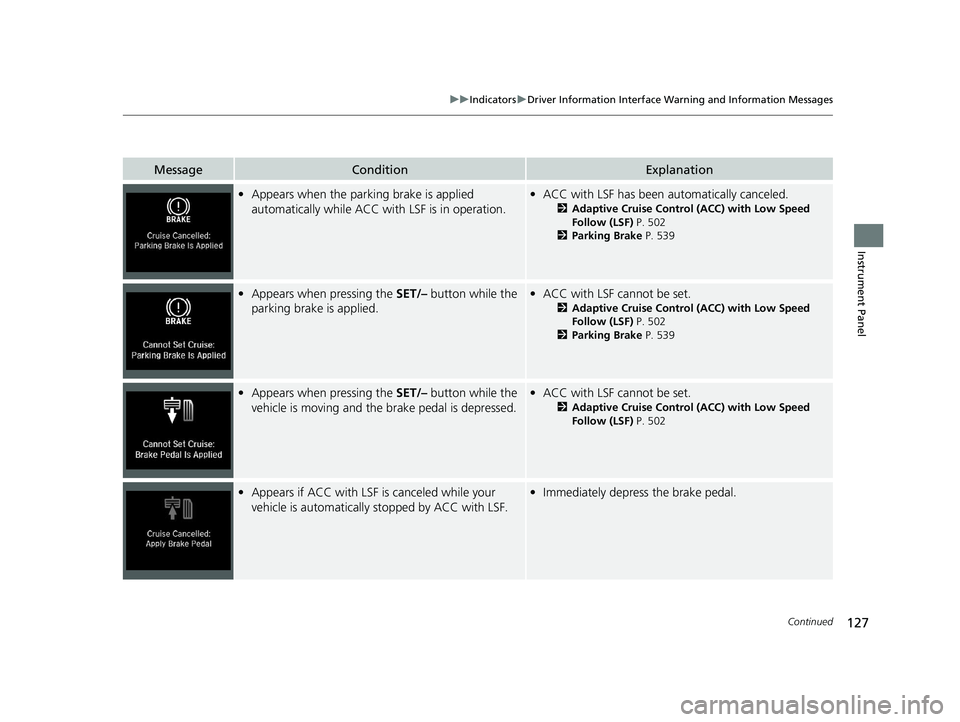

•Appears when the parking brake is applied
automatically while ACC with LSF is in operation.•ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
2 Parking Brake P. 539
•Appears when pressing the SET/– button while the
parking brake is applied.• ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
2 Parking Brake P. 539
•Appears when pressing the SET/– button while the
vehicle is moving and the brake pedal is depressed.• ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 502
•Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.• Immediately depress the brake pedal.
18 ACCORD HYBRID-31TWA6000.book 127 ページ ２０１８年１月３０日　火曜日　午後７時３８分

128
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

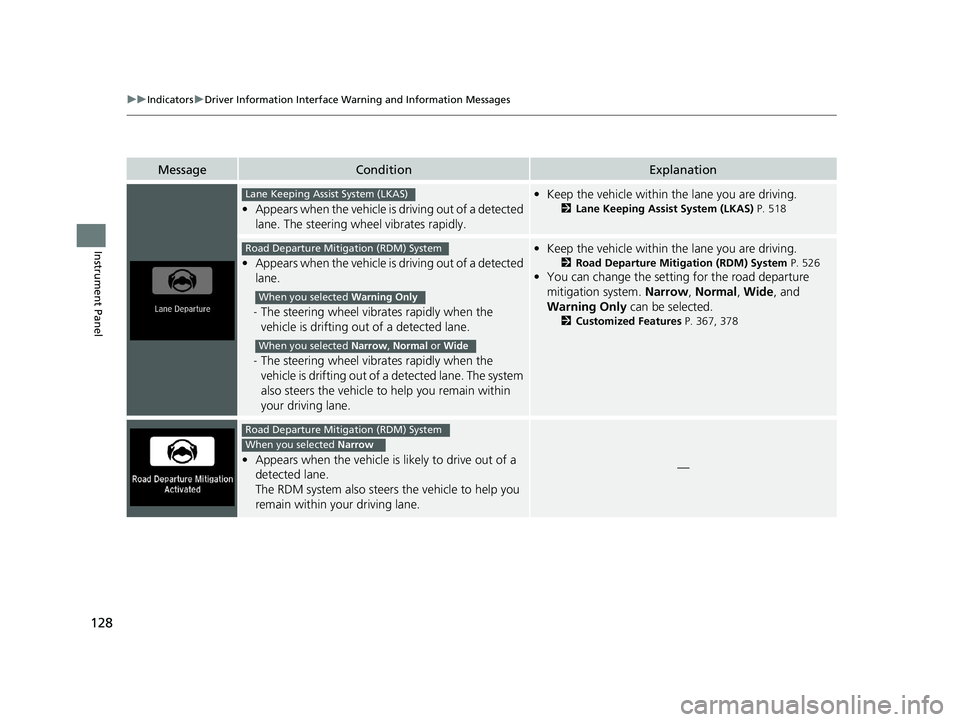

•Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
•Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 518
•Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
• Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System P. 526
•You can change the setting for the road departure
mitigation system. Narrow, Normal , Wide , and
Warning Only can be selected.
2Customized Features P. 367, 378
•Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
18 ACCORD HYBRID-31TWA6000.book 128 ページ ２０１８年１月３０日　火曜日　午後７時３８分
