HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
•Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.• While the indicator is on, press the
(home) button to see the message again.
2 Accessing contents in the main
display P. 135
•Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
• The driver information interface does not
return to the normal screen unless the
warning is canceled, or the left selector
wheel is pressed.
—
18 ACCORD HYBRID-31TWA6000.book 99 ページ ２０１８年１月３０日　火曜日　午後７時３８分

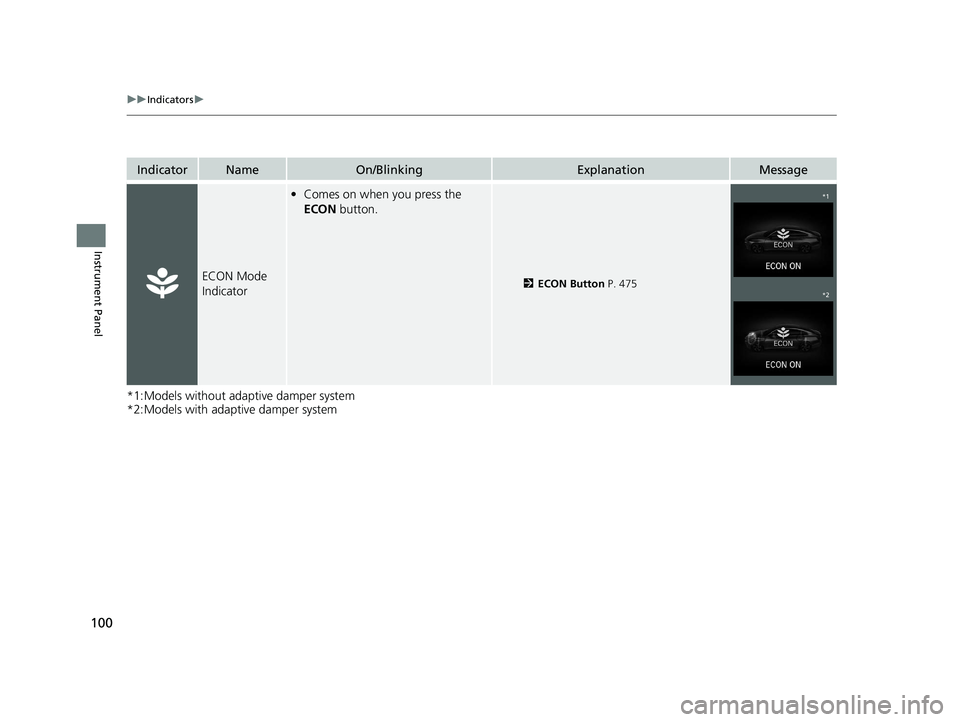

100
uuIndicators u
Instrument Panel
*1:Models without adaptive damper system
*2:Models with adaptive damper system
IndicatorNameOn/BlinkingExplanationMessage
ECON Mode
Indicator
•Comes on when you press the
ECON button.
2ECON Button P. 475
*1
*2
18 ACCORD HYBRID-31TWA6000.book 100 ページ ２０１８年１月３０日　火曜日　午後７時３８分

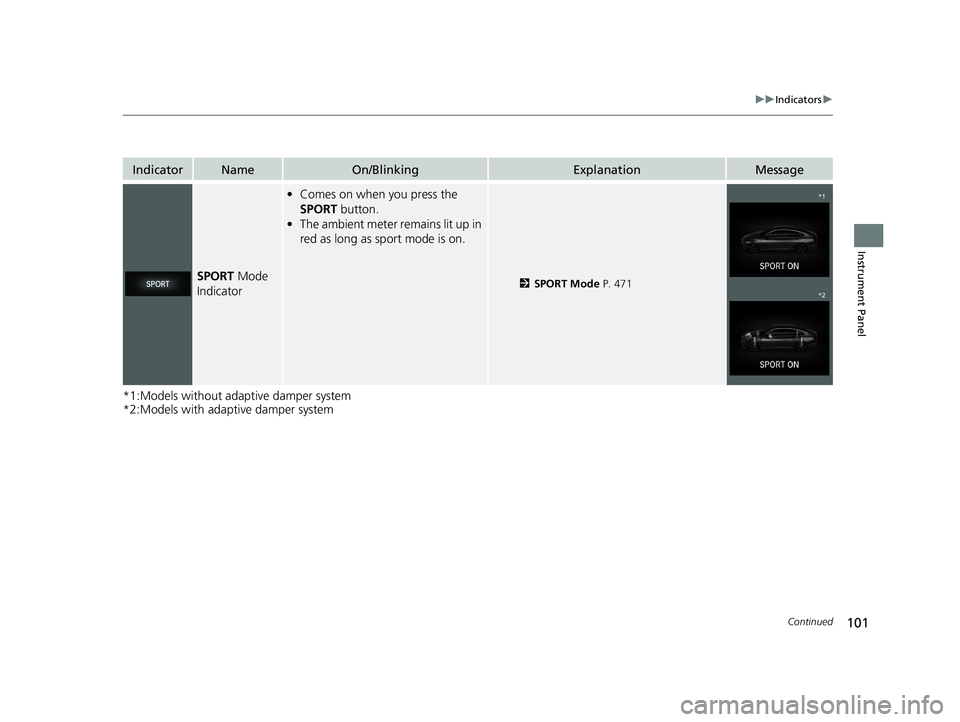

101
uuIndicators u
Continued
Instrument Panel
*1:Models without adaptive damper system
*2:Models with adaptive damper system
IndicatorNameOn/BlinkingExplanationMessage
SPORT Mode
Indicator
• Comes on when you press the
SPORT button.
• The ambient meter remains lit up in
red as long as sp ort mode is on.
2SPORT Mode P. 471
*1
*2
18 ACCORD HYBRID-31TWA6000.book 101 ページ ２０１８年１月３０日　火曜日　午後７時３８分

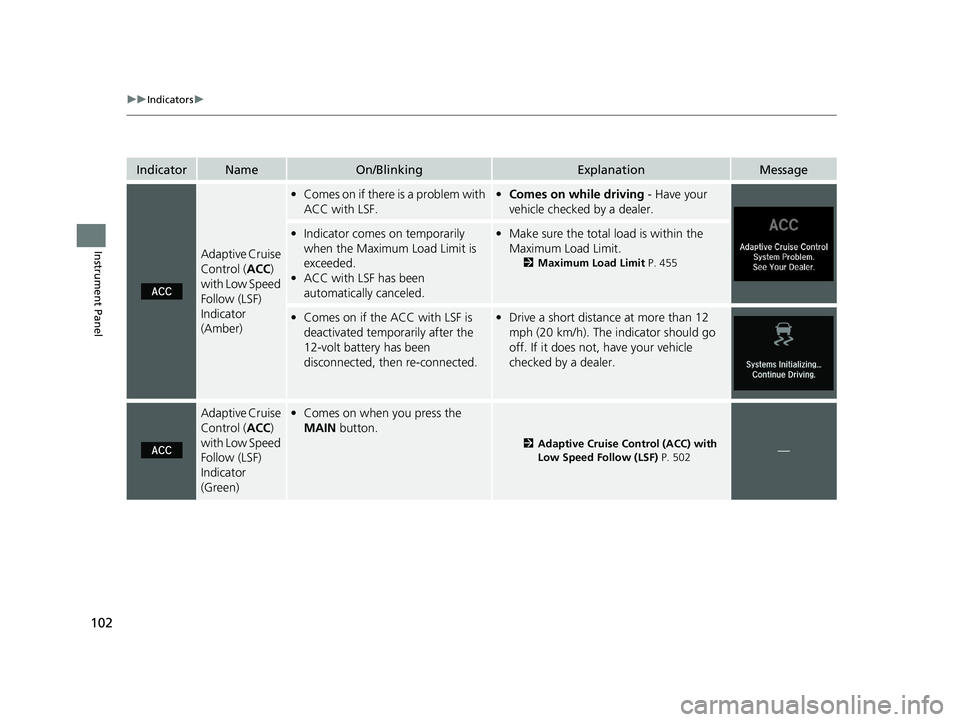

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
Indicator
(Amber)
• Comes on if there is a problem with
ACC with LSF.• Comes on while driving - Have your
vehicle checked by a dealer.
• Indicator comes on temporarily
when the Maximum Load Limit is
exceeded.
• ACC with LSF has been
automatically canceled.• Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 455
•Comes on if the ACC with LSF is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.• Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
Adaptive Cruise
Control ( ACC)
with Low Speed
Follow (LSF)
Indicator
(Green)• Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 502—
18 ACCORD HYBRID-31TWA6000.book 102 ページ ２０１８年１月３０日　火曜日　午後７時３８分

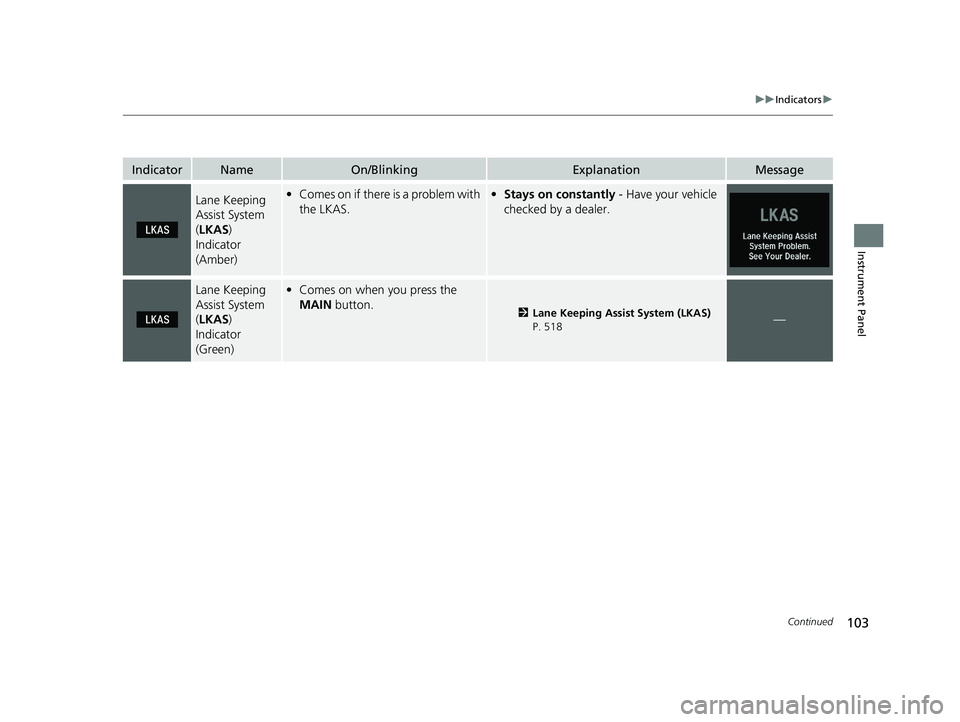

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS )
Indicator
(Amber)• Comes on if there is a problem with
the LKAS.•Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS )
Indicator
(Green)• Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 518—
18 ACCORD HYBRID-31TWA6000.book 103 ページ ２０１８年１月３０日　火曜日　午後７時３８分

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
•Comes on if there is a problem with
RDM, CMBSTM, or BSI*.
•Stays on constantly - Have your vehicle
checked by a dealer.
• Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.•Make sure the total lo ad is within the
Maximum Load Limit.
2 Maximum Load Limit P. 455
•Comes on if the RDM and CMBSTM
are deactivated temporarily after
the 12-volt battery has been
disconnected and then re-
connected.• Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 104 ページ ２０１８年１月３０日　火曜日　午後７時３８分

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
•Comes on when RDM and/or
CMBSTM shuts itself off.
• Indicator may come on temporarily when
passing through an encl osed space, such
as tunnel.
• The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator does not go off even after
you have cleaned the radar sensor.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 493
• Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system acti vates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 536
18 ACCORD HYBRID-31TWA6000.book 105 ページ ２０１８年１月３０日　火曜日　午後７時３８分

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
•Comes on when RDM and/or
CMBSTM shuts itself off.
•Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the debris
off with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message are still
displayed even after you have cleaned the
area around the camera.
2 Front Sensor Camera P. 536
•Comes on when mud, snow, or ice
has accumulated in the vicinity of
the BSI sensor.
•Comes on while driving - Something
may be interfering with the BSI sensor.
Check the vicinity of the BSI sensor and
remove any obstacles.
2 Blind spot information (BSI) System*
P. 486
Models with BSI
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 106 ページ ２０１８年１月３０日　火曜日　午後７時３８分

107
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Green/Gray)
•Lights up in green when RDM,
CMBSTM, and BSI* are on.
• Lights up in green and gray when
RDM, CMBS
TM, or BSI* or any two
of these systems are off.
• Lights up in gray when RDM,
CMBS
TM, and BSI* are off.
2 RDM On and Off P. 528
2 CMBSTM On and Off P. 496
2 BSI On and Off P. 488
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 107 ページ ２０１８年１月３０日　火曜日　午後７時３８分

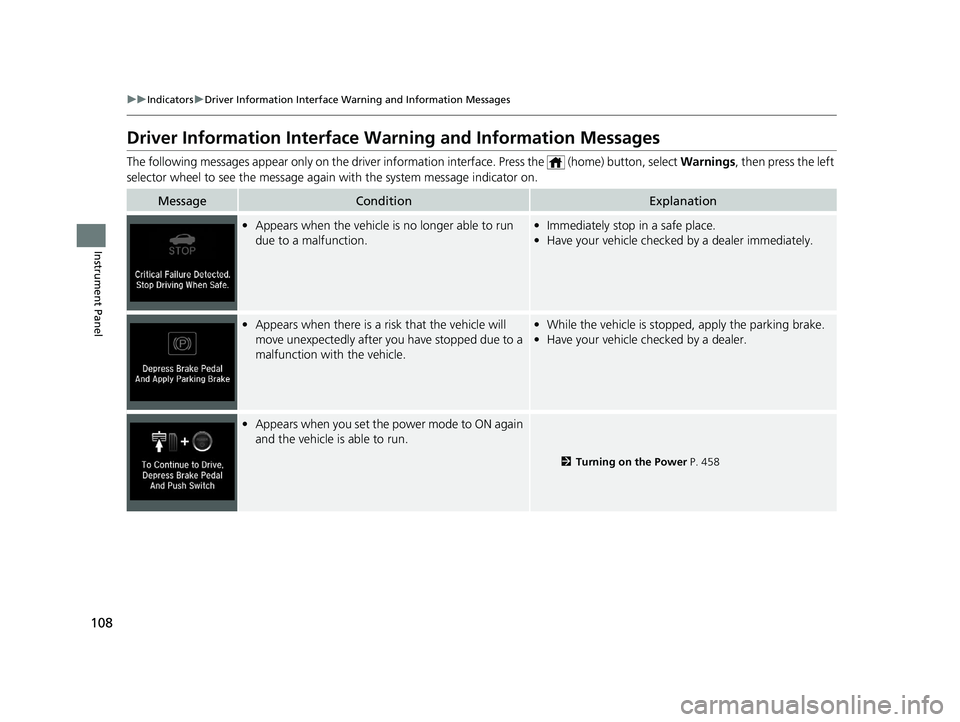

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings , then press the left
selector wheel to see the message again with the system message indicator on.
MessageConditionExplanation
•Appears when the vehicle is no longer able to run
due to a malfunction.•Immediately stop in a safe place.
• Have your vehicle checked by a dealer immediately.
• Appears when there is a risk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.•While the vehicle is stoppe d, apply the parking brake.
• Have your vehicle checked by a dealer.
• Appears when you set the power mode to ON again
and the vehicle is able to run.
2 Turning on the Power P. 458
