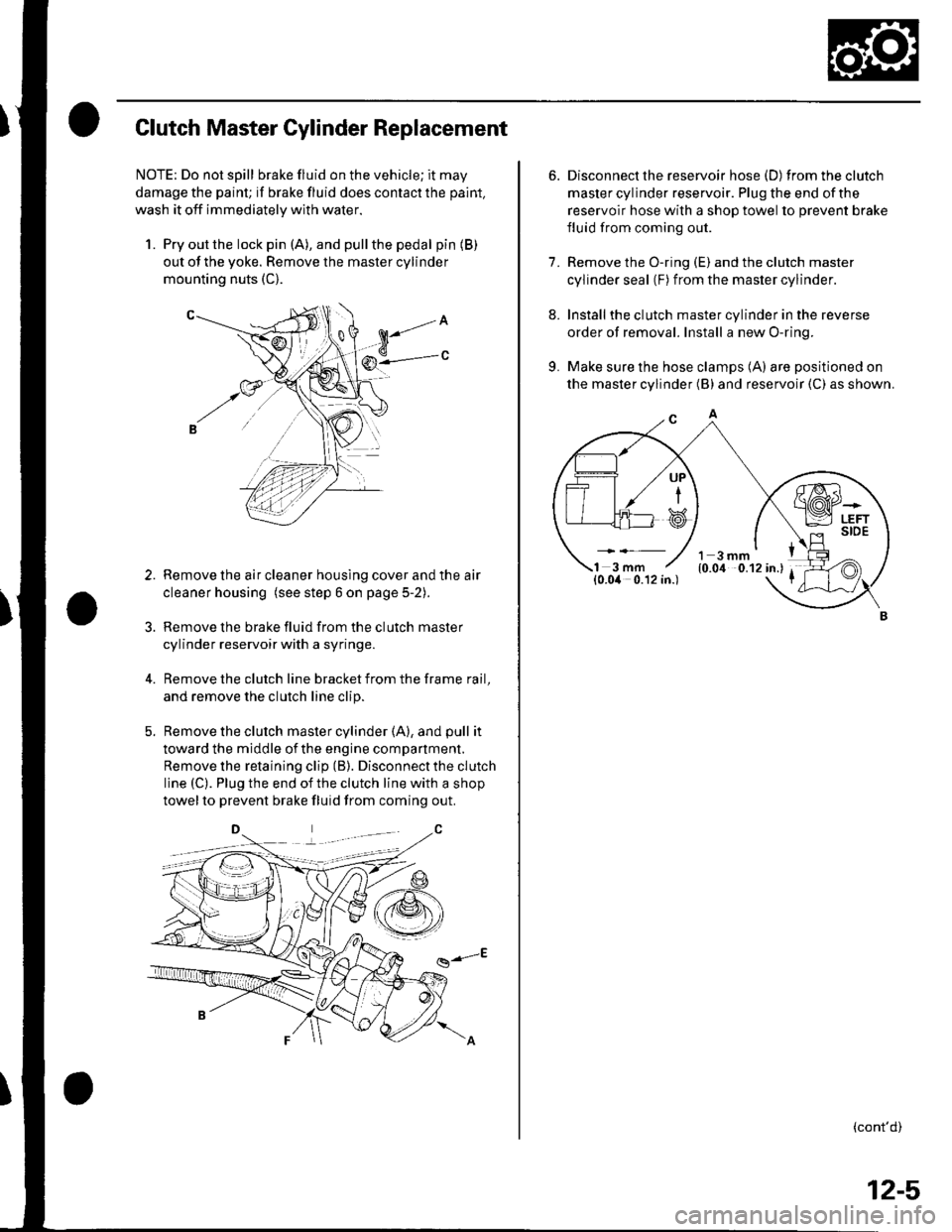

Clutch Master Cylinder Replacement
NOTE: Do not spill brake fluid on the vehicle; it may
damage the paint; if brake fluid does contact the paint,
wash it off immediatelV with water.
1. Pry out the lock pin (A), and pullthe pedal pin (B)
out of the yoke. Remove the master cylinder
mounting nuts (C).
Remove the air cleaner housing cover and the air
cleaner housing (see step 6 on page 5-2).
Remove the brake fluid from the clutch master
cylinder reservoir with a syringe.
Remove the clutch line bracket from the frame rail,
and remove the clutch line clip.
Remove the clutch master cylinder (A), and pull it
toward the middle of the engine compartment.
Remove the retaining clip (B). Disconnect the clutch
line (C). Plug the end of the clutch line with a shop
towelto prevent brake fluid from coming out.
g-E
3.
6. Disconnect the reservoir hose (D) fromtheclutch
master cylinder reservoir. Plug the end of the
reservoir hose with a shop towel to prevent brake
fluid from coming out.
7. Remove the O-ring (E) and the clutch master
cylinder seal (F) from the master cylinder.
8. Installthe clutch master cylinder in the reverse
order of removal. Install a new O-ring.
9. Make sure the hose clamps (A) are positioned on
the master cylinder (B) and reservoir (C) as shown.
(cont'd)
UP
i
12-5

Manual Transmission

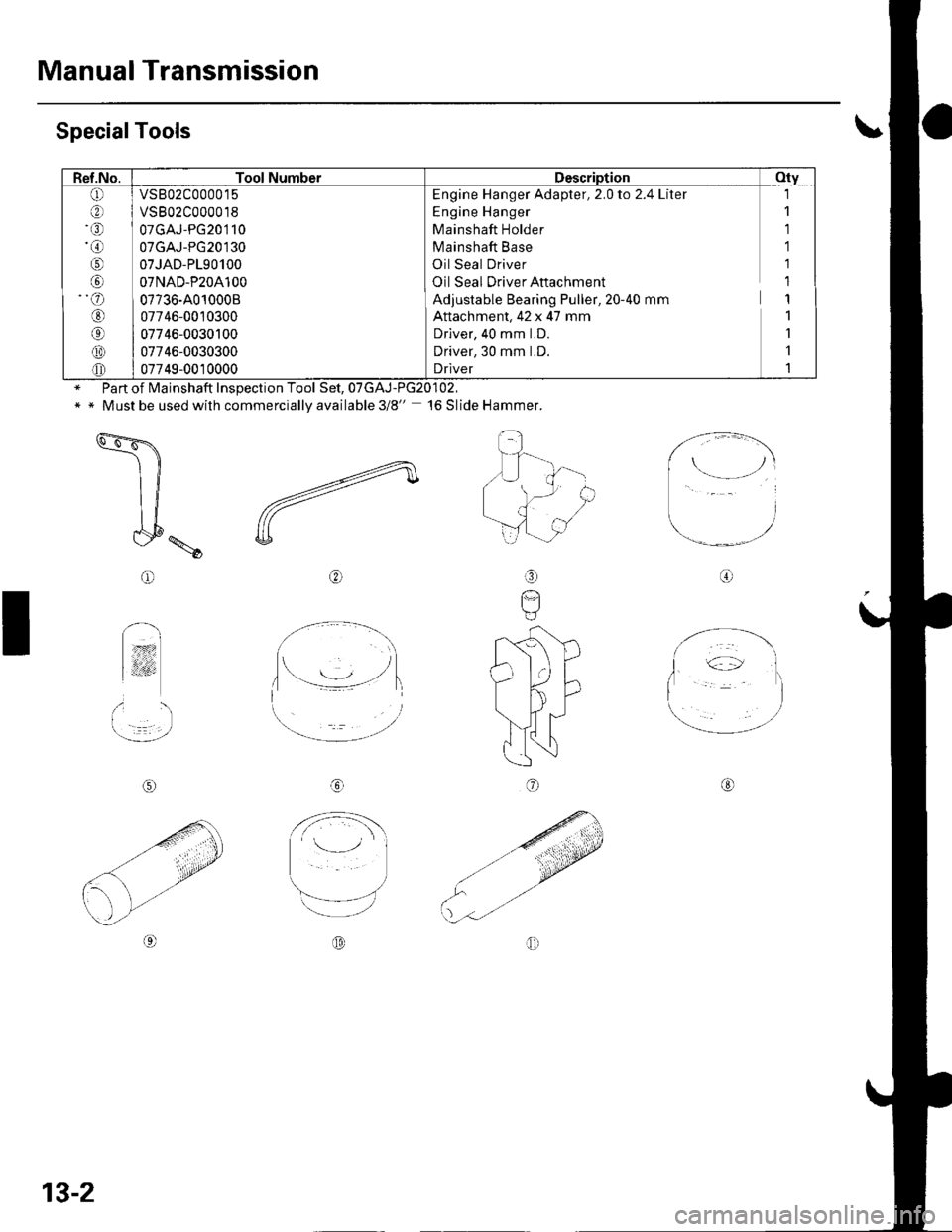

SpecialTools
Inspection Tool Set,
Must be used with commercially available 3/8" '16 Slide Hammer.
-4
Z-'
U
@o
I
rS'D
AD;nrf
\".,i'i
IN
@
I
@
@
-4
-a ,/
Q)-''
o
Ref.No.Tool NumberDescription Oty
(!lar\
ral
@
o
ori)
@
@
@
vs802c000015
vs802c000018
07GAJ-PG20']10
07GAJ-PG20130
07JAD-P190100
07NAD-P20A100
07736-A01000B
07746-0010300
07746-0030100
07746-0030300
07749-0010000
l,l
l
Engine Hanger Adapter, 2.0 to 2.4 Liter
Engine Hanger
Mainshaft Holder
Mainshaft Base
Oil Seal Driver
Oil Seal Driver Aftachment
Adjustable Bearing Puller, 20-40 mm
Attachment, 42 x 47 mm
Driver, 40 mm LD.
Driver, 30 mm LD.
Driver
on Tool Set. 07GAJ-PG20102.of Mainshaft
\'---''
13-2

Transmission Fluid Inspection and
Replacement
'1. Park the vehicle on level ground, and turn the
engine OFF.
2. Remove the oilfiller plug (A) and washer (B), check
the condition of the fluid, and make sure the fluid is
at the proper level (C).
lf the transmission fluid is diny, remove the drain
plug (D) and drain the fluid.
A44 N.m{4.5 kgt.m,33 rbr.ftl
Reinstall the drain plug with a new washer, and
refill the transmission fluid to the proper level.
Oil Capacity
1.5 0 (1.6 US (F) at tluid change
1.7 0 {1.8 US qt) at overhaul
Always use Honda Manual Transmission Fluid
(MTF). Using motor oil can cause stiffer shifting
and noise because it does not contain the proper
additives.
Reinstall the oil filler plug with a new washer.5.
13-3
Back-Up Light Switch Test
1. Disconnectthe back-up light switch (A) connector.
Check for continuity between the back up light
swilch 2P connector No. 1 and No.2 terminals.
There should be continuity when the shift lever is in
reverse.
lf necessary, replace the back-up light switch.
Apply liquid gasket (P/N 08718-0001), and install it
on the transmission housing.
2.
3.

Manual Transmission
Transmission Removal
SpecialTools Required. Engine hanger adapter.2.0 to 2.4 liter VSB02C000015. Engine hanger VSB02C000018. Engine support hanger, A & Reds AAR'T 12566'. Subframe adaDter EOS02C000011 '
* Available through the Honda Tool and Equipment
Program 888-424-6857
NOTE: Use fender covers to avoid damaging painted
surfaces.
4.
1.
7.
Write down the frequencies for the radio's preset
buttons. Disconnect the negative ( ) cable first,
then the positive ( )cable from the battery.
Remove the battery.
Remove the intake manifold cover {see page g-3).
Remove the air cleaner housing (see page 1 1-162).
Remove the intake air duct {see step 8 on page 5-3).
Remove the battery tray (A).
Disconnect the transmission ground cable (B).
Disconnect the back-up light switch connector (A)
and vehicle speed sensor (VSS) connector (B).
13-4
8. Remove the cable bracket (A). then disconnect the
cables (B) from the top of the transmission housing.
Carefully remove both cables and the bracket
together so as not to bend the cables.
9. Remove the harness clip.
I
HA @
ilB

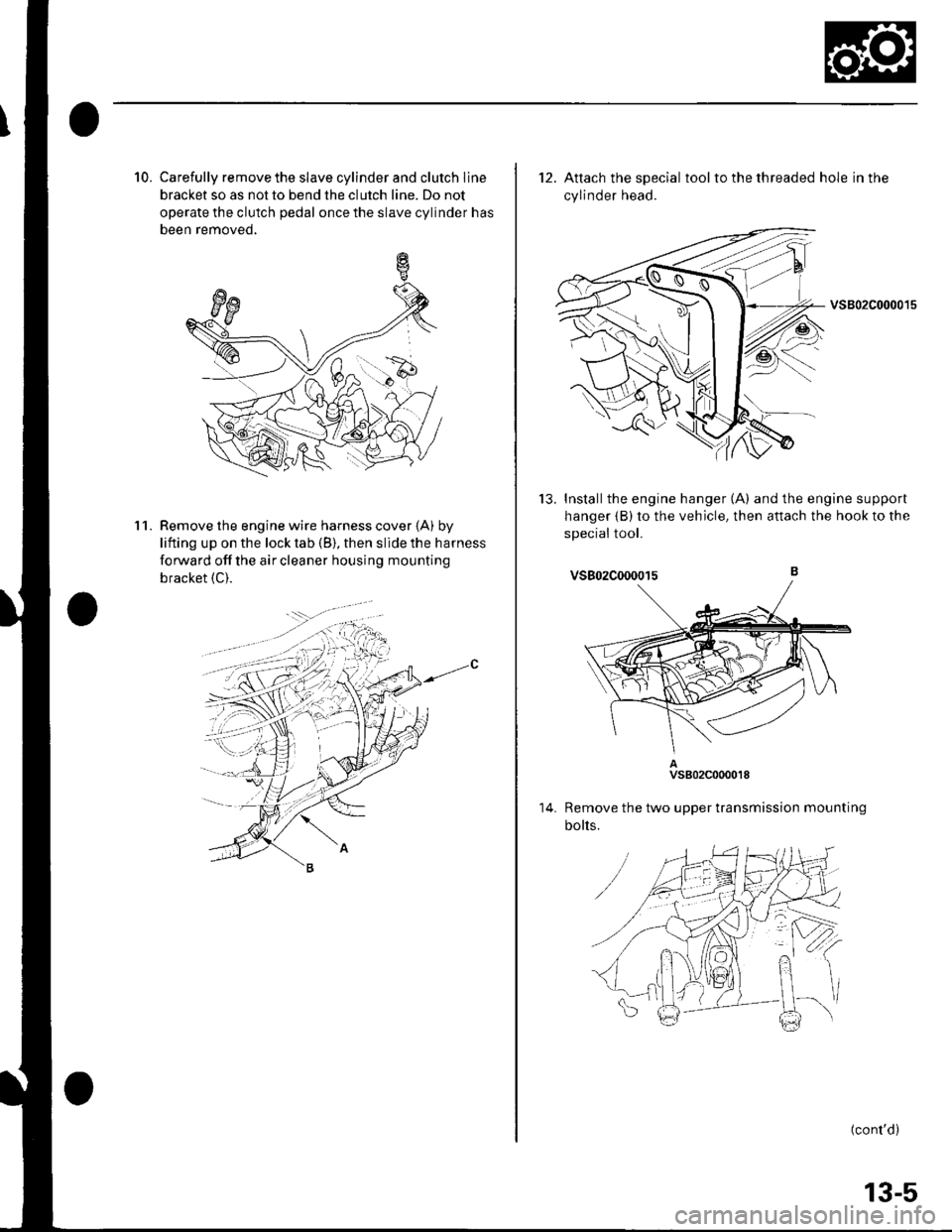

10. Carefully remove the slave cylinder and clutch line
bracket so as not to bend the clutch line. Do not
operate the clutch pedal once the slave cylinder has
been removed,
Remove the engine wire harness cover (A) by
lifting up on the lock tab (B), then slide the harness
forward offthe aircleaner housing mounting
bracket {C).
11.
12. Attach the special tool to the threaded hole in the
cylinder head.
vsB02c00001s
Installthe engine hanger (A) and the engine support
hanger {B) to the vehicle, then attach the hook to the
sDeciai tool.
tJ.
14.
vs802c000015
Remove the two upper transmission mounting
bolts.
(cont'd)
13-5

Manual Transmission
Transmission Removal (cont'd)

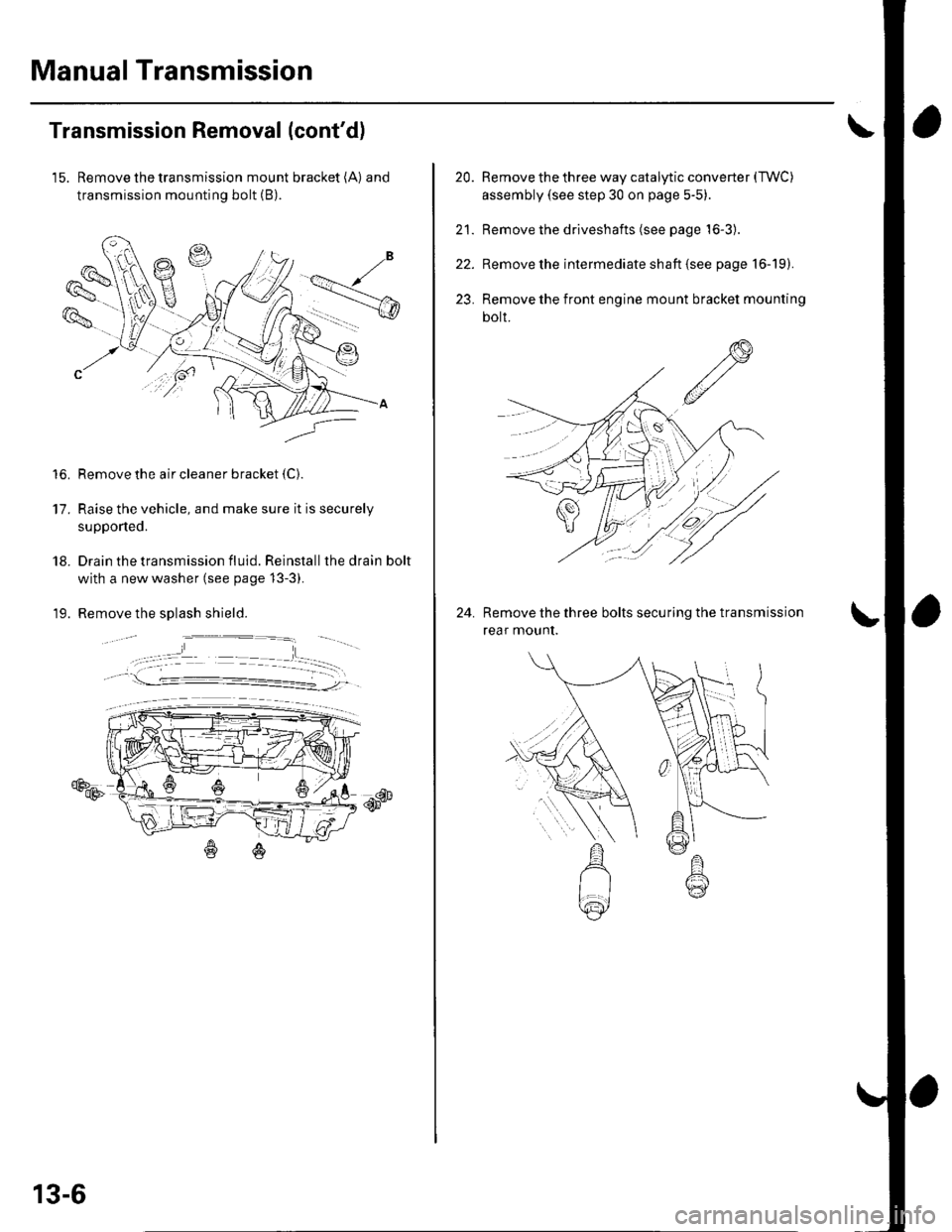

15. Remove the transmission mount bracket (A) and
transmission mounting bolt (B).
Remove the air cleaner bracket {C).
Raise the vehicle, and make sure it is securely
supponed.
Drain the transmission fluid. Reinstall the drain bolt
with a new washer (see page 13-3).
Remove the splash shield.
€Ds
to.
17.
18.
19.
db--qF
13-6
20.
21.
22.
23.
Remove the three way catalytic converter (TWC)
assembly (see step 30 on page 5-5)
Remove the driveshafts (see page 16-3).
Remove the intermediate shaft {see page 16-19).
Remove the front engine mount bracket mounting
bolt.
Remove the three bolts securing the transmission
rear mounI.
24.

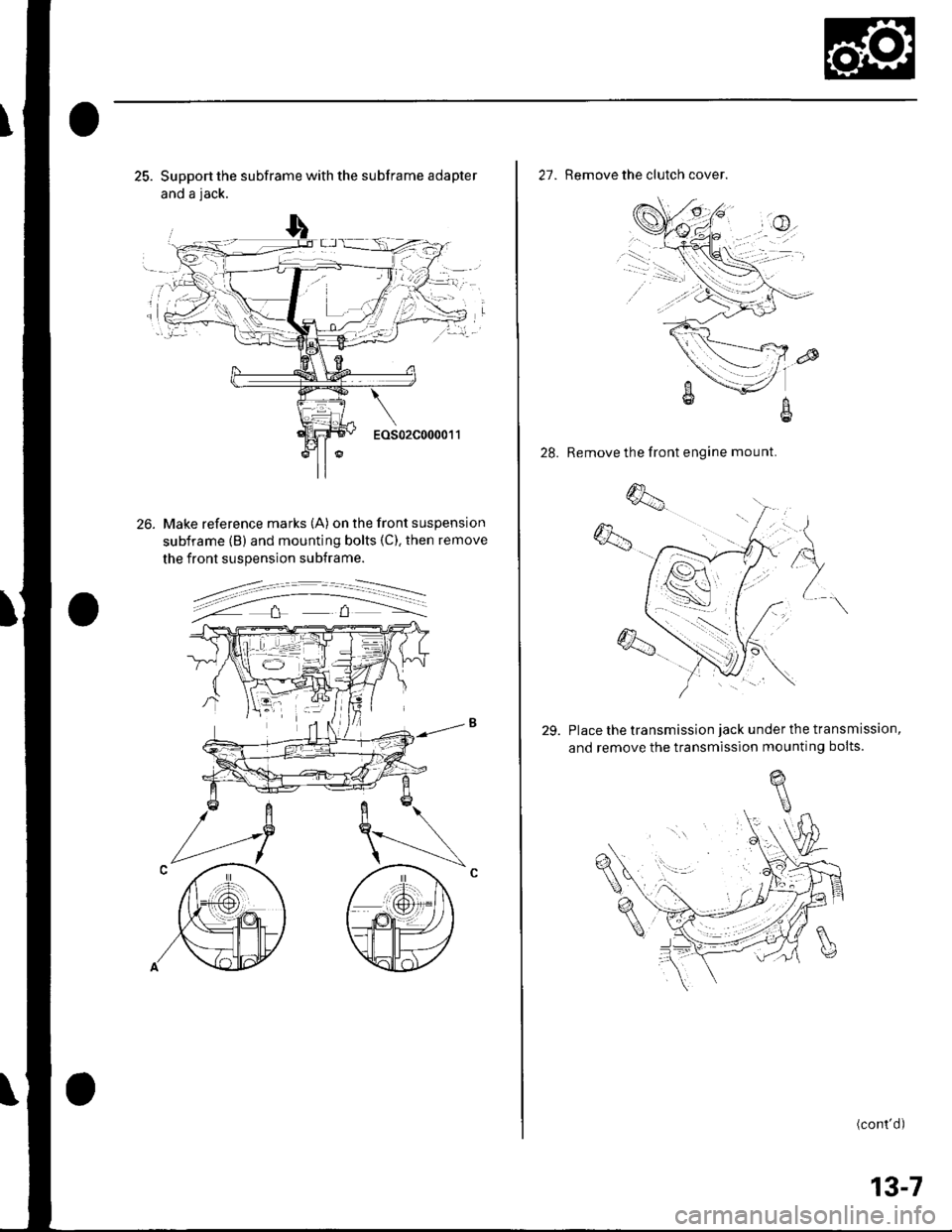

25. Support the subframe with the subframe adapter
and a jack.
---
26.
EOS02C000011
Make reference marks (A) on the front suspension
subframe (B) and mounting bolts (C). then remove
the front suspension subframe.
27. Remove the clutch cover.
28. Remove the front engine mount.
Place the transmission iack under the transmission,
and remove the transmission mounting bolts.
29.
(cont'd)
13-7

Manual Transmission
\
12 x 1.25 mm64 N.m{6.5 ksf.m,47 tbf.ft)
30.
Transmission Removal (cont'd)
Pull the transmission away from the engine until
the transmission mainshaft clears the clutchpressure plate, then lower the transmission on the
transmission jack.
Remove the transmission rear mount (A) and the
transmission rear mount bracket {B).
Remove the boot (A), the release fork {B). and the
release bearing (C) from the transmission (D).
32.
13-8
Transmission Installation
Special Tools Required. Engine hanger adapter, 2.0 to 2.4 liter VS802C000015. E ngine hanger VS802C000018. Engine support hanger, A & Reds AAR-T-12566". subframe adaDter EoS02c000011* Available through the Honda Tool and Equipment
Program 888-424-6857
1. Check the two dowel pins are installed in the clutch
housr ng.
Apply super high temp urea grease (P/N 08798-
9002) to the release fork (A) and the release bearing(B). Installthe release fork and the release bearing.
0.4 1.0 g {0.01 0.04 ozl
3. Installthe transmission rear mount bracket (A)and
the transmission rear mount (B).
x 1.25 mmN m {6.5 kgf.m,
Place the transmission on the transmission iack.
and raise it to the engine level.
't2
6447
1.0 '1.6 g{0.04 0.06 oz)

5. Install the transmission mounting
12 x 1.25 mm64 N.m 16.5 kgf m.47 lbt ft)
12 x 1.25 mm64 N.m (6.5 kgf.m,47 lbf.ft)
6. Installthe front engine mount.
12 x 1.25 ftrn64 N.m(6.5 kgf m. 47 lbf.ft)
bolts.
12x 1.25 mm64 N.m(6.5 kst.m,47 lbf ft)
7. lnstallthe clutch cover.
6x1.0mm12 N.m {1.2 kgI.m, 9 lbf ftl
8. Supportthe subframe with the subframe adapter
and a jack.
Installthe front suspension subframe (A) in its
original position by aligning the marks (B) you
made in the removal procedure,
9.
14 x 1.5 mm
(cont'd)
13-9

Manual Transmission
Transmission Installation (cont'dl

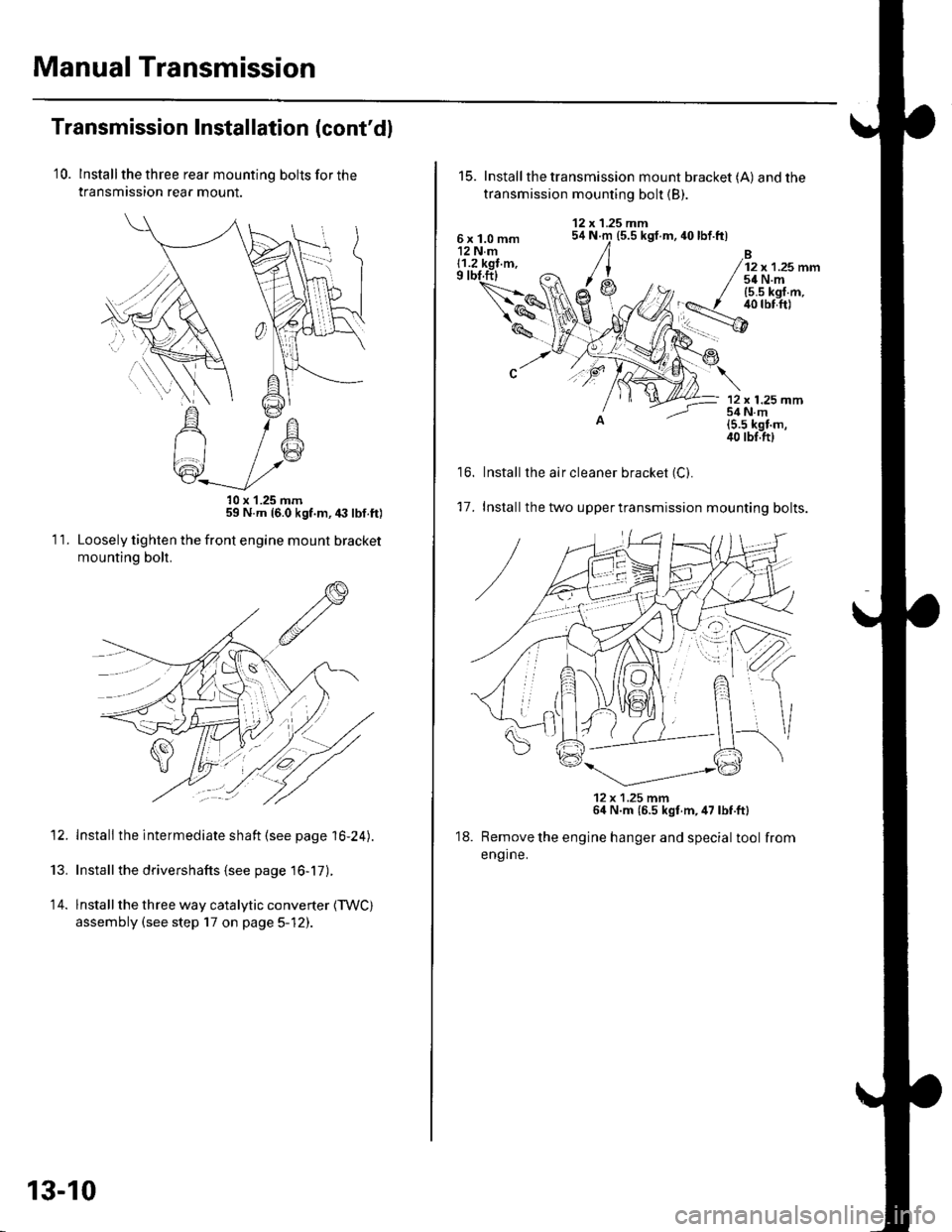

'10. Installthe three rear mounting bolls for the
transmission rear mount.
59 N.m (6.0 kgf.m,43 tbf.ft)
Loosely tighten the front engine mount bracket
mounting bolt.
11.
12.
t5.
14.
Install the intermediate shaft (see page 16-24).
Installthe drivershafts (see page 16-17).
lnstall the three way catalytic converter (TWC)
assembly (see step 17 on page 5-12).
10 x 1.25 mm
13-10
6x1.0mm12Nm
15.Install the transmission mount bracket (A) and the
transmission mounting bolt {B).
12 x 1.25 mm54 N.m {5.5 ksf.m, 40lbf.ft)
12x 1.25 nn54 N.m(5.5 kgf.m,40 tbt.ft)
16.
17.
/t':::= 12 x 1.25 mm-) 54 N.m(5.5 kgf.m,40 tbf.ftl
Install the air cleaner bracket (C).
Install the two upper transmission mounting bolts.
12 x 1.25 mrn64 N.m (6.5 kgt.m,47 lbf.ftl
18. Remove the engine hanger and special tool from
engrne.
