HONDA CIVIC 2022 Owner's Manual
Manufacturer: HONDA, Model Year: 2022, Model line: CIVIC, Model: HONDA CIVIC 2022Pages: 700, PDF Size: 13.98 MB
Page 21 of 700
20
Quick Reference Guide

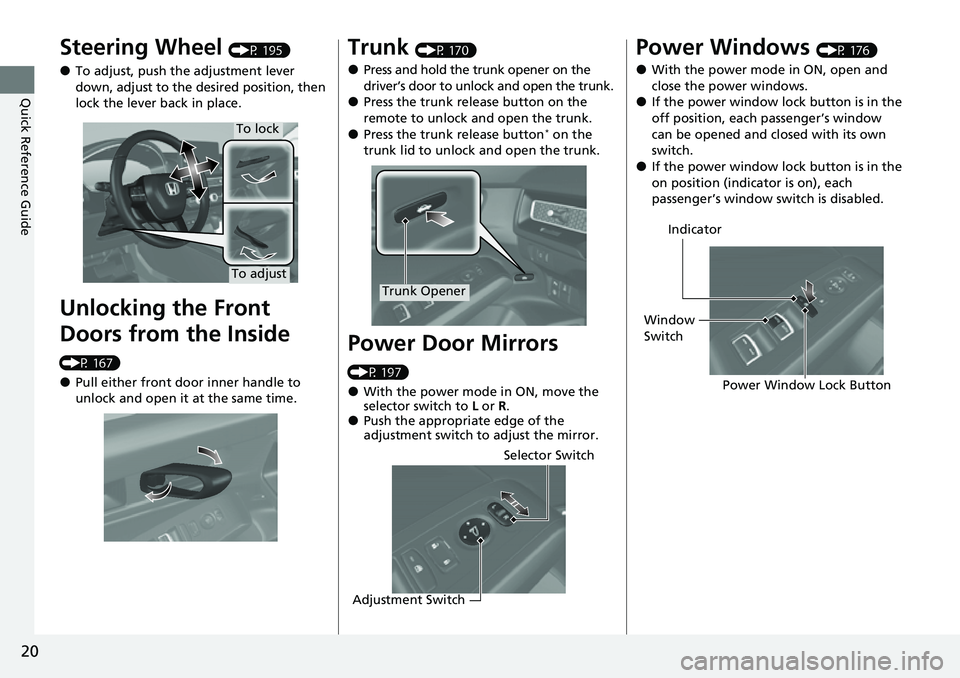

Steering Wheel (P 195)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 167)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
Trunk (P 170)
●Press and hold the trunk opener on the
driver’s door to unlock and open the trunk.
●Press the trunk release button on the
remote to unlock and open the trunk.
●Press the trunk release button* on the
trunk lid to unlock and open the trunk.
Power Door Mirrors
(P 197)
●With the power mode in ON, move the
selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Opener
Selector Switch
Adjustment Switch
Power Windows (P 176)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
Page 22 of 700
21
Quick Reference Guide

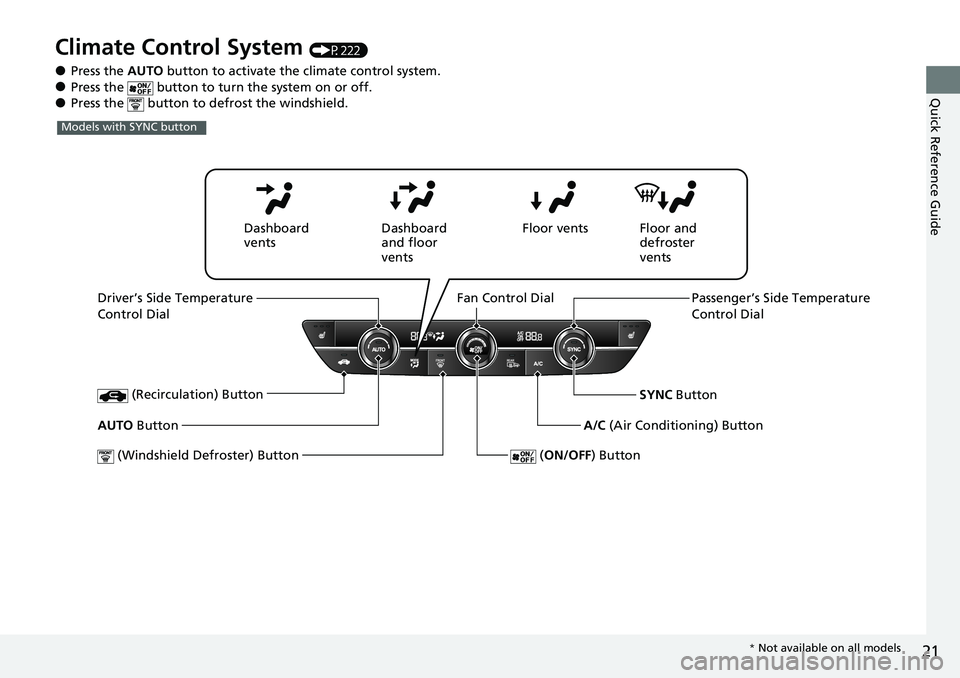

Climate Control System (P222)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control Dial
(Windshield Defroster) ButtonDriver’s Side Temperature
Control Dial (Recirculation) Button
(ON/OFF ) Button
AUTO Button A/C (Air Conditioning) Button
Dashboard
vent
s D
ashboard
and floor
vents Floor vents Floor and
defroster
vents
Passenger’s Side Temperature
Control D ial
SYNC Button
Models with SYNC button
* Not available on all models
Page 23 of 700

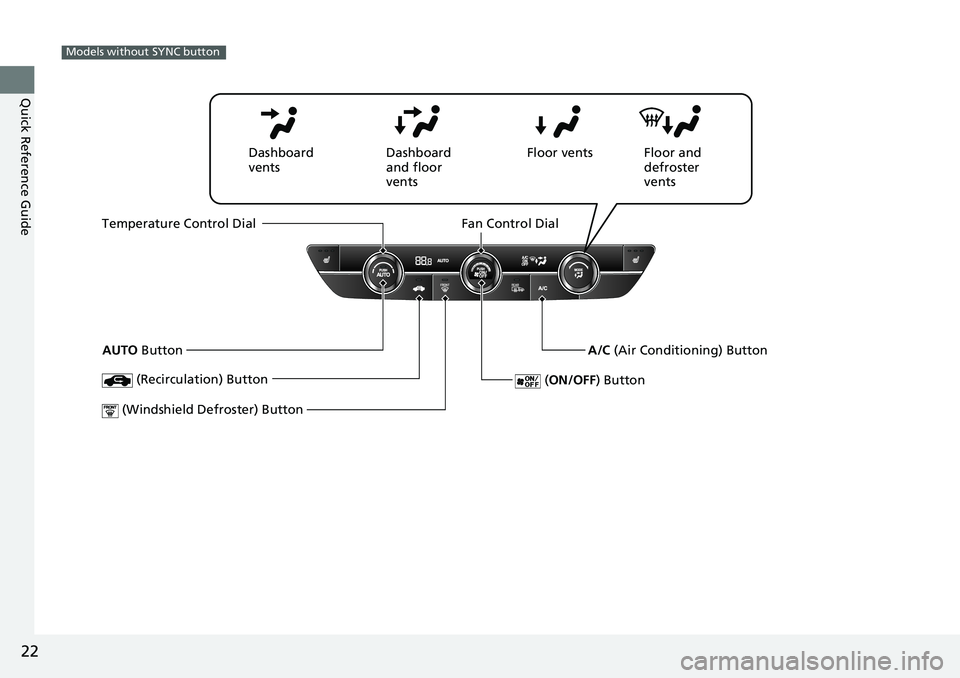

22
Quick Reference Guide
(Windshield Defroster) Button
(Recirculation) Button
Fan Control Dial
Temperature Control Dial
(ON/OFF) Button
AUTO Button A/C (Air Conditioning) Button
Dashboard
vent
s D
ashboard
and floor
vents Floor vents Floor and
defroster
vents
Models without SYNC button
Page 24 of 700
23
Quick Reference Guide

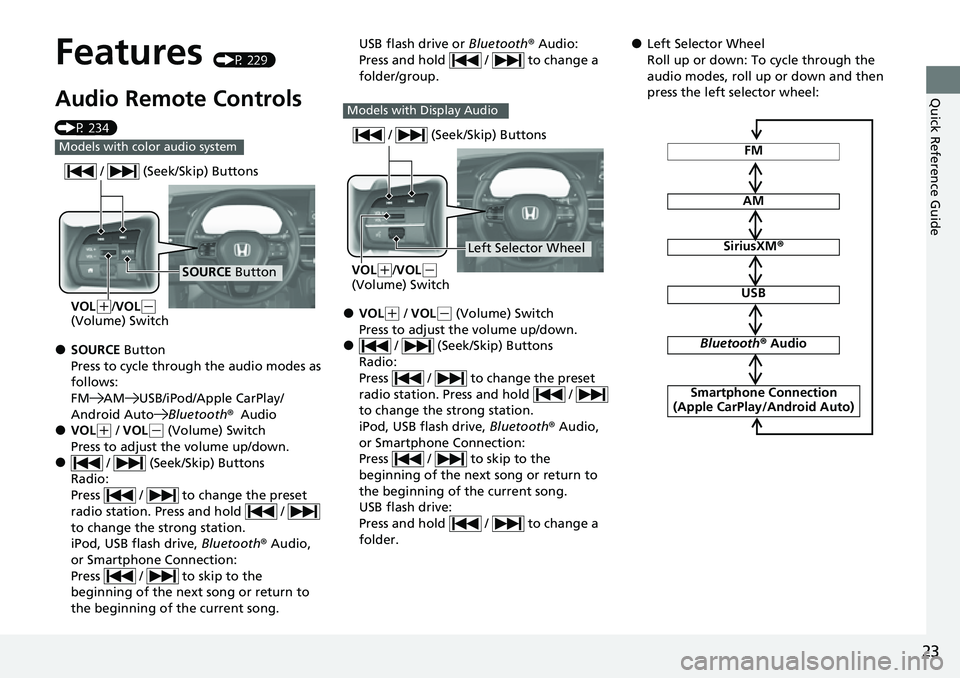

Features (P 229)
Audio Remote Controls
(P 234)
●SOURCE Button
Press to cycle through the audio modes as
follows:
FM AM USB/iPod/Apple CarPlay/
Android AutoBluetooth®Audio
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
Models with color audio system
SOURCE Button
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
●VOL( + / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Models with Display Audio
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
●Left Selector Wheel
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
FM
AM
SiriusXM ®
USB
Bluetooth® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
Page 25 of 700
24
Quick Reference Guide

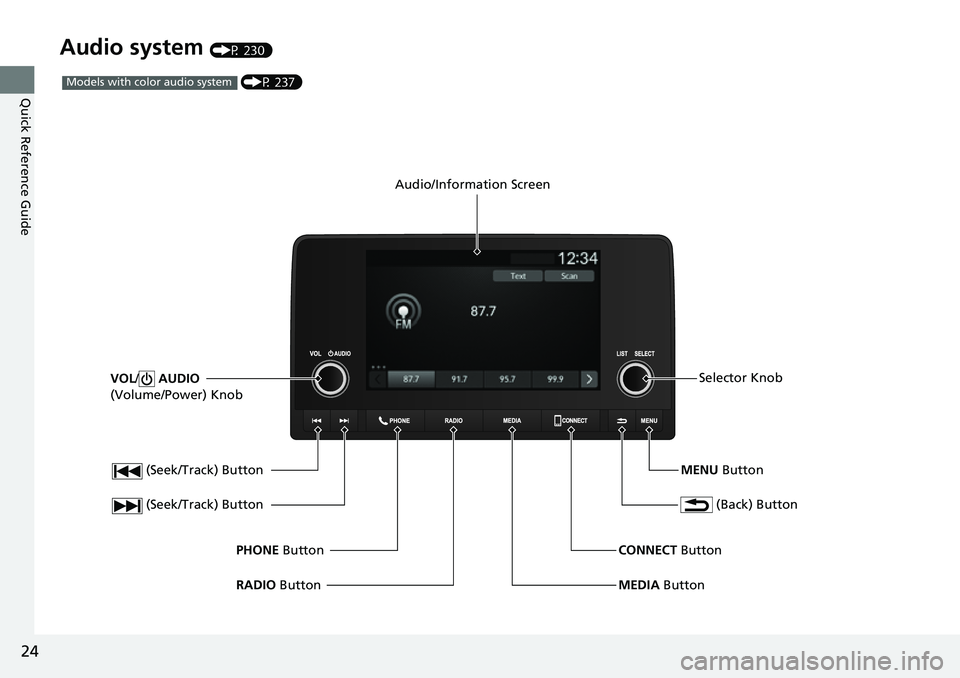

Audio system (P 230)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
(P 237)Models with color audio system
Page 26 of 700

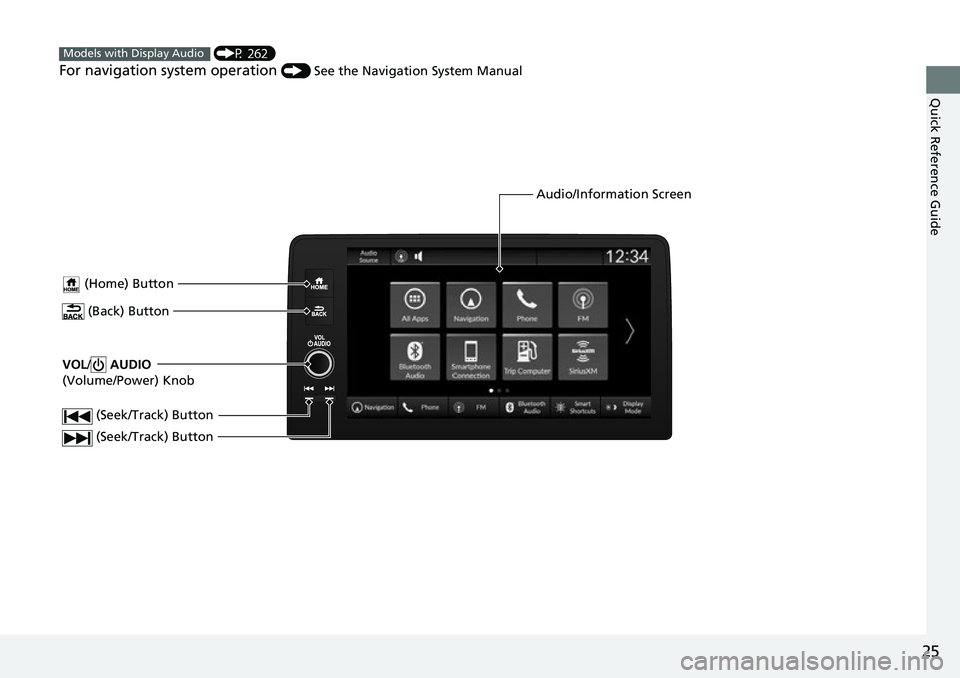

25
Quick Reference Guide
VOL/ AUDIO
(Volume/Power) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Seek/Track) Button
(Seek/Track) Button
(P 262)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
Page 27 of 700
26
Quick Reference Guide

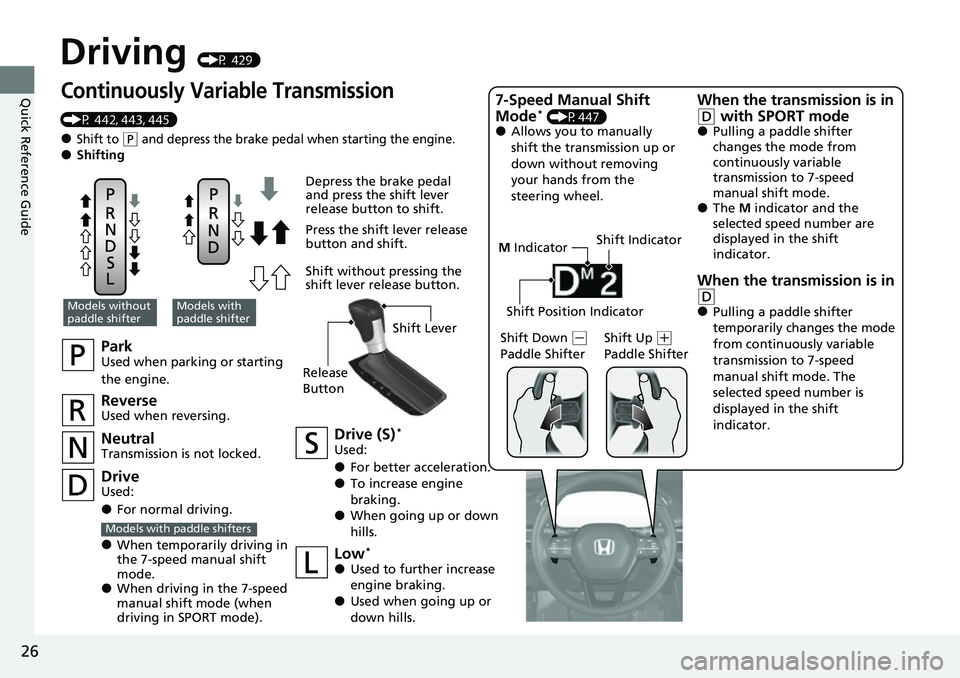

Driving (P 429)
Continuously Variable Transmission
(P 442, 443, 445)
●Shift to (P and depress the brake peda l when starting the engine.●Shifting
M Indicator
ParkUsed when parking or starting
the engine.
NeutralTransmission is not locked.
Drive (S)*
Used:
●For better acceleration.●To increase engine
braking.
●When going up or down
hills.
Models without
paddle shifterModels with
paddle shifter
Depress the brake pedal
and press the shift lever
release button to shift.
Press the shift lever release
button and shift.
Shift without pressing the
shift lever release button.
ReverseUsed when reversing.
DriveUsed:
●For normal driving.
●When temporarily driving in
the 7-speed manual shift
mode.
●When driving in the 7-speed
manual shift mode (when
driving in SPORT mode).
Models with paddle shifters
Low*
●Used to further increase
engine braking.
●Used when going up or
down hills. Shift Down
(
-
Paddle Shifter Shift Up (
+
Paddle Shifter
7-Speed Manual Shift
Mode* (P447)●Allows you to manually
shift the transmission up or
down without removing
your hands from the
steering wheel.
When the transmission is in
(D with SPORT mode●Pulling a paddle shifter
changes the mode from
continuously variable
transmission to 7-speed
manual shift mode.
●The M indicator and the
selected speed number are
displayed in the shift
indicator.
When the transmission is in (D●Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift
indicator.
Release
Button Shift LeverShift Position Indicator
Shift Indicator
Page 28 of 700
27
Quick Reference Guide

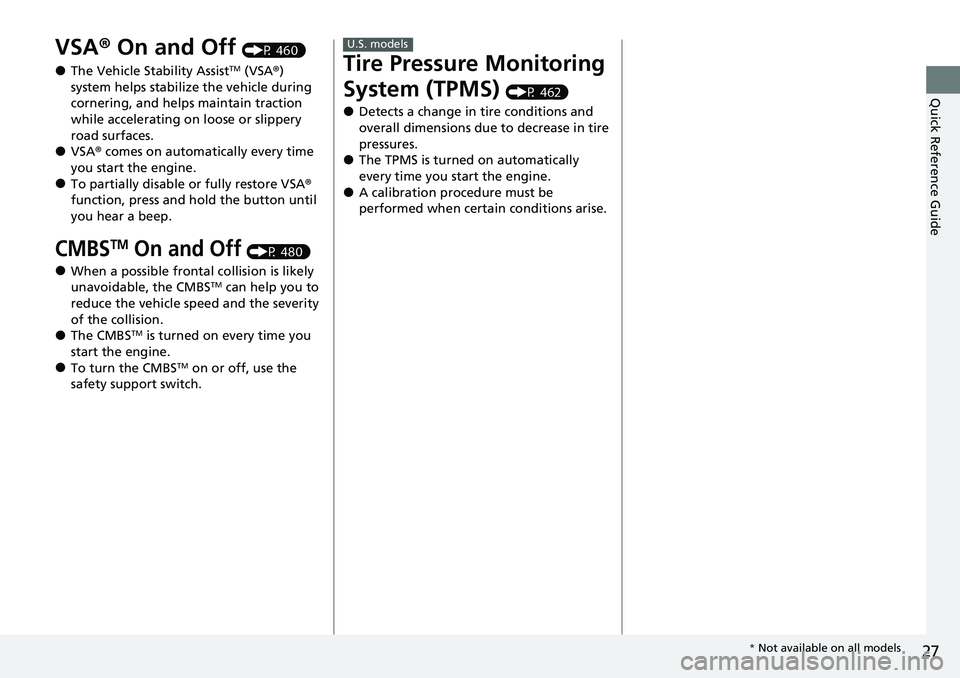

VSA® On and Off (P 460)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off (P 480)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle speed and the severity
of the collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support switch.
Tire Pressure Monitoring
System (TPMS)
(P 462)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you start the engine.
●A calibration procedure must be
performed when certain conditions arise.
U.S. models
* Not available on all models
Page 29 of 700
28
Quick Reference Guide

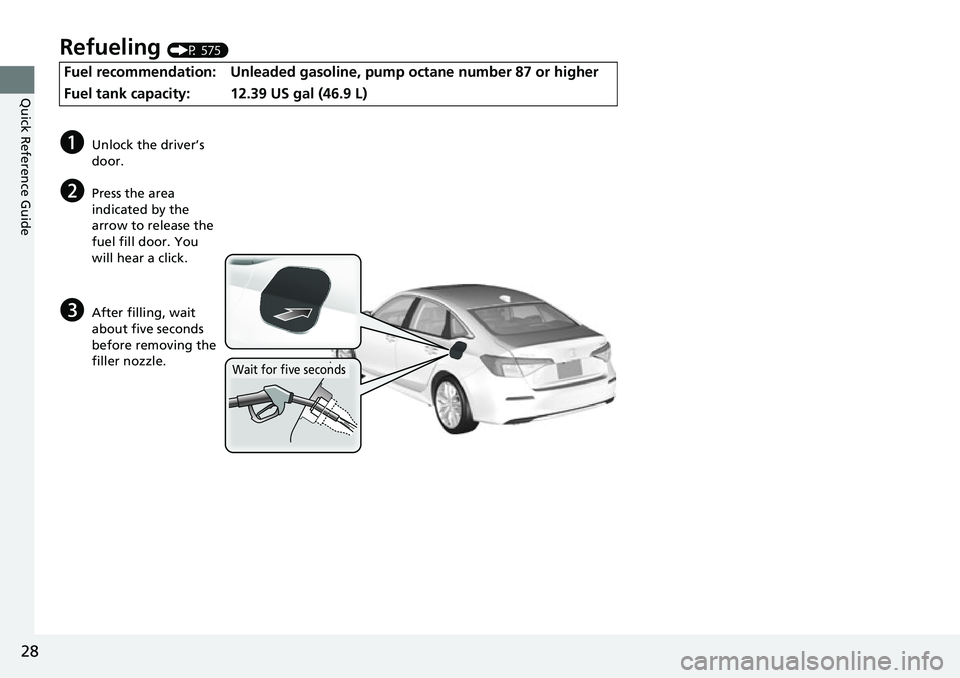

Refueling (P 575)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity:
12.39 US gal (46.9 L)
aUnlock the driver’s
door.
bPress the area
indicated by the
arrow to release the
fuel fill door. You
will hear a click.
cAfter filling, wait
about five seconds
before removing the
filler nozzle.
Wait for five seconds
Page 30 of 700
29
Quick Reference Guide

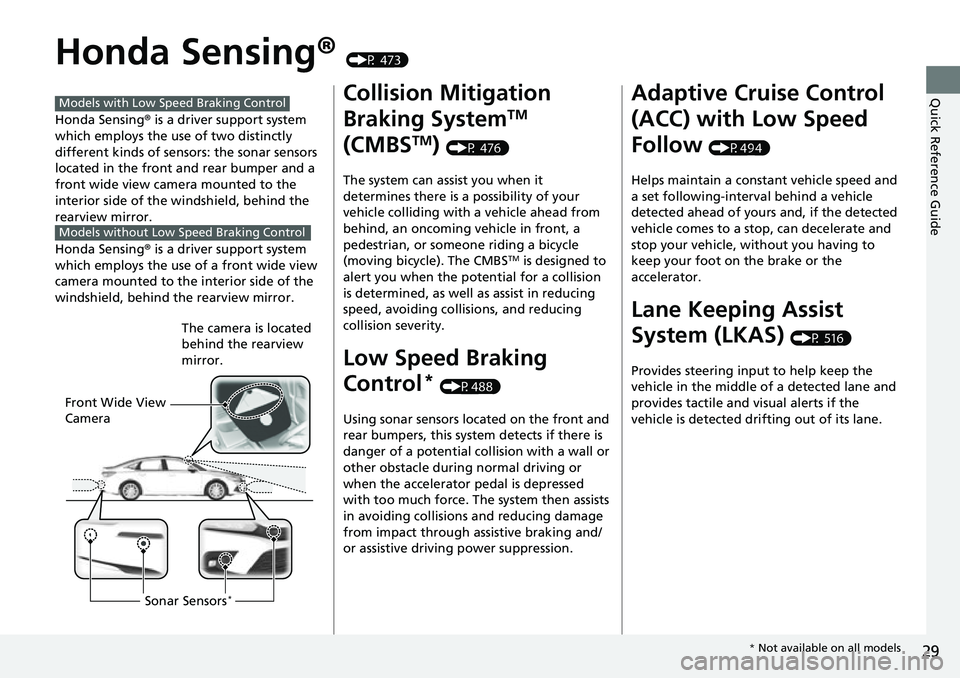

Honda Sensing® (P 473)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sens ors: the sonar sensors
located in the front and rear bumper and a
front wide view camera mounted to the
interior side of the windshield, behind the
rearview mirror.
Honda Sensing ® is a driver support system
which employs the use of a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Front Wide View
Camera The camera is located
behind the rearview
mirror.
Sonar Sensors*
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 476)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle ahead from
behind, an oncoming vehicle in front, a
pedestrian, or someone riding a bicycle
(moving bicycle). The CMBS
TM is designed to
alert you when the potential for a collision
is determined, as well as assist in reducing
speed, avoiding collisions, and reducing
collision severity.
Low Speed Braking
Control
* (P488)
Using sonar sensors located on the front and
rear bumpers, this system detects if there is
danger of a potential collision with a wall or
other obstacle during normal driving or
when the accelerator pedal is depressed
with too much force. The system then assists
in avoiding collisions and reducing damage
from impact through assistive braking and/
or assistive driving power suppression.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P494)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P 516)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
* Not available on all models
