HONDA CIVIC 2022 Owners Manual

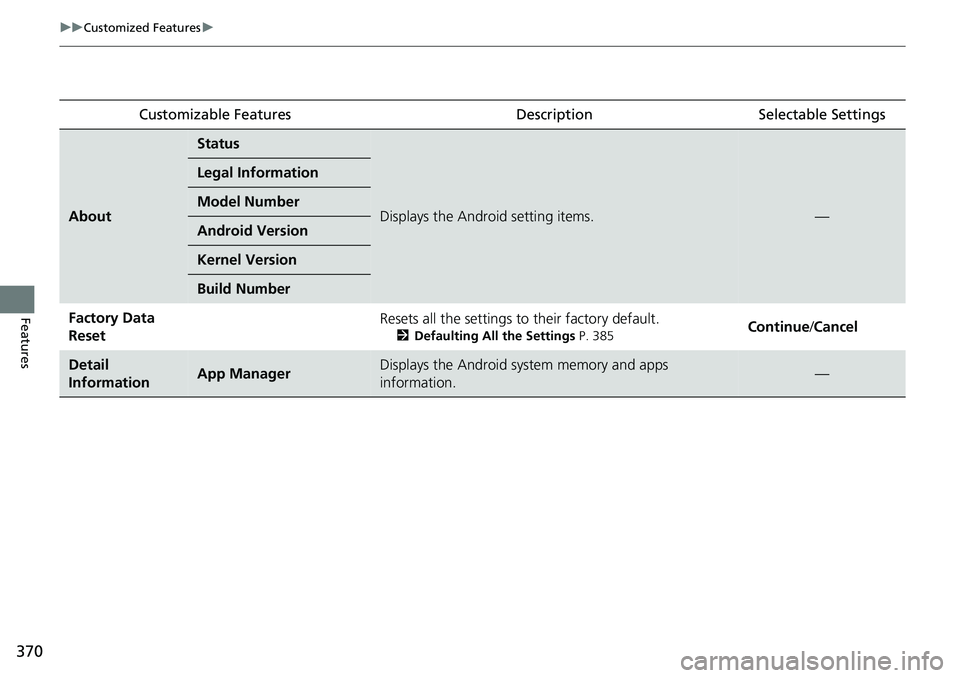

370
uuCustomized Features u
Features
Customizable FeaturesDescriptionSelectable Settings
About
Status
Displays the Android setting items.—
Legal Information
Model Number
Android Version
Kernel Version
Build Number
Factory Data
ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 385Continue/Cancel
Detail
InformationApp ManagerDisplays the Android system memory and apps
information.—

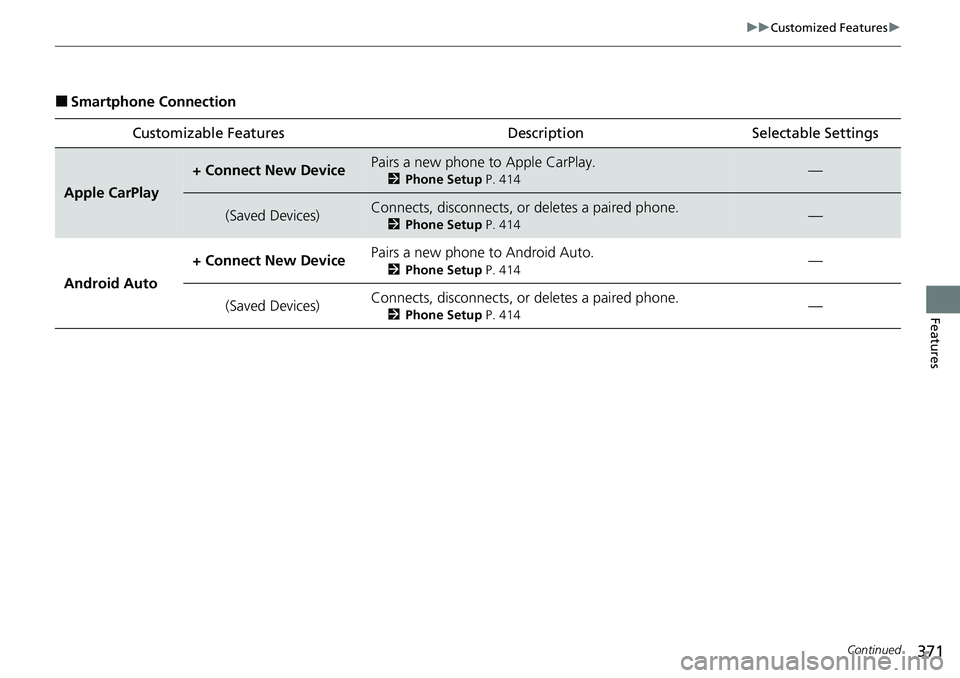

371
uuCustomized Features u
Continued
Features
■Smartphone Connection
Customizable Features Description Selectable Settings
Apple CarPlay
+ Connect New DevicePairs a new phone to Apple CarPlay.
2Phone Setup P. 414—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 414—
Android Auto + Connect New Device
Pairs a new phone to Android Auto.
2
Phone Setup P. 414—
(Saved Devices) Connects, disconnects, or deletes a paired phone.
2
Phone Setup P. 414—

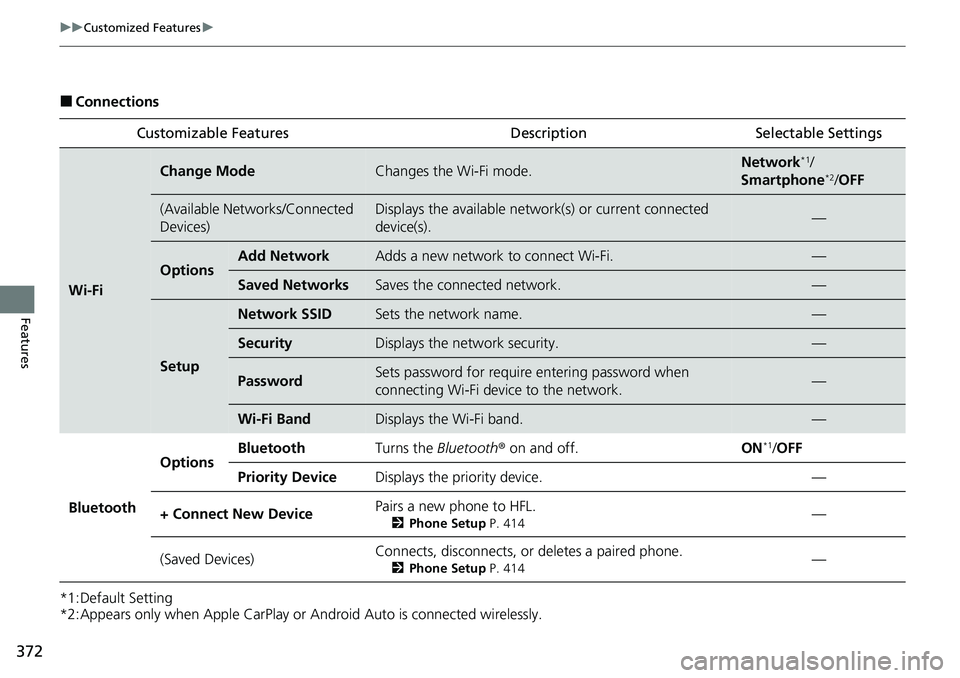

372
uuCustomized Features u
Features
■Connections
*1:Default Setting
*2:Appears only when Apple CarPlay or Android Auto is connected wirelessly. Customizable Features Desc
ription Selectable Settings
Wi-Fi
Change ModeChanges the Wi-Fi mode.Network*1/
Smartphone*2/ OFF
(Available Networks/Connected
Devices)Displays the available network(s) or current connected
device(s).—
OptionsAdd NetworkAdds a new network to connect Wi-Fi.—
Saved NetworksSaves the connected network.—
Setup
Network SSIDSets the network name.—
SecurityDisplays the network security.—
PasswordSets password for require entering password when
connecting Wi-Fi device to the network.—
Wi-Fi BandDisplays the Wi-Fi band.—
Bluetooth
OptionsBluetoothTurns the Bluetooth® on and off.ON*1/OFF
Priority DeviceDisplays the priority device.—
+ Connect New DevicePairs a new phone to HFL.
2 Phone Setup P. 414—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 414—

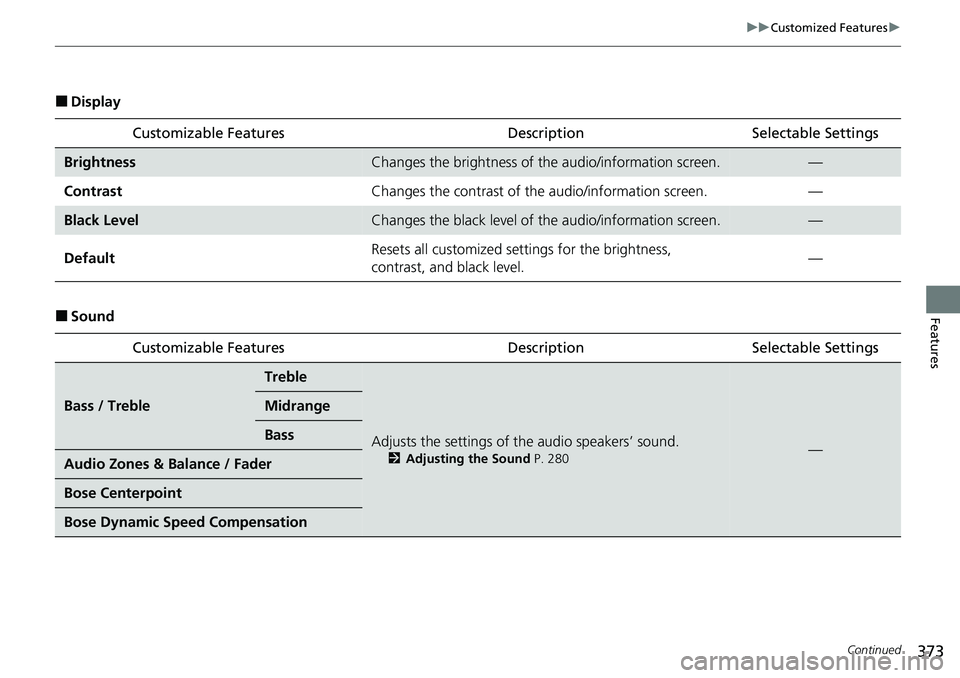

373
uuCustomized Features u
Continued
Features
■Display
■SoundCustomizable Features Desc
ription Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
ContrastChanges the contrast of the audio/information screen.—
Black LevelChanges the black level of the audio/information screen.—
DefaultResets all customized settings for the brightness,
contrast, and black level.—
Customizable Features Desc ription Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers’ sound.
2Adjusting the Sound P. 280—
Midrange
Bass
Audio Zones & Balance / Fader
Bose Centerpoint
Bose Dynamic Speed Compensation

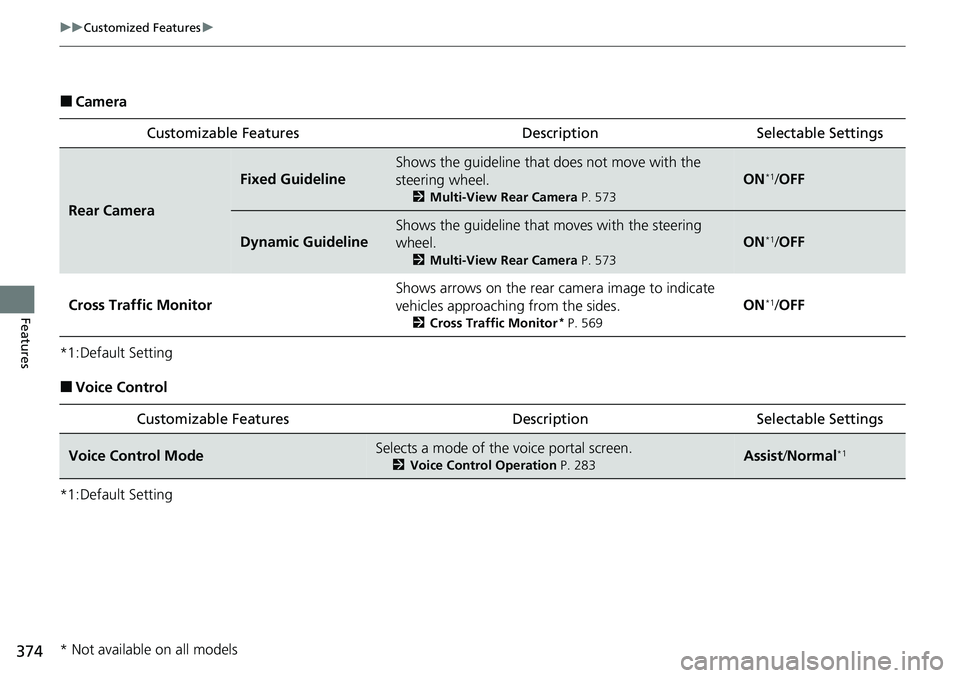

374
uuCustomized Features u
Features
■Camera
*1:Default Setting
■Voice Control
*1:Default Setting Customizable Features Description Selectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that
does not move with the
steering wheel.
2 Multi-View Rear Camera P. 573
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera P. 573
ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear camera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor* P. 569
ON*1/OFF
Customizable Features Description Selectable Settings
Voice Control ModeSelects a mode of the voice portal screen.
2 Voice Control Operation P. 283Assist /Normal*1
* Not available on all models

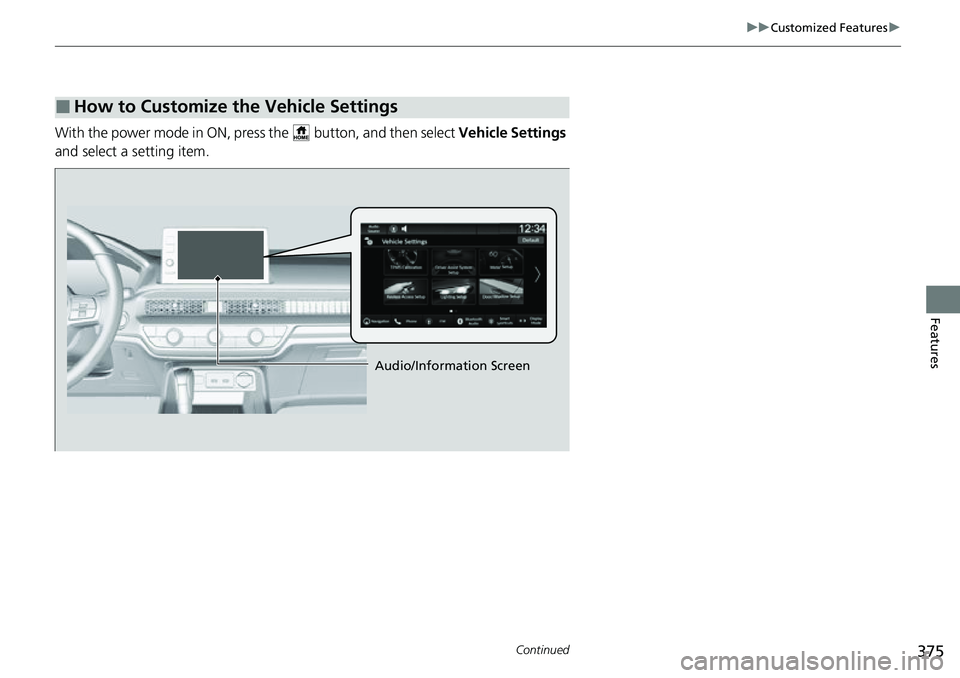

375
uuCustomized Features u
Continued
Features
With the power mode in ON, press the button, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings
Audio/Information Screen

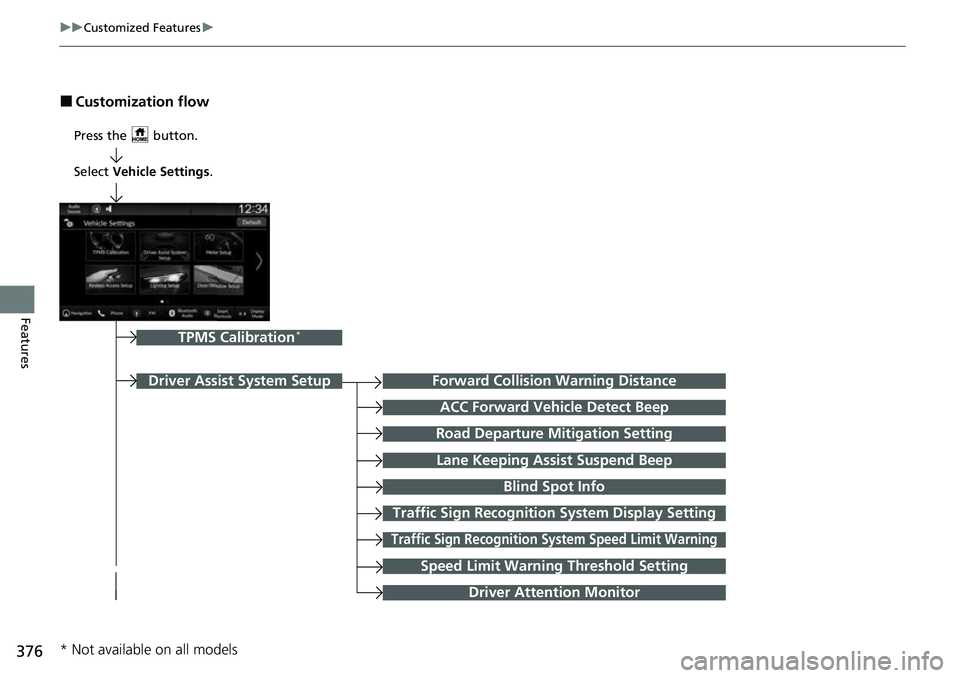

376
uuCustomized Features u
Features
■Customization flow
Press the button.
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Traffic Sign Recognition System Display Setting
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Info
Traffic Sign Recognition Sys tem Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
TPMS Calibration*
Select Vehicle Settings .
* Not available on all models

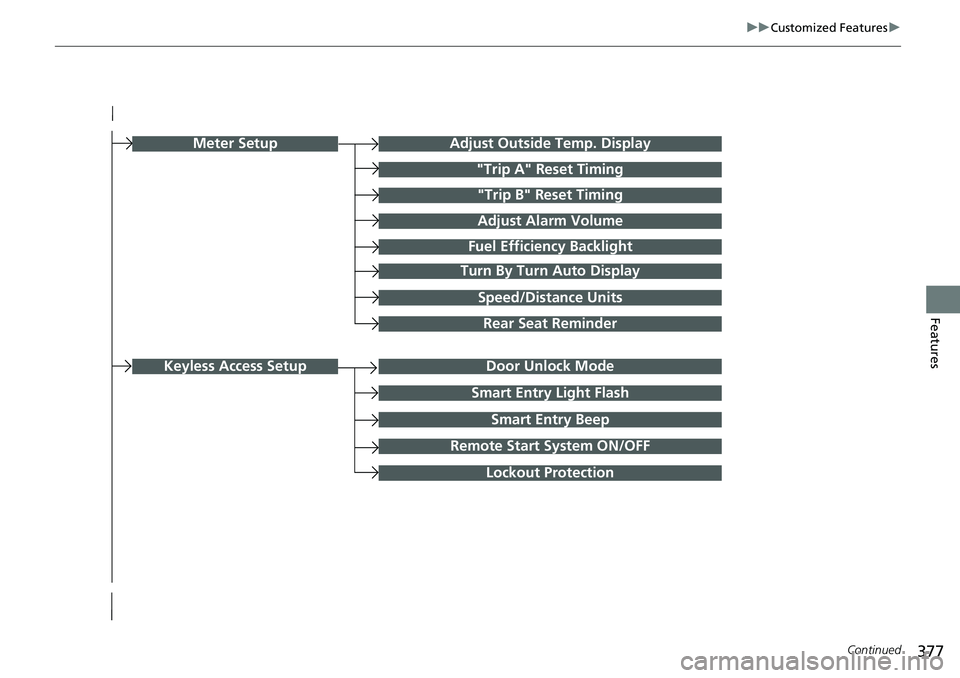

377
uuCustomized Features u
Continued
Features
Turn By Turn Auto Display
Speed/Distance Units
Smart Entry Light Flash
Rear Seat Reminder
Door Unlock Mode
Smart Entry Beep
Remote Start System ON/OFF
Lockout Protection
Keyless Access Setup
Meter SetupAdjust Outside Temp. Display
"Trip A" Reset Timing
"Trip B" Reset Timing
Adjust Alarm Volume
Fuel Efficiency Backlight

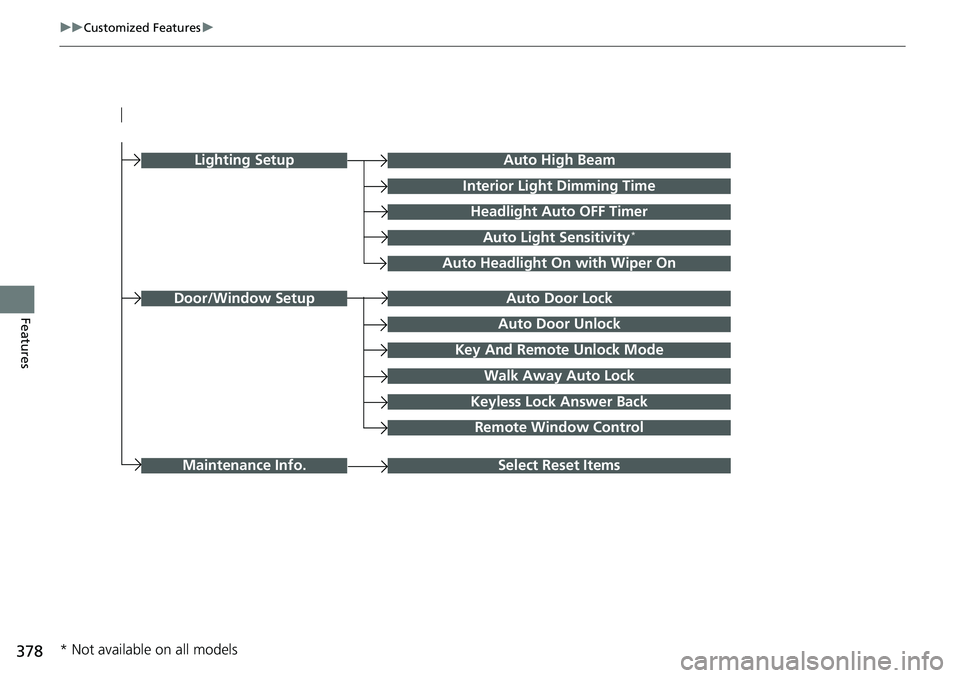

378
uuCustomized Features u
FeaturesAuto Door Unlock
Auto Door Lock
Key And Remote Unlock Mode
Walk Away Auto Lock
Keyless Lock Answer Back
Door/Window Setup
Lighting SetupAuto High Beam
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*
Auto Headlight On with Wiper On
Select Reset ItemsMaintenance Info.
Remote Window Control
* Not available on all models

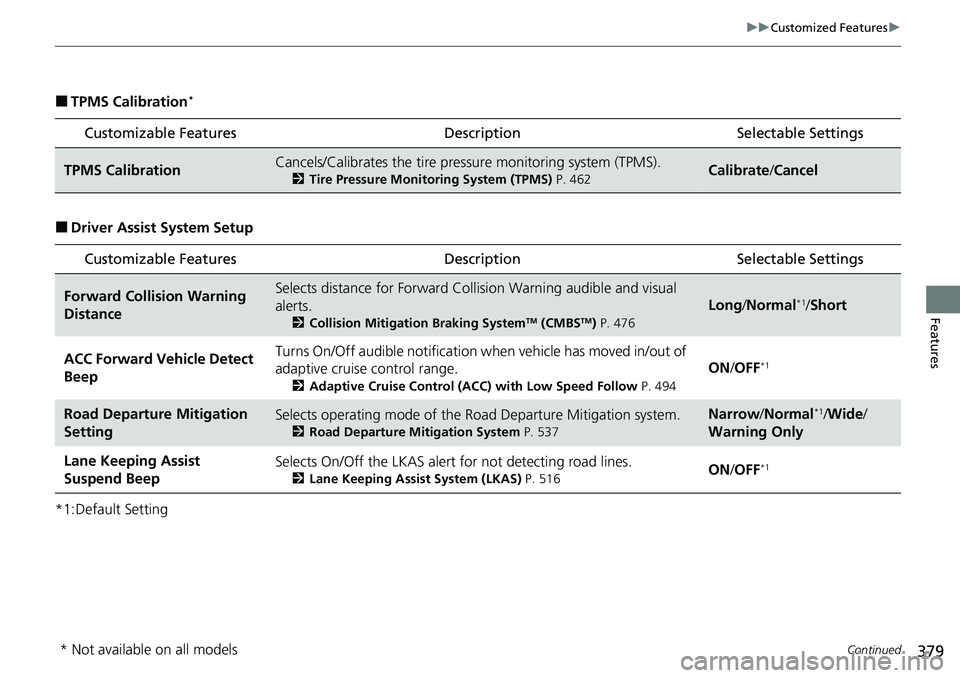

379
uuCustomized Features u
Continued
Features
■TPMS Calibration*
■Driver Assist System Setup
*1:Default Setting
Customizable Features Description Selectable Settings
TPMS CalibrationCancels/Calibrates the tire pressure monitoring system (TPMS).
2Tire Pressure Monitoring System (TPMS) P. 462Calibrate/Cancel
Customizable Features Description Selectable Settings
Forward Collision Warning
DistanceSelects distance for Forward Collision Warning audible and visual
alerts.
2Collision Mitigation Braking SystemTM (CMBSTM) P. 476
Long /Normal*1/Short
ACC Forward Vehicle Detect
BeepTurns On/Off audible notification when vehicle has moved in/out of
adaptive cruise control range.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 494
ON /OFF*1
Road Departure Mitigation
SettingSelects operating mode of the Roa d Departure Mitigation system.
2Road Departure Mitigation System P. 537
Narrow/Normal*1/ Wide /
Warning Only
Lane Keeping Assist
Suspend BeepSelects On/Off the LKAS alert for not detecting road lines.
2 Lane Keeping Assist System (LKAS) P. 516ON/OFF*1
* Not available on all models
