HONDA CIVIC 2023 Owners Manual

109
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
+R Mode
Indicator*
●Comes on when you set the drive mode to
+R .2 Drive Mode Switch* P. 529
Low Temperature
Indicator*
●Comes on when the engine coolant
temperature is low.●If the indicator stays on after the engine has
reached normal operating temperature, there may
be a problem with the temperature sensors. Have
your vehicle inspected by a dealer.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 109 ページ ２０２２年６月２３日　木曜日　午後９時２８分

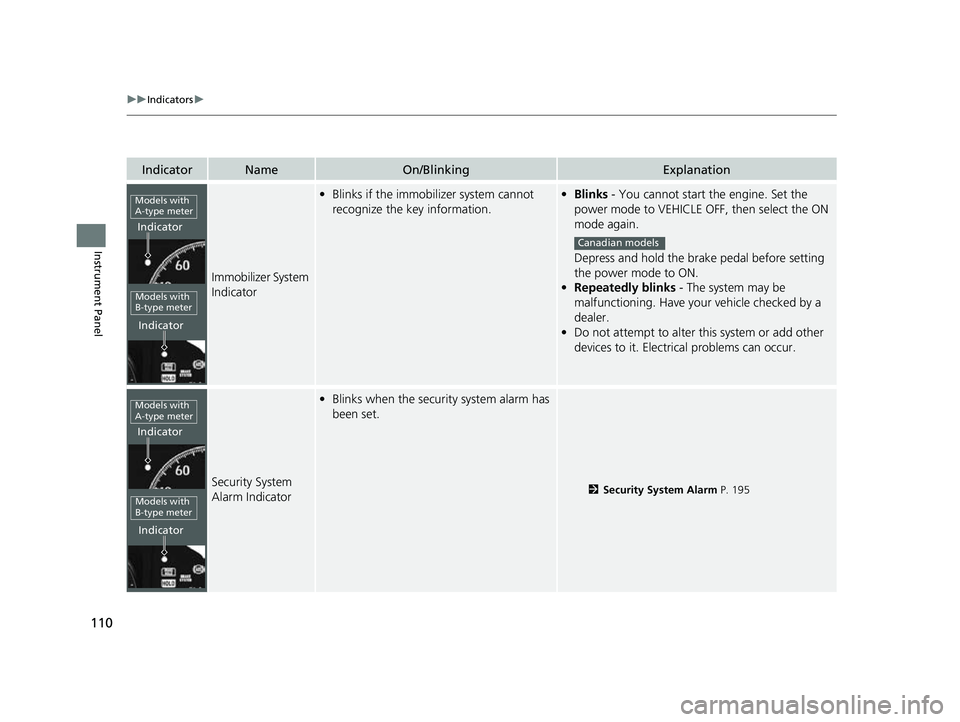

110
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Immobilizer System
Indicator
•Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
•Blinks when the security system alarm has
been set.
2 Security System Alarm P. 195
Models with
A-type meter
Indicator
Indicator
Models with
B-type meter
Canadian models
Models with
A-type meter
Indicator
Indicator
Models with
B-type meter
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 110 ページ ２０２２年６月２３日　木曜日　午後９時２８分

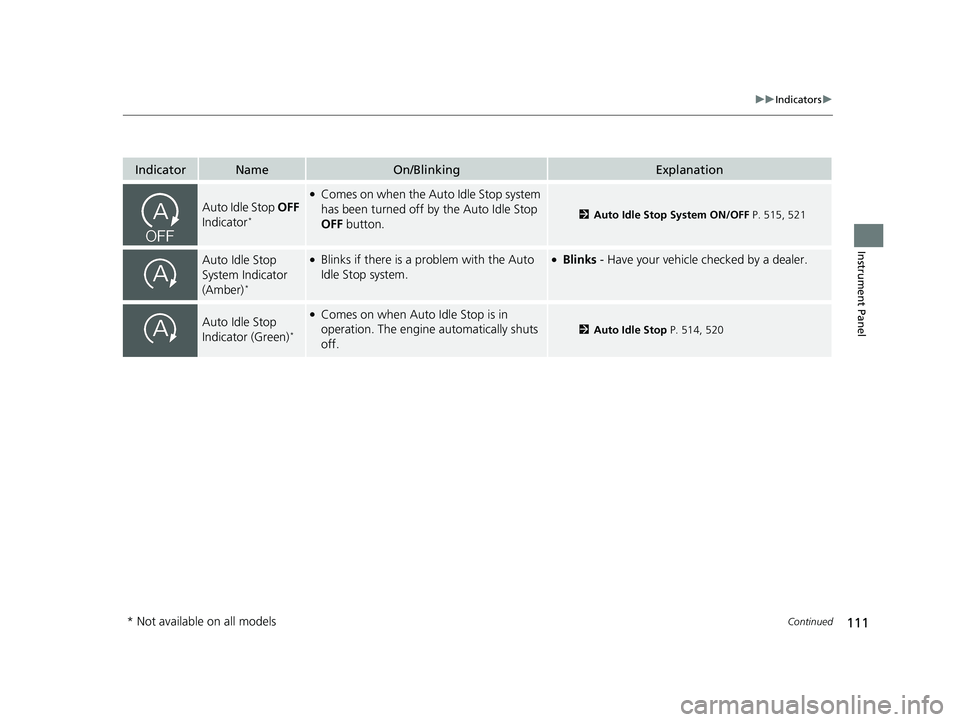

111
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop OFF
Indicator*
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
OFF button.
2Auto Idle Stop System ON/OFF P. 515, 521
Auto Idle Stop
System Indicator
(Amber)
*
●Blinks if there is a problem with the Auto
Idle Stop system.●Blinks - Have your vehicle checked by a dealer.
Auto Idle Stop
Indicator (Green)*
●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2 Auto Idle Stop P. 514, 520
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 111 ページ ２０２２年６月２３日　木曜日　午後９時２８分

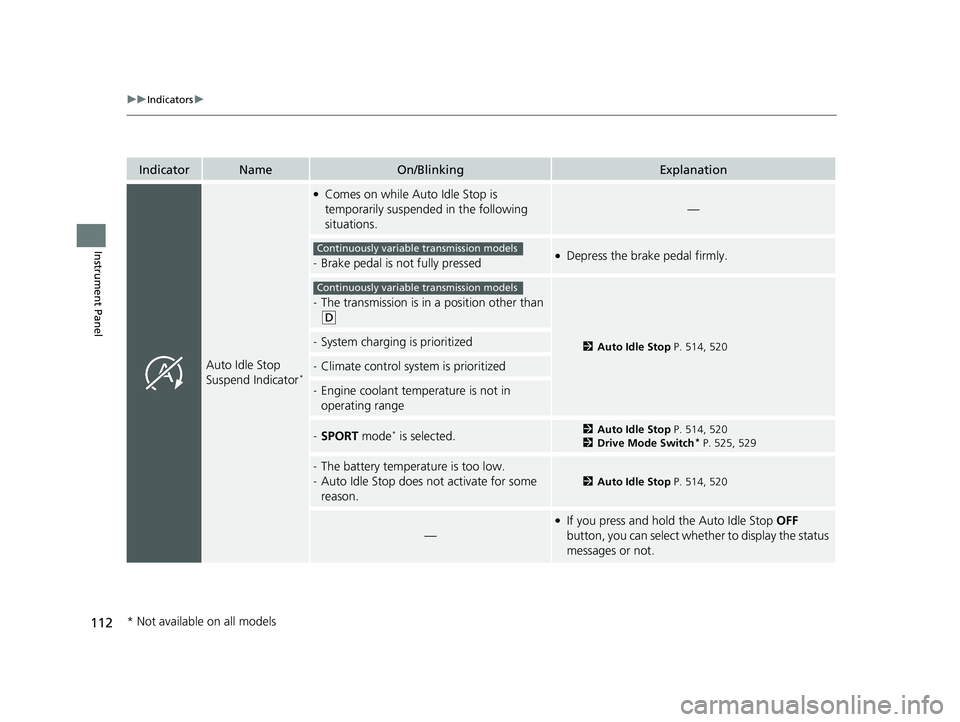

112
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Suspend Indicator*
●Comes on while Auto Idle Stop is
temporarily suspended in the following
situations.
—
-Brake pedal is not fully pressed●Depress the brake pedal firmly.
-The transmission is in a position other than
(D
2Auto Idle Stop P. 514, 520-System charging is prioritized
-Climate control system is prioritized
-Engine coolant temperature is not in
operating range
-SPORT mode* is selected.2Auto Idle Stop P. 514, 520
2 Drive Mode Switch* P. 525, 529
-The battery temperature is too low.
- Auto Idle Stop does not activate for some
reason.
2 Auto Idle Stop P. 514, 520
—
●If you press and hold the Auto Idle Stop OFF
button, you can select whether to display the status
messages or not.
Continuously variable transmission models
Continuously variable transmission models
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 112 ページ ２０２２年６月２３日　木曜日　午後９時２８分

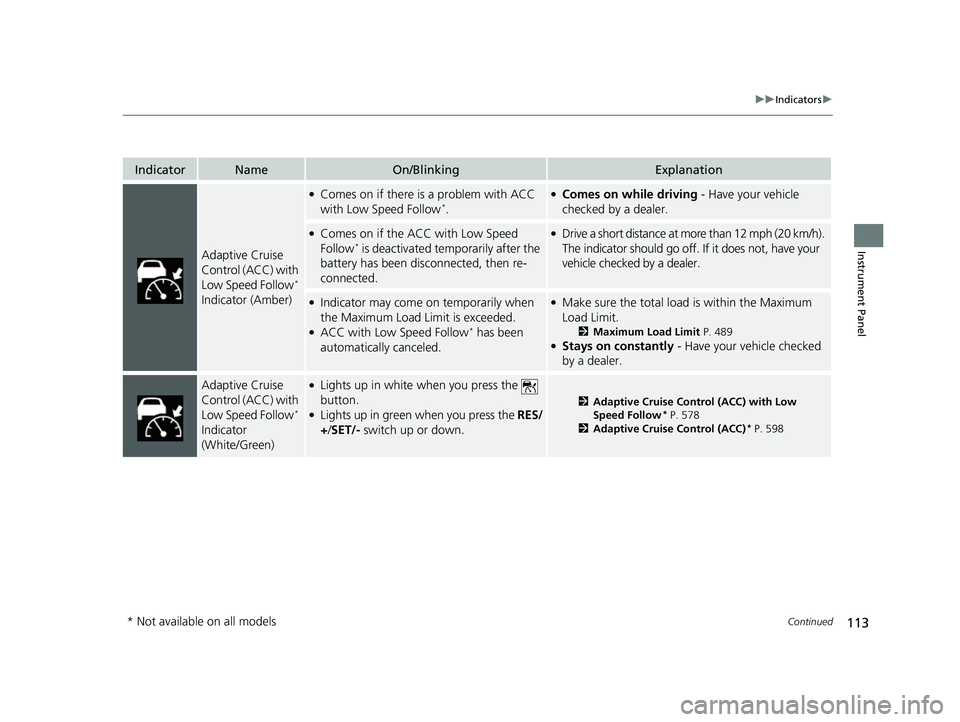

113
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow*.
●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow* is deactivated temporarily after the
battery has been disconnected, then re-
connected.
●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow* has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 489●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Indicator
(White/Green)
●Lights up in white wh en you press the
button.
●Lights up in green when you press the RES/
+/ SET/- switch up or down.
2Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 578
2 Adaptive Cruise Control (ACC)* P. 598
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 113 ページ ２０２２年６月２３日　木曜日　午後９時２８分

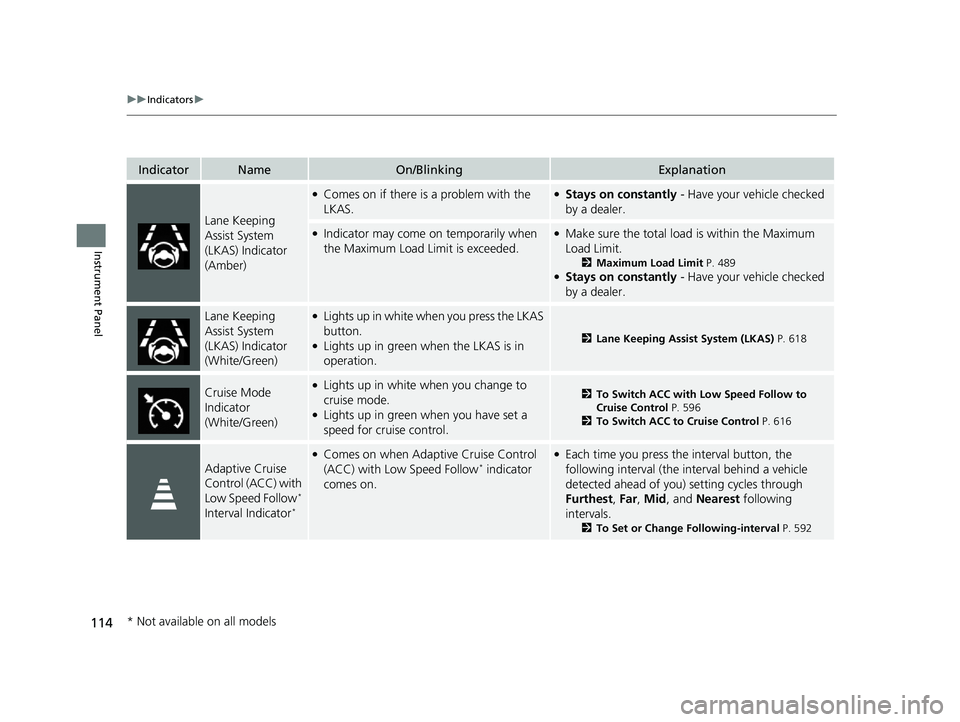

114
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
●Comes on if there is a problem with the
LKAS.●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 489●Stays on constantly - Have your vehicle checked
by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)●Lights up in white wh en you press the LKAS
button.
●Lights up in green when the LKAS is in
operation.2 Lane Keeping Assist System (LKAS) P. 618
Cruise Mode
Indicator
(White/Green)●Lights up in white when you change to
cruise mode.
●Lights up in green when you have set a
speed for cruise control.
2To Switch ACC with Low Speed Follow to
Cruise Control P. 596
2 To Switch ACC to Cruise Control P. 616
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Interval Indicator*
●Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow* indicator
comes on.
●Each time you press the interval button, the
following interval (the in terval behind a vehicle
detected ahead of you) setting cycles through
Furthest , Far , Mid, and Nearest following
intervals.
2 To Set or Change Following-interval P. 592
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 114 ページ ２０２２年６月２３日　木曜日　午後９時２８分

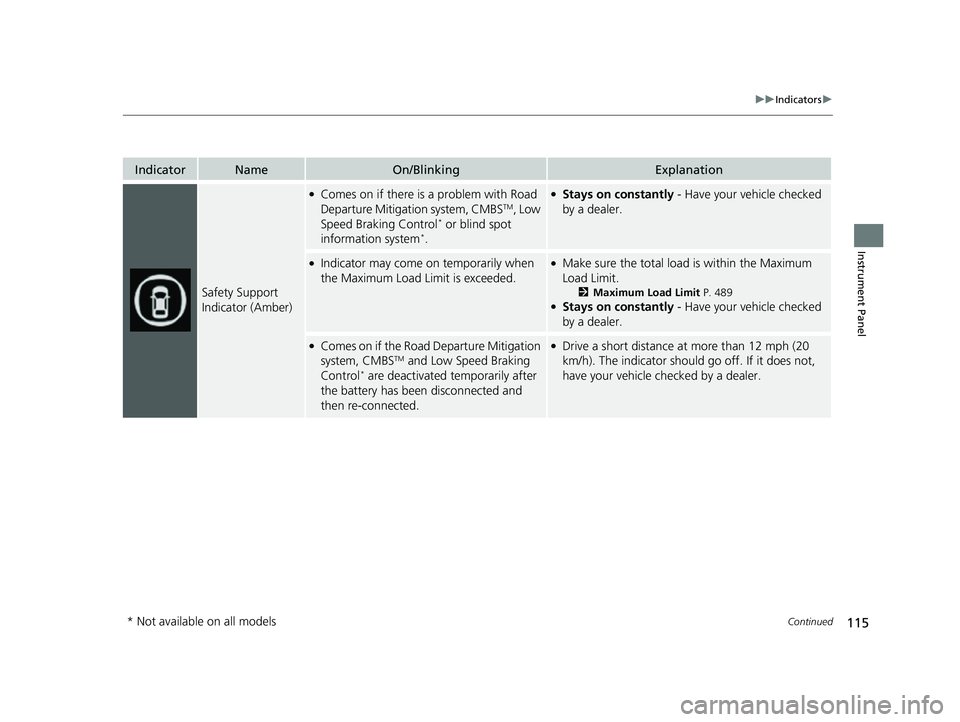

115
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on if there is a problem with Road
Departure Mitigati on system, CMBSTM, Low
Speed Braking Control* or blind spot
information system*.
●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 489●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if the Road Departure Mitigation
system, CMBSTM and Low Speed Braking
Control* are deactivated temporarily after
the battery has been disconnected and
then re-connected.
●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 115 ページ ２０２２年６月２３日　木曜日　午後９時２８分

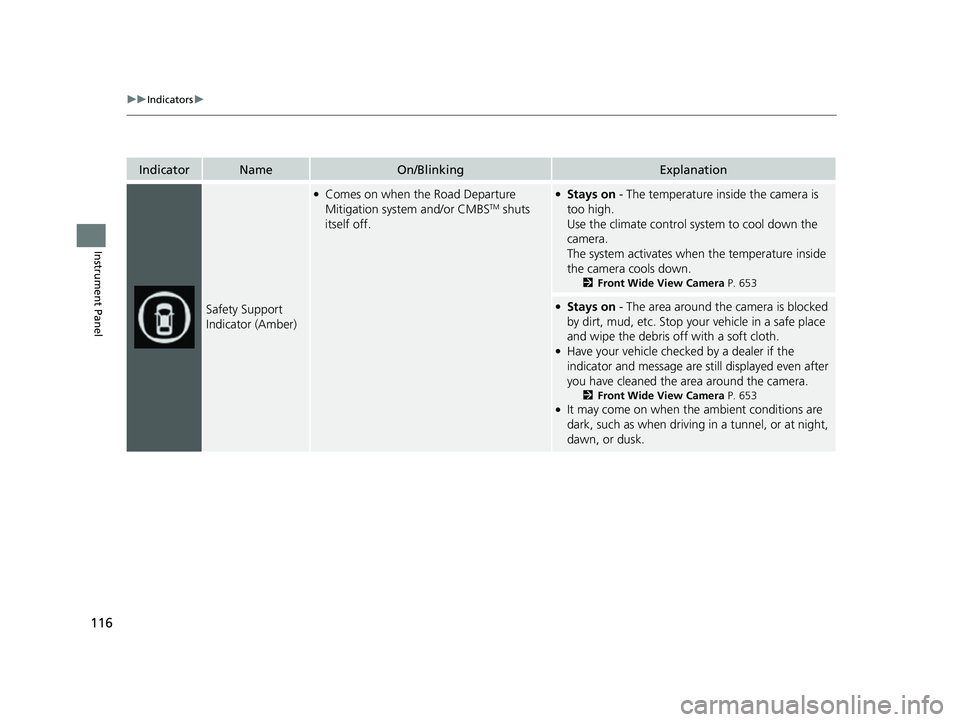

116
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Stays on - The temperature inside the camera is
too high.
Use the climate control sy stem to cool down the
camera.
The system activates when the temperature inside
the camera cools down.
2 Front Wide View Camera P. 653
●Stays on - The area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place
and wipe the debris off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed even after
you have cleaned the area around the camera.
2 Front Wide View Camera P. 653●It may come on when the ambient conditions are
dark, such as when driving in a tunnel, or at night,
dawn, or dusk.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 116 ページ ２０２２年６月２３日　木曜日　午後９時２８分

117
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when mud, snow, or ice
accumulates in the vicinity of the sonar
sensor.
●Remove the obstacle in the vicinity of the sonar
sensor.
2Low Speed Braking Control* P. 567, 573
●Comes on when mud, snow, or ice
accumulates in the vicinity of the blind spot
information system sensor.
●Comes on when the temperature of the
blind spot information system sensor is
high.
●Comes on while driving - Something may be
interfering with th e blind spot information system
sensor. Check the vicinity of the blind spot
information system sensor and remove any
obstacles.
●The system will return to normal when the
temperature cools down.
2 Blind Spot Information System* P. 547
Safety Support
Indicator (Green/
Gray)
●Lights up in green when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control* and blind spot
information system* are on.●Lights up in green and gray when Road
Departure Mitigation system, CMBSTM, Low
Speed Braking Control*, blind spot
information system* or any two or three of
these systems are off.
●Lights up in gray when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control* and blind spot
information system* are off.
2 Road Departure Mitigation system On and Off
P. 642
2 Blind Spot Information System On and Off
P. 549
2 System On and Off P. 570, 575
2 CMBS
TM On and Off P. 559
Models with Low Speed Braking Control
Models with blind spot information system
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 117 ページ ２０２２年６月２３日　木曜日　午後９時２８分

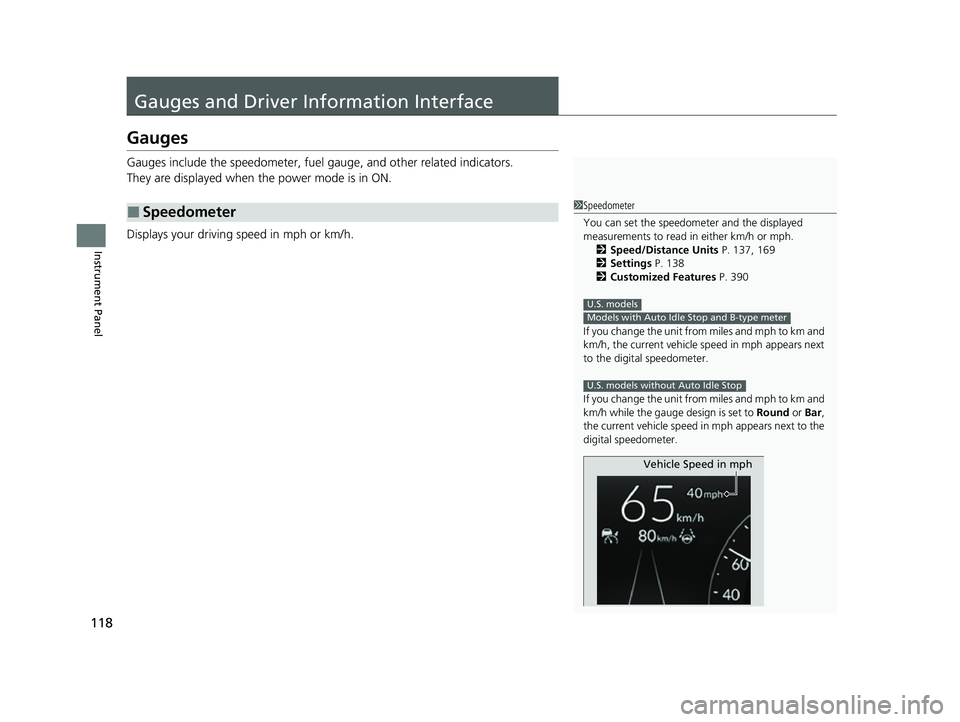

118
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
■Speedometer1Speedometer
You can set the speedometer and the displayed
measurements to read in either km/h or mph.
2 Speed/Distance Units P. 137, 169
2 Settings P. 138
2 Customized Features P. 390
If you change the unit from miles and mph to km and
km/h, the current vehicle speed in mph appears next
to the digital speedometer.
If you change the unit from miles and mph to km and
km/h while the gauge design is set to Round or Bar ,
the current vehicle speed in mph appears next to the
digital speedometer.
U.S. models
Models with Auto Idle Stop and B-type meter
U.S. models without Auto Idle Stop
Vehicle Speed in mph
