Page 601 of 840

Continued599
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving

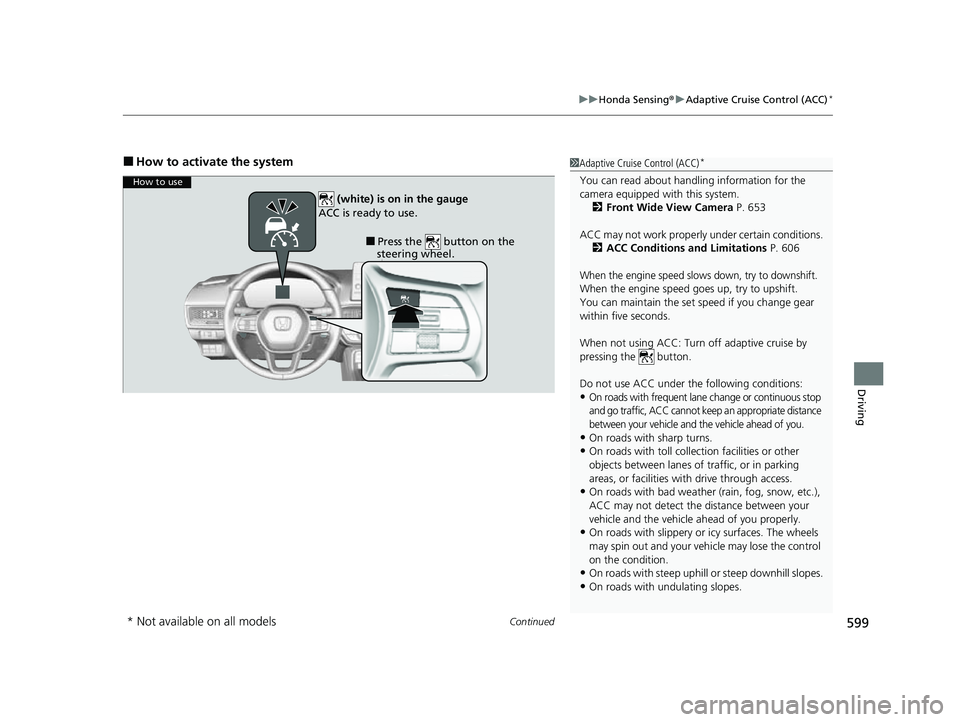

■How to activate the system1Adaptive Cruise Control (ACC)*
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 653
ACC may not work properly under certain conditions.
2 ACC Conditions and Limitations P. 606
When the engine speed slows down, try to downshift.
When the engine speed goes up, try to upshift.
You can maintain the set speed if you change gear
within five seconds.
When not using ACC: Turn off adaptive cruise by
pressing the button.
Do not use ACC under the following conditions:
•On roads with frequent lane change or continuous stop
and go traffic, ACC cannot keep an appropriate distance
between your vehicle and the vehicle ahead of you.
•On roads with sharp turns.•On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or faci lities with driv e through access.
•On roads with bad weather (rain, fog, snow, etc.),
ACC may not detect the distance between your
vehicle and the vehicle ahead of you properly.
•On roads with slippery or icy surfaces. The wheels
may spin out and your vehi cle may lose the control
on the condition.
•On roads with steep uphill or steep downhill slopes.
•On roads with undulating slopes.
How to use
■Press the button on the
steering wheel.
(white) is on in the gauge
ACC is ready to use.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 599 ページ 2022年6月23日 木曜日 午後9時28分
Page 602 of 840

uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
600
DrivingTake your foot off the pedal and press the RES/+/SET/- switch up or down when
you reach the desired speed. The moment y ou release the button, the set speed is
fixed, and ACC begins.
When ACC starts operating, the vehicle ic on, distance bars and set speed appear on
the gauge.
*1 : Models with A-type meter
*2 : Models with B-type meter
*3 : When using the +R gauge
*

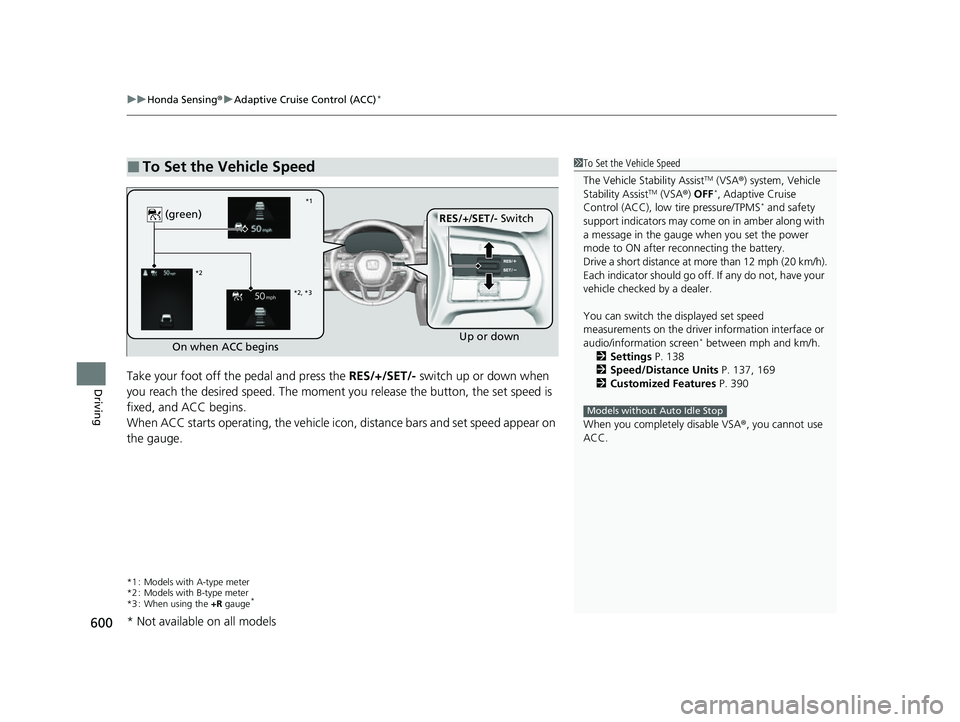

■To Set the Vehicle Speed1To Set the Vehicle Speed
The Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF*, Adaptive Cruise
Control (ACC), low tire pressure/TPMS* and safety
support indicators may come on in amber along with
a message in the gauge when you set the power
mode to ON after re connecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
You can switch the displayed set speed
measurements on the driver information interface or
audio/information screen
* between mph and km/h.
2 Settings P. 138
2 Speed/Distance Units P. 137, 169
2 Customized Features P. 390
When you completely disable VSA® , you cannot use
ACC.
Models without Auto Idle Stop
On when ACC begins Up or down
RES/+
/SET/- Switch
(green)
*1
*2
*2, *3
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 600 ページ 2022年6月23日 木曜日 午後9時28分
Page 603 of 840

601
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Continued
Driving
When you use ACC, Straight Driving Assist (a
feature of the Electric Power Steering system)
is activated.
By enabling the steering system to
automatically compensate for natural steering
pull, Straight Driving Assist makes it easier for
you to keep your vehicle in a straight line.
*1 : When using the +R gauge
Set Vehicle Speed
Set Vehicle Interval
Models with A-type meter
(green)
Models with B-type meter
Set Vehicle Interval
Set Vehicle Speed
(green)
Set Vehicle Interval
Models without Auto Idle Stop
Set Vehicle Speed
(green)
*1
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 601 ページ 2022年6月23日 木曜日 午後9時28分
Page 604 of 840

uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
602
Driving

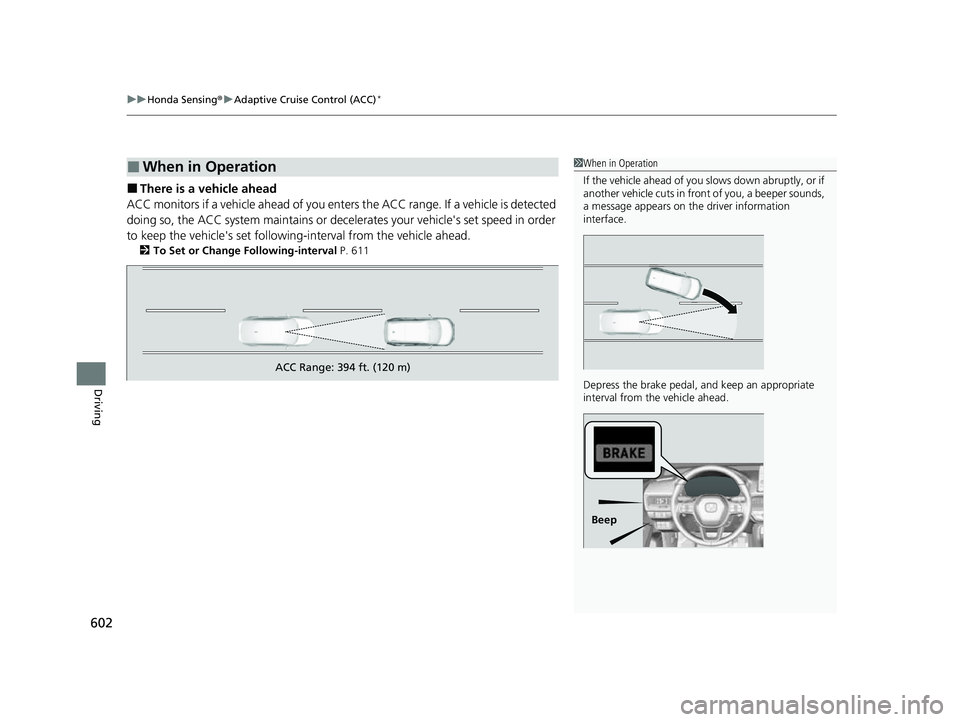

■There is a vehicle ahead
ACC monitors if a vehicle ahead of you ente rs the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decele rates your vehicle's set speed in order
to keep the vehicle's se t following-interval from the vehicle ahead.
2To Set or Change Following-interval P. 611
■When in Operation1When in Operation
If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, a beeper sounds,
a message appears on th e driver information
interface.
Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.
Beep
ACC Range: 394 ft. (120 m)
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 602 ページ 2022年6月23日 木曜日 午後9時28分
Page 605 of 840

Continued603
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving

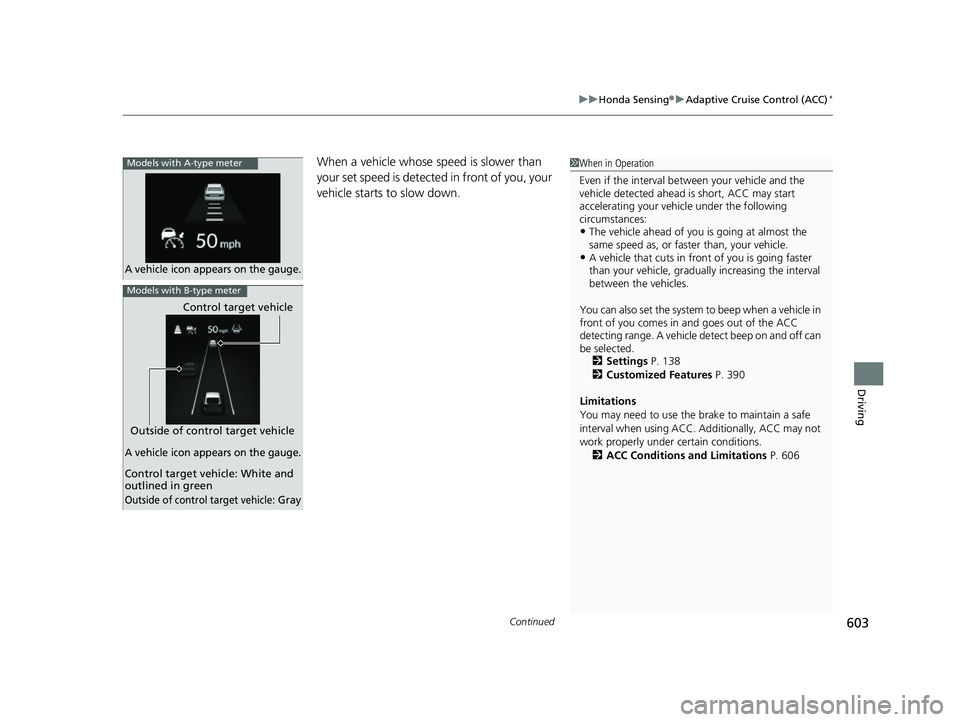

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.1 When in Operation
Even if the interval betw een your vehicle and the
vehicle detected ahead is short, ACC may start
accelerating your vehicle under the following
circumstances:
•The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.
•A vehicle that cuts in front of you is going faster
than your vehicle, gradua lly increasing the interval
between the vehicles.
You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC
detecting range. A vehicle detect beep on and off can
be selected. 2 Settings P. 138
2 Customized Features P. 390
Limitations
You may need to use the brake to maintain a safe
interval when using ACC. Additionally, ACC may not
work properly under certain conditions.
2 ACC Conditions and Limitations P. 606A vehicle icon appears on the gauge.
Models with A-type meter
Control target vehicle
Outside of control target vehicle
Models with B-type meter
A vehicle icon appears on the gauge.
Control target vehicle: White and
outlined in green
Outside of control target vehicle: Gray
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 603 ページ 2022年6月23日 木曜日 午後9時28分
Page 606 of 840

uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
604
Driving
*1 : When using the +R gauge

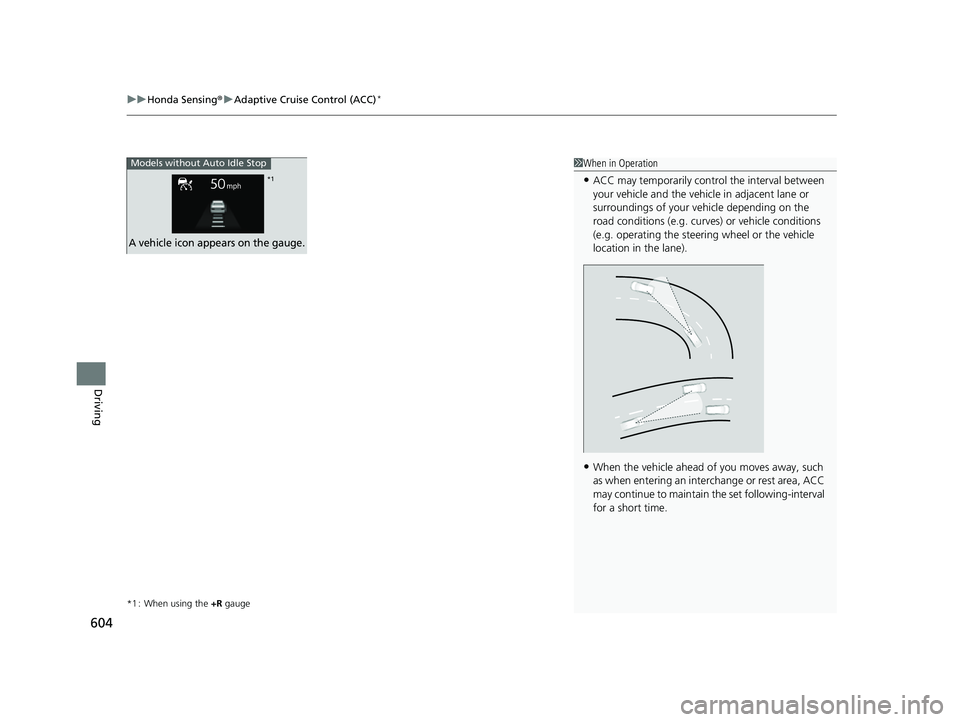

1When in Operation
•ACC may temporarily contro l the interval between
your vehicle and the vehicl e in adjacent lane or
surroundings of your vehicle depending on the
road conditions (e.g. curv es) or vehicle conditions
(e.g. operating the steeri ng wheel or the vehicle
location in the lane).
•When the vehicle ahead of you moves away, such
as when entering an interchange or rest area, ACC
may continue to maintain the set following-interval
for a short time.
Models without Auto Idle Stop
A vehicle icon appears on the gauge.
*1
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 604 ページ 2022年6月23日 木曜日 午後9時28分
Page 607 of 840

605
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Continued
Driving

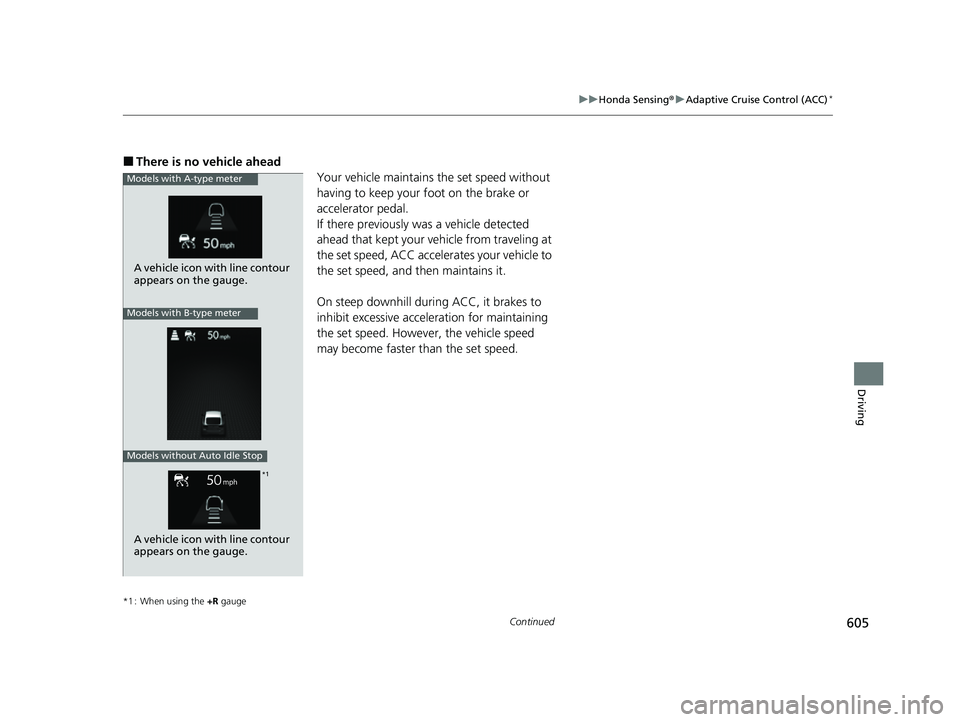

■There is no vehicle ahead
Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC accelerates your vehicle to
the set speed, and then maintains it.
On steep downhill during ACC, it brakes to
inhibit excessive acceleration for maintaining
the set speed. However, the vehicle speed
may become faster than the set speed.
*1 : When using the +R gauge
Models with A-type meter
A vehicle icon with line contour
appears on the gauge.
Models with B-type meter
Models without Auto Idle Stop
*1
A vehicle icon with line contour
appears on the gauge.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 605 ページ 2022年6月23日 木曜日 午後9時28分

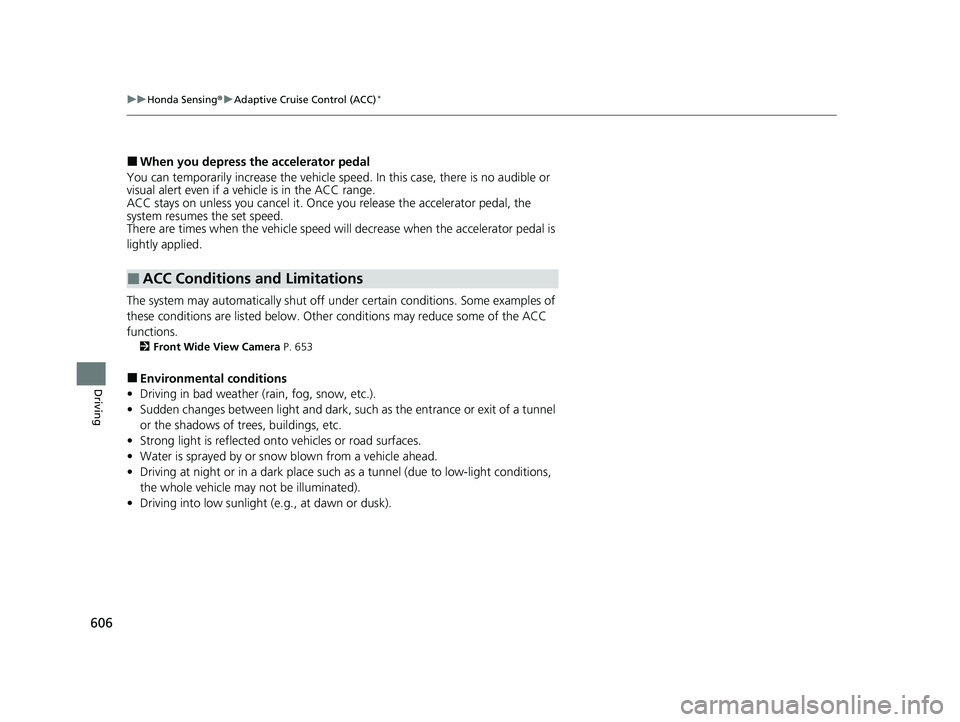

Page 608 of 840

606
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving
■When you depress the accelerator pedal
You can temporarily increase the vehicle speed. In this ca se, there is no audible or
visual alert even if a ve hicle is in the ACC range.
ACC stays on unless you cancel it. Once you release the accelerator pedal, the
system resumes the set speed.
There are times when the vehicle speed will decrease when the accelerator pedal is
lightly applied.
The system may automatically shut off under certain conditions. Some examples of
these conditions are listed below. Other conditions may reduce some of the ACC
functions.
2 Front Wide View Camera P. 653
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Strong light is reflected onto vehicles or road surfaces.
• Water is sprayed by or snow blown from a vehicle ahead.
• Driving at night or in a dark place such as a tunnel (due to low-light conditions,
the whole vehicle may not be illuminated).
• Driving into low sunlight (e.g., at dawn or dusk).
■ACC Conditions and Limitations
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 606 ページ 2022年6月23日 木曜日 午後9時28分
Page 609 of 840

607
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Continued
Driving

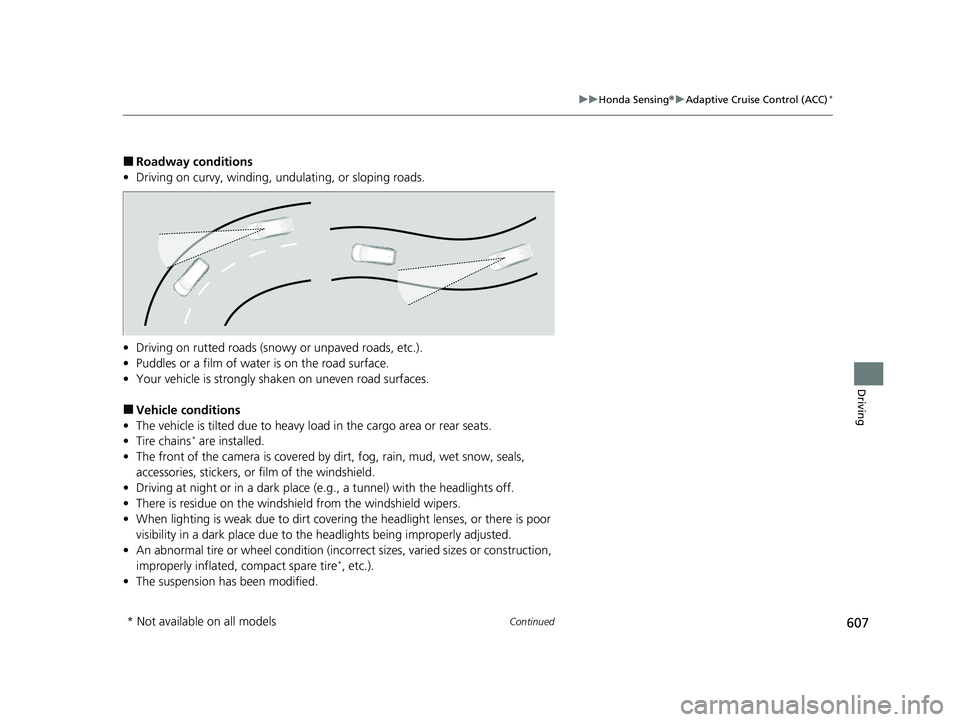

■Roadway conditions
• Driving on curvy, winding, undulating, or sloping roads.
• Driving on rutted roads (snowy or unpaved roads, etc.).
• Puddles or a film of water is on the road surface.
• Your vehicle is strongly shaken on uneven road surfaces.
■Vehicle conditions
• The vehicle is tilted due to heavy load in the cargo area or rear seats.
• Tire chains
* are installed.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film of the windshield.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
• There is residue on the windshie ld from the windshield wipers.
• When lighting is weak due to dirt coveri ng the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• An abnormal tire or wheel condition (inco rrect sizes, varied sizes or construction,
improperly inflated, compact spare tire
*, etc.).
• The suspension has been modified.
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 607 ページ 2022年6月23日 木曜日 午後9時28分
Page 610 of 840

608
uuHonda Sensing ®u Adaptive Cruise Control (ACC)*
Driving

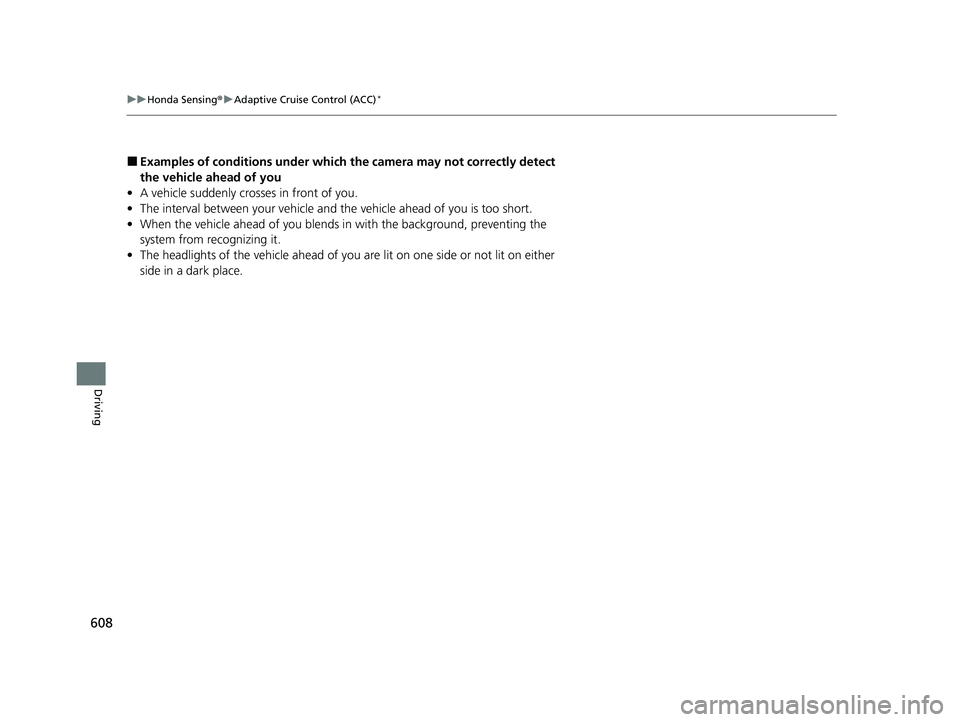

■Examples of conditions under which the camera may not correctly detect
the vehicle ahead of you
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• When the vehicle ahead of you blends in with the background, preventing the
system from recognizing it.
• The headlights of the vehicle ahead of you are lit on one side or not lit on either
side in a dark place.
