HONDA CIVIC COUPE 1999 Workshop Manual

Safety Labels

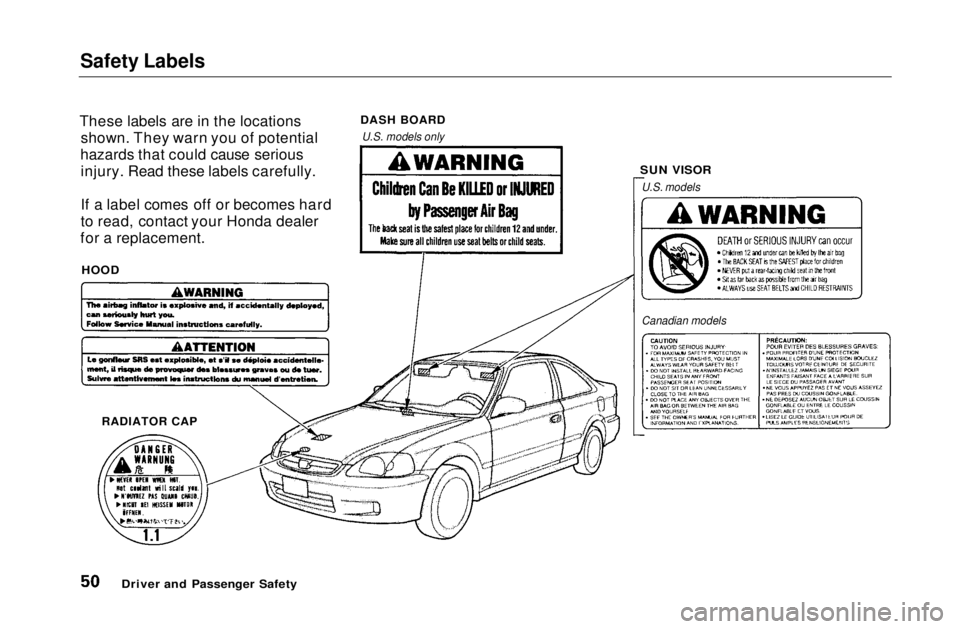

These labels are in the locations shown. They warn you of potential
hazards that could cause serious injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Honda dealer
for a replacement.

HOOD
DASH BOARD

U.S. models only

SUN VISOR
U.S. models
Canadian models

RADIATOR CAP

Driver and Passenger SafetyMain Menu Table of Contents s t

Instruments and Controls

This section gives information about
the controls and displays thatcontribute to the daily operation of

your Honda. All the essential
controls are within easy reach.
Control Locations............................ 52

Indicator Lights................................ 53
Gauges.............................................. 57
Speedometer................................ 57

Tachometer.................................. 57
Odometer...................................... 57
Trip Meter.................................... 57
Fuel Gauge................................... 58

Temperature Gauge.................... 58
Maintenance Required
Indicator.................................... 59

Controls Near the Steering Wheel........................................ 60
Headlights.................................... 61
Daytime Running Lights............. 61
Instrument Panel Brightness..... 62
Turn Signals................................. 62
Windshield Wipers...................... 63

Windshield Washers................... 63
Hazard Warning........................... 64

Rear Window Defogger.............. 64

Steering Wheel Adjustment....... 65

Steering Wheel Controls ................ 66 Cruise Control.............................. 66
Keys and Locks................................ 69
Keys.............................................. 69
Ignition Switch............................. 69

Door Locks................................... 70
Power Door Locks....................... 71

Remote Transmitter.................... 72

Trunk............................................ 75

Seat Adjustments............................. 76
Front Seat Adjustments.............. 76

Rear Seat Access......................... 77

Head Restraints........................... 77

Folding Rear Seat............................ 78

Power Windows............................... 79

Moonroof.......................................... 81

Mirrors.............................................. 81
Adjusting the Power Mirrors..... 82

Parking Brake.................................. 83 Glove Box......................................... 83
Beverage Holder.............................. 84
Accessory Power Socket................ 85
Ashtrays............................................ 85
Interior Light.................................... 86

Instruments and ControlsMain Menu s t

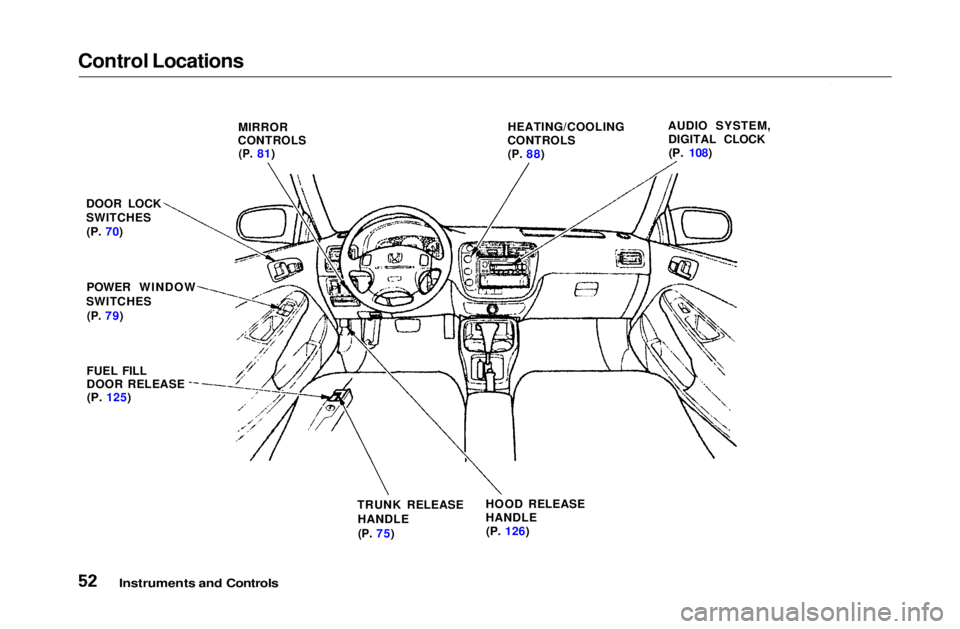

Control Locations

MIRROR
CONTROLS
(P.
81) HEATING/COOLING
CONTROLS
(P.
88) AUDIO SYSTEM,
DIGITAL CLOCK(P. 108)
DOOR LOCK
SWITCHES (P. 70)
POWER WINDOW
SWITCHES
(P.
79)
FUEL FILL
DOOR RELEASE (P. 125)
TRUNK RELEASEHANDLE
(P.
75) HOOD RELEASE
HANDLE
(P. 126)

Instruments and ControlsMain Menu Table of Contents s t

Indicator Lights

The instrument panel has many indicators to give you important
information about your car.
Instruments and Controls

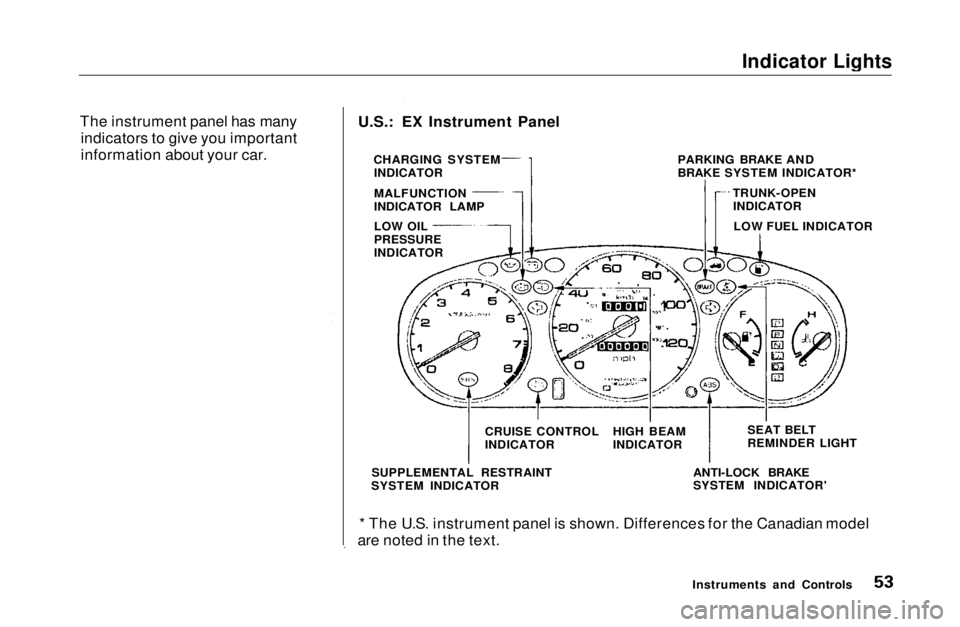

U.S.: EX Instrument Panel
CHARGING SYSTEMINDICATOR
MALFUNCTION
INDICATOR LAMP
LOW OIL
PRESSURE
INDICATOR
CRUISE CONTROL
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR HIGH BEAM
INDICATOR
SEAT BELT
REMINDER LIGHT
ANTI-LOCK BRAKE
SYSTEM INDICATOR'
* The U.S. instrument panel is shown. Differences for the Canadian model
are noted in the text. PARKING BRAKE AND
BRAKE SYSTEM INDICATOR*
TRUNK-OPENINDICATOR
LOW FUEL INDICATORMain Menu Table of Contents s t

Indicator Lights

* Differences in the indicators for Canadian models are noted in the text. Seat Belt Reminder Light
This indicator lights when you turn the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by fastening the seat belts. A beeper also sounds
if you have not fastened your seat

belt.

If you do not fasten your seat belt,
the beeper will stop after a few seconds but the light stays on until
you do. Both the light and the beeper stay off if you fasten your seat belt
before turning on the ignition.

Supplemental Restraint

System Indicator

This indicator lights when you turn the ignition switch ON (II). If itcomes on at any other time, it
indicates a problem in thesupplemental restraint system. For
complete information, see page 47.
Instruments and Controls

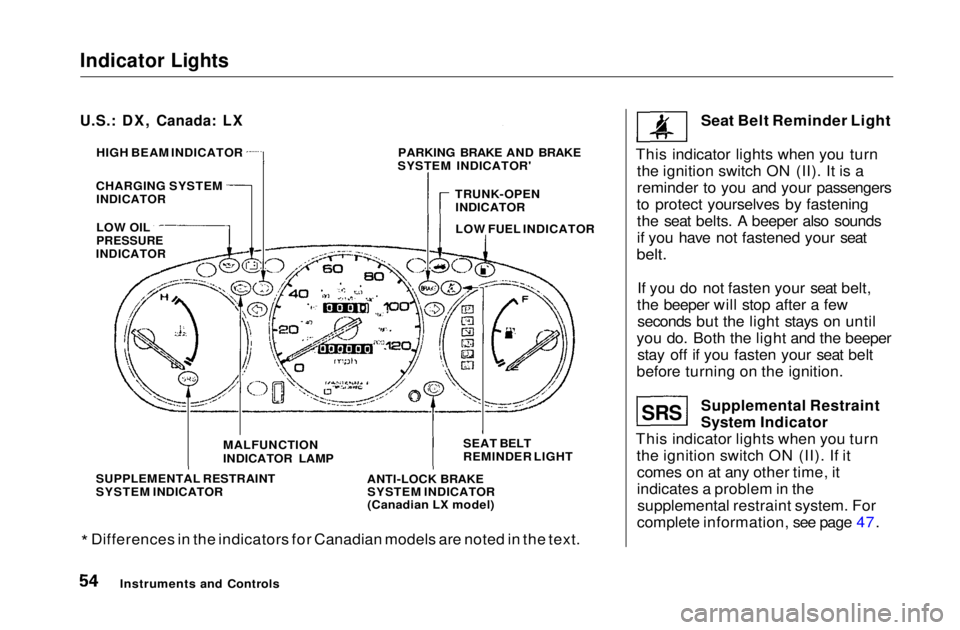

U.S.: DX, Canada: LX

HIGH BEAM INDICATOR
CHARGING SYSTEM
INDICATOR

LOW OIL

PRESSURE

INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR'
TRUNK-OPENINDICATOR
LOW FUEL INDICATOR
SEAT BELT
REMINDER LIGHT
ANTI-LOCK BRAKE SYSTEM INDICATOR
(Canadian LX model)
MALFUNCTION
INDICATOR LAMP
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
SRSMain Menu Table of Contents s t

Indicator Lights

Charging System
Indicator
If this light comes on when the
engine is running, the battery is not

being charged. For complete
information, see page 232.

Low Oil Pressure
Indicator

The engine can be severely damaged
if this light flashes or stays on when
the engine is running. For complete

information, see page 232.

High Beam Indicator
This light comes on with the high beam headlights. See page 61 for
information on the headlight

controls.

On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights (DRL) are on (see page 61). Parking Brake
and Brake

System

Indicator
This light has two functions:
1. It lights as a reminder that you have not released the parking
brake. Driving with the parking
brake applied can damage the
brakes and tires.
2. If it remains lit after you release the parking brake while the engineis running, or comes on while
driving, it can indicate a problem
in the brake system. For complete information, see page 234 .
Malfunction Indicator
Lamp

See page 233.
Anti-lock Brake
System (ABS)Indicator
Only on cars equipped with ABS (see
page 153)
This light normally comes on for a few seconds when you turn theignition switch ON (II), and when
the ignition switch is turned to START (III). If this light comes on at
any other time, there is a problem in
the ABS. If this happens, take the car to your dealer to have it checked.
With the light on, your car still has normal braking ability but no anti-
lock.

Instruments and Controls

U.S.


Canada

BRAKE
ABS
U.S.


CanadaMain Menu Table of Contents s t

Indicator Lights

Turn Signal andHazard Warning
Indicators
The left or right turn signal light blinks when you signal a lane changeor turn. If the light does not blink or
blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 205). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
When you turn on the Hazard
Warning switch, both turn signal lights blink. All turn signals on theoutside of the car should flash.
Trunk-open Indicator
This light comes on if the trunk lid is not closed tightly.
Low Fuel Indicator
This light comes on as a reminder that you must refuel soon. Cruise Control Indicator
Only on models equipped with Cruise
Control System
This lights when you set the cruise control. See page 66 for information
on operating the cruise control.
Washer Level Indicator

Canadian models only

This light comes on when the washer fluid level is low. Add washerfluid when you see this light come on (see page 180).
Instruments and Controls
CRUISE
CONTROLMain Menu Table of Contents s t

Gauges

Speedometer U.S. Models

This shows your speed in miles per
hour (mph). The smaller inner

numbers are the speed in kilometers

per hour (km/h).

Canadian Models
This shows your speed in kilometers per hour (km/h). The smaller innernumbers are the speed in miles per hour (mph).
Tachometer
On HX, EX, and Si models in the U.S.,
and Si and SiR models in Canada

The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone. Odometer
The odometer shows the total dis- tance your car has been driven. Itmeasures miles in U.S. models and
kilometers in Canadian models. It is illegal under U.S. federal law andCanadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.

Trip Meter
This meter shows the number of miles (U.S.) or kilometers (Canada)driven since you last reset it. To

reset it, push the trip meter reset

button.
Instruments and Controls

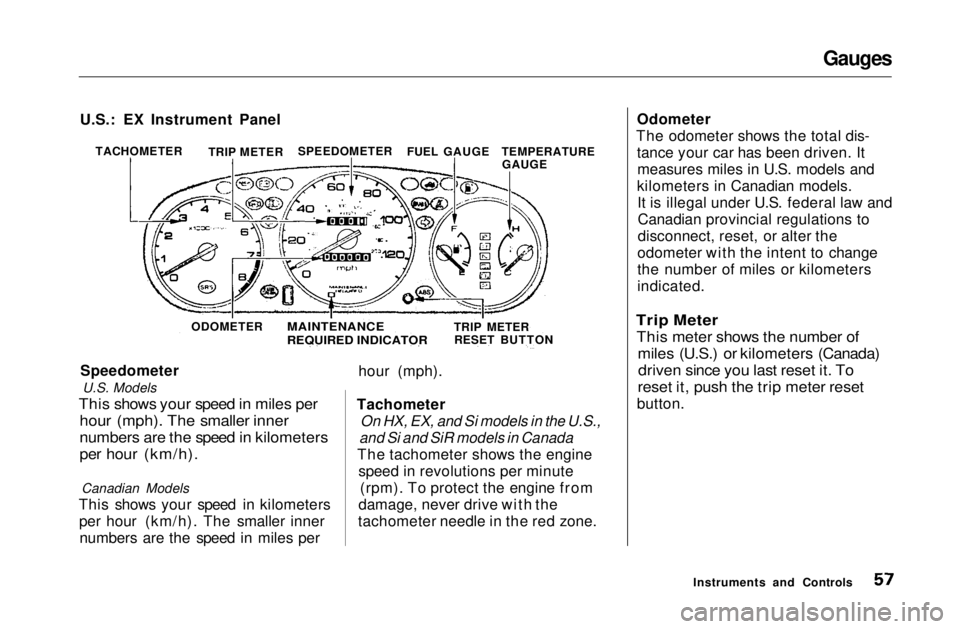

U.S.: EX Instrument Panel
TACHOMETER TRIP METERSPEEDOMETER
FUEL GAUGETEMPERATURE
GAUGE
ODOMETER
MAINTENANCE
REQUIRED INDICATOR
TRIP METER
RESET BUTTONMain Menu Table of Contents s t

Gauges

Fuel Gauge
This shows how much fuel you have. It is most accurate when the car is on
level ground. It may show slightlymore or less than the actual amount
when you are driving on curvy or hilly roads. The gauge stays at the same fuel
level reading after you turn off the
ignition. When you add fuel, the
gauge slowly changes to the new
reading after you turn the ignitionswitch back ON (II). Temperature Gauge
This shows the temperature of the
engine's coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe driving conditions, such as very hot
weather or a long period of uphill driving, the pointer may rise to the
upper blue zone. If it reaches the red (Hot) mark, pull safely to the side of
the road. Turn to page 229 for
instructions and precautions on checking the engine's cooling

system.

Instruments and Controls

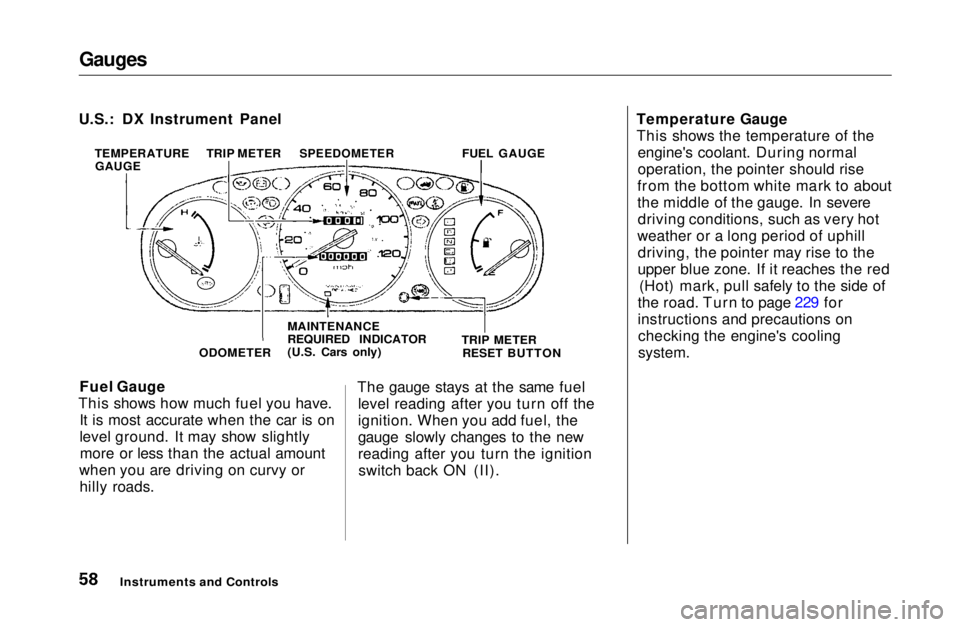

U.S.: DX Instrument Panel
TEMPERATUREGAUGE TRIP METER

SPEEDOMETER
FUEL GAUGE
ODOMETER MAINTENANCE
REQUIRED INDICATOR
(U.S. Cars only)
TRIP METER
RESET BUTTONMain Menu Table of Contents s t

Gauges

Maintenance Required Indicator

U.S. Models

This indicator reminds you that it is nearing 7,500 miles (12,000 km)since the last scheduled maintenance.
Refer to the Maintenance Schedules
for Normal and Severe Driving Conditions on pages 162 —166. When the distance driven since the
last scheduled maintenance nears
7,500 miles (12,000 km), the
indicator will turn yellow. If you
exceed 7,500 miles (12,000 km), the
indicator will turn red.

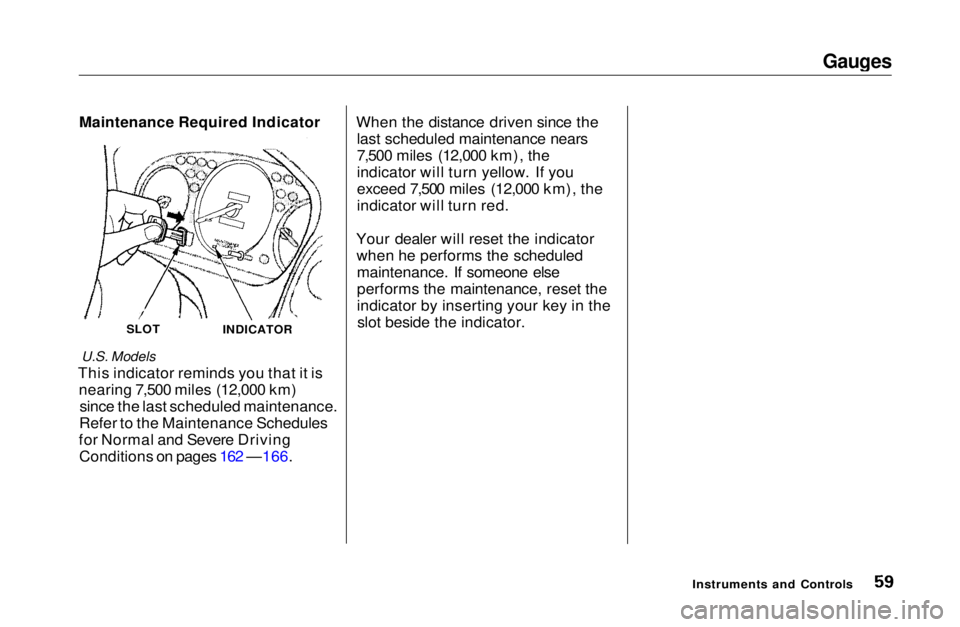

Your dealer will reset the indicator when he performs the scheduledmaintenance. If someone else
performs the maintenance, reset the
indicator by inserting your key in theslot beside the indicator.
Instruments and Controls

INDICATOR

SLOTMain Menu Table of Contents s t
