HONDA CIVIC COUPE 1999 Owners Manual

Heating and Cooling

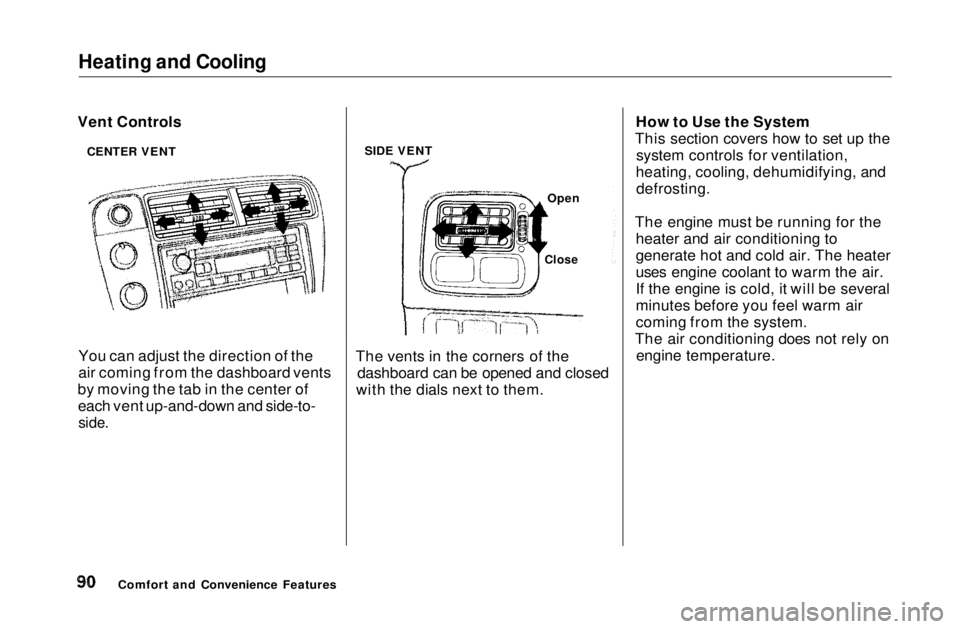

Vent Controls
You can adjust the direction of the
air coming from the dashboard vents
by moving the tab in the center of each vent up-and-down and side-to-
side.
The vents in the corners of the
dashboard can be opened and closed
with the dials next to them. How to Use the System
This section covers how to set up the system controls for ventilation,
heating, cooling, dehumidifying, and defrosting.
The engine must be running for the heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes before you feel warm air
coming from the system.
The air conditioning does not rely on engine temperature.
Comfort and Convenience Features
CENTER VENT
SIDE VENT
Open

CloseMain Menu Table of Contents s t

Heating and Cooling

It is best to leave the system in Fresh
Air mode under almost all conditions. Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or dusty conditions, then switch back to
Fresh Air mode when the condition

clears.

The outside air intakes for the heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.
MODE CONTROL DIAL
TEMPERATURE CONTROL DIAL FAN CONTROL
DIAL
AIR CONDITIONING

BUTTON

Ventilation

The flow-through ventilation system draws in outside air, circulates it
through the interior, then exhausts it through vents near the rear window. 1. Turn the temperature control dial
all the way to the left.
Make sure the A/C is off.
2. Select
and Fresh Air mode.
3. Set the fan to the desired speed.

CONTINUED

Comfort and Convenience Features

RECIRCULATION

BUTTONMain Menu Table of Contents s t

Heating and Cooling

To Cool with A/C

1. Turn on the A/C by pressing the button. The light in the buttonshould come on when a fan speed
is selected.
2. Make sure the temperature control dial is all the way to the left. 3. Select
4. If the outside air is humid, select
Recirculation mode. If the outsideair is dry, select Fresh Air mode.
5. Set the fan to the desired speed.
If the interior is very warm from
being parked in the sun, you can cool it down more rapidly by setting up
the controls this way:
1. Start the engine.
2. Turn on the A/C by pressing the button. Make sure the tempera-
ture control dial is all the way to
the left.
3. Set the fan to maximum speed.
4. Open the windows partially. Select and Fresh Air mode.

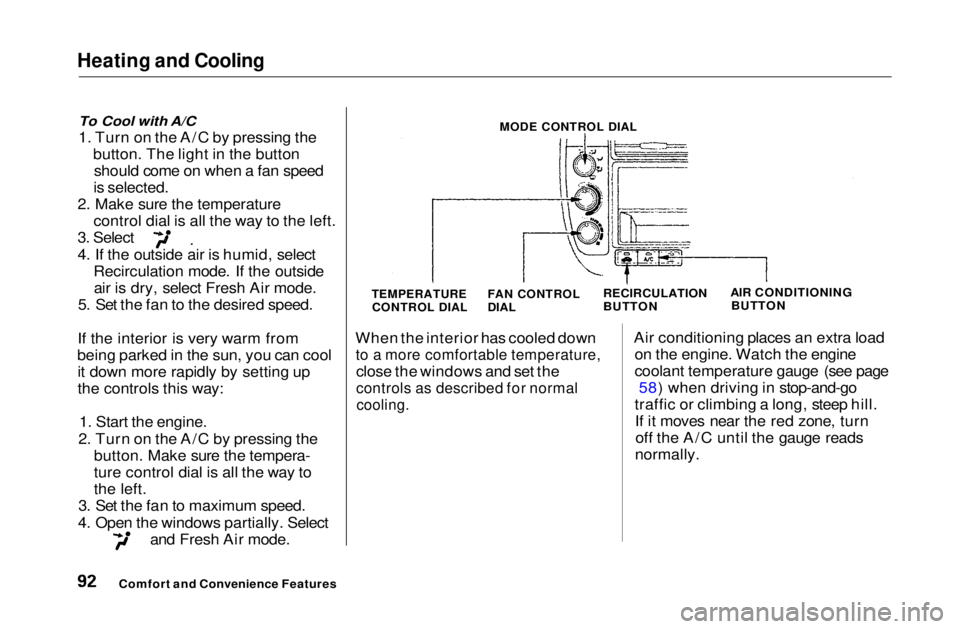

MODE CONTROL DIAL

TEMPERATURE
CONTROL DIAL
FAN CONTROL
DIAL
RECIRCULATION

BUTTON AIR CONDITIONING
BUTTON
When the interior has cooled down
to a more comfortable temperature,
close the windows and set the

controls as described for normal
cooling.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page 58) when driving in stop-and-go
traffic or climbing a long, steep hill. If it moves near the red zone, turnoff the A/C until the gauge reads
normally.
Comfort and Convenience FeaturesMain Menu Table of Contents s t

Heating and Cooling

To Heat

To warm the interior:
1. Start the engine. 2. Select and Fresh Air mode.
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with the temperature control dial.
To Heat and Dehumidify with Air
Conditioning

Air conditioning, as it cools, removes moisture from the air. When used incombination with the heater, it
makes the interior warm and dry.
1. Switch the fan on.
2. Turn on the air conditioning. 3. Select and Fresh Air mode.
4. Adjust the temperature control
dial so the mixture of heated and
cooled air feels comfortable.
This setting is suitable for all driving conditions whenever the outside
temperature is above 32° F (0°C).
To Defog and Defrost

To remove fog from the inside of the
windows:

1. Switch the fan on. 2. Select
When you select the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Adjust the temperature control dial so the air flow from the
defroster vents feels warm.

4. Turn on the rear window defogged
to help clear the rear window.
When you switch to another mode

from the A/C stays on.
Press the A/C button to turn it off.

CONTINUED

Comfort and Convenience FeaturesMain Menu Table of Contents s t

Heating and Cooling

To remove exterior frost or ice from the windshield and side windowsafter the car has been sitting out in
cold weather:
1. Start the engine.
2. Select When you select the
system automatically switches to
Fresh Air mode and turns on the
A/C.
3. Switch the fan and temperature controls to maximum.
To rapidly remove exterior frost or ice from the windshield (on very colddays), first select the Recirculation
mode. Once the windshield is clear,select the Fresh Air mode to avoid
fogging the windows. MODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL RECIRCULATION
BUTTON
AIR CONDITIONING
BUTTON

Comfort and Convenience Features FAN CONTROL
DIALMain Menu Table of Contents s t

Heating and Cooling

These settings direct all the air flow to the defroster vents at the base of
the windshield and the side windowdefroster vents. The air flow will get
warmer and clear the windows faster as the engine warms up. You can
close the side vents with the dial
beside each vent. This will send
more warm air to the windshield defroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away. To Turn Everything Off
To shut off the system temporarily,
turn the fan speed and temperature
control dials all the way to the left.
You should shut the system completely off only for the first few
minutes of driving in cold weather,
until the engine coolant warms up enough to operate the heater. Keep
the fan on at all other times so stale air does not build up in the interior.

Comfort and Convenience FeaturesMain Menu Table of Contents s t

Audio System

On DX and HX models in the U.S., and
the DX model in Canada

AM/FM Stereo Audio System

Your Honda's audio system provides clear reception on both AM and FM

bands, while the preset buttons allow

you to easily select your favorite
stations.
Operating the Radio

The ignition switch must be in ACCESSORY (I) or ON (II) to operate the audio system. Turn thesystem on by pressing the PWR/
VOL knob or the AM/FM button.
Adjust the volume by turning the knob.
The band and frequency that the radio was last tuned to is displayed.
To change bands, press the AM/FM button. On the FM band, ST will bedisplayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
You can use any of three methods to find radio stations on the selected
band: TUNE, SEEK, or the Preset

buttons.

TUNE — Use the TUNE/SEEK bar to tune the radio to a desired frequency. Press the right side ( )
to tune to a higher frequency, or the left side ( ) to tune to a lower
frequency. The frequency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired frequency. To change the
frequency in small increments, press and release the TUNE/SEEK barquickly.
SEEK — The SEEK function searches the band for a station with
a strong signal. To activate it, press
the TUNE/SEEK bar until you hear a beep, then release it. Depending on
which side of the bar you press, the system scans upward or downward
from the current frequency. It stops
when it finds a station with a strong
signal.

Preset — You can store the fre- quencies of your favorite radio
stations in the six preset buttons.
Each button will store one frequency on the AM band, and two on the FM

band.

Comfort and Convenience FeaturesMain Menu Table of Contents s t

Audio System

To store a frequency: 1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset

button.

2. Use the TUNE or SEEK function to tune the radio to a desired
station.

3. Pick the Preset button you want for that station. Press the buttonand hold it until you hear a beep.
4. Repeal steps 1 to 3 to store a total of six stations on AM and twelve
on FM.
Once a station's frequency is stored,
simply press and release the proper
Preset button to tune to it.
The preset frequencies will be lost if your car's battery goes dead, is disconnected, or the radio fuse is

removed.
U.S. :DX and HX models
Canada: DX model

PWR/VOL KNOB
STEREO INDICATOR

TUNE/SEEK BAR
PRESET BUTTONS

Comfort and Convenience Features AM/FM BUTTONMain Menu Table of Contents s t

Audio System

Adjusting the Sound
Bass, Treble, Balance, and Fader are

each adjustable. You select which of
these you want to adjust by pressing
the MODE button. The mode changes from BAS to TRE to FAD to
BAL, and then back to VOL each
time you press the button. Each
mode is shown in the display as it

changes.

Balance/Fader — These two
modes adjust the strength of the sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.

Select BAL or FAD by pressing the
MODE button. Adjust the Balance or
Fader to your liking by turning the
PWR/VOL knob. The indicator bars
on the display show you the range. MODE BUTTON
PWR/VOL KNOB
Treble/Bass — Use these modes to adjust the tone to your liking. Select
TRE or BAS by pressing the MODE button. Adjust the desired mode by
turning the PWR/VOL knob. Theindicator bars on the display show
you the range. As you adjust a mode, you will hear a
beep whenever the indicator barreaches the center, far left, and far
right of its range. The system will automatically return the display to
normal mode about seven seconds
after you stop adjusting a mode with
the PWR/VOL knob.

Radio Frequencies and Reception

For information, See page 120.

Comfort and Convenience FeaturesMain Menu Table of Contents s t

Audio System

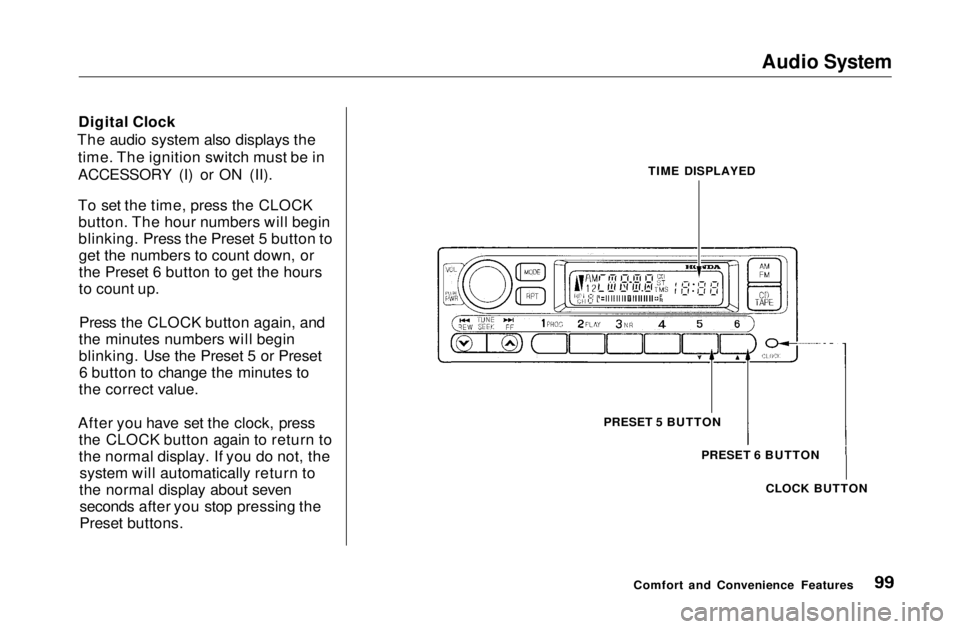

Digital Clock
The audio system also displays the time. The ignition switch must be in
ACCESSORY (I) or ON (II).
To set the time, press the CLOCKbutton. The hour numbers will begin
blinking. Press the Preset 5 button toget the numbers to count down, or
the Preset 6 button to get the hours
to count up.
Press the CLOCK button again, and
the minutes numbers will begin
blinking. Use the Preset 5 or Preset 6 button to change the minutes to
the correct value.
After you have set the clock, press the CLOCK button again to return to
the normal display. If you do not, thesystem will automatically return to
the normal display about seven seconds after you stop pressing the
Preset buttons.
Comfort and Convenience FeaturesTIME DISPLAYED
PRESET 5 BUTTON PRESET 6 BUTTON
CLOCK BUTTONMain Menu Table of Contents s t
